Professional gepon 24 ports triple play onu POE supply fttx solutions
- Категория: Telecommunications >>>
- Поставщик: HiOSO,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 16046.87 $* | 16367.92 $* |
| Jul-16-2025 | 13014.62 $* | 13274.67 $* |
| Jun-16-2025 | 15794.96 $* | 16110.35 $* |
| May-16-2025 | 15667.96 $* | 15980.43 $* |
| Apr-16-2025 | 12509.61 $* | 12759.49 $* |
| Mar-16-2025 | 15415.24 $* | 15723.85 $* |
| Feb-16-2025 | 15288.95 $* | 15594.9 $* |
| Jan-16-2025 | 15162.16 $* | 15465.94 $* |
Характеристики
Professional pon gepon triple play onu with CE certificate

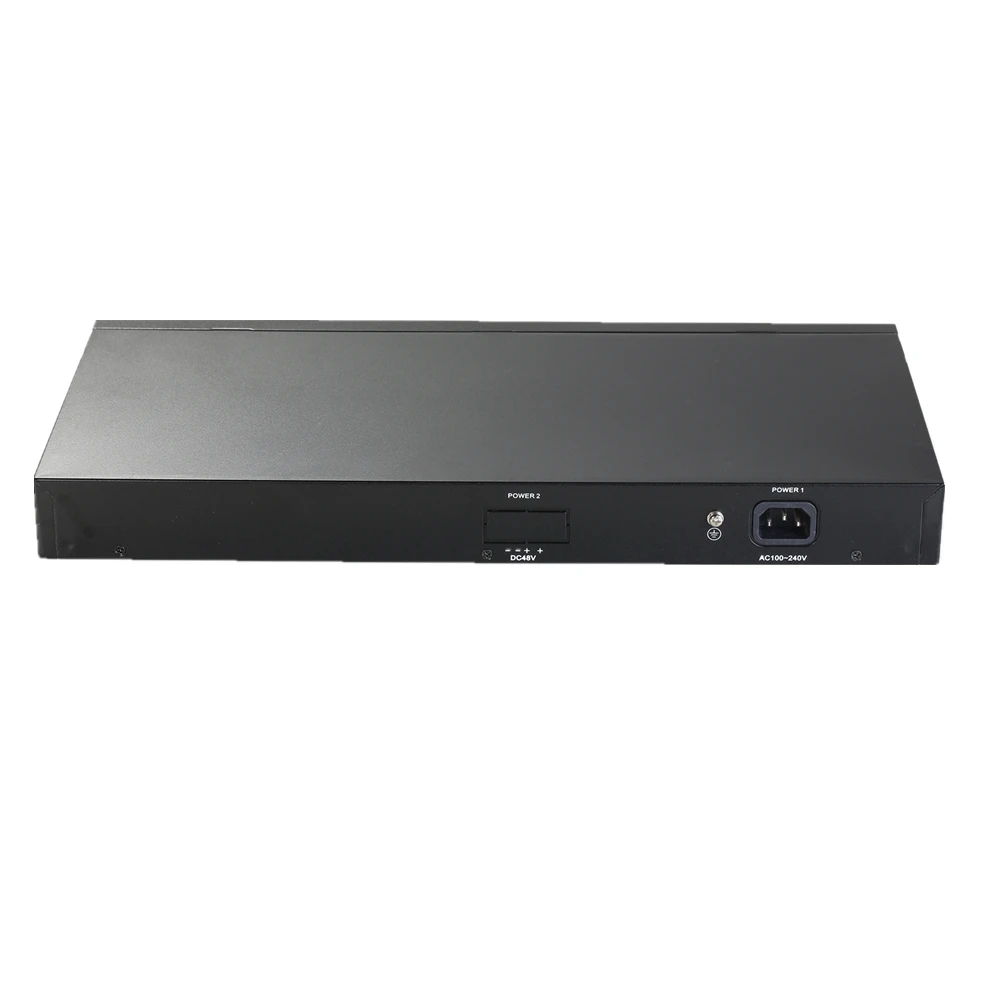

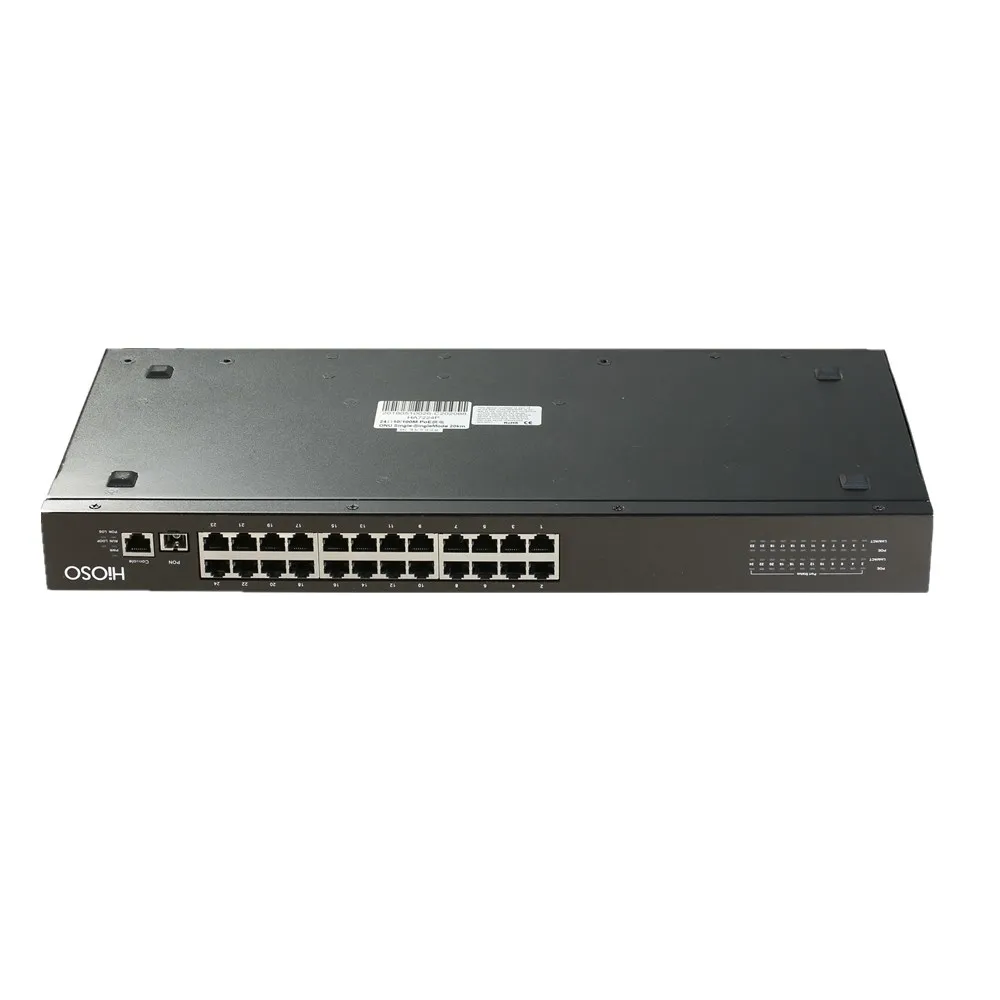

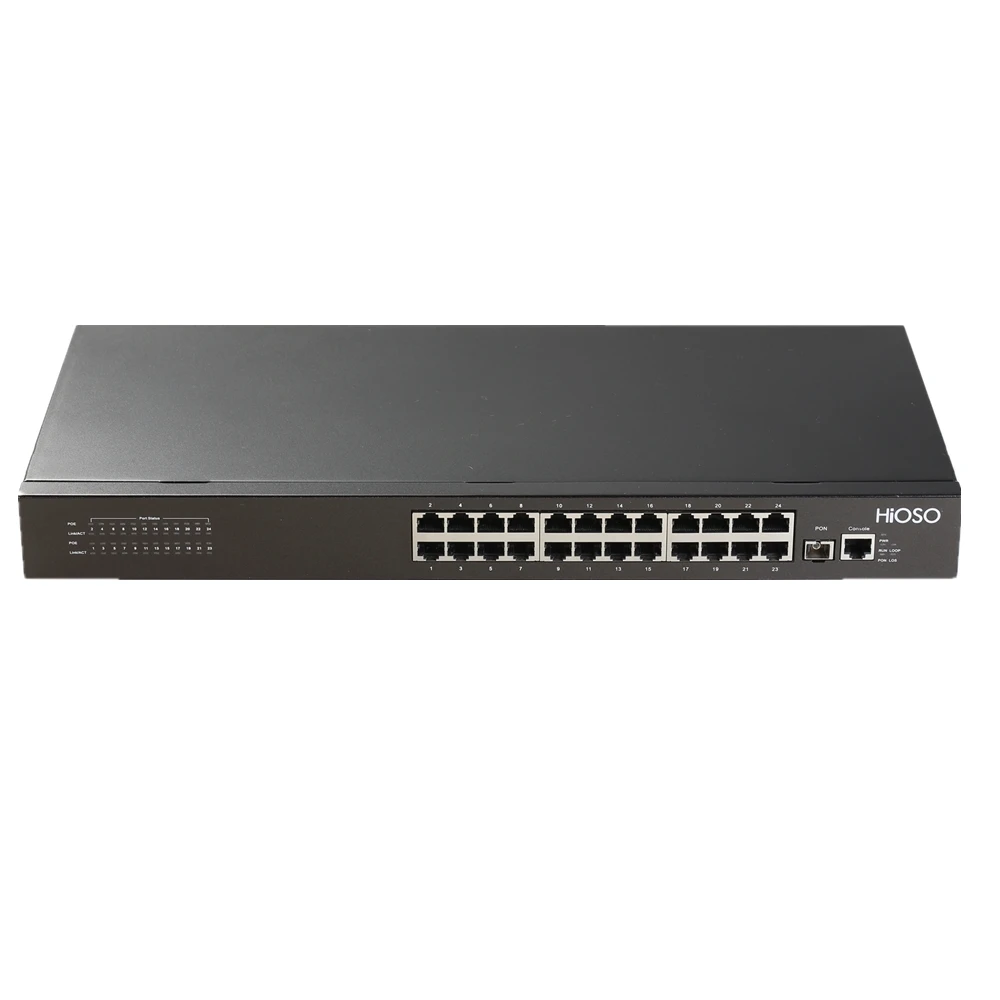

HA7224P 24 10/100M PoE ONU
Feature
n Support IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards
n Support auto discovery and auto register (real-time operation)
n Support DBA and multi types SLA; Support IEEE802.1D RSTP
n Support IGMP Snooping V2 multi-broadcast function
n Support EMI and ESD identification Support VLAN
n Support user end auto time synchronization based at SNTP
n Support powerful OAM and remote management
n Support port speed limit, loop detection and port VLAN
n Support state detection and fault location; Support power failure alarm
n Each PoE port supports to auto discovery the standard power receiving devices
Technical Parameter
|
Parameter |
Specification |
|
Wavelength |
1310(TX)/1490(RX) |
|
Optical power |
-1~+4dBm |
|
Receiving sensitivity |
-25dBm |
|
Max transmission distance |
20 km |
|
Cache space |
1.25MB |
|
MTBF |
100,000 hours |
|
PON connector |
SC/PC |
|
EPON trait |
Support IEEE802.3ah Support Dynamic Bandwidth Allocation (DBA) Support ONU auto-searching and automatic registration |
|
Standard and Protocol |
Support IEEE802.3, IEEE802.3u IGMP Snooping V2 Support IEEE802.1q WLAN Support IEEE802.1p QOS |
|
POE |
Supplying power port: 24 ports Standard: IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discover and power/dis-power receiving power device |
|
Network management |
Cooperating with center OLT, implement management configuration and software upgrade to ONU |
Working Environment
|
Parameter |
Specification |
|
Power |
DC48V (external) |
|
Power consumption |
4.5W, Max POE supplying power 370W |
|
Operating temperature |
-10~55℃ |
|
Storage temperature |
-40~70℃ |
|
Humidity |
5%~90% non-condensing |
|
Dimension |
44mm(H)×310mm(W)×161mm(D) (external) |
