Высококачественный бесшумный турбинный генератор 80 кВт на
- Категория: Gas Turbine Generators >>>
- Поставщик: Jiangsu,United,Power,Friend,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 83300.82 $* | 87465.38 $* |
| Aug-20-2025 | 82600.25 $* | 86730.46 $* |
| Jul-20-2025 | 69300.64 $* | 72765.4 $* |
| Jun-20-2025 | 81200.11 $* | 85260.59 $* |
| May-20-2025 | 70700.92 $* | 74235.5 $* |
| Apr-20-2025 | 79800.89 $* | 83790.46 $* |
| Mar-20-2025 | 79100.60 $* | 83055.47 $* |
| Feb-20-2025 | 78400.89 $* | 82320.16 $* |
| Jan-20-2025 | 77700.31 $* | 81585.9 $* |
Характеристики
Product Description

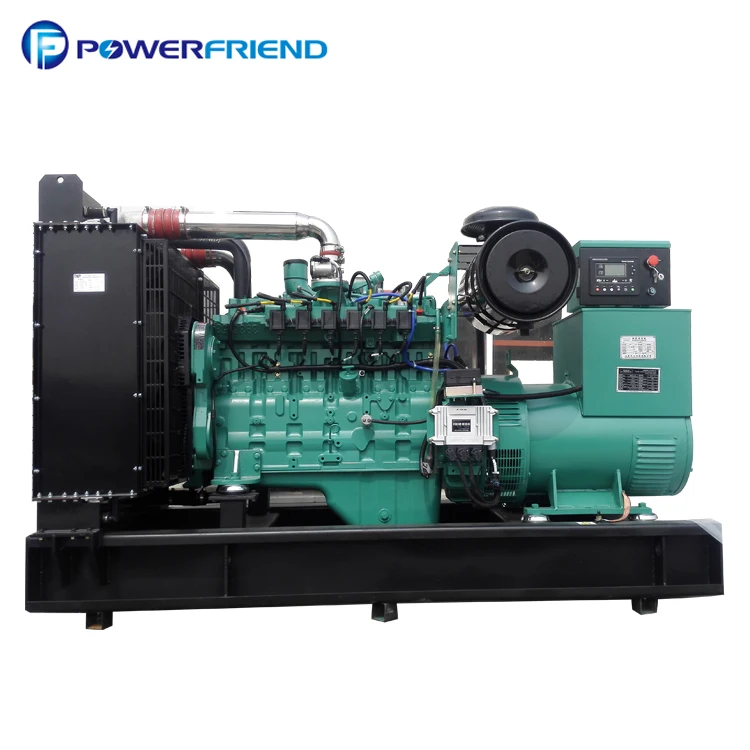

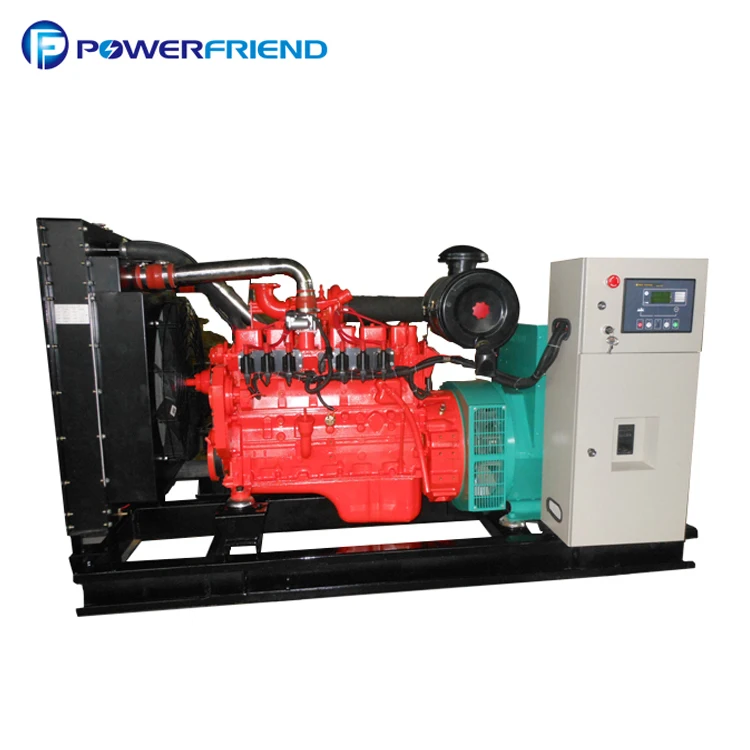

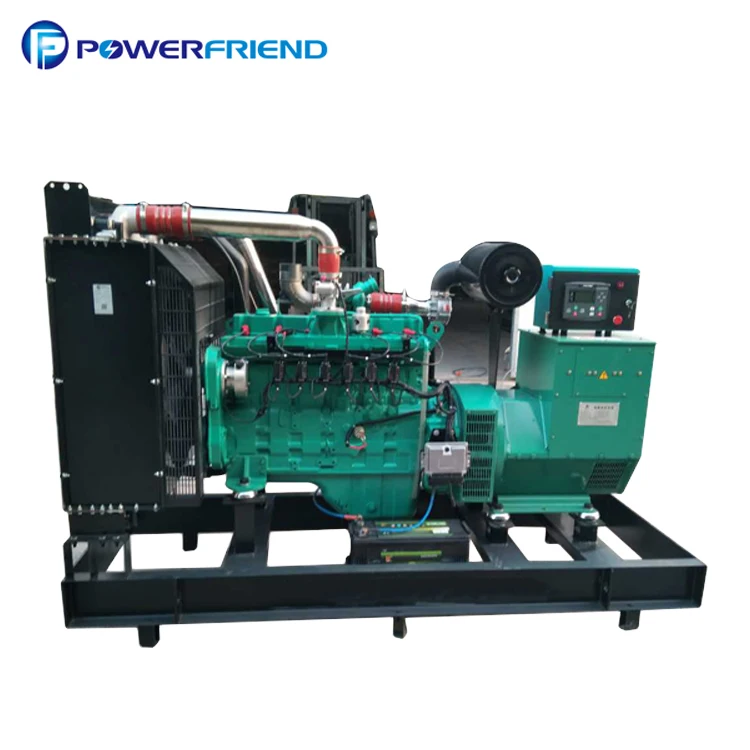

High quality 80kw silent natural gas turbine generator for sale
Before Your Buy:
When purchasing a gas generator, please inform us the environment, altitude, rated output voltage, gas source, gas composition and pressure of the installing area, so that our company can choose the right gas engine and the complete gas supply pressure regulation system for you.
80KW CNG Technical specification
80KW CNG
Genset Model : PF-CN100
Rated Power: 80KW/100KVA
Max Power: 88KW/110KVA
Rated Current: 167A

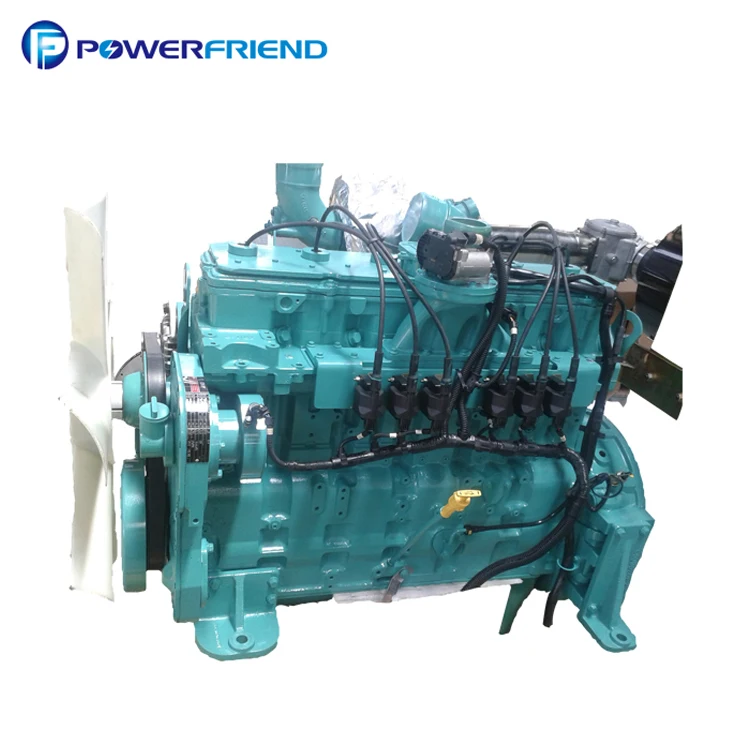

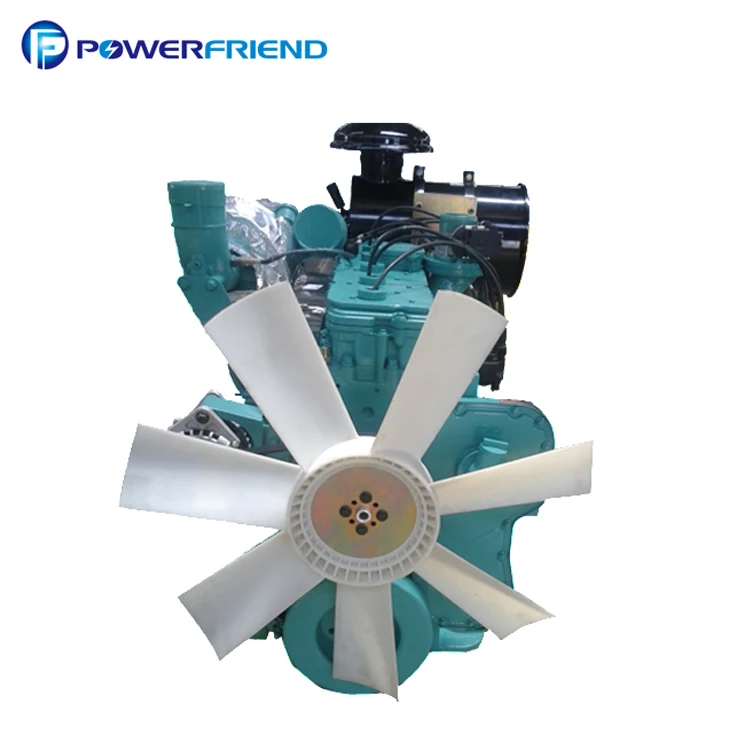

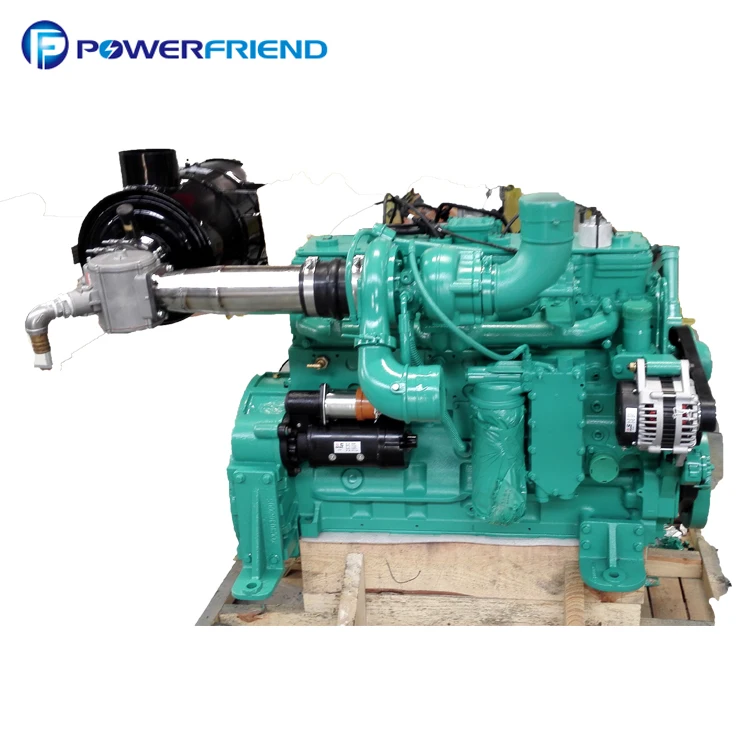

Engine Model: 6BQ100G
Bore * Stroke: 102x120
Displacement: 5.9L
12-hour Power(kw): 100/1500
Length×width×height (mm): 1100×750×750
Alternator Model: With MECC ALTE / ECP34-2S/4
Net weight: 432(kg)
Rated Voltage | 220/380V | ||||
Frequency | 50 HZ | ||||
Genset Structure | OPEN | ||||
Phase Number | 3 | ||||
Power Factor | 0.8 | ||||
Cooling method | Water cooling | ||||
Insulation Class | H | ||||
Protection Class | IP23 | ||||
Excitation Mode | Brushless self-excited | ||||
Starting Mode | Electric Starter DC24V | ||||
Construction Type | SAE Disc-coupling | ||||
Steady state governing rate | ≤0.5% | ||||
The ignition and fuel gas system | EAPP dedicated gas ignition and control systems | ||||
Engine Features | 4-cylinder in line,4 Stroke, Supercharge,Air to air intercooler | ||||
Standard Requirements for Natural Gas
1.Methane should be at least 95%
2.The natural gas temperature should be between 0-60 ℃
3. No impurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 8500kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<200mg/Nm3
Our Service
Pre-Sales Service
We provide professional advice and technical support before production ,such as genset design, drawing,etc.
After-Sales Service
Once receive any feedback of quality problem, we will respond at the first time ,and solve the problems within 24 hours.
Packing & Delivery
Certifications
Our Company
JIANGSU\tUNITED\tPOWER\tFRIEND\tTECHNOLOGY\tCO.,\tLTD is\tfocusing\ton\tpower\tgenerator\tproducts
and\t service\t in\t China.Being\t in\t the\t power\t generation\t field\t for\tmore\t than\t 10\t years,\t we\t have\t very\t good\t connection\t with\tG-Drive\t Engines\t and\t brand\t alternators.\t We\t are\t not\t only\t assembling\t the\t generator\t set,\t but\t also\tgiving\tyou\tthe\tbest\tsolution\tto\tmeet\tyour\tspecial\tneeds\ton\tprojects\tand\tyour\tclients.
As\t a\t faithful\t power\t friend\t of\t you,\t we\t are\t standby\t to\t give\t you\t reliable\t products,\t fast\t delivery,\tcomprehensive\ttechnical\tsupport,\tefficient\tpre\tand after\tsales\tsupport.
Power Friend ,Standby you
Reliability, Quality, Solution, Service
