Высококачественный стержень для зажигания гранул из керамики горелки


Поделиться:


Цена:6,70 $ - 8,90 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 7.87 $* 7.83 $*
Aug-18-2025 7.30 $* 7.21 $*
Jul-18-2025 6.69 $* 6.68 $*
Jun-18-2025 7.22 $* 7.58 $*
May-18-2025 6.60 $* 6.96 $*
Apr-18-2025 7.70 $* 7.92 $*
Mar-18-2025 7.22 $* 7.92 $*
Feb-18-2025 7.45 $* 7.86 $*
Jan-18-2025 7.30 $* 7.99 $*

Характеристики



Detailed Images

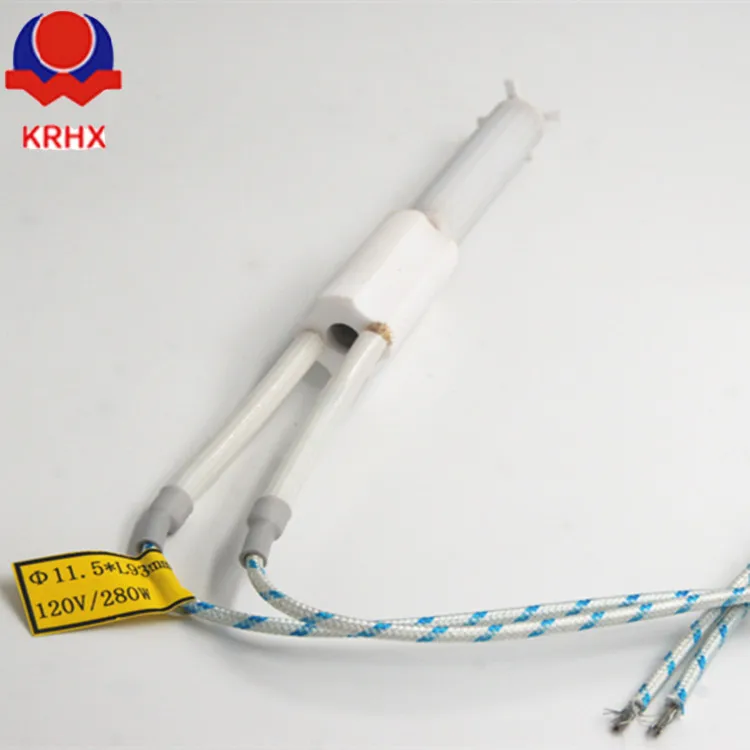

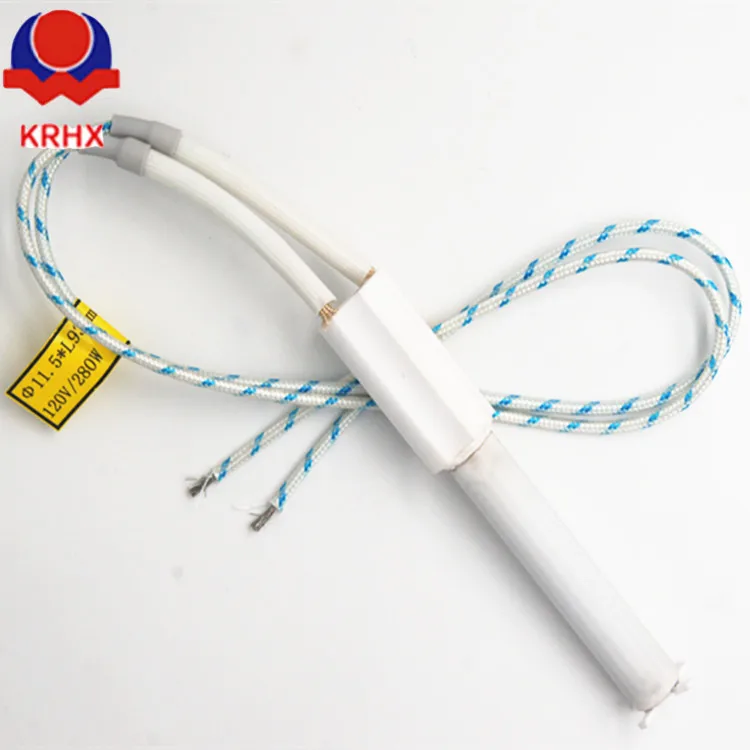

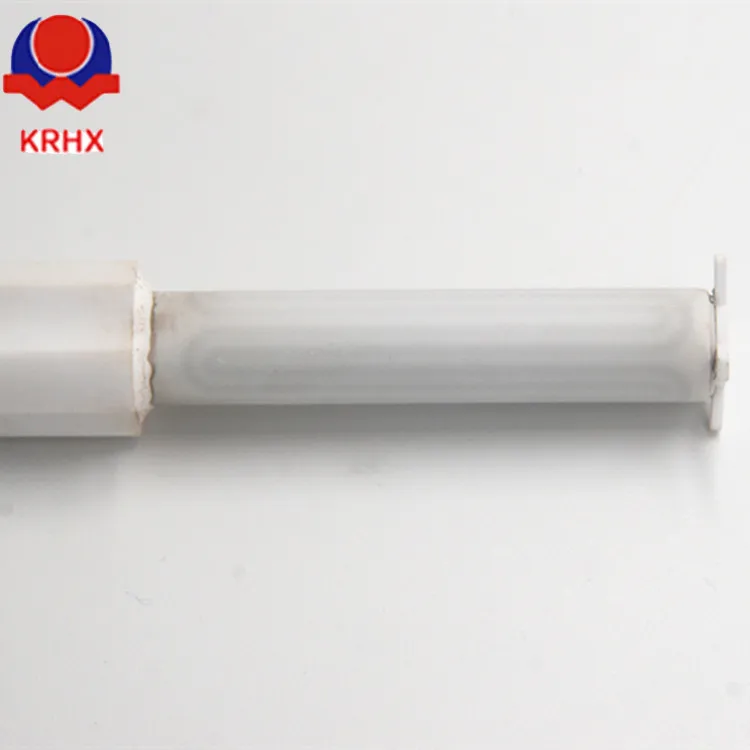

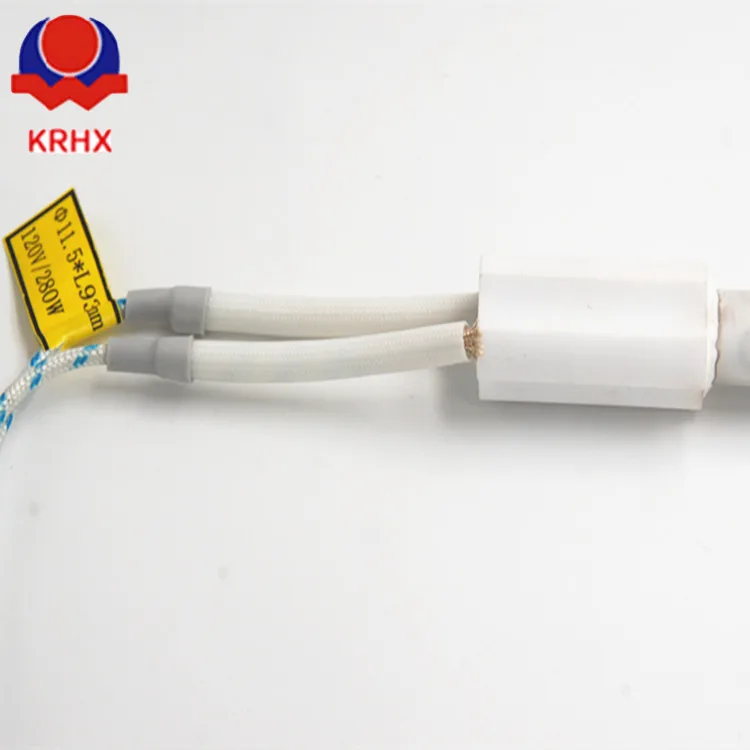

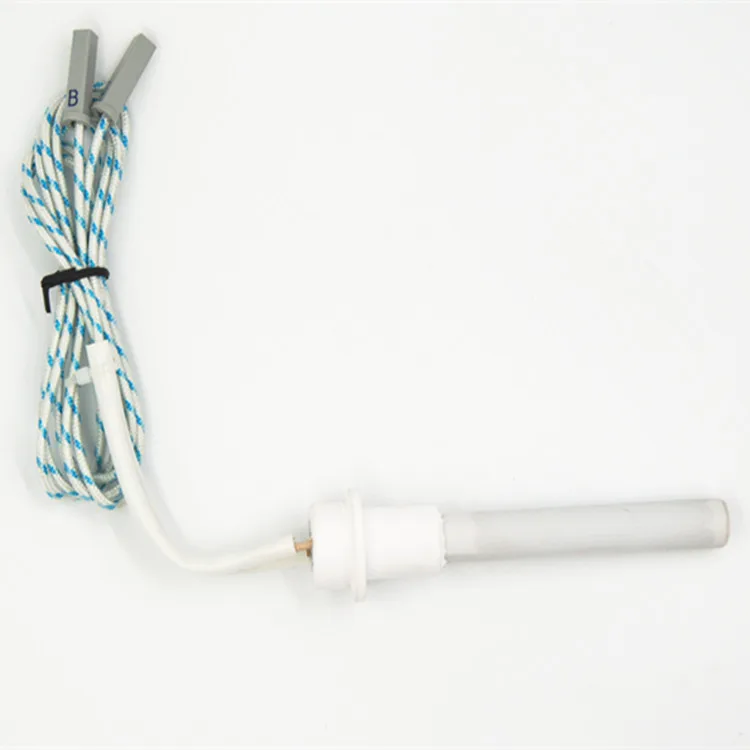

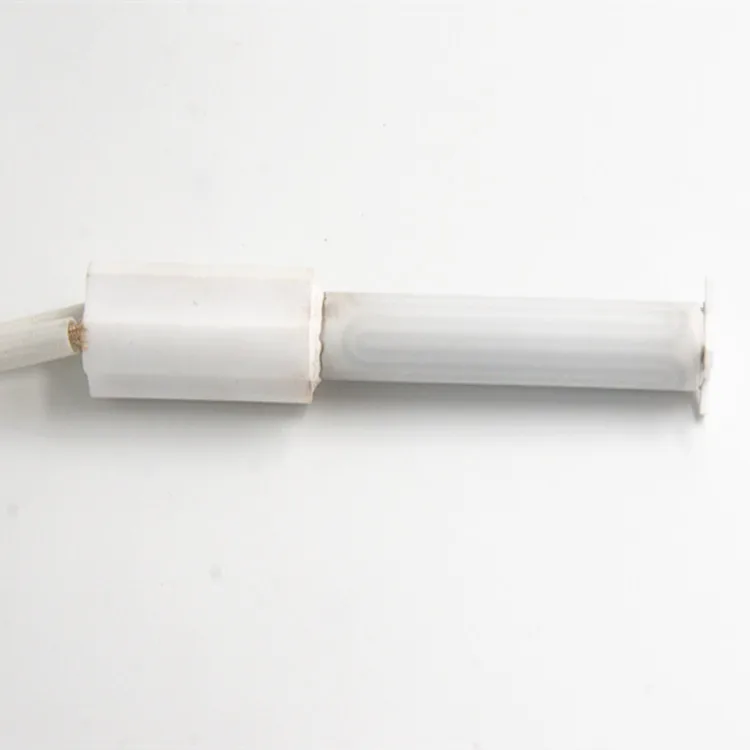

MCH ceramic Igniter.


MCH is metal ceramics heater the "make, meaning is metal ceramic heating element. MCH refers to the design of metallic tungsten or molybdenum manganese with high melting point metal heating resistance Slurry required printing to be printed in 92 ~ 96% of alumina casting ceramic tiles, after hot-pressing laminated, then protect the atmosphere at about 1600 ℃, ceramics and metals jointly sintered and made of ceramic tiles, with corrosion resistance, high temperature resistance, long life, efficient energy saving, uniform temperature, good thermal conductivity, the speed of Heat Compensation is fast and so on, and it does not contain lead, cadmium, mercury, chromium, more, more, etc. matter, comply with environmental requirements such as EU rohs and other environmental protection requirements.


Specifications

* Substrate: White multi-layer alumina ceramics

* Lead: In a ф 0. 5mm of Nickel wire(The length depends on the customer).

* Casing, tape: Teflon, high temperature resistance to high temperature

* Resistance: high temperature materials such as tungsten, etc.

* Product thickness: 0.7 ~ 2.0. Customizable











Manufacturing Technique




Main Features


* Small size, light weight and energy-saving

* Superior thermal properties, Rapid heating, Custom-designed temperature distribution, Excellent insulation

* High reliability: Superior voltage resistance and electrical resistance, No electric noise


*Security is not charged surface, insulation performance is good, can endure the withstand voltage of  4500v / 10s test, no breakdown, leakage current <0.5mA ;


* No impact current peak;


*Heating up fast;


*Without power attenuation;


*Long servicce Life.





Application



Pellet igniters are widely used in biomass burning system, esp. in pellet stoves and barbecue grills. It has a high efficiency(more than 90%)of ignition and very easy to install before operating.
•Wood pellet stove
•Wood pellet boiler
•Wood pellet burner
•Wood chips burner
•Straw burner
•Other biomass burner


Related Products


φ11.5*93mm
230V 230W
φ93*71mm
12V 90W
φ11.5*93mm
230V 230W


φ11.5*106mm
120V 300W
φ11.5*106mm
120V 300W
φ9.3*71mm
230V 230W


φ11.5*126mm
120V 250W
φ9.3*71mm
120V 140W
φ8.8*71mm
12V 80W



* We can provide:

1. 100% on time shipment

2. 100% payment protection

3. 100% product quality protection


Packing & Delivery



Packaging Details :1000pcs/CTN, each CTN with single box, 40CTN/pallet. Export standard, 100% no damage

Delivery Time:3-15days


Meanwhile, other shipping ways are available such as FedEx, UPS, TNT, EMS, China Post or Sea. Just let us know which one is best for you, we do all the best work.





Our Company


Shaanxi KairuiHongxing Electronic Co.,Ltd is a professional domestic and foreign trade, production and sales integration of companies, we produce all types of ceramic igniters, ozone generator ceramic plate and iqos heating blade.

Our company was established in 2007, have many years of history in the ceramic heating industry,it can also be in accordance with the requirements of the project put forward by your company, by our professional team which will set the stature for you do not trouble back at home of the one-stop service from designation installation and debugging to production.

As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Europe. At the same time we has obtained ISO9000, CE, ROHS certificate.

If you are interested of our products or would like to discuss a custom order, please feel free to contact us. We are looking
forward to forming successful business relationships with new clients around the world in the near future.







Our Service


1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.



FAQ



Q: Are you trading company or manufacturer ?

A: We are a company with own factory.

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. 3 to 7 working days for sample,7 to 12 working days for mass production goods.

Q: Do you provide samples ? is it free or extra ?

A: Yes , we can provide free samples , and we have different customer make their own OEM product .so we also can make product as per your requirement

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
