Вертикальный колеса токарный станок с ЧПУ


Поделиться:


Цена:20 000,00 $ - 25 000,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 23800.84 $* 24990.8 $*
Aug-19-2025 23600.9 $* 24780.73 $*
Jul-19-2025 19800.14 $* 20790.62 $*
Jun-19-2025 23200.26 $* 24360.32 $*
May-19-2025 20200.37 $* 21210.54 $*
Apr-19-2025 22800.56 $* 23940.54 $*
Mar-19-2025 22600.26 $* 23730.30 $*
Feb-19-2025 22400.79 $* 23520.80 $*
Jan-19-2025 22200.34 $* 23310.0 $*

Характеристики


Product Description

vertical wheel lathe machine CKL35 wheel lathe

Used for the repair and processing of surface, center hole and rim of the wheel.

CK6160Q Wheel repair machine

91.8% Response Rate

Diamond Cutting Wheel Lathe CK6166A

91.8% Response Rate

CNC Alloy Wheel repair machine CK6180W

91.8% Response Rate

RSM585 automatic rim straightening machine

T8465 Car brake disc lathe

CK6160Q cnc wheel lathe

\t
Item
\t
Unit
\t
Technical Parameters
\t
Max. turning diameter
\t
mm
\t
1000
\t
Max. machining wheel diameter
\t
mm
\t
900(35")
\t
Chuck maximum clamping diameter
\t
mm
\t
920
\t
Spindle speed(frequency conversion)
\t
rpm
\t
50-1200
\t
Cutting feed rate
\t
mm/min
\t
0.1-1000
\t
Turret vertical movement distance
\t
mm
\t
450mm
\t
Turret horizontal movement distance
\t
mm
\t
±470
\t
X-axis fast moving speed
\t
mm/min
\t
1500
\t
Z axis fast moving speed
\t
mm/min
\t
8000
\t
Turret form
\t
\t
2 station row turret
\t
Tool handle section
\t
mm
\t
25×25
\t
Main motor power
\t
kw
\t
5.5
\t
Feed motor
\t
\t
X: 6Nm Z: 2×6Nm
\t
Machine positioning accuracy
\t
mm
\t
0.015
\t
Machine repeated positioning accuracy
\t
mm
\t
0.012
\t
Machine weight
\t
kg
\t
1500
\t
Machine dimensions
\t
mm
\t
2000×1550×2000

Front wheel picture

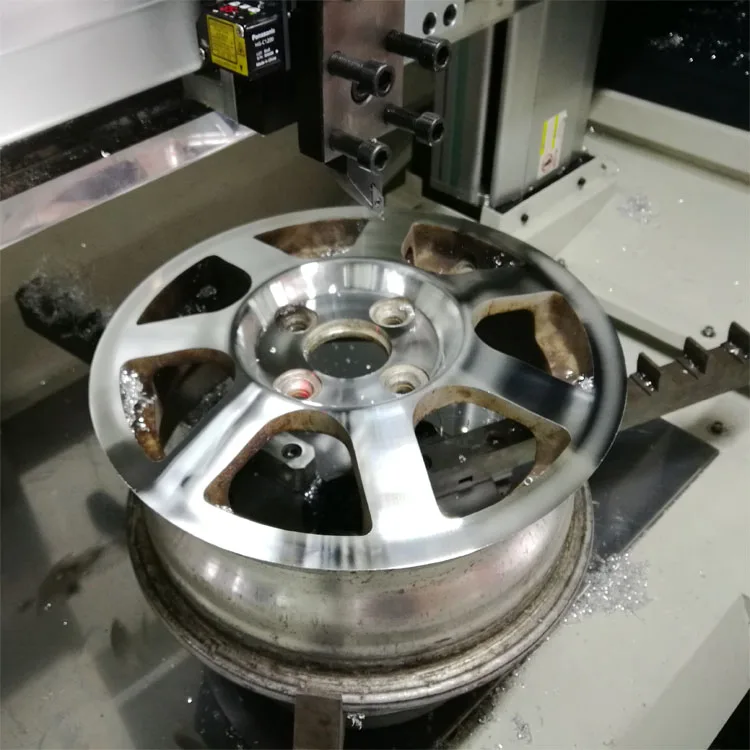

After processing the wheel picture

vertical wheel lathe machine CKL35 wheel lathe Main Features

1,The product is Taian HAISHU company exclusively developed a new New special wheel repair lathe. The machine bed as a whole casting vertical structure. Compared with the horizontal structure, the mechanical transmission is more stable, the turning performance is better and the machining precision is higher.
2,Wheel diameter range is large (Wheel max. diameter 35 "), machine tool area is small, professional is strong, value for money, operation and use more convenient.

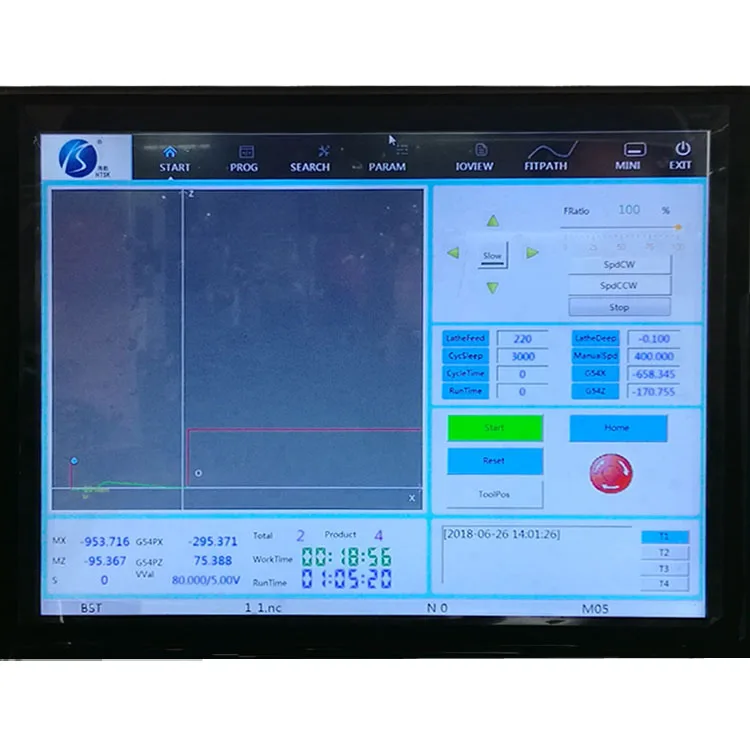

3,Self-developed special wheel repair software. LCD touch screen configuration. Wheel surface measurements and program optimization are done all at once on the machine tool system,So simple, easy to understand and easy to operate.

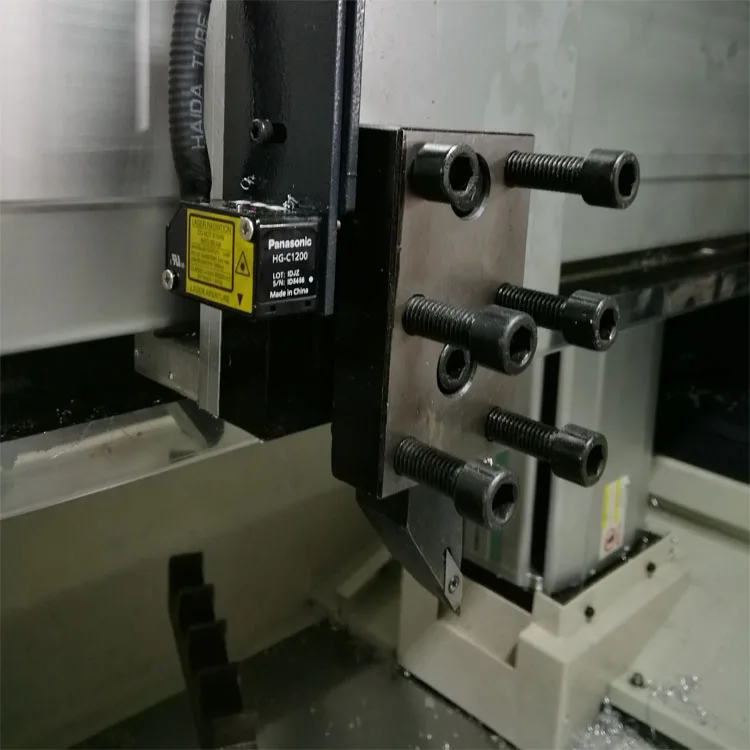

4,Laser non-contact measurement or probe contact measurement optional, both can also be configured. Laser measurements enable fast scanning.
5,The machine with teaching function. The overall surface of the wheel can be repaired, but also can be partially repaired.
6,After sales, the machine can enjoy the following services:1. Software free upgrade.2. The machine with a network interface, Users can accept remote operation and technical training on the machine's LCD display.

Certifications
Packing & Delivery
\t
Packaging
\t
Size
\t
2100*1650*2100mm (L*W*H)
\t
Weight
\t
1.8T
\t



Packaging Details
\t
Standard export wooden box packaging, internal moisture-proof packaging
alloy wheel lathe prices CKL35 Vertical wheel machine cnc
payment terms

1, according to customer requirements CIF price, or FOB price.

2, the default port Qingdao port, customers can also provide the port delivery

3, the customer confirmed the procurement plan, the signing of the contract, through the TT payment (or other payment methods);

4, advance payment for the contract amount of 30%, after receiving the deposit, our factory began producing stocking;

According to customer requests for video, pictures, or customer inspection to the factory, there is no problem, the customer to pay the remaining 70% balance, payment to delivery.

5, according to customer requirements for equipment certificate of origin, CE certification, SGS, BV and other certification.

Related Products
Our Service

Pre-Sales Service

* Free processing program

* Provide customer equipment diagram, processing video

* View our Factory.

After-Sales Service

* Free training

* Provide video tutorials, remote online link guide training, fault repair

*According to customer requirements dispatch engineers on-site service

FAQ

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q3. How about your delivery time?
A: Generally, it will take 15 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Supports third-party accreditation body inspection
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
