Автомобильный тестер аккумуляторов 12 В ЖК-цифровой тестовый анализатор системы проверка запуска генератора переменного тока all-sun
- Категория: Тестеры аккумуляторной батареи >>>
- Поставщик: Zhangzhou,Eastern,Intelligent,Meter,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 6.7 $* | 6.35 $* |
| Jul-16-2025 | 5.32 $* | 5.47 $* |
| Jun-16-2025 | 6.73 $* | 6.88 $* |
| May-16-2025 | 6.62 $* | 6.42 $* |
| Apr-16-2025 | 5.23 $* | 5.41 $* |
| Mar-16-2025 | 6.57 $* | 6.57 $* |
| Feb-16-2025 | 6.76 $* | 6.40 $* |
| Jan-16-2025 | 6.64 $* | 6.3 $* |
Характеристики
Product Description

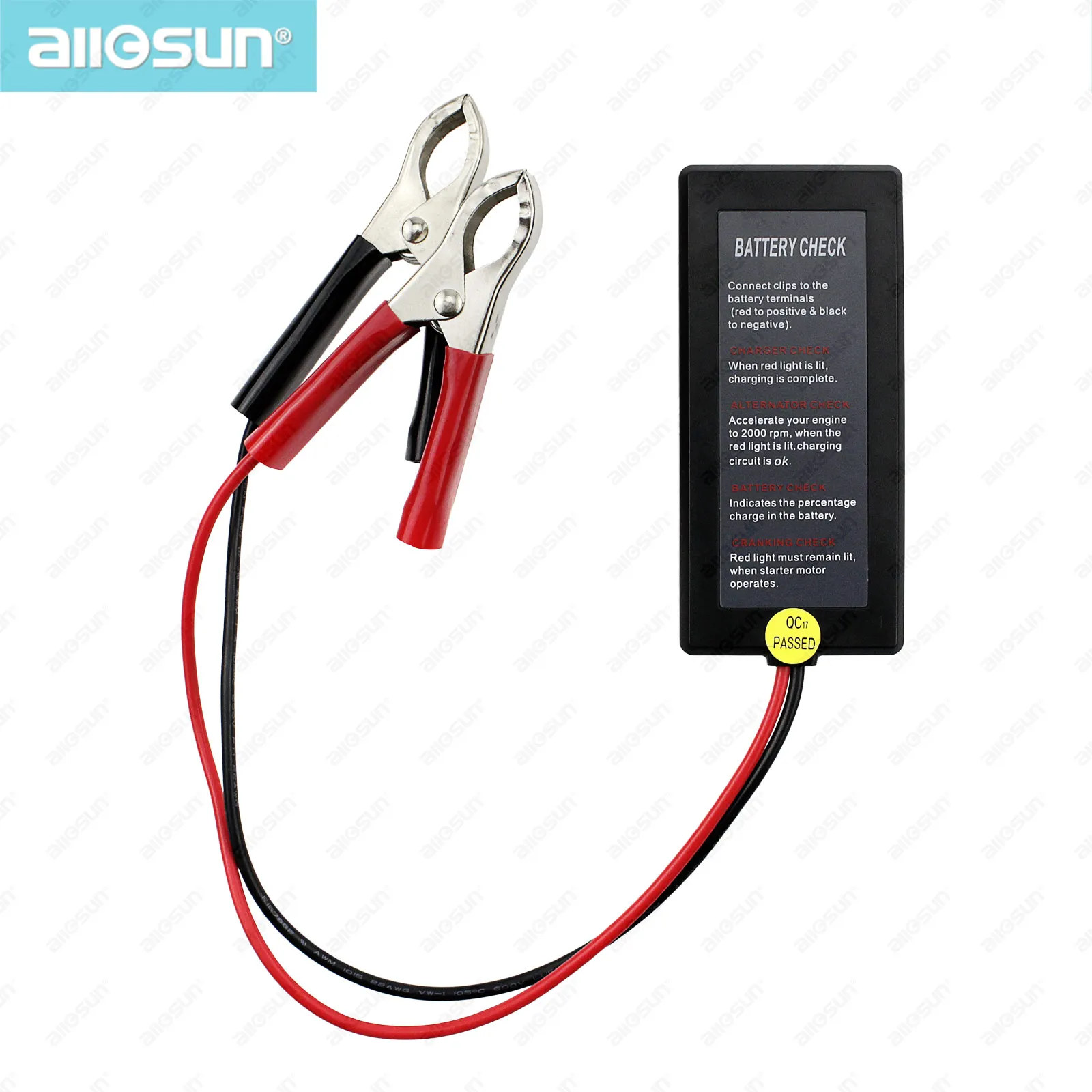

Alternator Check
To check the charging circuit of a 12V vehicle battery, connect the red clip ( or red probe ) of the tester to the positive terminal of the vehicle battery, and
connect the black clip of the tester to the negative terminal of the vehicle battery. Accelerate your engine to 2000 rpm. If the red light against " Alternator
Check " is lit, the charging circuit is OK.

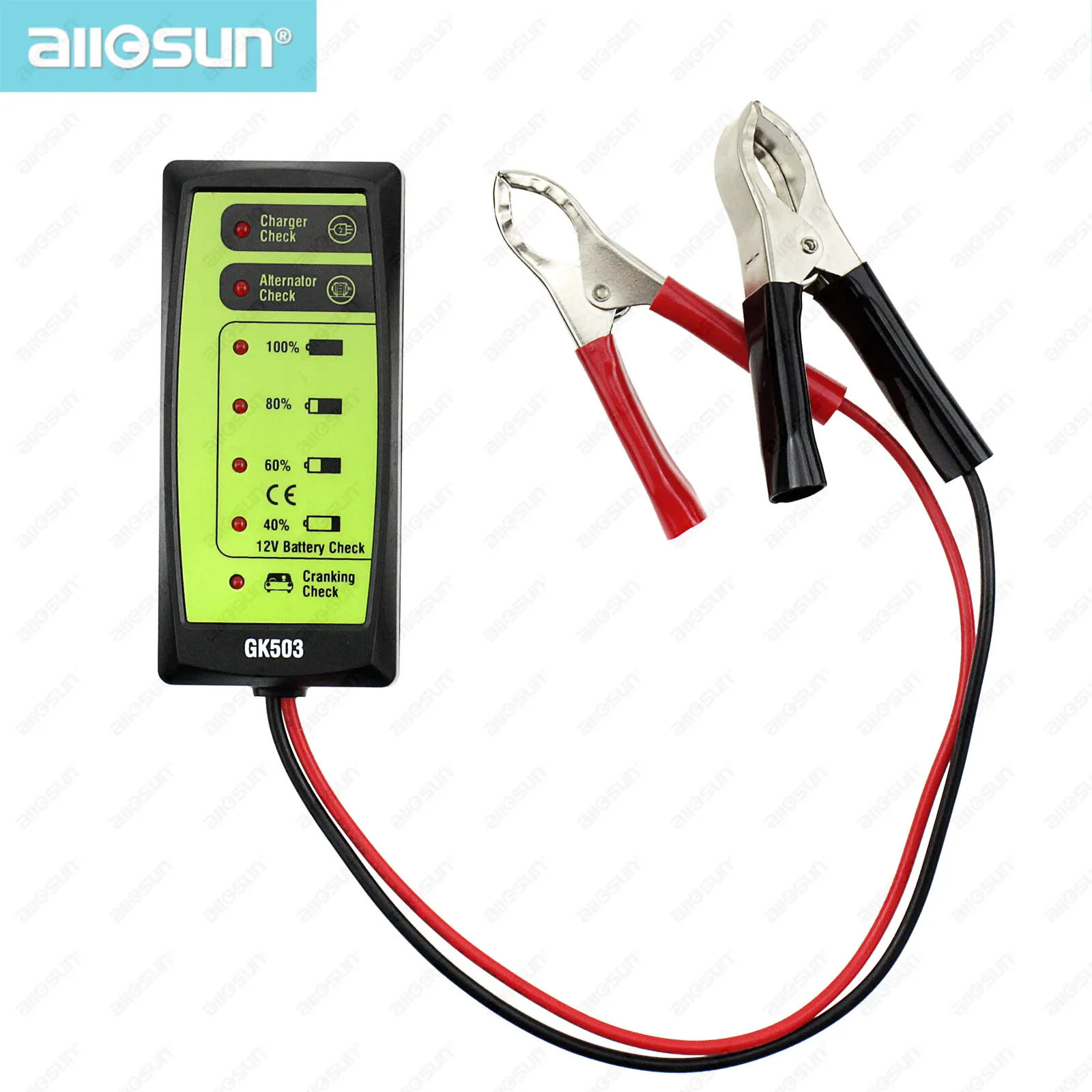

Battery Check
An accurate indication of a battery's charge level will be possible only if the battery has not been charged or discharged for at least 30 minutes. To
check the charge level of a 12V battery, connect the red clip ( or red probe ) of the tester to the positive terminal of the battery, and connect the black
clip of the tester to the negative terminal of the battery. If none of the red lights are lit, check the connections of the tester to the battery. The red lights

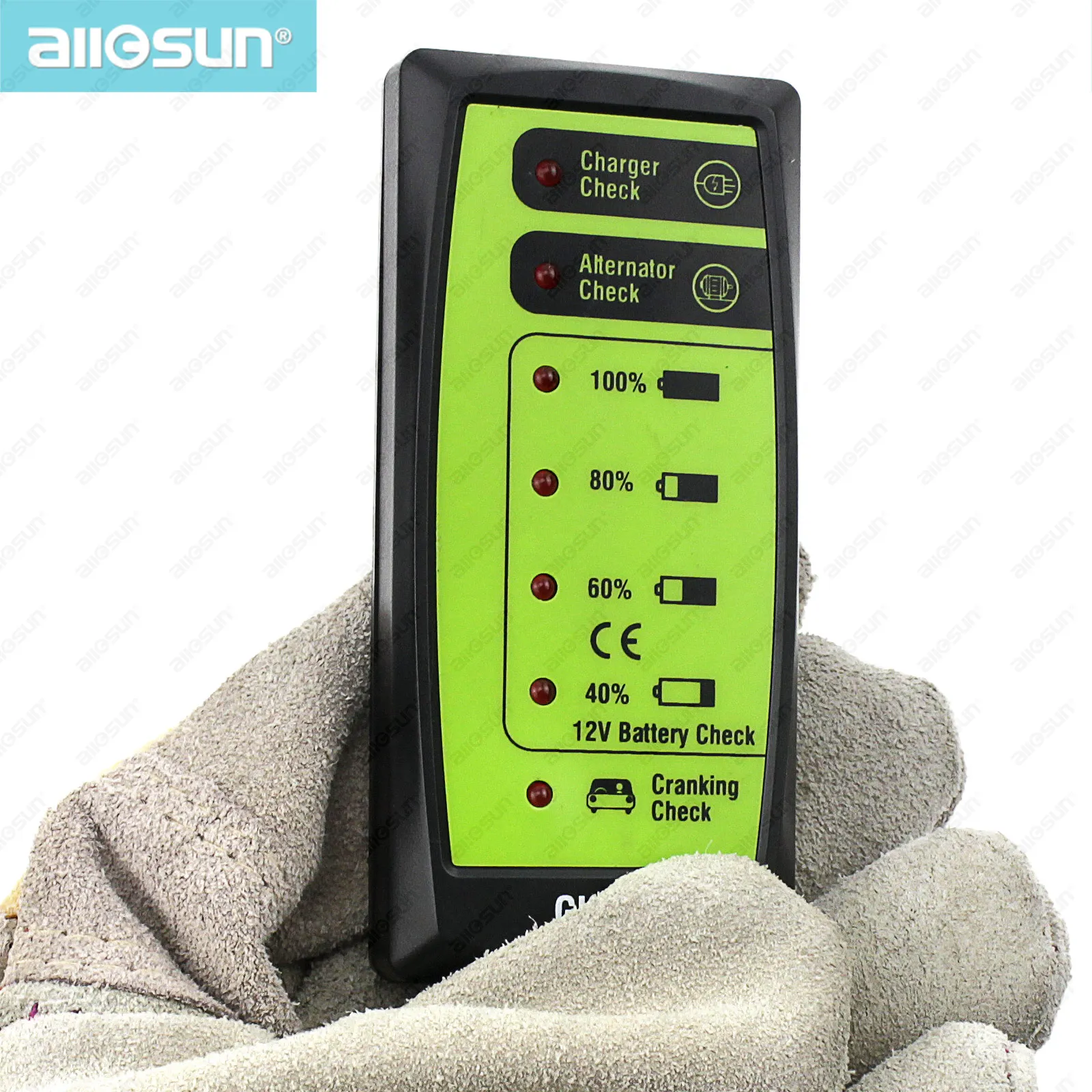

will indicate the approximate charge level of the battery.
SPECIFICATION
Operating Environment: temperature: 0°C ~ 40°C
relative humidity: < 75%
Storage Environment: temperature: -10°C~ 50°C
relative humidity: < 85%
Size: 102×46×16mm ( main body only )
Weight: About 73g ( GK503 only )
About 43g ( GK503A only )
WARNING
1. Before use, inspect the tester. Do not use the tester if it is damaged.
2. Before use, verify the tester's operation by testing a known 12V battery.
3. Always follow the relevant instructions and procedures indicated in the vehicle's users manual and service manual.
4. Do not use the tester where explosive gas, vapor, or dust is present.
5. To avoid personal injury and tester damage, do not touch any moving or turning object of vehicle.
Do not touch any high-temperature object with hand or skin.
6. To avoid electric shock, don't touch any naked conductor with hand or skin.
7. Use caution when working with voltage above 30V ac rms, 42V peak, or 60V dc. Such voltages pose a shock hazard.
Our Services
· Working Time: GMT+8 / 8:15 AM ~ 17:15PM from Monday to Saturday
· Please contact us,if you have any questions. We will reply you within 24 hours
Company Information
Zhangzhou Eastern technology Group was set up in1993.it is a "State High and New Technology Enterprise " Which specializes in research,manufacture and sales of test & measurement instrpment. the products are expoted to more than 70 countries word-wide,it is one of biggest manufacturers of test & measurement instruments ih China. It has undertaken more than 20 national &provincial projects, and obtained more than 100 national patents. It gets ahead in technology and products, and provides worldwide customers with cost-effective test & measurement instruments.
