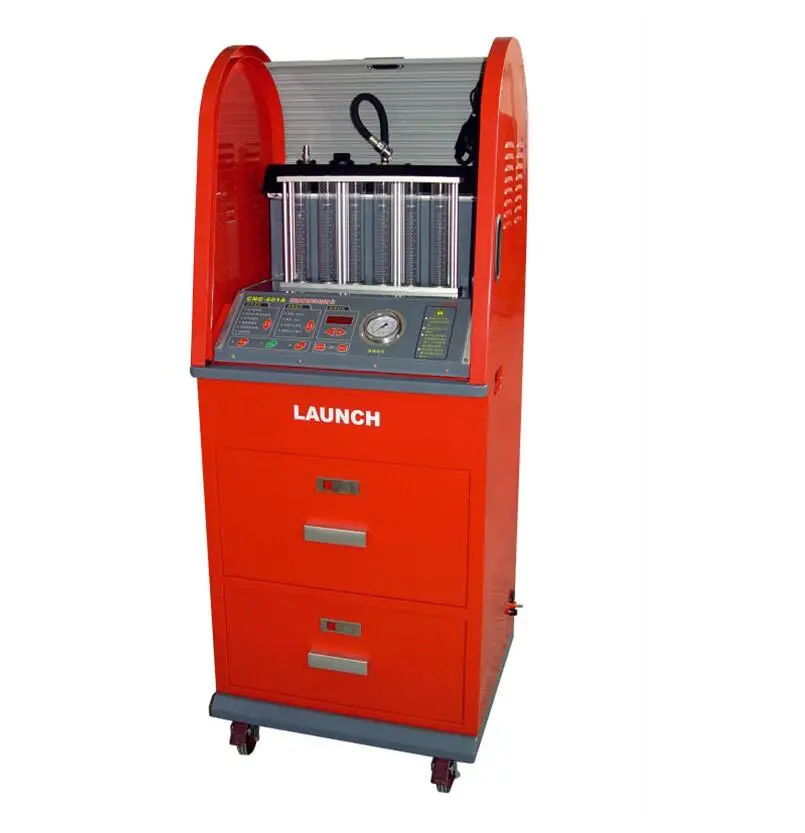

CNC-601A injector cleaner & tester ultrasonic cleaning machine for car



Developed with the technology of ultrasonic cleaning and fuel pressure control, CNC-601A is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.



CNC-601A Features

1. Ultrasonic cleaning

To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.
2. Uniformity/Sprayability test

To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
3. Leakage test

To test the sealing and dribbling conditions of injectors under system pressure.
4.  Injecting flow test

To check the injecting amount of the injector in 15 seconds of constant injection.
5. Auto test

To test injectors by simulating different working conditions.
6. On-vehicle cleaning

The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.





CNC-602A is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.



CNC-602A Features

1. Ultrasonic cleaning

To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.
2. Uniformity/Sprayability test

To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
3. Leakage test

To test the sealing and dribbling conditions of injectors under system pressure.
4.  Injecting flow test

To check the injecting amount of the injector in 15 seconds of constant injection.
5. Auto test

To test injectors by simulating different working conditions.
6. On-vehicle cleaning

The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.

CNC-601A/602A Parameters

* Power supply:AC220V±10%/50Hz~60Hz
* Input power: 250W
* Ultrasonic cleaning power: 100W
* Simulated RPM range: 10~9990rpm; step: 10rpm
* Count range: 1~9999 times
* Pulse width: 0.5~25ms; step 0.1 ms
* Fuel tank capacity: 4700ml

* CNC-601A Size: 550×530×1400mm

* CNC-601A Weight: About 80kg

* CNC-602A Size: 385×410×500mm

* CNC-602A Weight: About 35kg
