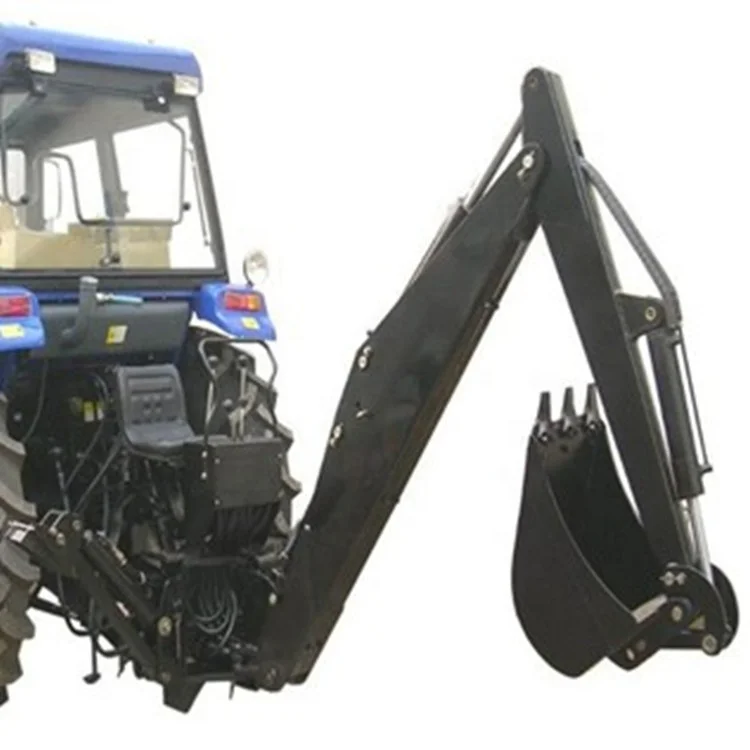

Backhoe Excavator for Tractor

Description:

LW Series Backhoe Excavator for tractor is used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads, etc.To better accomplish different kinds of work, buckets of different sizes can be selected and mounted on it.

Features:

1 Different sizes Buckets are optional

3 Compact structure with high quality materials

4 Flexibility and convenient operation;

5 Quick mounting and dismounting

Application:

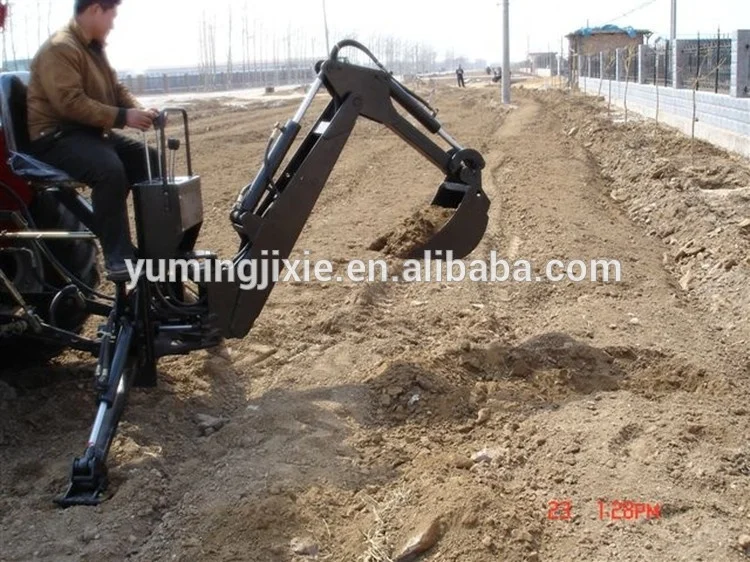

LW Series Backhoe Excavator for tractor is widely used in farm, grazing land, construction etc, mainly in ditching, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.

Specifications:

Main Specifications of Backhoe Series
Model of Backhoe		LW-6 (HW-03)	LW-7 (HW-05)
Matching Tractor	Kw (hp)	14.7~22.1(20~30)	22.1~36.8 (30~50)
Max. Digging Depth	mm	1700	2100
Max. Unloading Height	mm	1700	2300
Max. Digging Height	mm	2700	3300
Max. Digging Depth Flat Bottom	mm	1600	2000
Max. Swing Angle	(° )	180°	180°
Bucket Rotation Angle	(° )	160°	160°
Bucket Capacity	m3	0.03	0.048
Weight	kg	450	500
Main Specifications of Backhoe Series
Model of Backhoe		LW-8 (HW-06)
Matching Tractor	Kw (hp)	36.8~58.8 (50~80)
Max. Digging Depth	mm	2600
Max. Unloading Height	mm	2500
Max. Digging Height	mm	3400
Max. Digging Depth Flat Bottom	mm	2500
Max. Swing Angle	(° )	180°
Bucket Rotation Angle	(° )	160°
Bucket Capacity	m3	0.06
Weight	kg	540



Our Services

1.The quality guarantee of our  product  is one year. All parts of our products can be found in our factory. Additionally, we can provide you the best price of the machine parts.

2.For big orders, we can send our engineers to your place to provide technical support. For the person or organization who wants to be our dealers, we can provide good favorable policy.
