Summary of main specifications and system of cart type color Doppler ultrasound

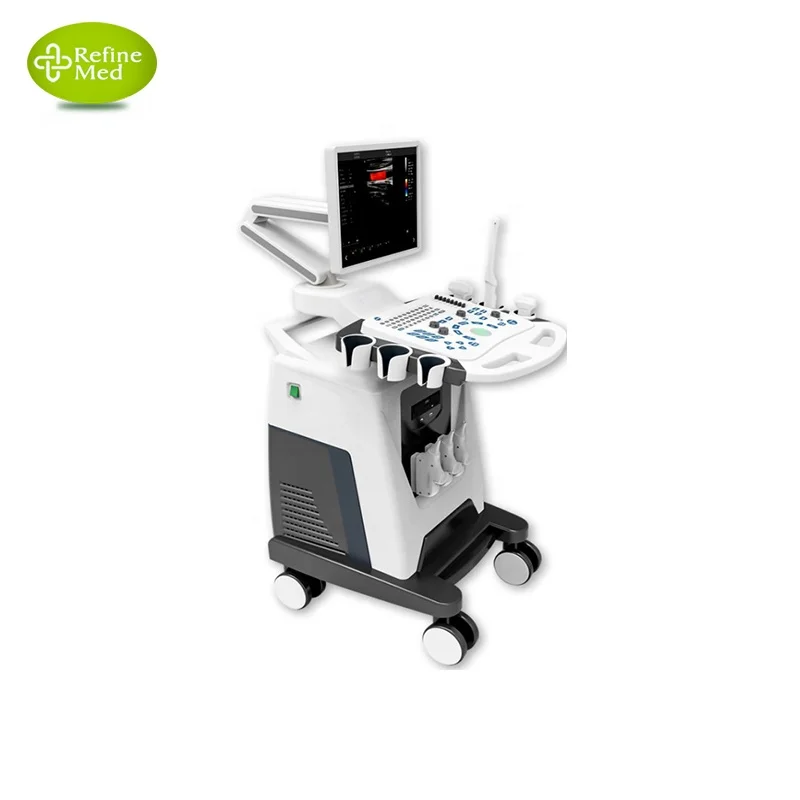

Cart type all digital color Doppler ultrasonic mainframe

Ultrasonic host operating system: Windows 7 operating system

Spectrum pulse Doppler

Direction energy Doppler

Real time three synchronization

Space composite imaging: the requirement is 3 level, visual adjustable.

Organized harmonic imaging technology

4B imaging mode

One key intelligent optimization

Support multilingual user interface

Monitor: more than 17 inches, high definition ultrasonic display liquid crystal display.

Physical clipboard: display the saved image below the screen, which can be deleted directly.

The system has the function of on-the-spot upgrade

Presupposition: for different inspection of the viscera, preset the inspection conditions for the best image, reduce the adjustment of the operation, and the commonly used external adjustment and combination regulation.

The probe interface is 3

probe

Convex array probe: fundamental frequency 2.0MHz/3.0MHz/3.5MHz/4.0MHz/5.5MHz, five stage frequency conversion.

Linear array probe: fundamental frequency: 6.0MHz/6.5MHz/7.5MHz/10.0MHz/12.0MHz, five stage frequency conversion.

Transvaginal probe: fundamental frequency: 5.0MHz/6.0MHz/6.5MHz/7.5MHz/9.0MHz, five stage frequency conversion.

It can be selected according to customer needs: convex array probe, linear array probe, transrectal probe, micro convex probe

Under each probe, there is a selection of specialist and viscera mode and rapid entry detection.

Two-dimensional imaging mode

Gain: 0-100, step 2 visible adjustable

TGC:8 segment adjustable

Image optimization: visible and adjustable over 6 levels

Dynamic range: 0-270dB 15 level visual adjustable

False color: 7, visible and adjustable

Smooth treatment: 8, visible and adjustable

Edge enhancement: 8, visible and adjustable

Sound power: 0-15 stage, step 7%, visible adjustable

Display depth: ≥320mm,

Maximum focus number: 4 focal points, which can be moved throughout the whole process.

Scan line density 256 visible tunable

Gray scale: 1-16 level visible visible and adjustable

Filtering, 3 kinds

Scanning range, 50%-100%

Frame correlation, 0-4 level, visible and adjustable

The screen has real-time display of voice power, probe frequency, dynamic range, pseudo color, gray scale and other 14 parameters can be adjusted

Color imaging mode

Color frequency: ≥5 frequency conversion, visible adjustable

Color deflection: equipped with

C afterglow 8, visible and adjustable

Color map: 7, visible and adjustable

Color reversal: adjustable

B/C split screen synchronous display function: equipped with

Color baseline: 7, visible and adjustable

Color line density: adjustable

Spectrum Doppler mode

Sampling volume angle correction: -80 degree to 80 degree adjustable

Sample volume: 0.5mm-48mm visually adjustable

Frequency: ≥ 5, visible and adjustable

Baseline: 7 adjustable

Smooth: 8 files can be adjusted

False color: 7 kinds of adjustable

Maximum display blood flow measurement speed 25m/s, minimum resolvable blood flow measurement speed: 0.1mm/s

Measurement and analysis function:

General measurement distance, area, angle, time, slope, heart rate, velocity, acceleration, neck hyaline layer, spectrum tracing, resistance index / pulsatility index, etc.

Professional software package: abdomen, volume, ratio, obstetrics and Gynecology, small organs, carotid artery, Urology, heart.

Graphic and text management system

Host built in ≥ 120G solid state hard disk to start fast and stable

Movie playback: 600 frames

Internal patient file information management system: can record patient number, name, check number, check date and so on, and can be searched and managed by numbering, checking number, name and so on.

The type of report is 3. Provide picture proof.

One key fast report graphic and text management

Interface

USB interface: 2

VGA interface: 1

RJ-45 interface: 1

VIDEO interface: 1

Grounding wire interface: 1

To configure

Trolley type full digital color Doppler ultrasound diagnostic system host 1 sets

Probe: convex array probe (standard), high frequency probe (optional), Overcast probe (matching).

Technology, after-sales service and other requirements

After acceptance, the warranty is free for two years

Manufacturer has ISO13485 certification and EU CE certification.
