HDMI multi screen video wall controller 4K HDMI 2x2 video wall controller Support 1x2 2x2 1x4 modes





Introduction

 HDMI products factory since 2009 with ISO9001 certified factory

HDMI adopter and HDCP adopter

CE (EMC,LVD) ROSH,FCC certifications

Attend CES/HK Fair/ Canton fair/ CEBit exhibition every year

OEM service available

2-year warranty for products



The 4K 2x2 video wall controller , support 1-way HDMI or DVI input and 4 HDMI output, the main function is to divide a complete HDMI,DVI HD image signal into 4 blocks and assign to 4 video display unit (such as Rear projection unit, LCD TV, etc.), Complete with 4 HDMI high-definition video display units to form a large dynamic image screen.





FEATURES



Support 1 DVI or HDMI input

    Input support HDMI4k 30Hz ,HDCP4k 30Hz



    Support 4 HDMI outputs, 1 3.5mm audio output

Input resolution include 1920x1080P 25/30/50/60HZ,3840x2160P 25/30HZ; Output resolution include 1920x1080P 25/30/50/60HZ

Input format: YUV422 16bit,RGB444 24bit; Output format: RGB444 24bit

Support RS232 protocol (Net port RJ45)

Easy to operate, plug and play

DC12V/2A power adapter

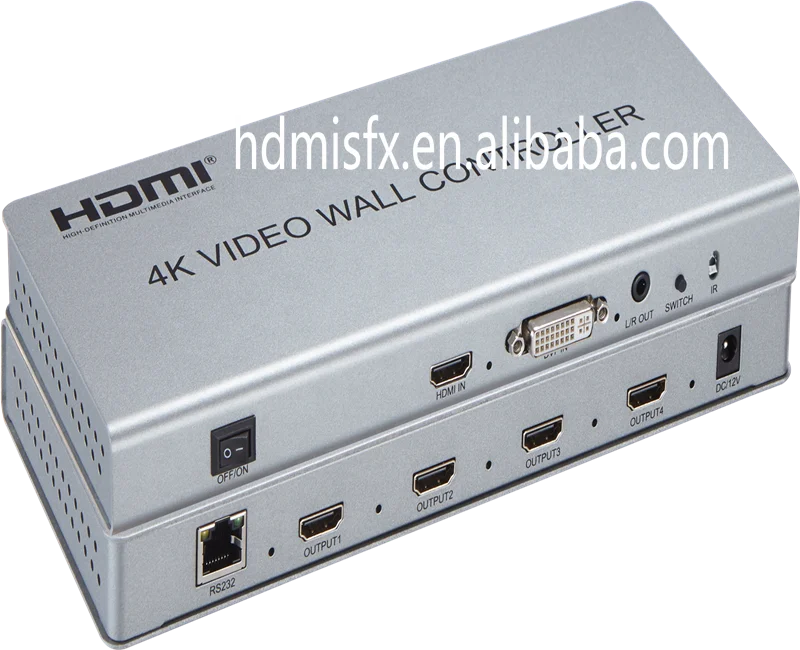

Physical interface diagram





1:  OFF/ON --- OFF/ON                                   2:  HDMI IN ---HDMI input

3:  HDMI input signal indicator                        4:  DVI IN --- DVI input

5:  DVI input signal indicator                           6:  L/R OUT -- 3.5mm Stereo output

7:  SWITCH --- SWITCH                                  8:  IR --- Infrared receiver

9:  RS232 --- RS232 port                               10: HDMI output signal indicator

11-14:   OUT PUT1-OUT PUT4 port              15: DC/12V ---DC12V Power Interface





Operating and Connecting



The Package includes:

1. 4K 2X2 video wall controller  x1

2. Power adapter            x1

3. User Manual              x1
