Оборудование для фильтрации подсолнечного масла многослойный каркасный фильтр из нержавеющей стали используемый в пищевой

sunflower oil filter equipment multi-layer stainless steel frame filter used in food industry

1.Brief Introduction:

S.S. multi-layer filter is for fine filtering. It's surface is polished, has seals, and normally used together with S.S. feeding pump, so it is normally used for following industries: oils, laboratory, fine chemicals, medicine, food, cosmetics, etc.

2.Operation Principle:

Suspension into the filter unit with the help of a pump filter, due to pressure, the filtrate through the filter layer and the membrane or other filter, is discharged out of fluid discharge outlet, the residues were kept in the room formed by plate and frame, to achieve solid-liquid separation.

3.Features:

The machine is made of SUS304 or SUS316L stainless steel material, corrosion-resistant durability and long life span.The filter plates use screw thread structure. It can change filtering media(if use filter membrane, it can achieve aseptic filtration ). Users can increase or reduce the number of layers to meet the needs of production. When working, the filter is in the state of sealing and pressure, without loss of liquid material, liquid clarity is good, and also based on user needs a special multi-stage filter, first stage put a coarse filter, and second stage put fine filter material, saving time and improve the filtering accuracy. All parts of the machine sealed with silicone rubber seals, high temperature, non-toxic, no leakage, good sealing performance. The machine can be fitted with automatically liquid return device, as per needs of the user. When the pump stops, open the return value, automatic discharge of all sediments (both exhaust function), and return with water from the tube recoil, very convenient.

4.Advantages:

This filter use high quality 304 or 316L stainless steel material. The structure is close, and uses the two sided trawl doors, may make return washing processing, makes the membrane without the residue to separate the thick thin filtration, according to needs of the flow capacity, to increase or reduce layers such characteristics.

5.Note:

If needlarge flow capacity filter, it can be customized manufactured
Pressure pump is to be explosion-proof motor and Grundfos pumps up the difference.

6.Parameter:

Since 2006,Our equipment has been exported to many countries all over the world such as India, Pakistan, Sri Lanka, Bangladesh, Indonesia, Philippines, Malaysia, Vietnam, Singapore, Turkey, Israel, Burma, Jordan, Yemen,Afghanistan, Syria, Kuwait, Kazakhstan, Qatar, Azerbaijan, The UAE, Bhutan, Thailand, Lebanon, Bahrain, Egypt, Libya, Ethiopia, Kenya, Somalia, Tanzania, Liberia, Ivory Coast, Ghana, Nigeria, Cameroon, Chad, Guinea, Zambia, Zimbabwe, Malawi, Congo, Gabon, Angola, Mozambique, Botswana, Namibia, South Africa, Argentina, Bahamas, Bolivia, Brazil, Canada, Columbia, Chile, Cuba, Venezuela, Ecuador, Guatemala, Guyana, Honduras, Haiti, Mexico, Peru, Uruguay, Paraguay, Surinam, Australia, Russia etc.

All of Toper's products:

1. Program-controlled automatic filter press

2. Membrane filter press

3. Hydraulic compress filter press

4. Mechanical compress filter press

5. Jack filter press

6. Cast iron plate and frame/chamber filter press

7. Stainless steel plate and frame filter press

8. Round plate filter press

9. Cotton cake filter press

10. Cardboard filter press

11. DY belt filter press

12. DYX high pressure belt filter press

13. DNY rotary drum thickning/dehydrating belt filter press

14. Triple-belt thickning and dehydrating filter press

15. SS type three-foot upper discharge centrifuge

16. SD type three-foot and filter bag hoist discharge centrifuge

17. PD type filter bag hoist discharge centrifuge

18. Centrifuge of up discharge, three foot, clean series SSB

19. SX type manual top discharge centrifuge

20. PS type manual top discharge centrifuge

21. SGZ type automatic scraper bottom discharge centrifuge

22. PGZ type scarper bottom discharge centrifuge

23. LW series decanter centrifuge

24. Tubular centrifuge

25. Multi-layer stainless steel frame filter

26. Bag filter

27. Diatomite filter

28. Filter late

29. Filter cloth

30. Vacuum disc filter

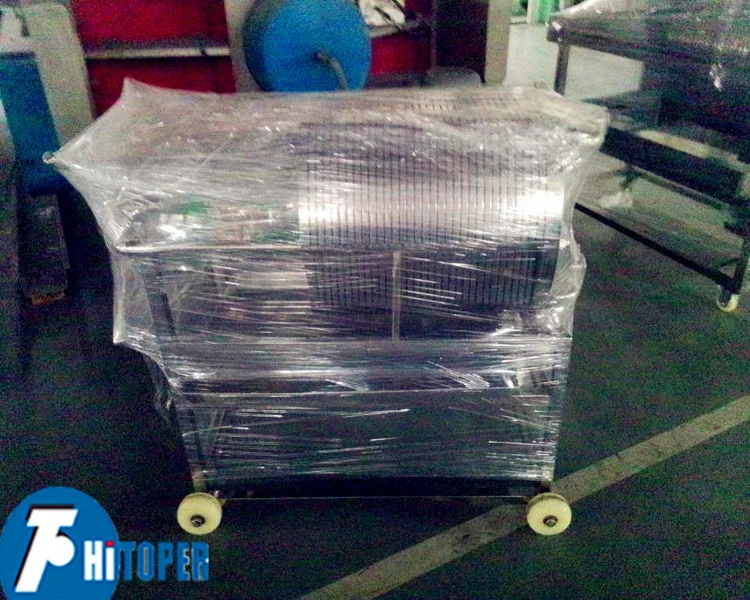

We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.

1.We have professional person on line to advise you the most suitable type of machie  according to your requirement.

2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine

3.Arrange the schedule if you pay a visit to our factory

4.Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.

How to order filter press:

1.Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.

2.According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.

3.The unit is provided without pump.To order the unit complete pumps,state it in the contract.

4.Our company can supply non-standard model to meet your special demands.
