Product Description



Model	NP-NAS4
Form Factor	ITX-NAS4 Black Mini-ITX Form Computer Storage server Case
Mateial	Metal material	SGCC
	Metal thickness	1.0mm

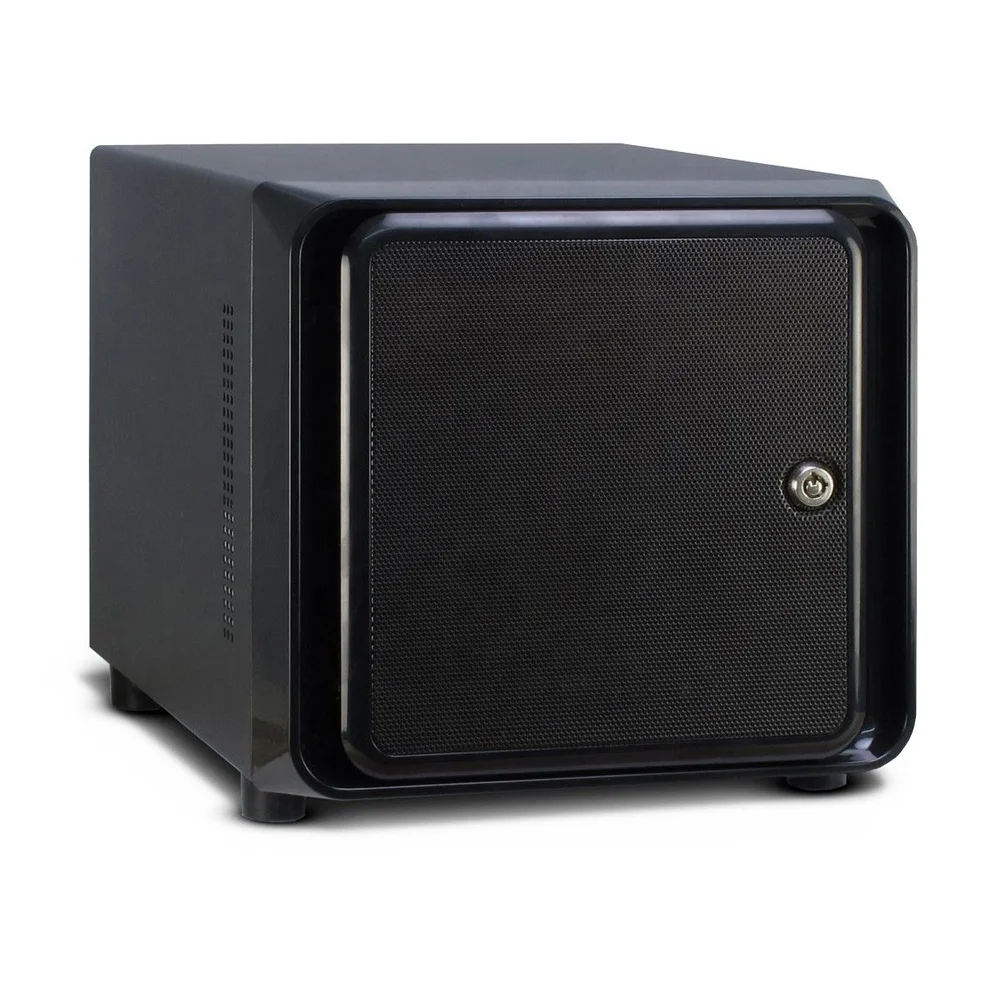

Security	Front door with lock
M/B support	Mini ITX (17cmX17cm)
CPU support	Height CPU cooler (max.) 43mm Length graphics card (max.) 190mm
Size	D*W*H(mm)	191*197*254
	D*W*H(inch)	7.5*7.75*10
Drive Bay	3.5 "or 2.5" external (hot-swap)	4
	Internal 2.5"  bays	1
Power Supply support	1U / Flex 1U power supply ( max length 19cm)
Front panel	Control button	Power ON/OFF x 1, system reset x 1
	Indicator	Power ON/OFF x 1, HDD x 1, NETWORK x 3, Alarm x 1
	Ports	USB 2.0 x 1 , USB3.0 x 1
Expansion	Riser Slot	1pc (full size)

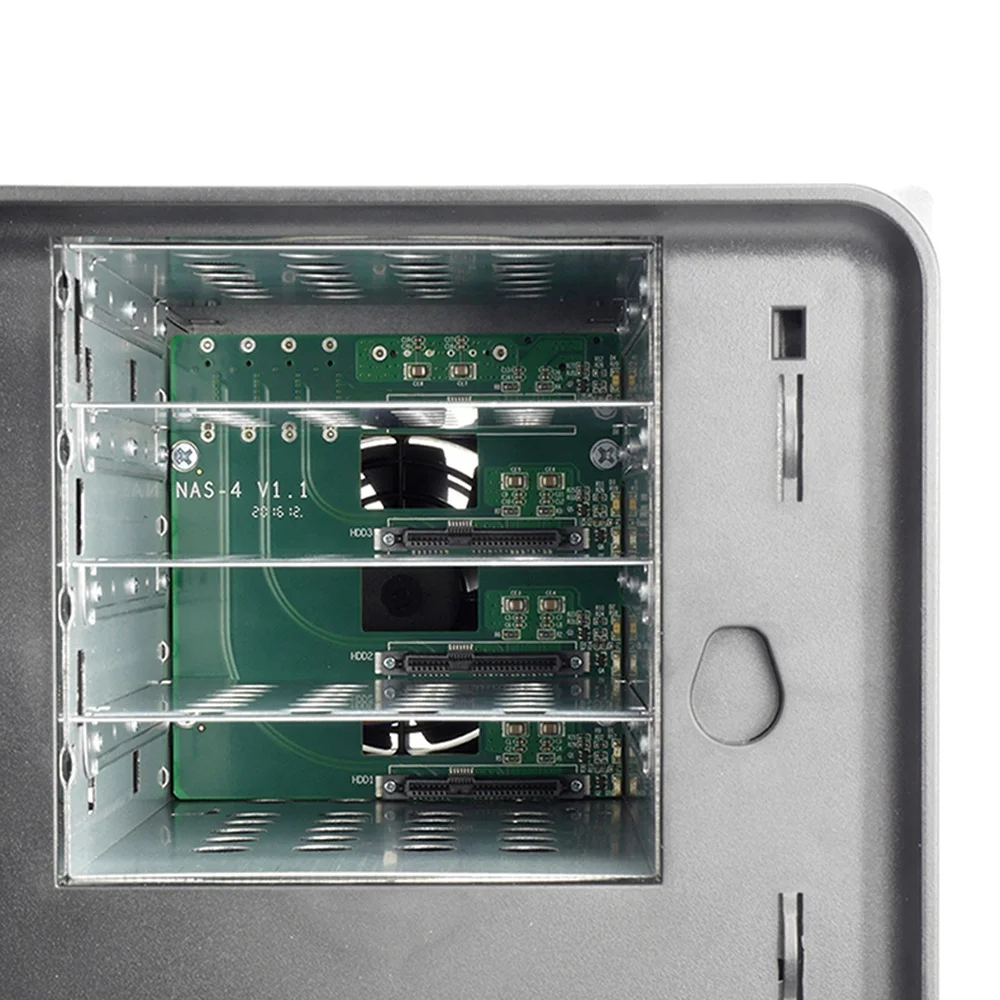

Hot-swap Backplane	S-ATA / SAS backplane (up to 12Gbit / s)
System cooling(optional)	Rear	80x80x25 mm with the PWM 4pin x 1 function
Net weight	3kg
Gross weight	3.4kg
Packing size	D*W*H(mm)	313*235*240
	D*W*H(inc)	12.3*9.25*9.4
Packing Material	Polyfoam with carton box
Environment Temperature	0/55 °C, 32/131 °F (Operating) -20/60 °C, -4/140 °F (Non-Operating)
Relative Humidity	5% to 95%,non-condensing
Vibration ( 5-500 Hz )	1 Grms (Operating), 2 G (Non-Operating)
Shock	10 G(with 11ms duration, half sine wave) (Operating), 30 G (Non-Operating)
