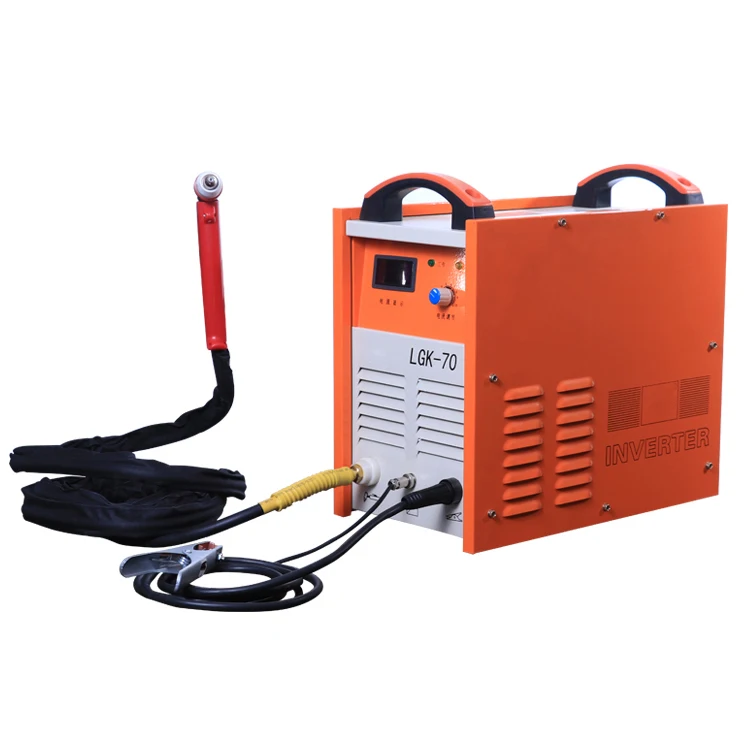

Высокое качество Ac Dc Tig Mma Cut сварочный инвертор LGK 63 70 IGBT аппарат для воздушной плазменной
- Категория: Источник питания для плазмы >>>
- Поставщик: Linyi,Shenglang,International,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.19 $* | 0.48 $* |
| Aug-16-2025 | 0.87 $* | 0.55 $* |
| Jul-16-2025 | 0.13 $* | 0.11 $* |
| Jun-16-2025 | 0.8 $* | 0.90 $* |
| May-16-2025 | 0.21 $* | 0.51 $* |
| Apr-16-2025 | 0.5 $* | 0.62 $* |
| Mar-16-2025 | 0.92 $* | 0.18 $* |
| Feb-16-2025 | 0.50 $* | 0.16 $* |
| Jan-16-2025 | 0.86 $* | 0.70 $* |
Характеристики
Product Description
| Model | LGK-40 | LGK-70 | LGK-100 | LGK-120 |
| Intput voltage(V) | 220V±15% | 380V±15% | 380V±15% | 380V±15% |
| Frequency(Hz) | 50-60HZ | 50-60HZ | 50-60HZ | 50-60HZ |
| Rated input capacity(KVA) | 7.5 | 13 | 14.4 | 16 |
| Max no-load voltage(V) | 40 | 45 | 60 | 60 |
| Current range(A) | 5-40 | 5-70 | 30-100 | 30-120 |
| Rated duty cycle(%) | 60 | 60 | 60 | 60 |
| Thickness of cuttable metals | under 10mm | under 15mm | under 25 mm | under 30mm |
| Protection degree | IP21S | IP21S | IP21S | IP21S |
| Weight(KG) | 10 | 22 | 35 | 42 |
| Dimension (CM) | 36*16*24 | 46*26*39 | 51*30*45 | 57*30*50 |
Product Description:
1. The use of advanced inverter technology, the operating frequency up to 30KHz, small size, light weight;
2. Using high frequency arc and pulse heat ignition design, excellent arc starting performance, ample welding current, consistent access to the user praise;
3. With overvoltage, overcurrent protection;
4. Unique output design, more stable for cutting current;
5. Operating voltage range is wide, high adaptability of power grid, high duty cycle, more suitable for factories to work continuously;
6. Fine process, reliable and durable, easy to maintain.
7. Output current is continuously adjustable and suitable for all kinds of thickness.
