Kingbolen New Design Elm327 V1.5 OBD2 BT With PIC18F25K80 Chip Code Reader ELM 327 OBDII V1.5 Diagnostic Tool For Android



Top Reason to Choose V1.5 Hardware:

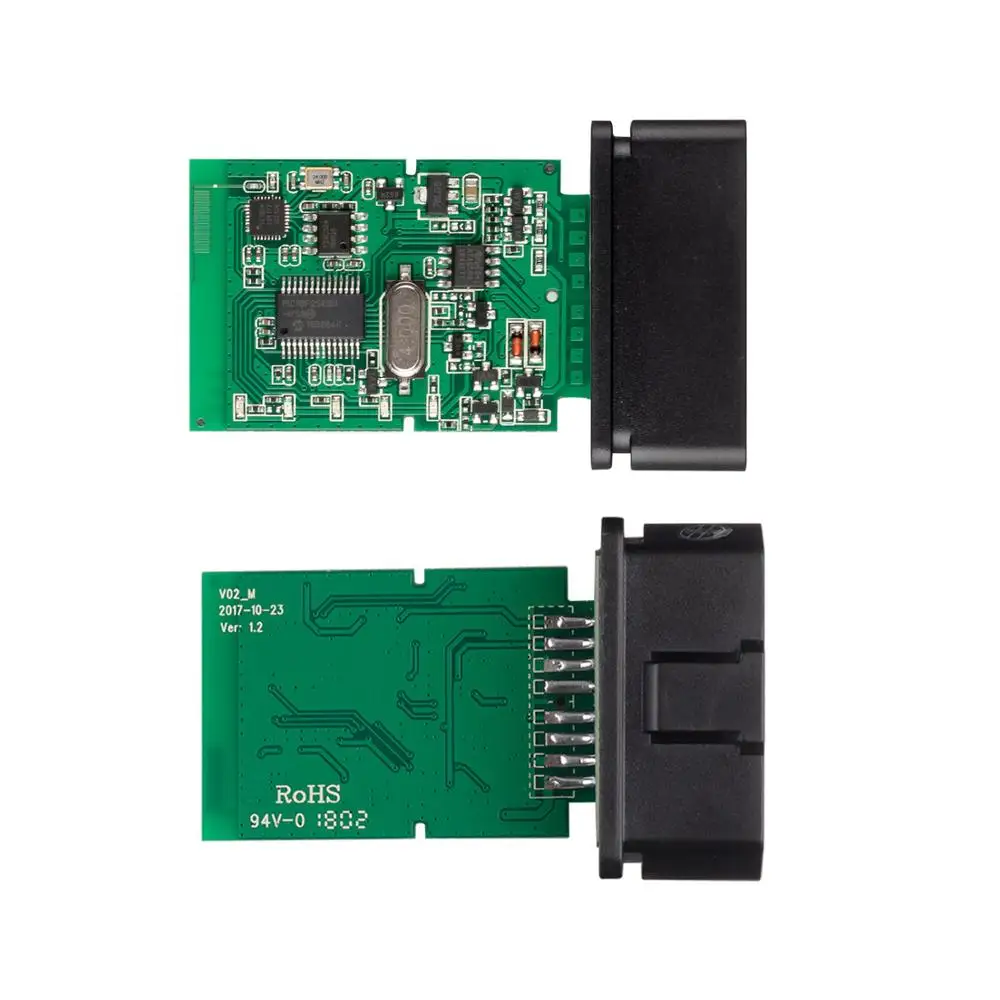

1. PICI8F25K80 Chip, real ELM327 1.5 version support 9 protocol include SAE-J1850 PWM , JAE J1850 VPW(for F-ord old cars and for G M old cars use this protocol like Explorer 1998 )
2. Higher Quality. Say NO to poor quality , Save your time and money!
3. More support , provide useful app for ELM327 Like TORQUE
4. If you need ELM327 Wifi, pls kindly contact us.
5. Supports Multi-Language 12kinds:
Czech,Danish,German,English,Spanish,French,Croatian,Hungarian,Italian,Polish,Serbian,Turkish.



Our V1.5 Firmware ELM327 VS Cheap V2.1 ELM327:

Our ELM327 is V1.5, which is support full protocols version(9 protocols), especially J1850 Protocols for Japanese Cars and American Cars, V2.1 elm327 doesn't support 9 protocols









Description:

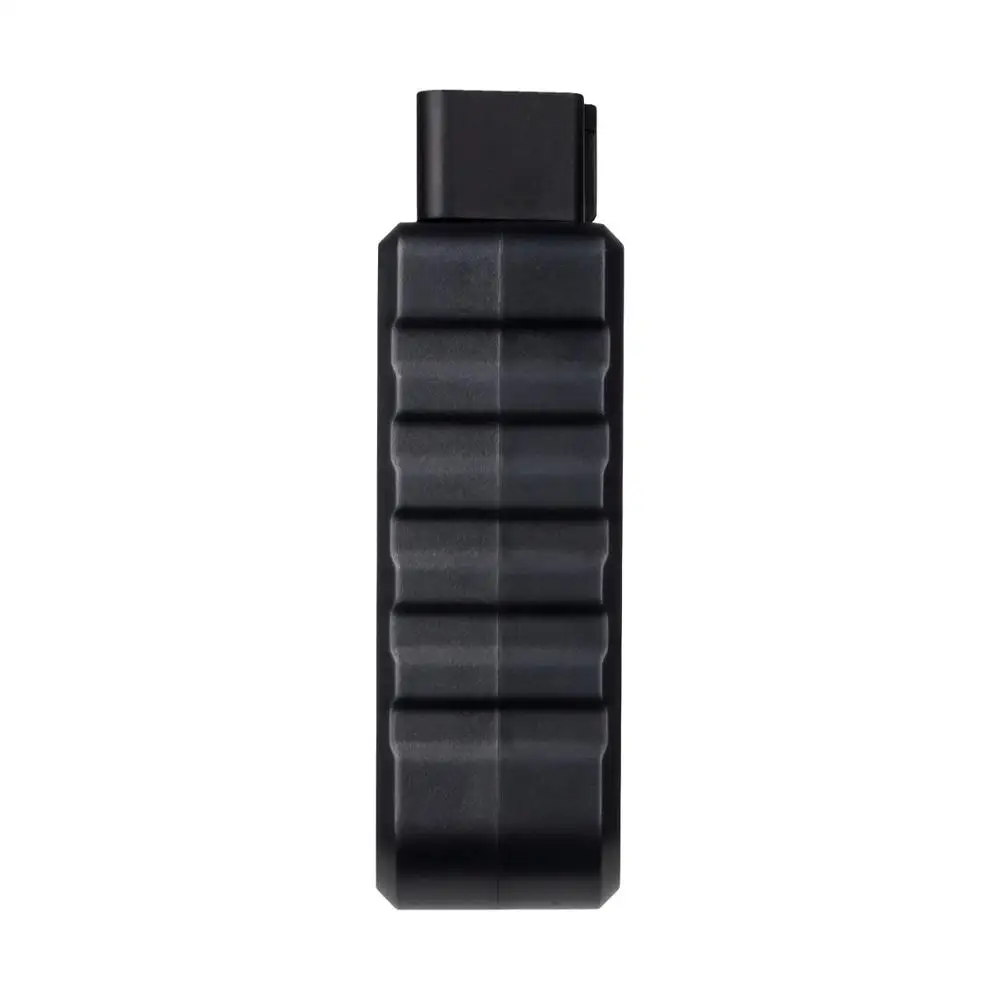

ELM327 interface is able to detect and interpret obd2 / eobd protocols automatically. It also provides support for high speed communications and a low power sleep mode. It use AT commands to communicate with a host device (PC, notebook, for iOS). There are plenty of software packages available, which are fully compatible with this tool. Some of them have pretty useful features, such as engine running parameters monitoring, DTC reading and clearing, MPG meter, etc. You can even write your own software on a specified hardware platform if you wish, because the AT commands are fully documented and very well explained. This tool is only 2.7 x 1.25x 0.9 inches, and it comes with a 6 ft OBDII cable for easy installation. It also includes a power switch built-in to prevent the need for having to constantly disconnect your unit from the OBDII port. It is compatible with 1996 and later vehicles which are obd2 or eobd compliant. Connecting to your iPhone / iPod touch is made by WIFI connection in adHoc mode.


With proper software installed in the host device, you may have following parameters read out from your vehicle:
Vehicle Speed
RPM
Fuel Consumption
Engine Coolant Temp
Fuel Pressure
Calculated Engine Load
Throttle Position
Intake Manifold Pressure
Air Intake Temp
Timing Advance
Mass Air Flow
Fuel Level
Barometric Pressure
EVAP System Vapor Pressure
Fuel Trim

Note:
Your vehicle may not support all above parameters.How many parameters you can get is depended on the vehicle manufacturer’s implementation.

Multi-Protocol Support:

1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)


Software Requirements:

- All ELM327 based software
- For iOS base software in Apple store: Rev / FUZZYCar / DashCmd / SpeedPORT / Nova Scan
Attention:For iOS base software are not included you must buy from Apple App Store! we only offer PC version software & Instructions manual (on the CD)

Technical Specifications:

SSID: WiFiOBD
IP: 192.168.0.10
Subnet: 255.255.255.0
Port: 35000
Range: 50 ft (Line of sight)
Antenna: Internal
Power Consumption: 0.75 Watts
Wifi Standard: 802.11a/b/g
Operating Temperature: -15 to 100 Deg Celsius

Packing list:

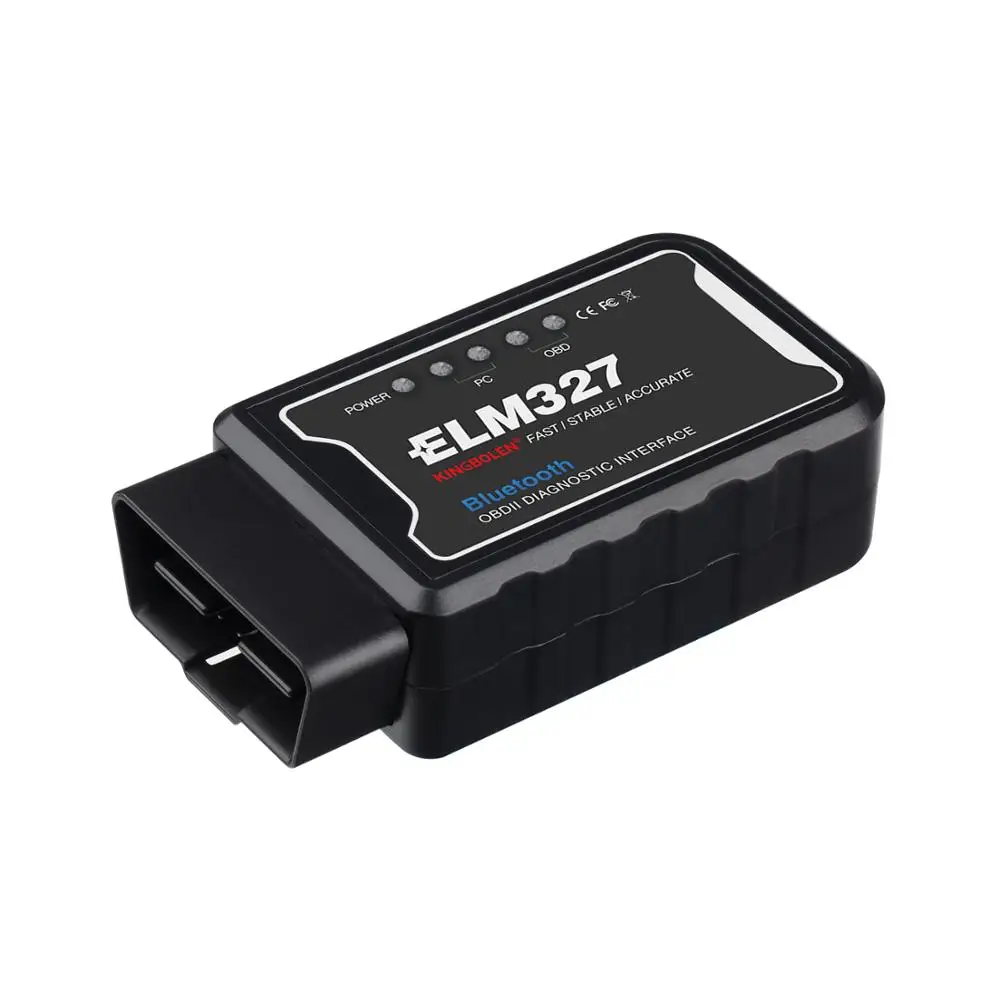

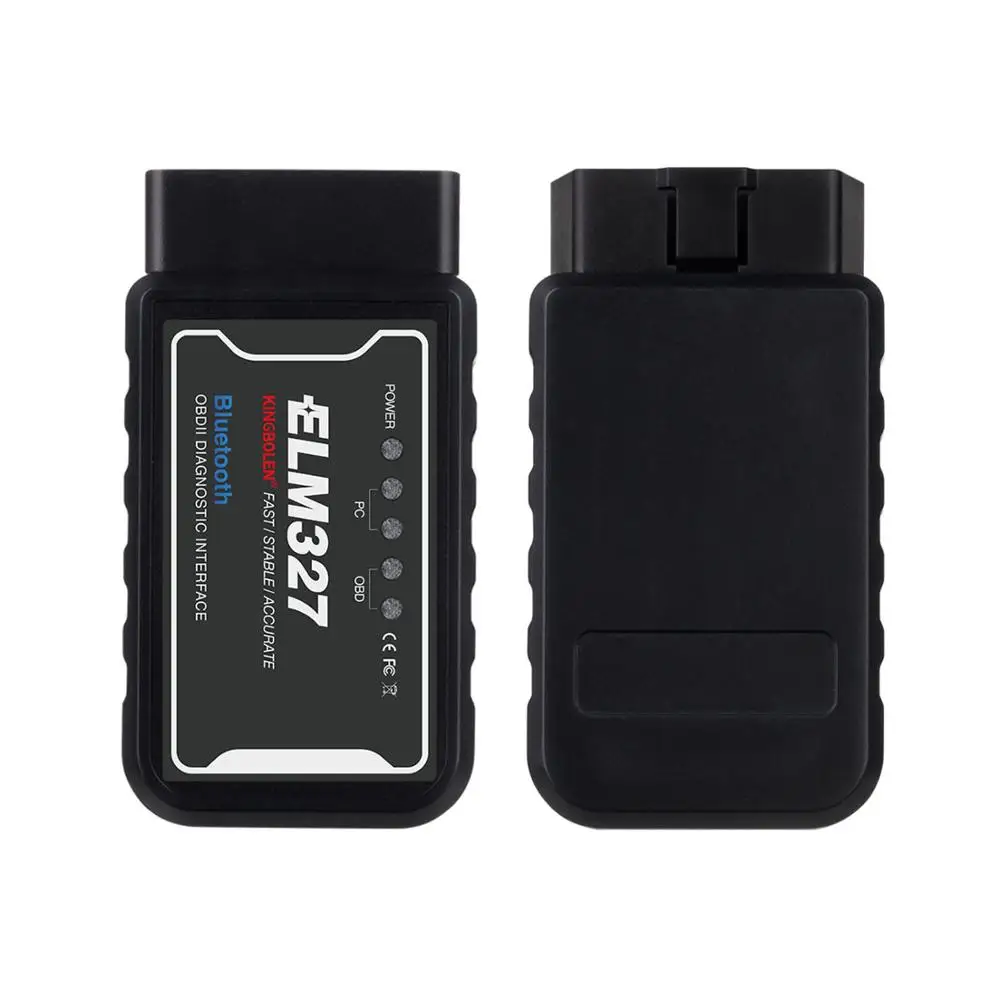

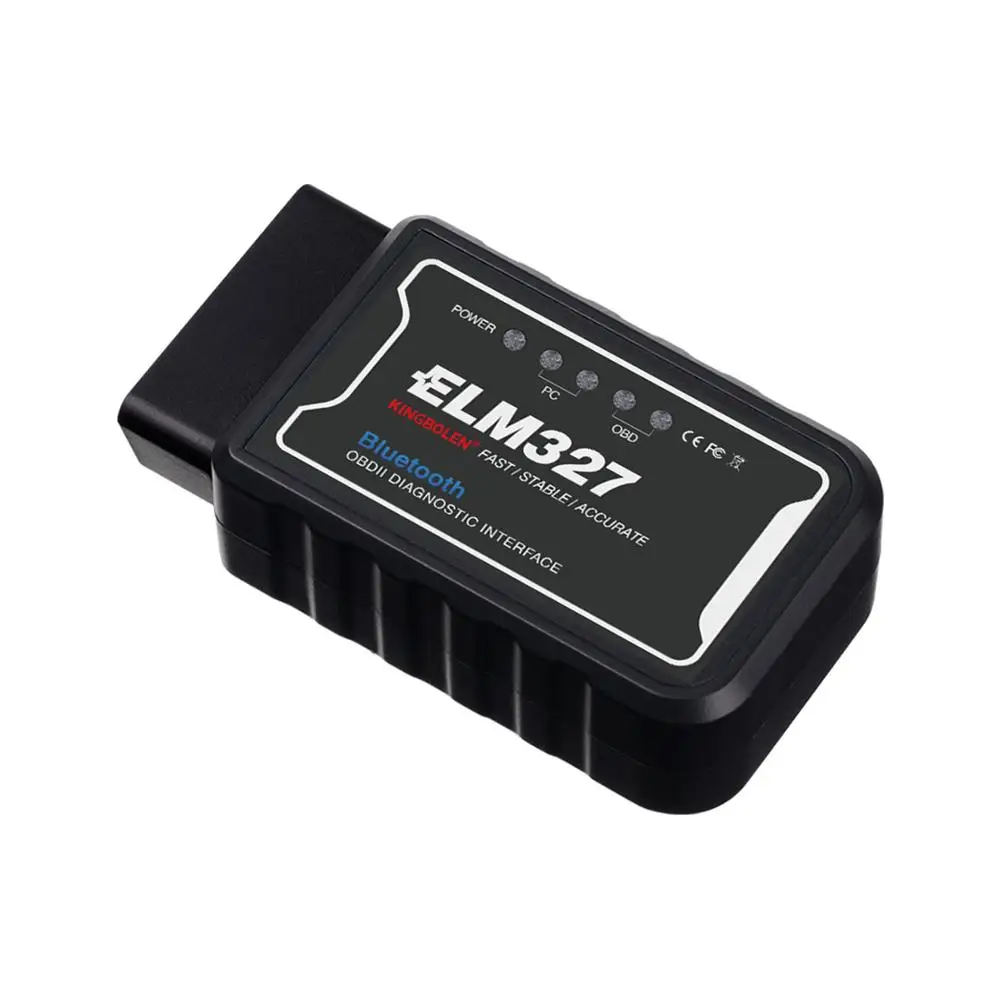

1 x ELM327 obd interface

(Software Scan QR CODE on the parcel)





Q: What's the version of this unit?
A: It's V1.5 version of this unit.

Q:What's the difference for the Version V1.5 and V2.1?
A: The V1.5 version one can do much more car models than V2.1 one.

Q. What's the Password of the BT?
A: It's "1234" .

Q: If it can do all most car models and diesel car models?
A: No, it can just support most standard OBD II car models, Dieser car models can't be supported.

Q: Which android system phone can compatible? If it can compatible with Iphone?
A: Please kindly use Android V 4.0- 4.4 or V5.0. The Iphone can't be supported.

Q: Why my computer can't connect with this BT?
A: This unit is with V2.0 version BT, check your computer if it's V2.0 version, or please use V2.0 B adapter.

Q:Why my phone can't connect with the BT?
A: Please kindly check if you choose the BT connect way in software setting.

Q:My phone can connect with the unit, but it can't find my car?
A: 1. please check ifyou choose the "OBD II" adapter of " adapter choice" in setting software. 2. check if your android system version is V4.0 - 4.4 or V5.0. 3. check the protocol of this car if it can be supported, and try with more new cars.

Q: If I still have question, what should I do now?
A: please kindly contact us ASAP, and don't open a dispute. Thank you
