good performance digital compound ZDF-III-LED vacuum gauge test for vacuum unit sold to Germany

INFORMATION OVERVIEW
	Basic information: 1)  Model: EVP brand ZDF-III-LED vacuum gauge 2)  Controlling range : resistance unit 2.5×103Pa ~1×100Pa   ionization unit  5×100~1×10-3Pa 3) Measuring range: continuous measurement (automatically)1×105~1×10-5Pa  independent measurement(manually)resistance unit1×10^5~1 ×10^-1 Pa; ionization unit 5~1×10^-4Pa
	Packaging Details: Standard package suitable for all countries Packing dimension: L x W x H= 500 x 200 x 300 mm Net weight / Gross weight: 5 kg / 7 kg
Certificates: ISO9001:2000 / SGS / CE Lead Time: Have many models in stock, if not, it is about 10 days when less than 5 units, about 15 days when less than 10 units. If urgent, please tell us.	More Items, please scan:

  Please click here for more information!

SPECIFICATIONS: Compound ZDF-III-LED vacuum gauge

 Technical Information:

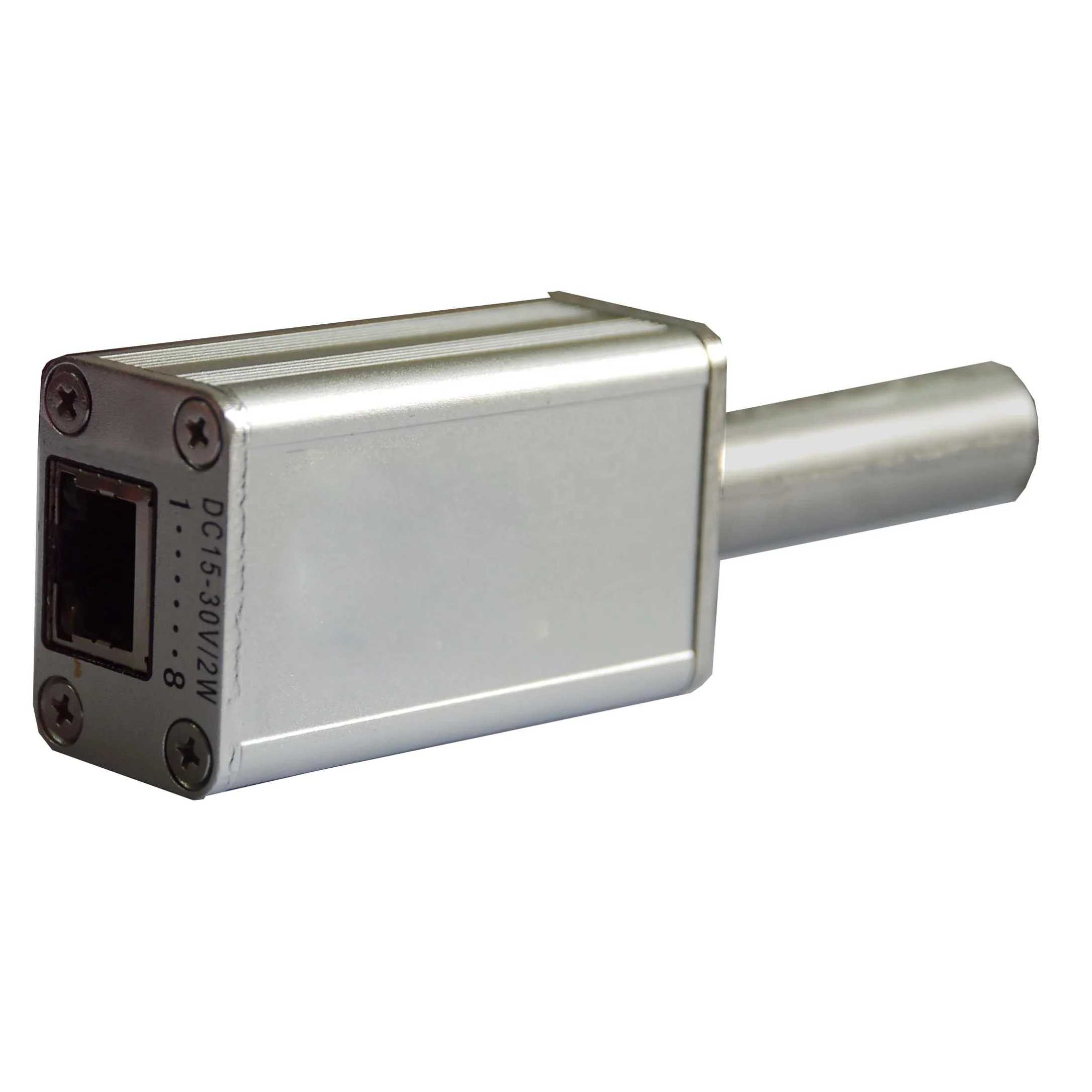

*Vacuum gauge pipe: ZJ-52T resistance gauge pipe and ZJ-10 ionization gauge pipe
*Measuring range:
  continuous measurement (automatically)1×10⁵~1×10^-5Pa
  Independent measurement(manually) resistance unit1×10⁵~1   ×10^-1 Pa;

  Ionization unit5~1×10^-4Pa

*Measuring path: 1 low , 1 high
*Controlling range:
  resistance unit 2.5×10³Pa ~1×100Pa
  ionization unit  5×100~1×10^-3Pa
*Controlling path: 4paths can be expanded to 4 paths or 8 paths

* Measuring accuracy: ± 1%

* Controlling method:relay contact output,load capacity AC220V/3A (or DC28V/3A)

  non-inductive load

* Degassing method:bombardment degassing

* Instrument sampling time:1S

* power supply: 90-260V/50Hz or220V±10% 50Hz
* power consumption: 55W
* weight: 6Kg/5Kg/4Kg(depends on its size)
* size: 240×88×280 or 480×88×280 or 265 ×119 × 280  or 480 × 119 × 280(width×height×depth)
