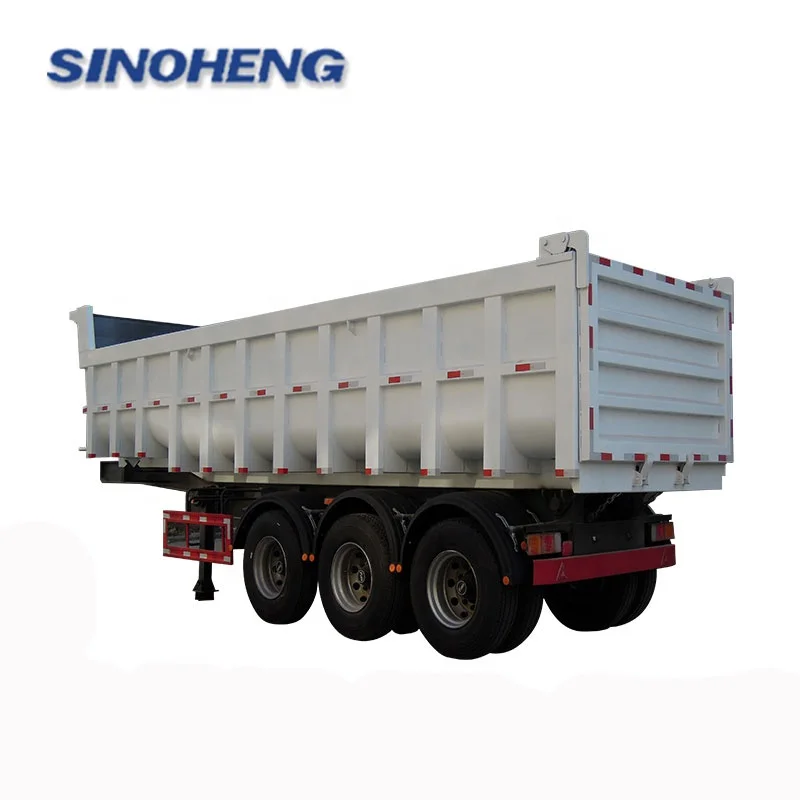

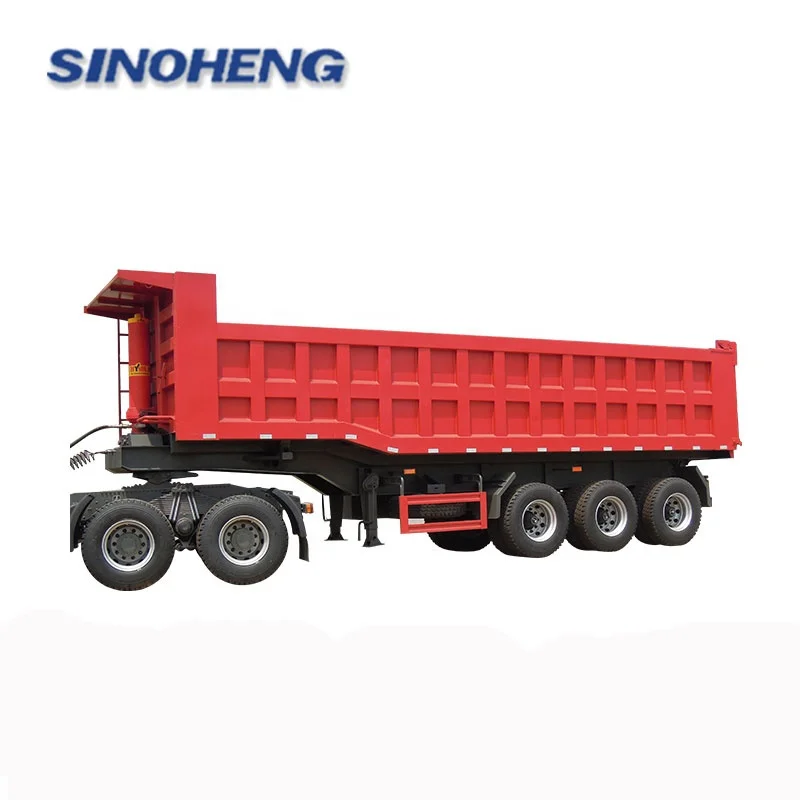

60 тонн тяжелый задний самосвал полуприцеп высокого

Main Dimensions

Product Name

Dumping Semi trailer Tipper trailer

Dimension

11280*2495*3970mm ( outside)

10500*2300*1700mm (work space ) size can be your choose

Tare weight

About 15600KGS

Total Volume(m3)

37 m³ or less than 60tons

Side wall thickness(mm)

6mm Q235 steel

Bottom plate thickness(mm)

8mm /Q235 steel

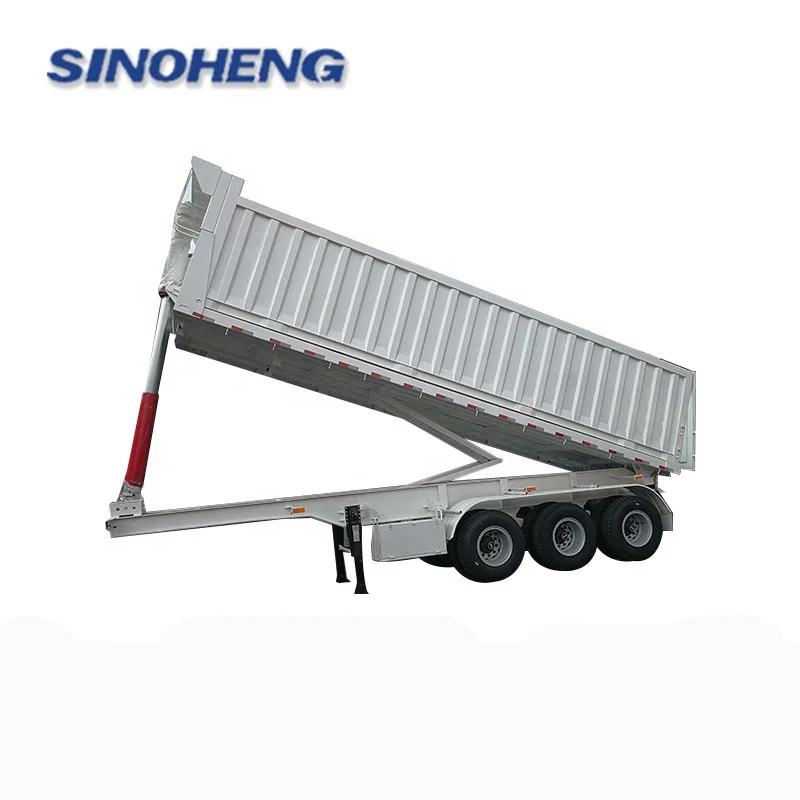

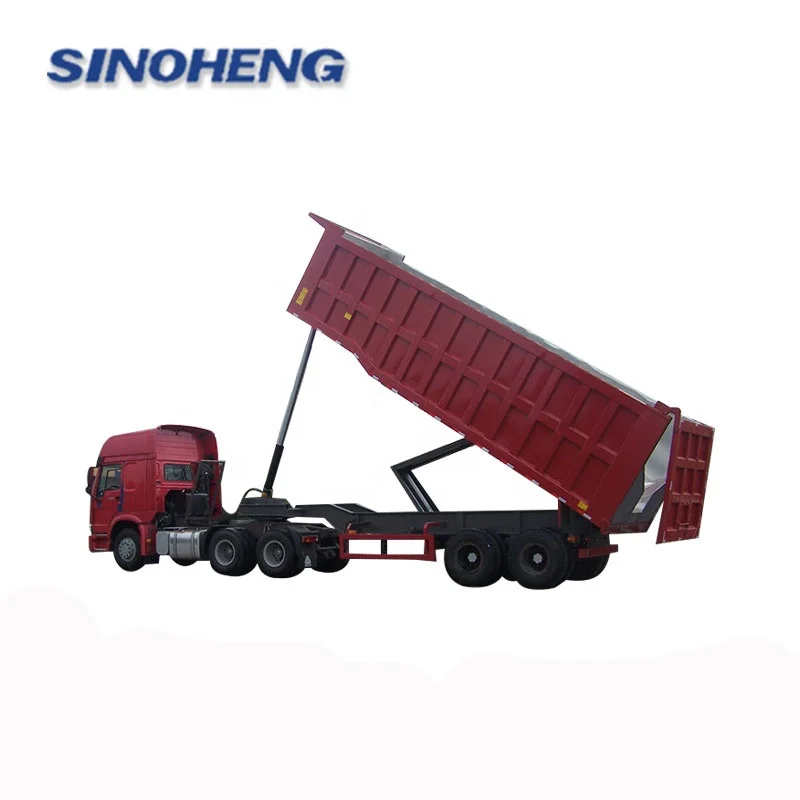

Lifting system

Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder

(FC196 MODEL use for 9 m length trailer)

Chassis

Main Beams

Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel

Axle

3 axles, Famous brand   16tons per axles

Landing Gear

Famous brand (D200T)or China Famous brand 28T

King Pin

Famous brand 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/ America type /

Leaf Spring

90(W)mm*13(Thickness)mm*10 Layer

Pneumatic Braking System

Famous brand RE 6 relay valve; Spring brake chamber; 2 pieces of 45L air tanks.

Rim

9.00-22.5/8.00-20/8.5-20  ChinaFamous Brand

Tire

/12.00R22.5/315 80R22.5/11.00R20 /12.00R20  Brand can be Optional

ABS

Optional

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories

One standard tool box

Shipping Terms

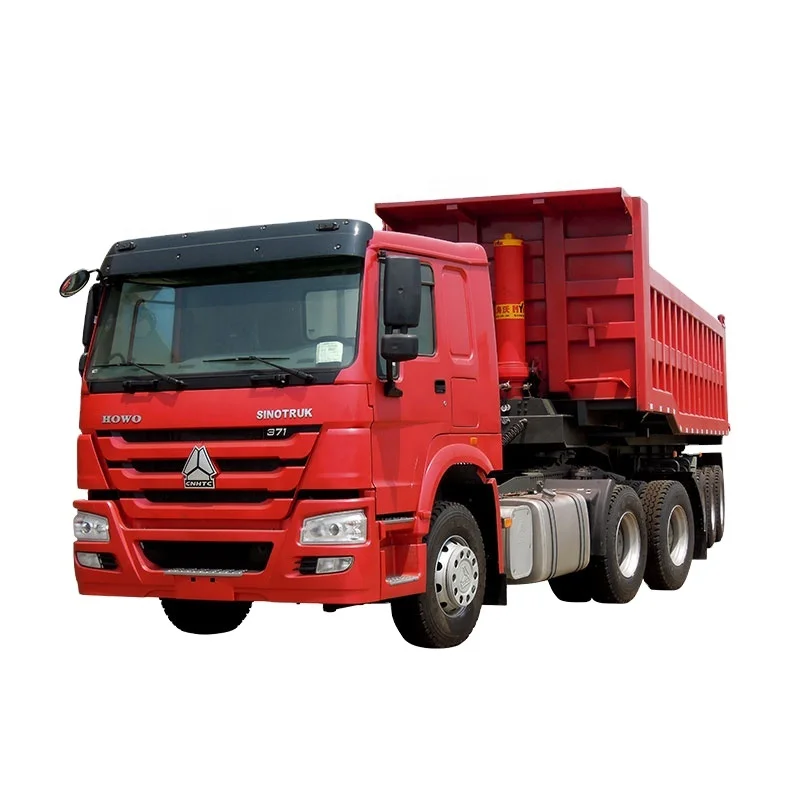

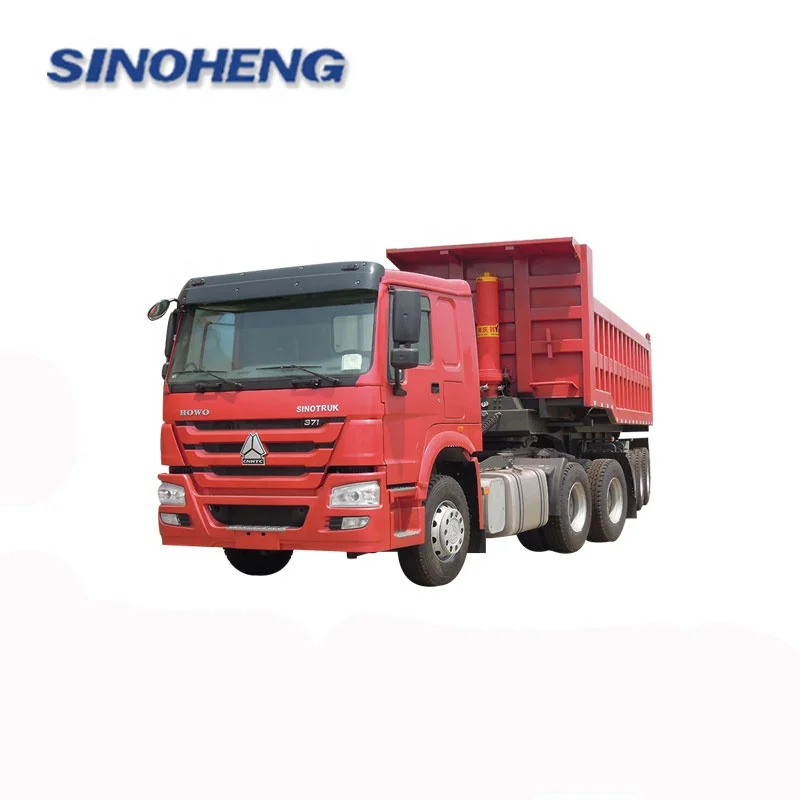

By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model .
