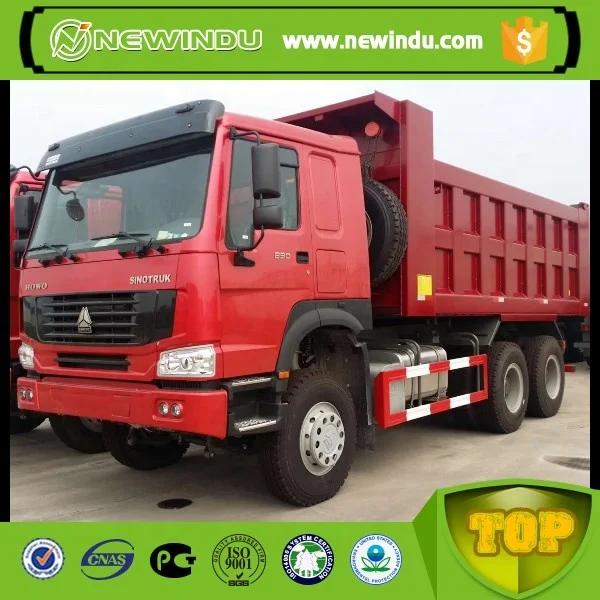

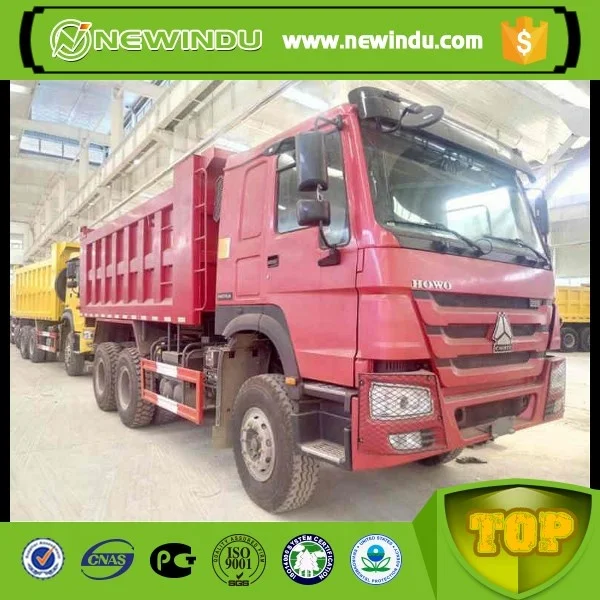

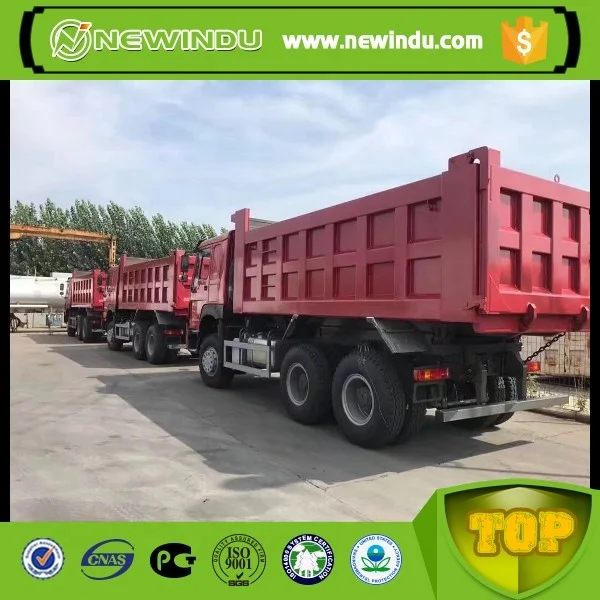

Самосвал SINOTRUK HOWO 6x4 30

Specifications

Model

30 ton payload capacity dump truck

Traction

6X4, 8*4

Power

336HP, 340HP, 371HP, 380HP

Weight Parameter

Complete Vehicle Kerb Mass(kg)

12250

Maximum authorized total mass (kg)

30000

Dimension Parameter

External Dimensions(mm)

8545X2496X 3170

wheelbase(mm)

3625+1350

Internal cargo Sizes

6000X2300X1500

Recommended Configuration

Engine Type

WD615.69

Rated power(kW)/Rev(r/min)

247/2200

Transmission

Manual operation,10 forward & 2reverse with

no synchronizer

Front Axle Payload(kg)

9000

Rear Axle Payload(kg)

16000x2

Fuel Tank(L)

300

Track(mm)

2022+1830

Front overhang/rear overhang(mm)

1500/2295

Tire

12.00-20

Cabin

Standard cab with One sleeper, with 4-point support

fully floating suspension and shock absorbers,

with air conditioner
