Оси и запчасти для прицепа 7000 фунтов
- Категория: Запчасти и аксессуары для прицепов >>>
- Поставщик: Guilin,Pengyuan,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 119.43 $* | 125.9 $* |
| Aug-20-2025 | 118.75 $* | 124.52 $* |
| Jul-20-2025 | 99.8 $* | 104.95 $* |
| Jun-20-2025 | 116.62 $* | 122.38 $* |
| May-20-2025 | 101.67 $* | 106.38 $* |
| Apr-20-2025 | 114.67 $* | 120.52 $* |
| Mar-20-2025 | 113.11 $* | 119.24 $* |
| Feb-20-2025 | 112.78 $* | 118.13 $* |
| Jan-20-2025 | 111.15 $* | 117.79 $* |
Характеристики

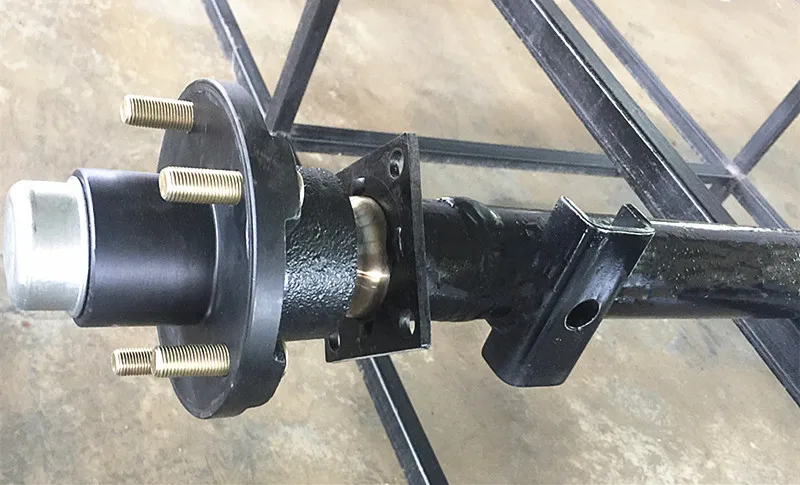

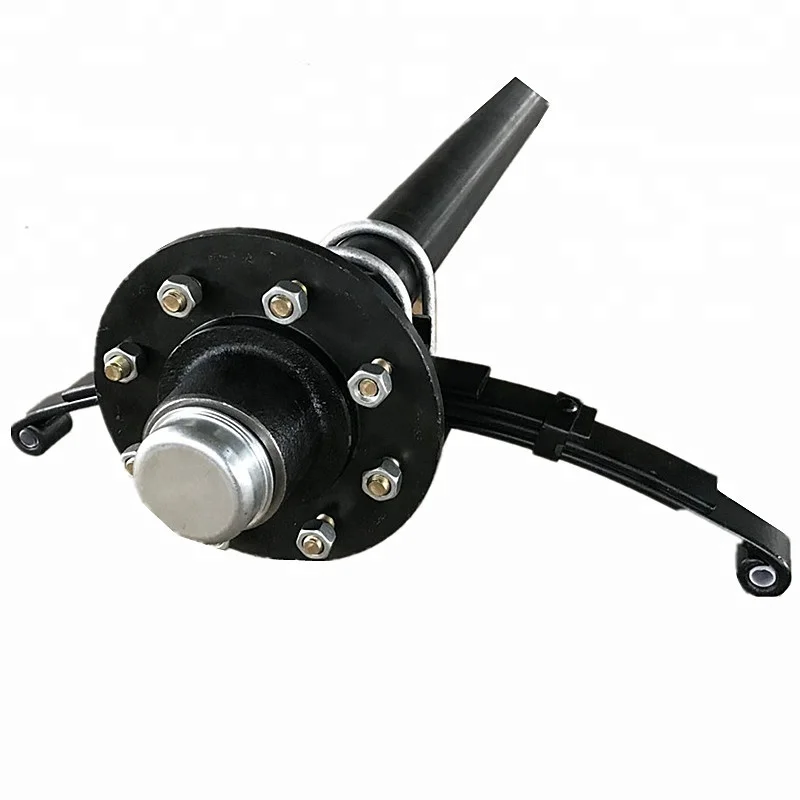

Trailer Axles and Parts 7000 lbs Trailer Idler Hub Axle
Trailer axle measures from hub face to hub face and from spring center to spring center is customized. Includes leaf spring, hubs, drums, bearings, races, seals, and mounting hardware. E-Z Lube spindles for simple lubrication.
Features:
1. Axle beam acts as part of your trailer's suspension system
1)Replace an axle on your trailer
2) Fabricate a suspension to fit your application
2. High-strength steel construction
3. Bend in axle creates zero camber angle for even road-to-tread contact across the width of your trailer's tires
1) Best for straight-line acceleration and steady, controlled towing
4. Underslung design - spring seats welded to underside of axle for mounting leaf springs
1) Low ride height makes it easier to load and unload your trailer
5. Straight, E-Z Lube spindles - no drop
1) Built-in grease zerks for simple lubrication
6. Spring seats and spindles are welded on
7. Electric brakes are easy to install - no actuator or hydraulic lines necessary
1) Adjuster plugs, mounting bolts, and hardware included
8. Cast iron hubs and drums are sturdy and durable
1) Bearings, races, seals, grease caps, wheel studs, lug nuts, and marine-grade wheel bearing grease included
Non-braked Straight Axle Assembly | |||||
Item | Capacity | Axle Size | Hub | Stud/Nut | PCD/mm |
SA39RxxxxxN | 750KG | 39mm Round | 150 Hub | 5x1/2" | 114.3 |
SA39RxxxxxG | 750KG | 39mm Round | 150 Hub | 5x1/2" | 114.3 |
SA40SxxxxxN | 1000KG | 40mm Square | 190 Hub | 6x1/2" | 139.7 |
SA40SxxxxxG | 1000KG | 40mm Square | 190 Hub | 6x1/2" | 139.7 |
SA45SxxxxxN | 1500KG | 45mm Square | 190 Hub | 6x1/2" | 139.7 |
SA45SxxxxxG | 1500KG | 45mm Square | 190 Hub | 6x1/2" | 139.7 |
SA45RxxxxxN | 1500KG | 45mm Round | 190 Hub | 6x1/2" | 139.7 |
SA45RxxxxxG | 1500KG | 45mm Round | 190 Hub | 6x1/2" | 139.7 |
SA45SxxxxxN | 1500KG | 40mm Square | Parallel Hub | 6x1/2" | 139.7 |
SA45SxxxxxG | 1500KG | 40mm Square | Parallel Hub | 6x1/2" | 139.7 |
SA45RxxxxxN | 1800KG | 45mm Round | Parallel Hub | 6x1/2" | 139.7 |
SA45RxxxxxG | 1800KG | 45mm Round | Parallel Hub | 6x1/2" | 139.7 |
SA50SxxxxxN | 1800KG | 50mm Square | Dexter Hub | 6x1/2" | 139.7 |
SA50SxxxxxG | 1800KG | 50mm Square | Dexter Hub | 6x1/2" | 139.7 |
SA60RxxxxxN | 3000KG | 63mm Round | 3 Ton | 6x8/5" | 139.7 |
SA60RxxxxxG | 3000KG | 63mm Round | 3 Ton | 6x8/5" | 139.7 |
Specs:
1. Weight capacity: 7,000 lbs
2. Hub-face-to-hub-face length: Customized
3. Spring-center-to-spring-center length: Customized
4. Hub dimensions: 12" diameter x 2" wide
1) Bolt pattern: 8 on 6-1/2"
5. Axle tubing outer diameter: 3"
6. Grease cap outer diameter: 2.72"
7. Wheel stud diameter: 1/2"
8. Wheel size: 16"
9. Limited 5-year warranty
Bearing, Race, and Seal Information
1. Bearings (included)
Inner bearing: 25580 (1.75" inner diameter)
Outer bearing: 14125A (1.25" inner diameter)
2. Races (included)
Inner race: 25520
Outer race: 14276
3. Grease seal (included): GS-2250DL
Inner diameter: 2.25"
Outer diameter: 3.376"
Related products:
Company Information
Establishing in 1995, Guilin Pengyuan Trading Co., Ltd. is a manufacturer and trader combined company. We have enough tests on the products to ensure the quality of the products and their goods will be delivered after strict quality inspection. We had associated and independent factory named "Guilin Pengda Automobile Parts Manufactory Co., Ltd." which located in Guilin, occupying an area of 23,067 square meters. We have successful foreign trading experience in Europe, North America, South America etc..,
As a member of GM Automobile Group and Association of Quality Management of Mechanics Industry of China. In March 2005, Pengyuan passed TS16949 Quality System Certification. Our products turned out by our enterprise have been selling well in markets at home and abroad, and got high appreciation from overseas buyers.
Our factory:
We are capable of producing iron casting, steel casting, nonferrous metal casting, forging, punching and riveting, welding, heat treatment, mechanical processing, etc.

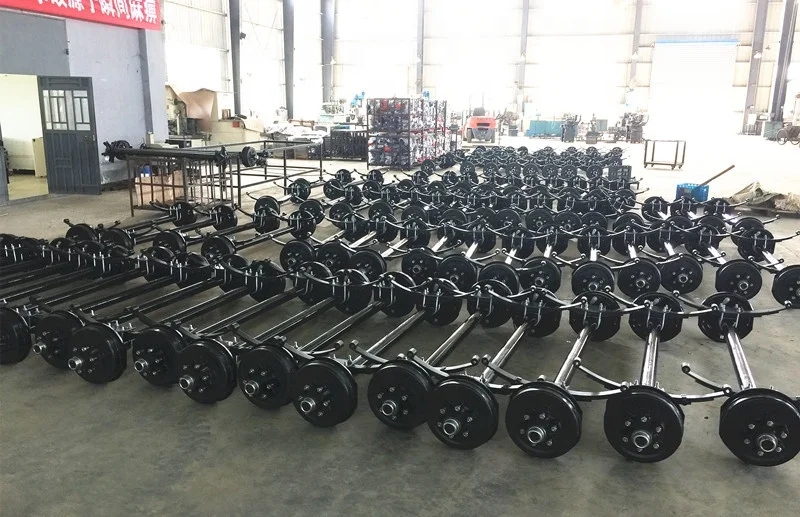

Production workshop and equipment:
Pengyuan is well-equipped with all kinds of trailer parts.
We has 487 sets of physical performance, chemical analysis,
metallographic inspection and other testing equipment.
Productive process:
Our products include:
1. Spindle
2. Hub and drum assembly
3. Brake assembly
4. Leaf spring
5. Square axle beam and axle
6. Other axle part
1) Couple
2) U-bolt kit
Packaging & Shipping
As for the transportation of products, our company supports various sea, land and air international transportation. Please confirm the specific transportation plan during the negotiation.
FAQ
1: Could you please make us an offer as soon as possible?
In order to get the price quickly and accurately, please provide the technical drawing or OE number, we will be very grateful.
2: Could you please provide us with the specifications of the products?
Sure, please confirm the product code you need before that.
3: How can you guarantee the quality of your products?
Our products have passed ISO9001 international quality standard certification. Our company has a very strict quality control system.
4: How to solve the problems in the later stage?
We are confident in our products. We pack them well to make sure they are well protected.
