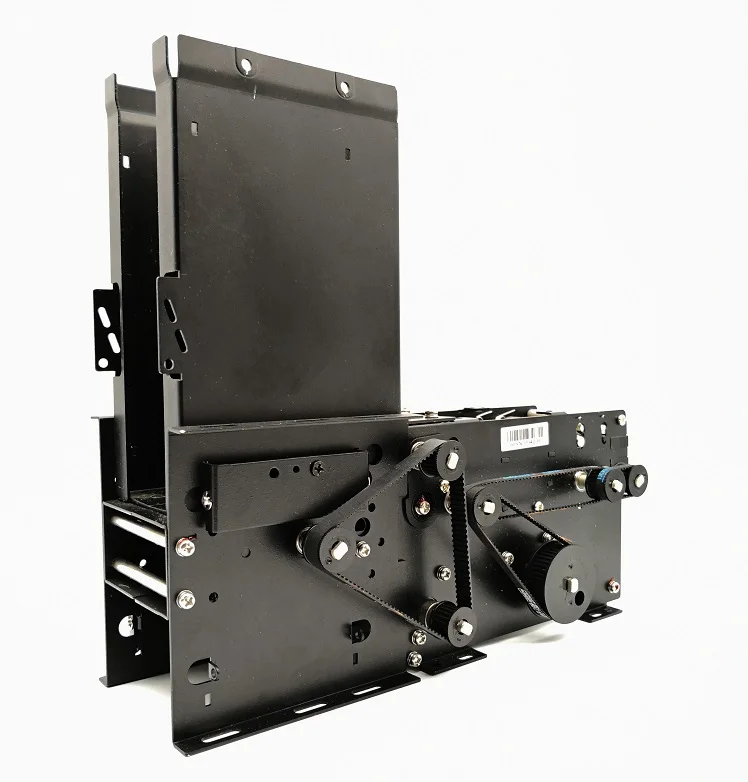

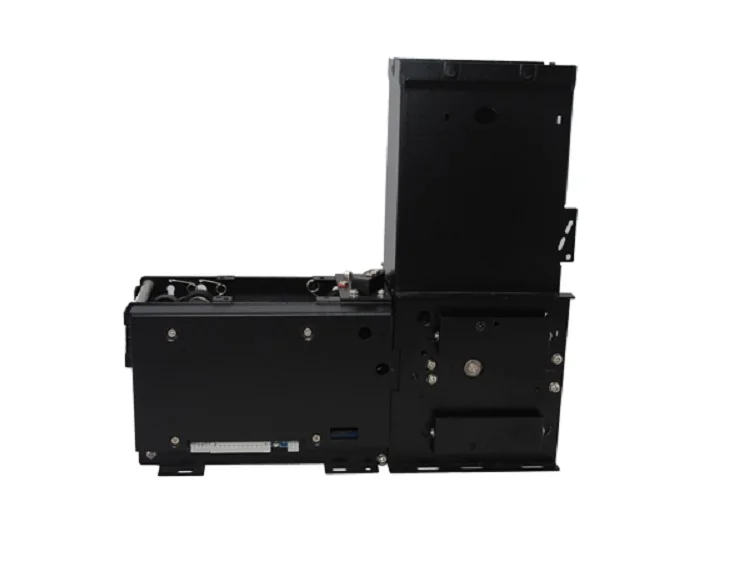

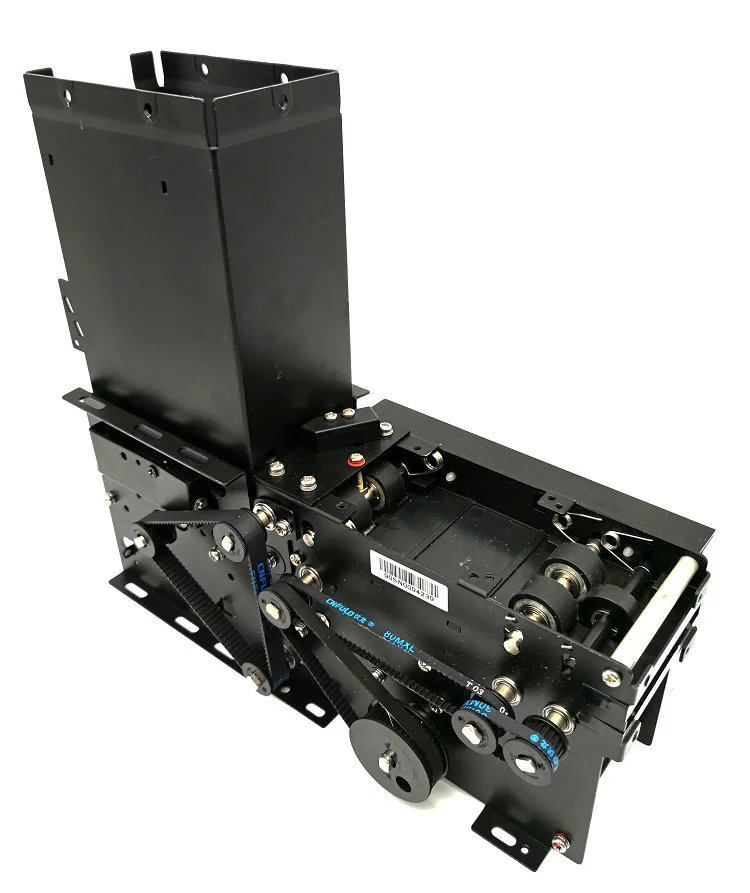

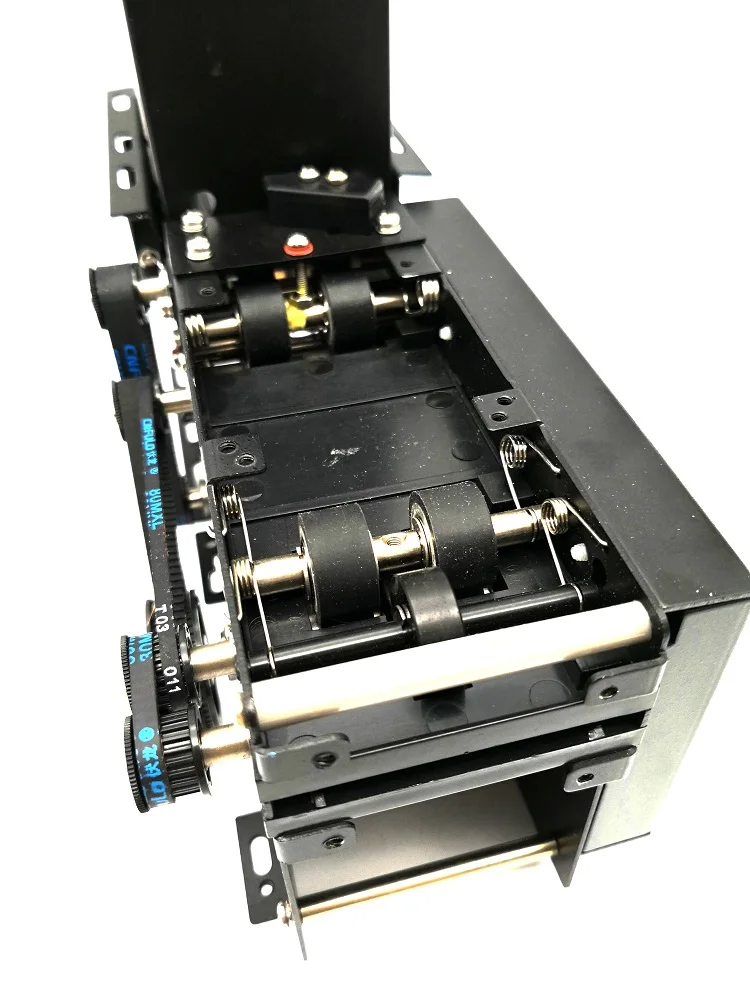

Automatic Kiosk Equipment RFID NFC Cards Card Dispenser

ICD-1500 RFID NFC Cards Card Dispenser Selling Point

        We have designed ICD-1500 with the following objectives in mind:

• Waterproof, dustproof and physical protection


• Card stack holder(the card containers)is removable


• Compact size


• Postposition of the card reclaiming bin


• The unique way of reclaiming


• The slit is easy to adjust


• Optimized the PCB design


• Feature setting is flexible

ICD-1500 RFID NFC Cards Card Dispenser Features

• Prevent  2 cards out together, dispense card one by one


• Error card recycle function


• Easy adjust of card thickness (0.2~1.5mm)


• Optimizing internal structure with 10 years experience

Application

• Toll system of car parks


• Access control system


• Entrance tickets issued


• Telecom Self Vending System


• Game card distribution system


• Parking charge system


• Toll system of car parks

Technical Parameter



Specification	Automatic card dispenser
Model	ICD-1500
Motor	Double Motor
Card size	86x55mm
Card Thickness	0.2-1.5mm
Stacker capability	160pcs(0.76mm card)
Extention Stacker	100pcs/stacker
Error Card Bin Capability	40pcs(0.76mm standard card)
Short card alarm value	10-70pcs(adjustable)
Communication	RS 232, RS 485,TTL
Temperature/humidity	Operation: 0~50°C/0~90%RH(Non-condensing)
	Storage: -10~75°C/0~95%RH(Non-condensing)
Power supply	DC 24V +/-10%
Weight	2.5kg
Dimonsion	244*96.5*224mm
