High quality 4FE reverse PoE ONU Power Supply Ethernet Switch POE Support
Introduction
GPON Reverse PoE(PD) ONU with reverse PoE designed for fulfilling FTTH request of telecom operators, internet access of SOHO. This product is support GPON model, which has high performance/price ratio, and the technology of layer 2 Ethernet switch as well. It is highly reliable and easy to maintain, with guaranteed QoS. Its GPON model is fully compliant to ITU-TG.984.x. ONU is powered by the power sourcing equipment (PSE) deployed in users' residences, applied in scenarios where there is no alternating current (AC) power supply in corridors.

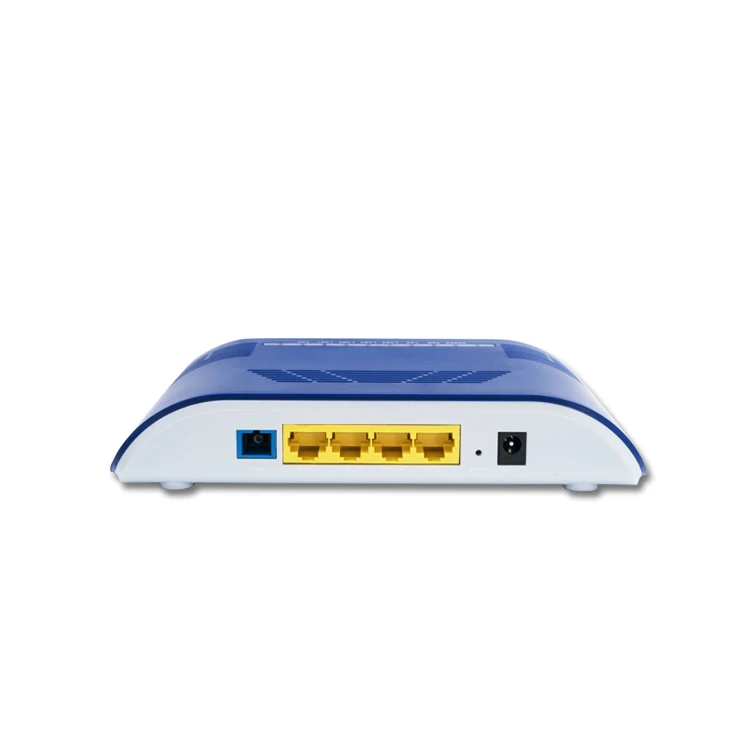

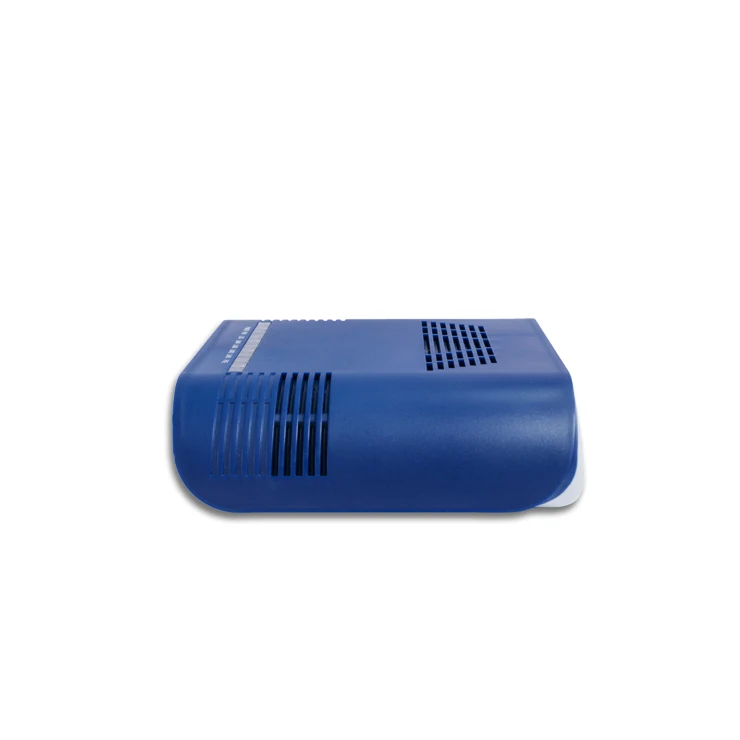

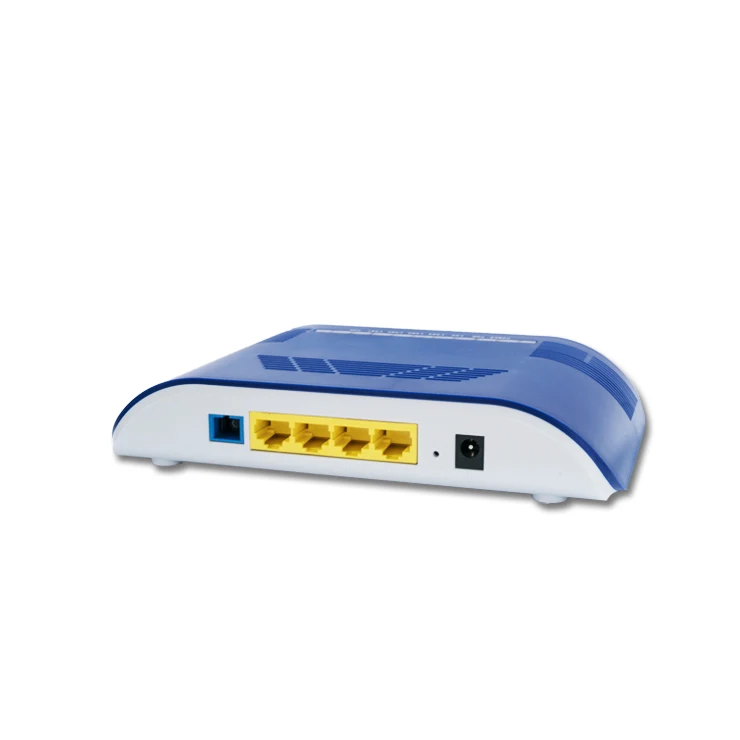

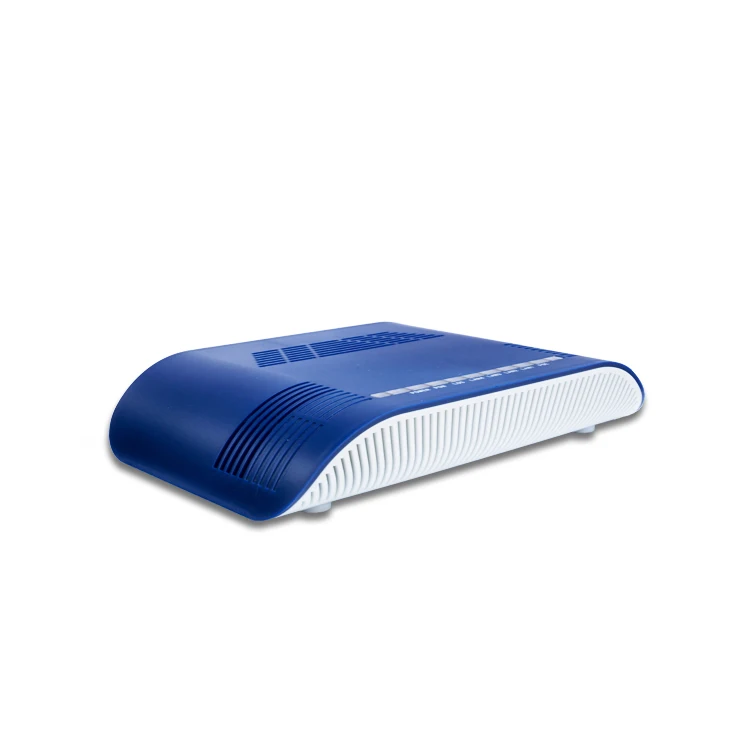

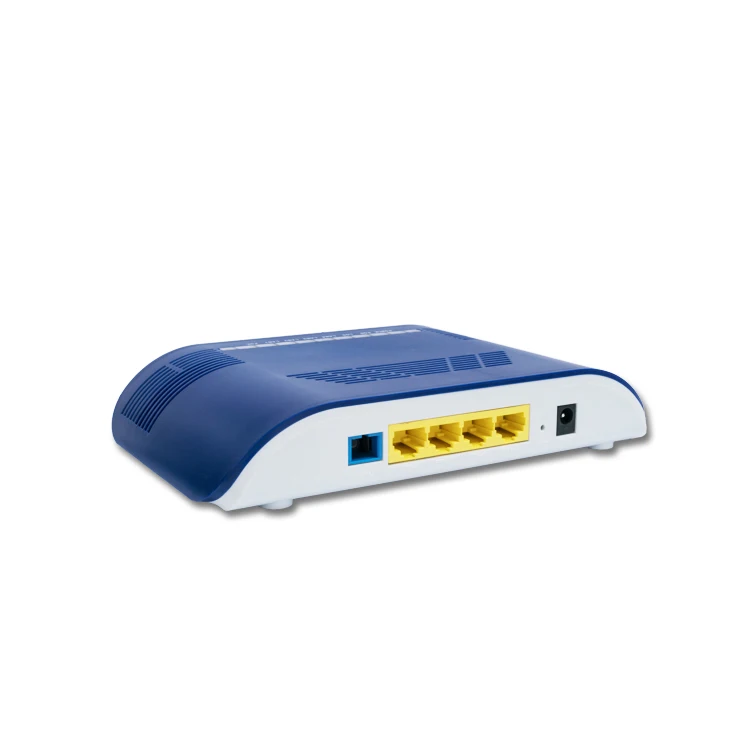

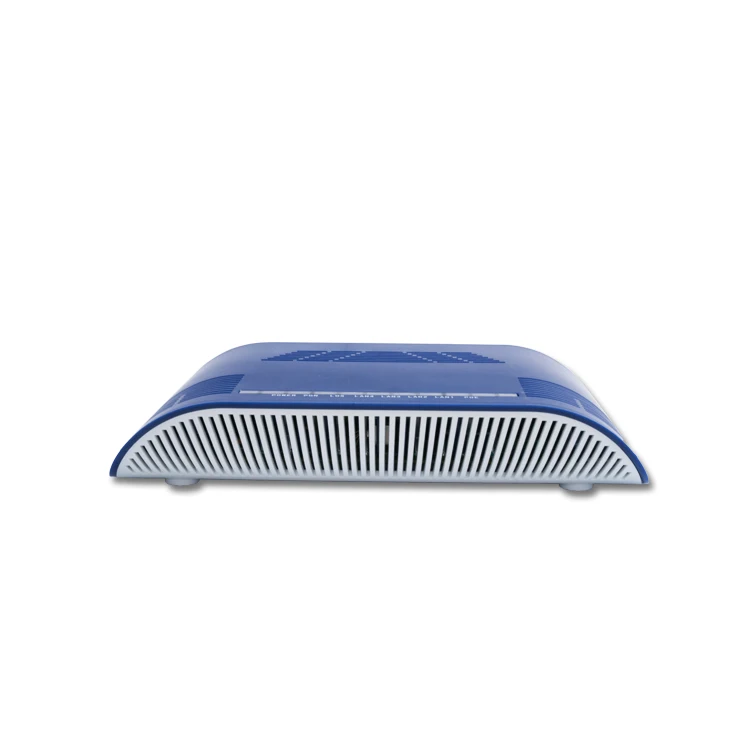

Product photo show
Technical Specifications
Technical items
Description
4FE+Reverse PoE (PD)
Upstream PON interface
1GPON port(Class B+)
Wavelength
Tx1310nm,Rx 1490nm
Sensitivity
<-27dBm(PX20+) PON
Overload
>-3dBm(PX20+) PON
Optical interface
SC/UPC connector
Downstream LAN interface
4 x 10/100Mbps auto adaptive Ethernet interfaces.10/100M Full/Half, RJ45 connector
Indicators
11 indicators, for status of power supply, PON port and 4 Ethernet port.
l Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
l Integrated OAM remote configuration and maintenance function.
l Support rich QinQ VLAN function and IGMP Snooping multicast feature.
l Functions like transceiver diagnostic monitoring, transmitter disable, etc.
l Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
l Easily configuration by local CLI.
Function Description
l Shared 1Mbit on-chip memory-based switch fabric with true non-blocking switching performance.
l 8K MAC address entries with automatic learning and aging.
l Per port programmable MAC address limiting.
l 802.1Q VLAN support for the full 4,096 VLAN IDs.
l Quality of Service support with four traffic classes.
l Support Strict,Weighted,or mixed mode QoS.
l Integrated 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
l Support port monitoring, port mirroring, port rate limiting, port SLA, etc.
l Support auto polarity detection of Ethernet ports (AUTO MDIX).
l Support layer 2 Policy Control
l Support IPv4 IGMP snooping and IPv6 MLD snooping.
Packaging & Shipping
FAQ
1.Can we get a lower price? Any Discount? Yes,price is not a problem,everything could be negotiated based on the quantity.
2.Can I get a free sample? Sorry that V-Solution is not available to new customer.
3.We are new in this PON fields,can you help me and recommend me some items? Yes,of course.it is our pleasure to help you with it. You only need to offer us more details about your application.
4.What is your MOQ? No MOQ for any sample test,at least 10pcs/models after sample order.
5.OEM,ODM Service is available? Yes,V-Solution have strong ability to offer customers ODM&OEM products of highest quality. And it will requirement about your quantity.
6.For Trade Terms,such as payment and leadtime. >Payment Terms:We mainly support T/T bank transfer,Paypal and Western Union >Price Terms:FOB Guangzhou >Shipping Methods: EMS,DHL,Fedex,TNT,UPS,by sea or your own shipping agent >Leadtime: Sample order,3-7work days; Bulk order 15-25work days(after your payment )
7.How about the Warranty? There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.
