80 м3 бывший в употреблении стальной резервуар для подземного

Описание и отзывы

Трекер стоимости

Характеристики

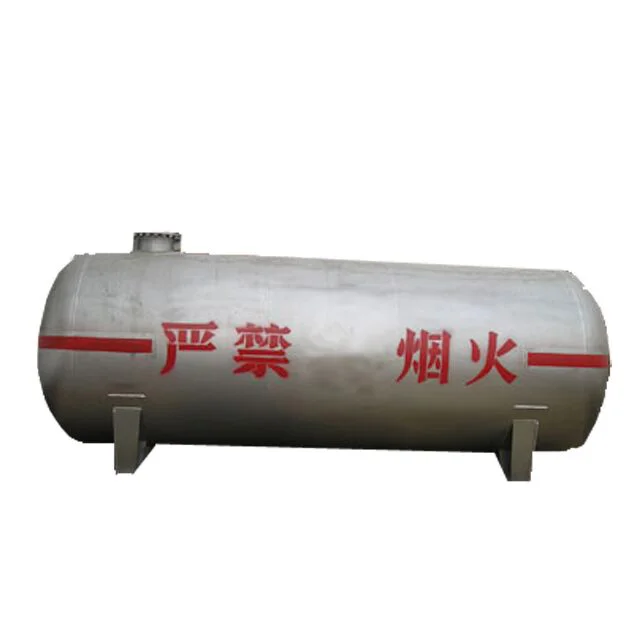

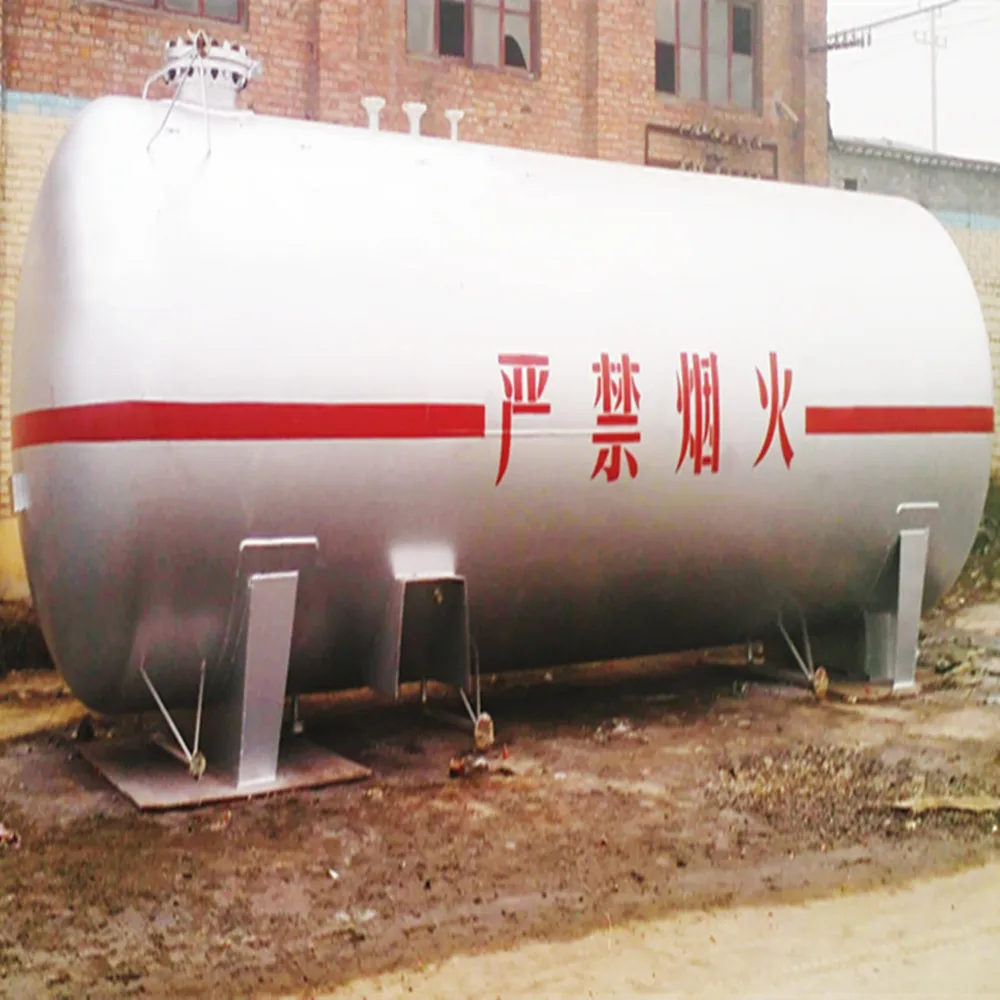

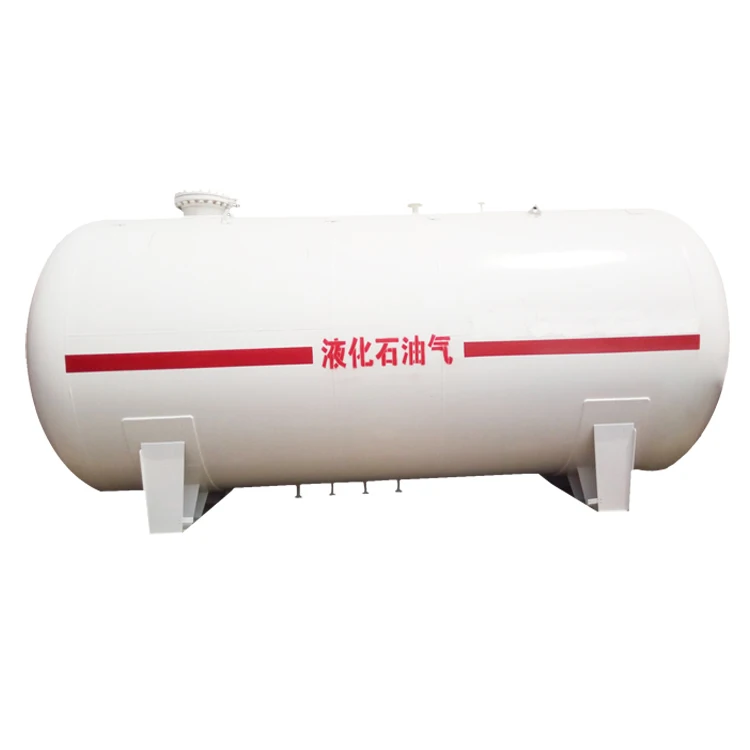

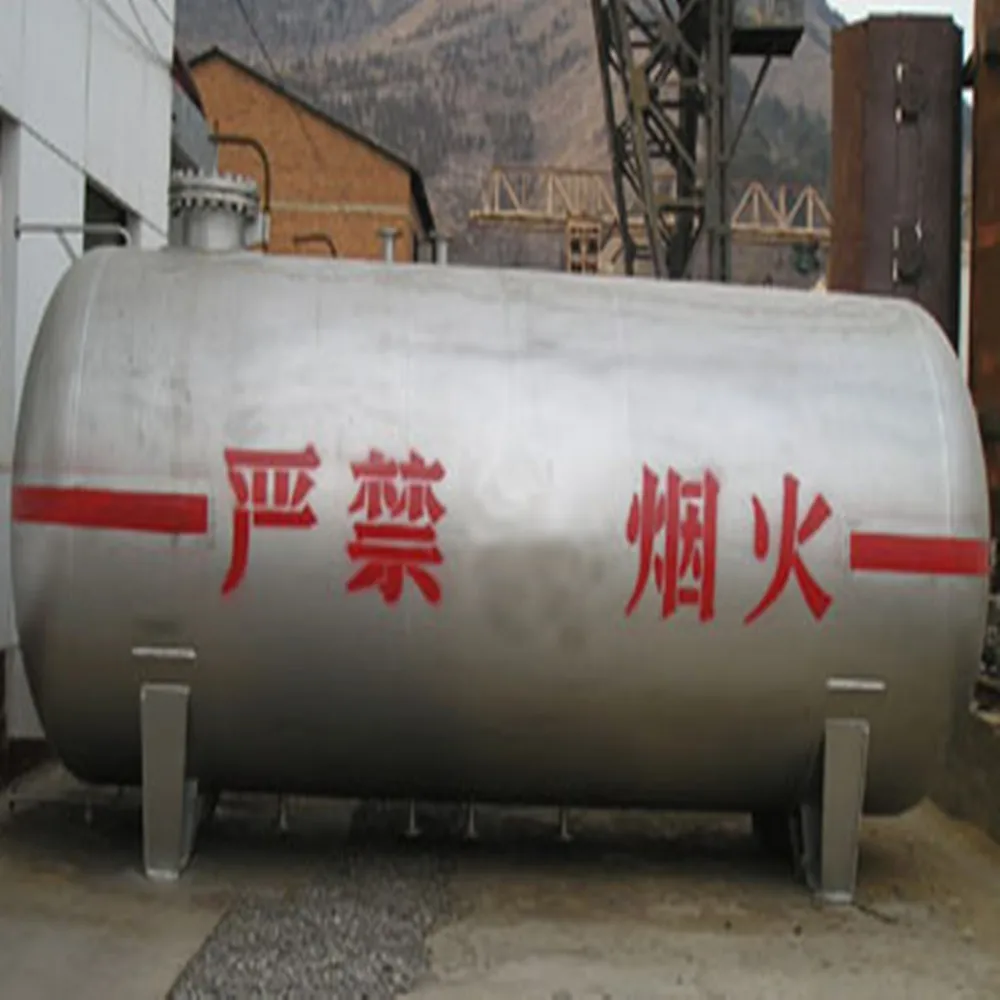

80m3 used lpg gas tank steel underground storage tank

The lpg storage tank is also called LPG gas tank for sale, lpg tank, lpg gas tank, lpg gas storage tank,bulk lpg storage tanks, etc. The lpg storage tank is belong to pressure vessel.It mainly used to store up liquid petrolum gas, propane.

The lpg storage tank  is made of special material Q345R. As a professional lpg storage tank manufacturer in China, we have  the aptitude to design and manufacture A2 type of pressure vessel,the manufacturing processing of lpg storage tank is complex and strict. All the lpg gas tanks must do nondestructive examination, air tight test, hydrostatic test and any other inspections.



Name	Parameter
Category	Lpg storage tank
Effective volume(m3)	80
Working pressure(mpa)	1.77
Working medium	Lpg
Placement type	Vertical
Outer material	Q345R
Filling rate	0.95
Design standard	a.GB150<Pressure Vessels> b.GB/T 18442<Cryogenic Insulation Pressure Vessels> c.TSGR004<Pressure Vessels' Safety Technical Supervision Rules> d.ASME CE CU-TR if special requipments





Item	Effective volume(m3)	Working pressure(mpa)	Working medium	Size(mm)	Weight(kg)
LPG5/1.77	5	1.77	Lpg	1620×2400X5300	~2800
LPG10/1.77	10			1824×2600X6300	~4250
LPG15/1.77	15			2224×3000X7100	~5850
LPG20/1.77	20			2224×3000X8400	~6800
LPG30/1.77	30			2628×3400X9000	~9770
LPG50/1.77	50			2628X3400×10000	~10800
LPG100/1.77	100			3132x3722x13866	~20410

We can produce according to your request,you need the model,to provide you with the best quality,best price,best service.



1,Our  products are packaged in nude or in accordance with the requirements of the customer.

2,Our company have a professional team of installation and debug , we can provide  installation, debug and start-up etc service for customers if you need.

3, Whenever our customers have question, after we received your question, we will give you feedback within 24 hours.





CNCD brand cryogenic tank for liquid gases covers manufacturing standard:

GB150, ASME,CE,ISO standard.
It is widely used for  liquid oxygen ( LOX / LO2 ), liquid nitrogen ( LIN ), liquid argon ( LAR ), and liquid natural gas ( LNG ), LPG,and etc.

Volume: 1M3 - 200M3
Working pressure: 0.2Mpa,0.8Mpa, 1.2Mpa, 1.6Mpa, 2.0Mpa etc.

1. What information needed if we sent you the inquiry of the tanks?

The capacity, working pressure and the working medium is most important, and then your special request is also very important.

If possible, tell us the usage, this will help us recommend the most appropriate tanks for you.

2. How about quality of your products?

All the liquid co2 storage tanks are new.

All the material come from our direct suppliers, and all confirm with the national standard.

3. How can you guarantee your tanks quality?

For liquid co2 storage tank, leaking gas is one of the most important problems, so we make the leak testing more than 5 times to guarantee quality.

4. Do your tanks include the cryogenic pump and vaporizer?

We can also provide cryogenic pump or vaporizer if clients requires

If you want to know more information, please send us a inquiry.
