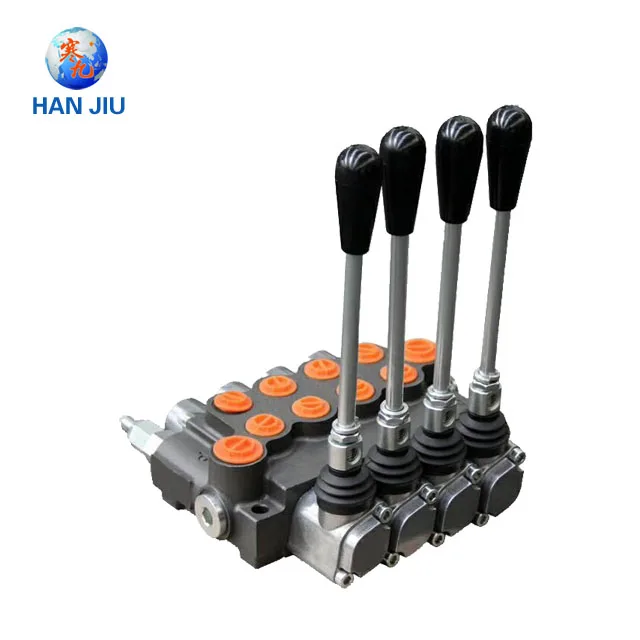

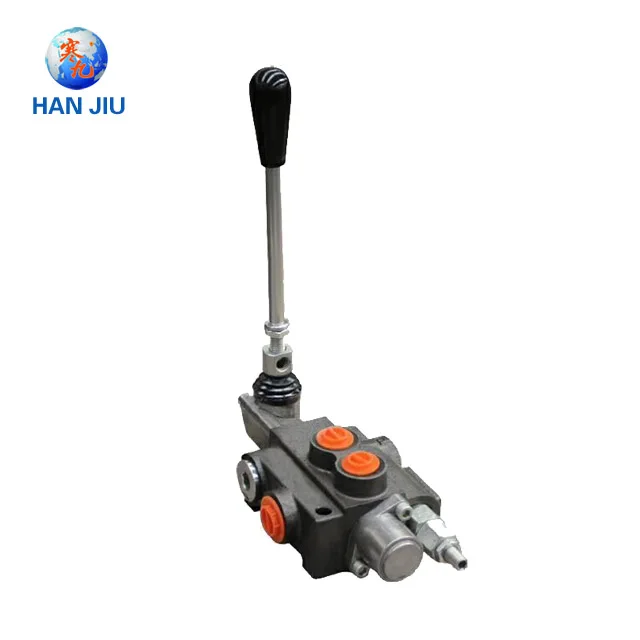

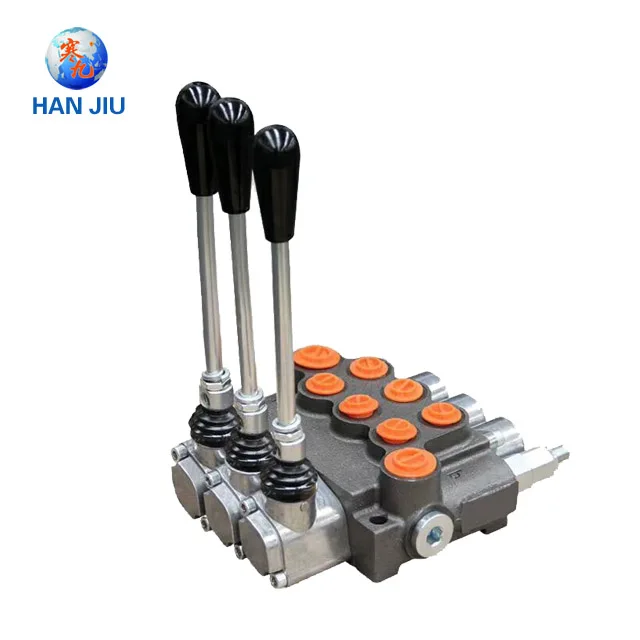

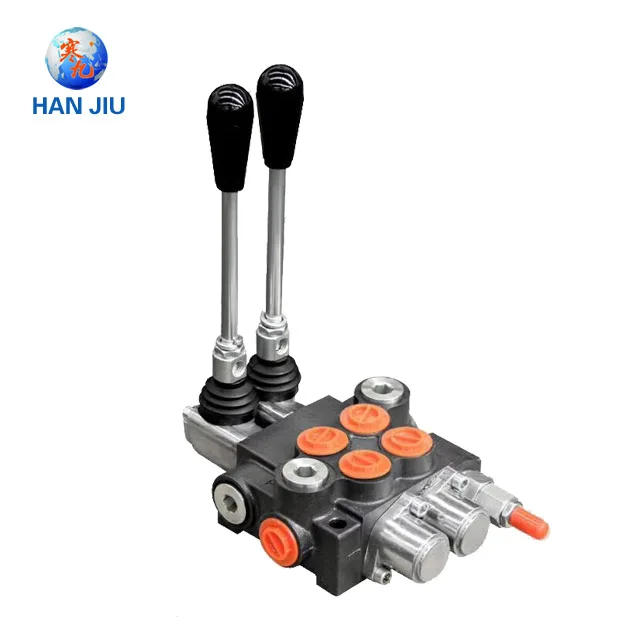

Hydraulic Drilling Rigs Hand Control Valve / Monoblock Spool Valve P40 / Directional Control Valve P80
P40 and P80 Control Valves have a good application on Drilling Rigs.
1. Product Description
Control valves with middle-high pressure monoblock construction is developed based on Europe
technology.
Manually or mechanically controlled hydraulic directional control valve is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.). It is manufactured with 1 to 7 plungers, with parallel or serial action, with common or individual back valve for each plunger, with or without safety valve.
1, Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be
returned.
2, Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working
pressure.
3, Oil way: Parallel circuit, power beyond option
4, Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.
5, Valve construction: monoblock construction, 1-6 levers.
6, Spool Function: O,Y, P,A.
7, Option: Hydraulic lock is available to be added on A and B port.
8, Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric
control and etc.
2. Details
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 315 bar |
| Back pressure | 50 bar |
| Nominal flow | 40 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | 6 mm |
| Actuating force | < 200 N |
| Modification/ Spools | with 1 to 7 |
3. Exhibition
4. Delivery
5. More Details, please contact me,thanks.
