Горно-транспортное оборудование используется хлопок холст Резиновая конвейерная
- Категория: Rubber Belts >>>
- Поставщик: Baoding,Huayun,Conveyor,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.61 $* | 0.90 $* |
| Aug-19-2025 | 0.33 $* | 0.63 $* |
| Jul-19-2025 | 0.26 $* | 0.24 $* |
| Jun-19-2025 | 0.96 $* | 0.60 $* |
| May-19-2025 | 0.46 $* | 0.22 $* |
| Apr-19-2025 | 0.23 $* | 0.20 $* |
| Mar-19-2025 | 0.25 $* | 0.4 $* |
| Feb-19-2025 | 0.33 $* | 0.65 $* |
| Jan-19-2025 | 0.64 $* | 0.83 $* |
Характеристики

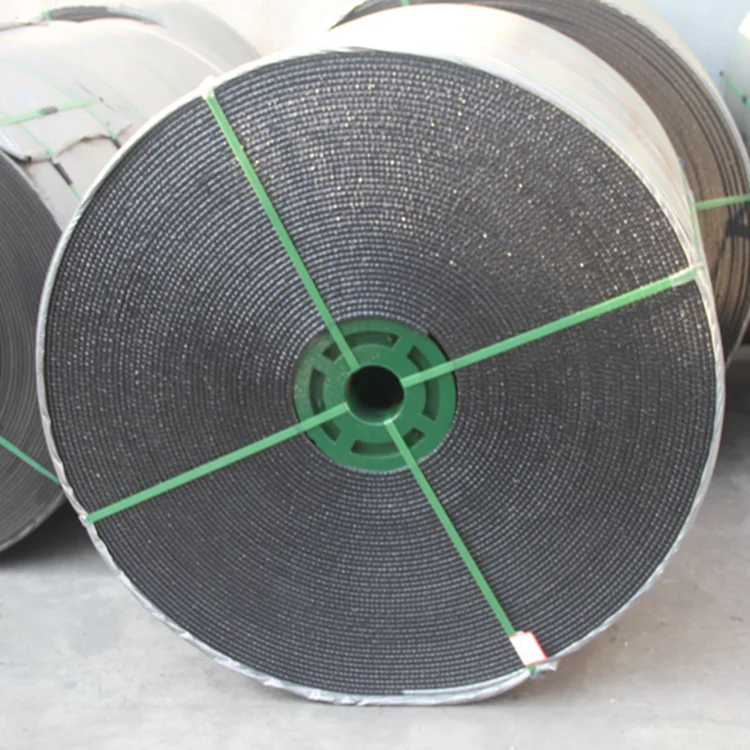

Mining transport equipment used cotton canvas rubber conveyor belt
Mould of cotton canvas rubber conveyor belt
NN100, NN150, NN200, NN250, NN300, NN400 , NN500, NN600
Standards of cotton canvas rubber conveyor belt
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etcTypes:
Besides General Nylon Belt, there are Fire-resistant type, Cold-resistant type, Wear-resistant type,
GB/T7984-2001, DIN22102, BS490, AS1332, RMA, JISK6322, SABS1173 etcTypes:
Besides General Nylon Belt, there are Fire-resistant type, Cold-resistant type, Wear-resistant type,
Heat-resistant type, Acid and alkaline resistant type, Oil-resistant type, Antistatic electricity type,
High-grade type and etc.
Nylon conveyor belts with nylon canvas have the following merits:
1) high abrasion resistance, high tensile strength and good fatigue resistance;
2) Conveyor belt with nylon canvas inside has the characteristics of thin belt body, high tensile
1) high abrasion resistance, high tensile strength and good fatigue resistance;
2) Conveyor belt with nylon canvas inside has the characteristics of thin belt body, high tensile
strength, good shock resistance, good trough ability, high adhesion between plies, splendid
flexibility and long working life.
Specification and technical data of multi-ply nylon conveyor
Fabric type | Fabric structure
| Fabric specs | Ply Thickness (mm/p) | (N/mm) strength |
Cover thickness
| Width (mm) | Length (m) | ||||||
Wrap |
Weft | 2ply | 3ply | 4ply | 5ply | 6ply | Upper | Lower | |||||
Nylon (NN)
| Nylon (N) | Nylon (N) | NN-100 | 0.75 | 200 | 300 | 400 | 500 | 600 | 1.5 ~ 12 | 0 ~ 4.5 | 400 ~ 2200 | ≤300 |
NN-150 | 0.80 | 300 | 450 | 600 | 750 | 900 | |||||||
NN-200 | 0.90 | 400 | 600 | 800 | 1000 | 1200 | 500 ~ 2200 | ||||||
NN-250 | 1.15 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
NN-300 | 1.25 | -- | 900 | 1200 | 1500 | 1800 | |||||||
NN-400 | 1.45 | -- | -- | 1600 | 2000 | 2400 | 800 ~ 2200 | ||||||
NN-500 | 1.55 | -- | -- | 2000 | 2500 | 3000 | |||||||
Adhesion and elongation of the belt
Belt carcass | Adhesion strength | Elongation | |||
Between plies N/mm | N/mm Between rubber and carcass | Longitudinal elongation elongation at break%≥
| Longitudinal elongation at reference load%≤
| ||
Cover thickness ≤1.5mm | Cover thickness ≥1.5mm | ||||
Nylon canvas | ≥4.50 | ≥3.20 | ≥3.50 | 10 | 4.0 |
According to the customer’s requirements, the belts could be made into endless belt, and the covering
rubber could be made into pit, chevron and level type etc.
Production process for cotton canvas rubber conveyor belt
Useage:
It is suitable for conveying materials at medium or long distance
and under conditions of heavy load and high speed.
Our research and development center, test equipment
Certifacations
Our company and customers
FAQ
Q: Are you a factory or trading company?
A: We are a factory that produce conveyor roller, electric driving pulley and conveyor belt.
Q: What is the material of your porducts?
A: The tube is Q235 carbon steel and the shaft is A45# steel. We can also choose material as customers' requirment.
Q: How can I get some samples?
A: We are honored to offer you samples.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Liutuoying Village, Boye County, Baoding City, Hebei Province, China,near Beijing. You can fly to Beijing airport and entrain to Baoding. All our clients, from home or abroad,are warmly welcome to visit us!
Q: How dose your factory do regarding quality control?
A: Quality is priority. Huayun people alwyas attache great importance to quality controlling from the very begining to the very end. Our factory has gained ISO9001:2008, MA, TUV authentication.
For more details,please inquiry us!
