Дешевая цена два колеса маленькая буровая установка для бурения горных

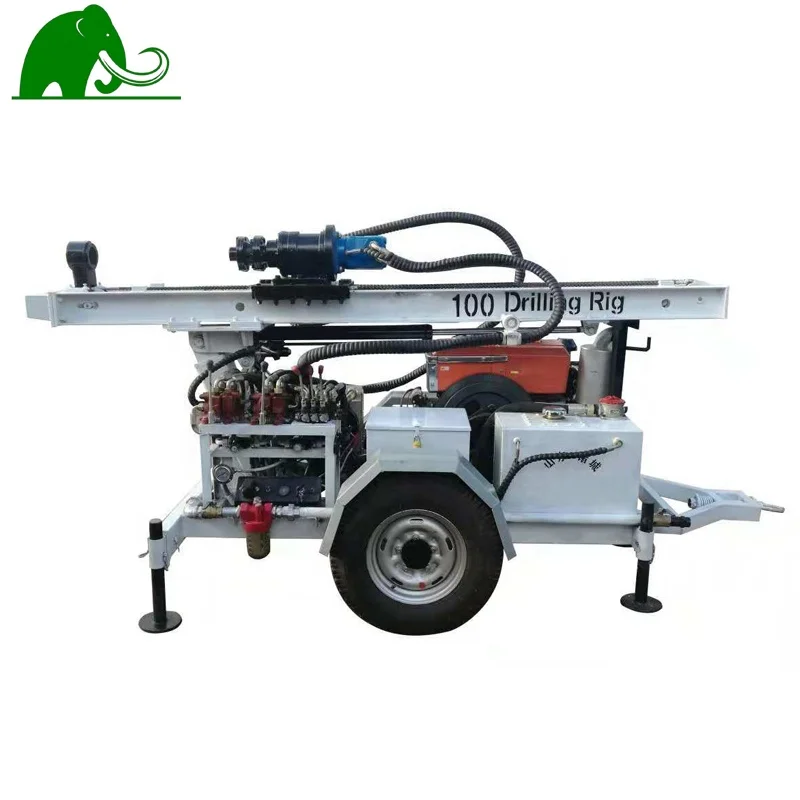

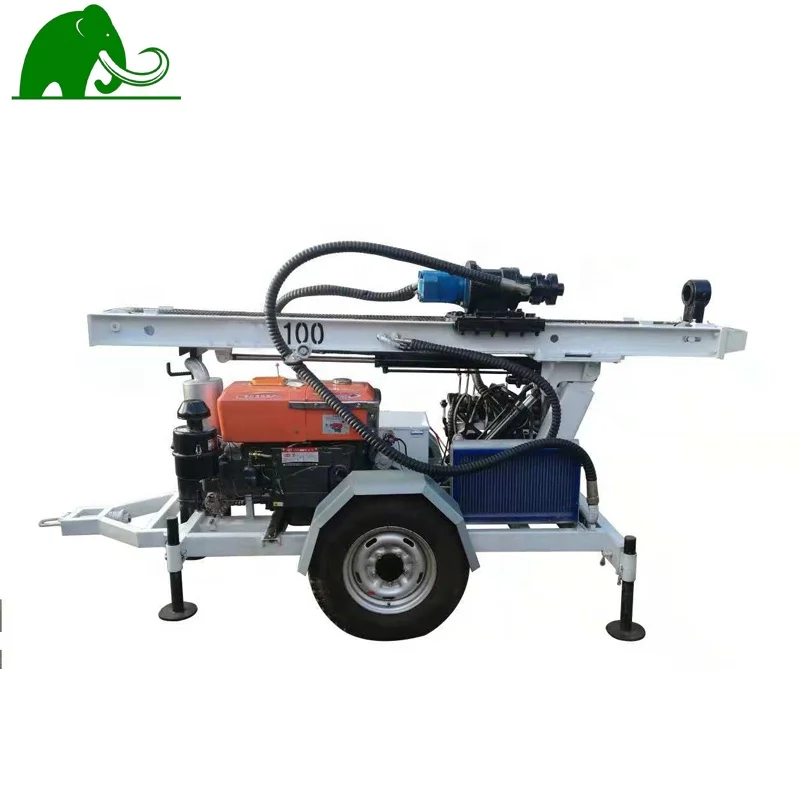

 ANBIT-100L is a light, efficient and multi-functional drilling equipment. The drilling rig adopts two-wheel Trailer type, which makes the turnaround convenient and fast. It is mainly suitable for drilling small-bore water wells, ground temperature air-conditioning holes and other wells, especially for water intake projects in mountainous areas and rock formations. The efficiency is more than ten times higher than the traditional rotary drilling rig, and the economic benefits created for users are very considerable. Especially, it solves the construction problem of rotary drilling rig in hard rock stratum and can work efficiently under various geological structures.

Detailed parameters



Max.Hole Depth(m)	100	Hole Diameter(mm)	φ115-φ180
Drill Rod Leght(mm)	1500	Drill Rod Diameter(mm)	Φ60,φ63.5
Working Pressure(Mpa)	1.05-2.0	Air consumption(m3/min)	15-18
Hammer	DHD340\350	Impact Frequency(HZ)	1200-1500
Rock(f)	6-12	Power parameter	35HP/2200rpm
Walk speed(Km/h)	<20	Ground clearance(mm)	240
System pressure(Mpa)	20	Feed Force(tonf)	3.0
Pull up Force(tonf)	5.0	Rotation Speed(rpm)	65-120
Rotation Torque(N.m)	1200	Dimensions(mm)	3000×1550×2000
Weight(kg)	About 1300



Company Information

   ABT Drilling Equipment Co., Ltd. mainly provides holistic drilling solutions, serving the mining, stone crushing, water conservancy drilling industry, to help you solve the problem of drilling at high efficiency and low cost. We mainly provide mobile air compressors, drilling rigs, impactors, drills, crushers, water meters, is your stable and reliable partner.
