Термальная CTP-пластина Lucky Huaguang

Категория: Печатная пластина >>>
Поставщик: Hangzhou,Sogo,Graphics,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.2 $*	0.15 $*
Aug-20-2025	0.63 $*	0.31 $*
Jul-20-2025	0.56 $*	0.57 $*
Jun-20-2025	0.90 $*	0.5 $*
May-20-2025	0.20 $*	0.62 $*
Apr-20-2025	0.44 $*	0.43 $*
Mar-20-2025	0.61 $*	0.6 $*
Feb-20-2025	0.26 $*	0.24 $*
Jan-20-2025	0.58 $*	0.79 $*

Характеристики

Detailed Images

Product Description

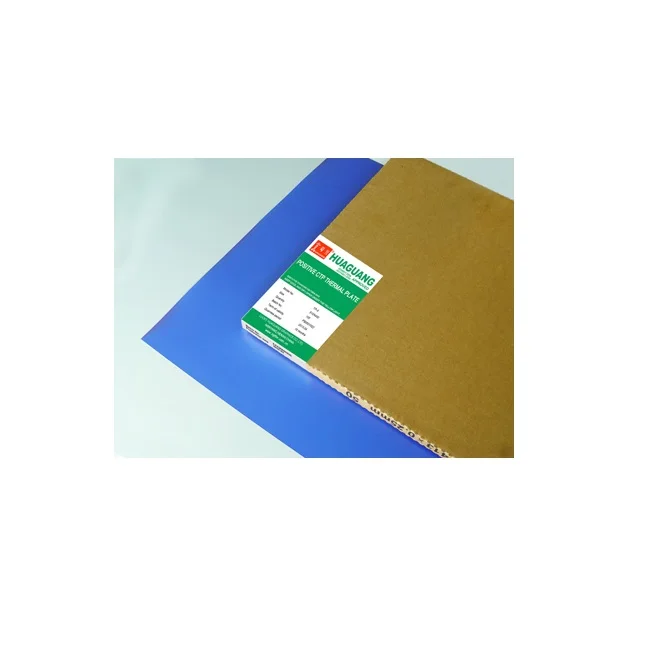

Huaguang Thermal CTP plate is a high-quality printing plate specialized for thermal CTP platesetter, self-developed by Lucky Huaguang Graphics Co., Ltd. It is directly scanned by 830nm laser controlled by computer and put on press for printing after developing. The formulation designed by our own intellectual properties and the unique manufacturing process make Huaguang Thermal CTP plate features as follow:

Unique formulation design

High-quality substrate
Convenient bright room operation
Outstanding platesetter compatibility

Specifications

\t Plate Type	\t Positive working, no preheat thermal digital plate, with optional postbake for longer runs
\t Application	\t Medium for sheetfed, web offset press
\t Aluminum	\t Electrochemically grained and anodized aluminum substrate
\t Gauge	\t 0.15/0.20/0.25/0.30/0.40mm
\t Maximum short grain width	\t 1320mm
\t Spectral sensitivity	\t 800-850nm
\t Platesetter compatibility	\t All the main brands in market, like Kodak Trendsetter/Lotem/Magnus, Screen PT-R, Heidelberg Topsetter/Suprasetter etc.
\t Laser energy required	\t 130-160 mJ/cm2 (varies based on platesetter manufacturer and developing condition)
\t Resolution	\t 1% to 99% @200lpi. Dependent upon capability of imaging device.
\t FM capability	\t 20 micron stochastic.
\t Developer	\t HUAGUANG TPD-80,Kodak Goldstar Premium, IMAF Therm 830/One Plus, etc.
\t Processing	\t HUAGUANG TPD-80, 23°C/25 seconds, Kodak Goldstar Premium/IMAF Therm 830 23°C/30 seconds
\t Run length	\t 100,000 impressions unbaked, over 500,000 impressions baked. Actual run length may vary according to press/paper/ink conditions
\t Safelight	\t Daylight handling
\t Shelf life	\t 18 months, under recommended storage conditions
\t Transport and storage	\t Store plates flat in their packaging, away from excessive cold, heat or high humidity. Recommended condition is: temperature 10-26°C & RH between 40 - 70%.
