Our main products- complete poultry automatic feeding system
Pan feeding system
Nipple drinking system
Feeding filling line and feed transport auger
Hot galvanized or fiberglass feed silo
Raw plastic or cast iron floor slats
Ventilation fan, cooling pad and air inlet system
Heater and sprayer system
Environment control system

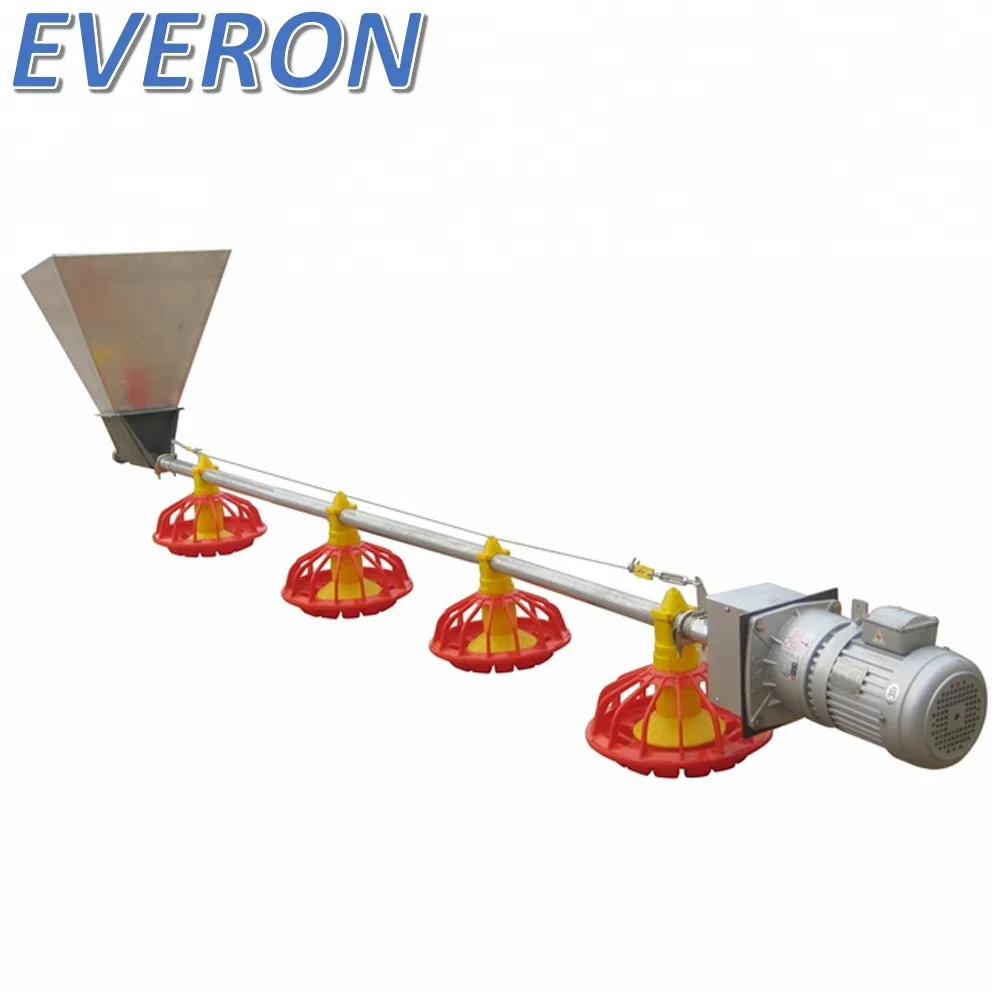

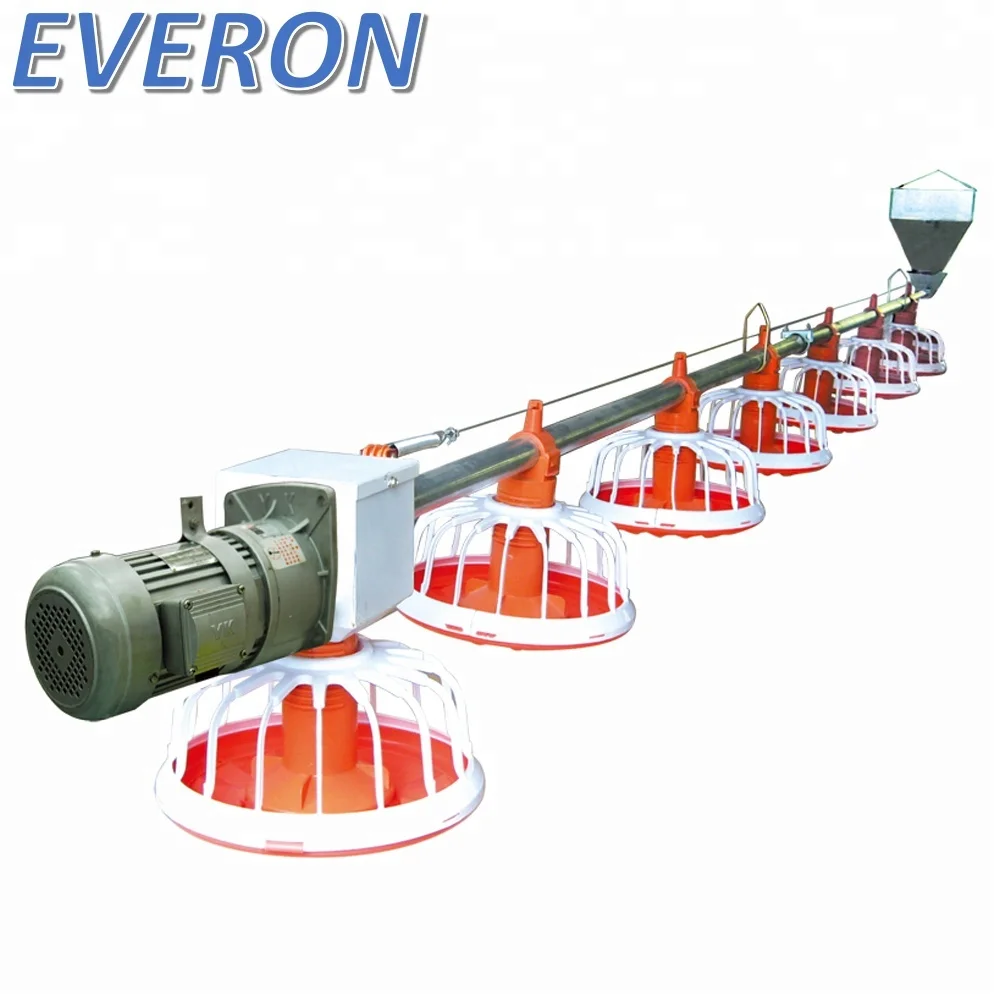

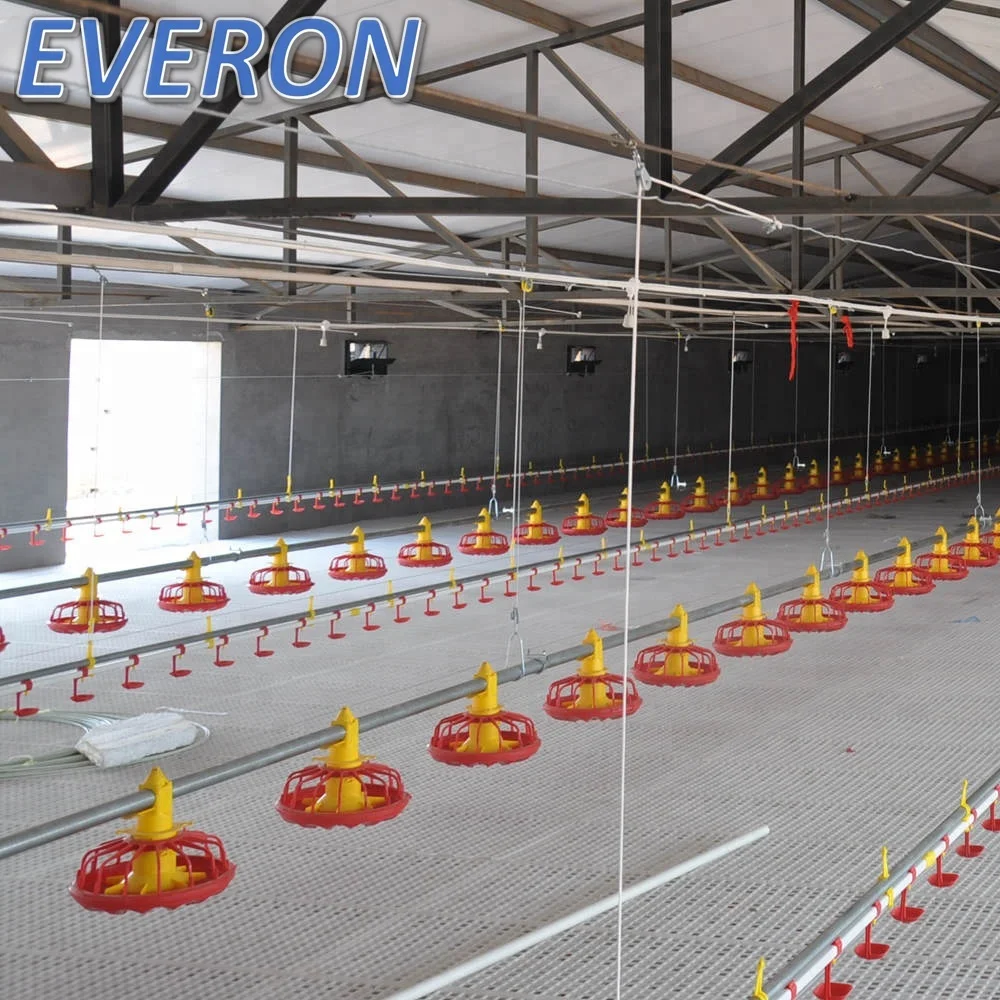

Pan feeding system consists of
Feeding system 2) delivery system 3) feeding storage system 4) control system
1, Feeding system
Feed pan is the core of feeding system. Feed in the hopper is delivered by the motor, through delivery pipe to fulfill feed pans one by one. When all feed pan is full of feed, control box will stop the motor from working; when feed in the feed pan is eaten up, control box will start the motor working again.

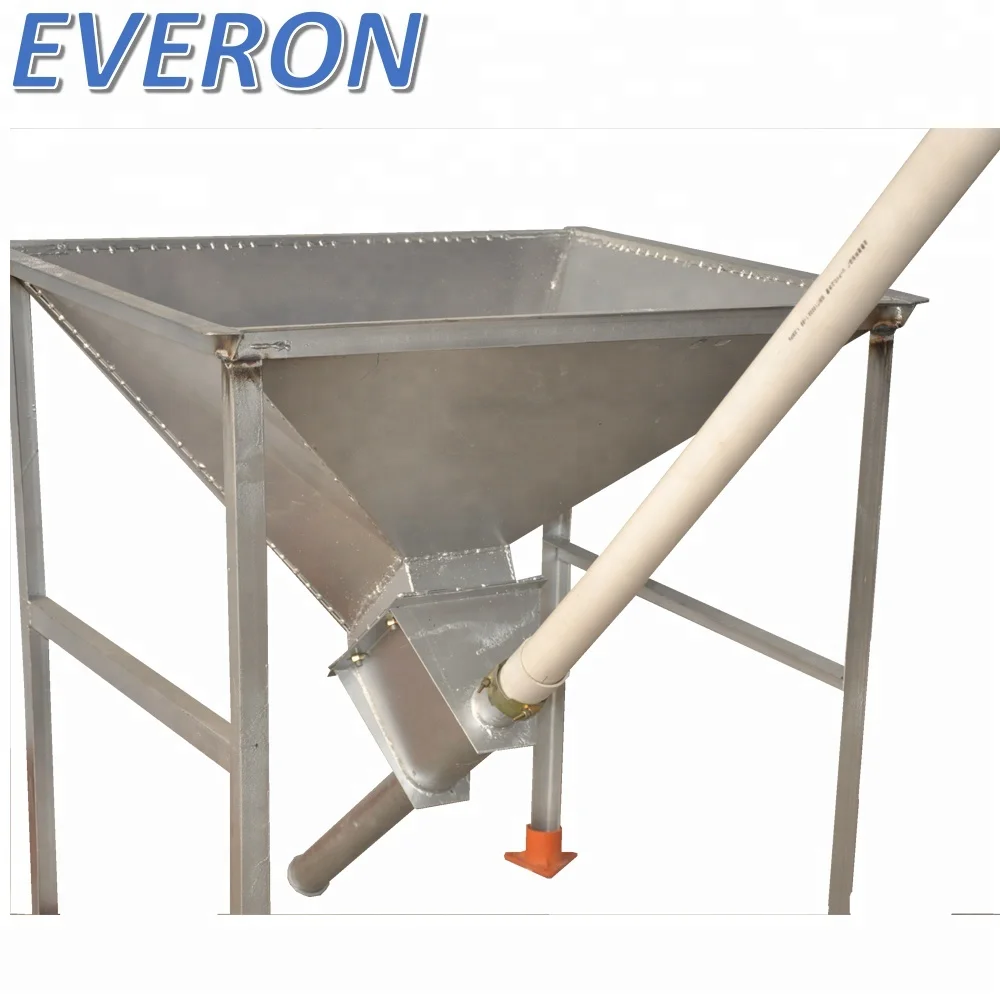

Bin volume: 120L, material: hot-dip galvanized sheet
material thickness: 1mm
Feed pad

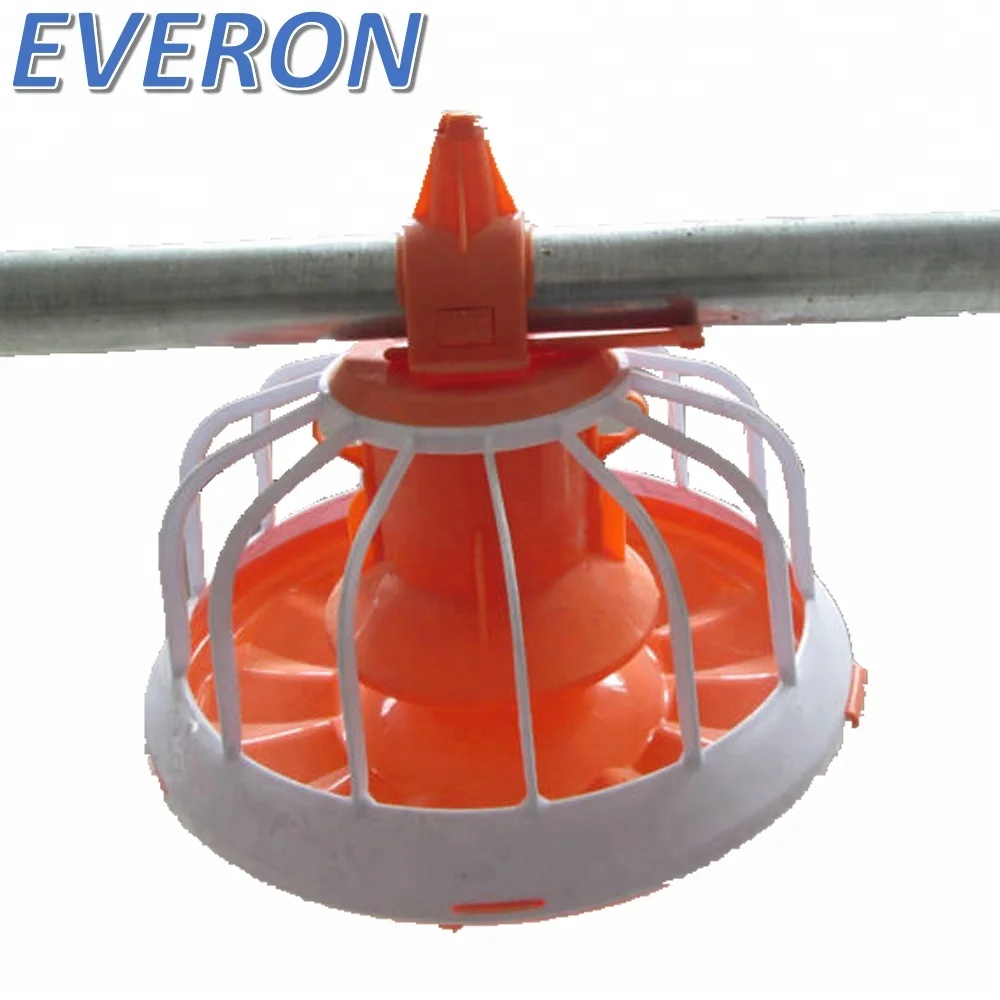

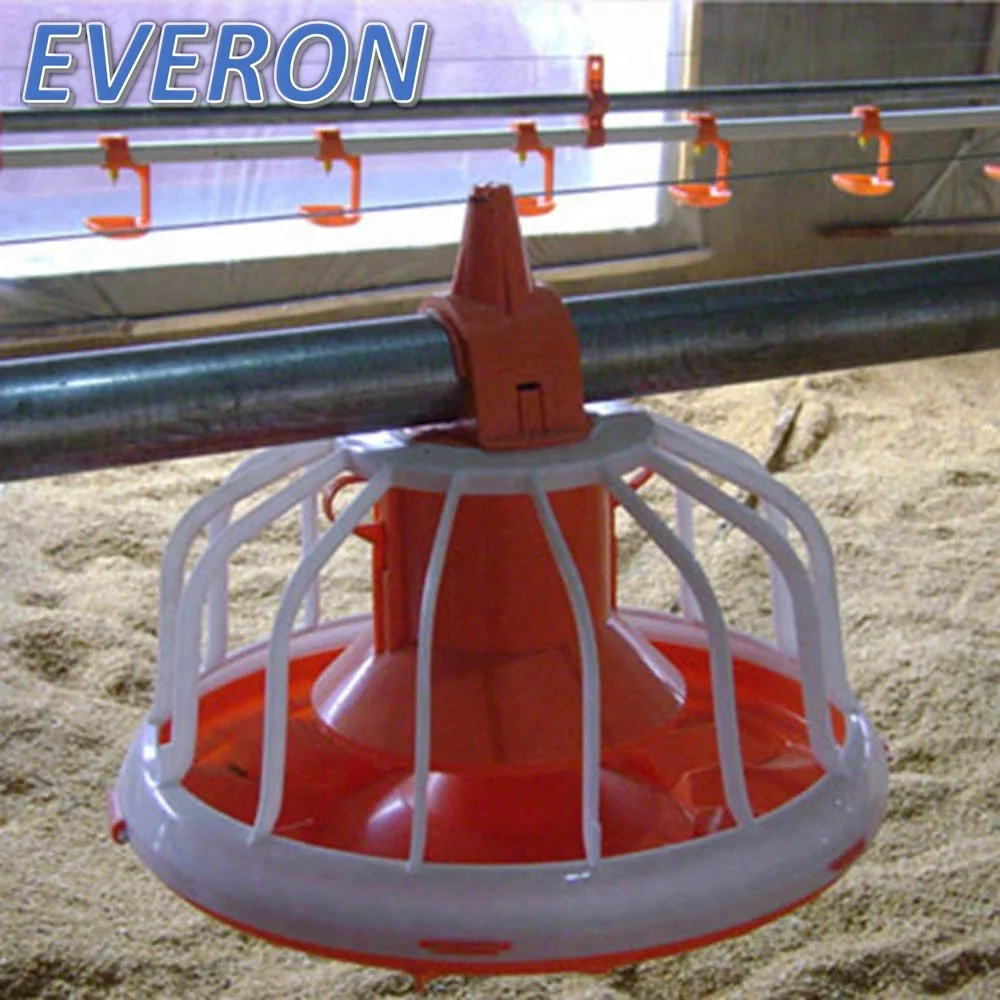

Details of broiler feeding pan
number of grilles per pan
14
16
Number of birds per pan can feed
40-45
45-50
Distance per grill
70mm
70mm
Density of broiler
10-12birds/m2
10-12birds/m2
Max feed per pan for one bird per day
180g/bird
180g/bird
Dimension
330x330mm
360x360mm
Auger& Delivery Pipe:
Imported from South Africa, with 450kg/h Hot galvanized steel with zinc coating
delivery ability 275g/sq.m
Diameter of conveying pipe: 45mm
(4-pan/3m, 3pan/3m)
2, Delivery system
The function of delivery system is to transmit the feed outside shed to the hopper of feeding system inside, control system indicates delivery system to work automatically.
3, Feed storage system(silo)
Feed of poultry raising farm is stored in the silo, so as to save large account of feed, and also to ensure the good condition of feed. Different specifications of silos are alternative to choose according to the daily consumption and the size of silo. Materials of silo consist of galvanized sheet and glass fiber reinforced plastic.
4, Electric Control system
Control box control the whole system. The control box works sensitively and steadily is extremely important, sensitivity and steady are the base of choosing electronic components. In order to avoid unnecessary waste.
Feed sensor can be installed in the feed pan. when there is lack of feed, drive motor will start and deliver feed. When is full of feed, drive motor will stop. It can be also m=installed at the bottom of hopper and the function will be opposite with the case above.
