JIHPUMP 19 4 л/мин большой высокий поток Двойные головки насоса сироп суповарка конвейер промышленный перистальтический насос
- Категория: >>>
- Поставщик: Chongqing,Jieheng,Peristaltic,Pumps,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 405.11 $* | 413.74 $* |
| Jul-18-2025 | 329.63 $* | 336.18 $* |
| Jun-18-2025 | 399.0 $* | 407.25 $* |
| May-18-2025 | 396.98 $* | 404.66 $* |
| Apr-18-2025 | 316.47 $* | 322.18 $* |
| Mar-18-2025 | 389.31 $* | 397.62 $* |
| Feb-18-2025 | 386.68 $* | 394.97 $* |
| Jan-18-2025 | 383.73 $* | 391.86 $* |
Характеристики
Corporate Strength:
Chongqing Jieheng Peristaltic Pumps Co., Ltd.
1.Peristaltic Pumps Professional Manufacturer and Supplier.
2.Focus on Peristaltic Pumps and OEM Pumps Customer Solutions for more than 16 years!
3.Million sets of peristaltic pumps been sold.
2.Focus on Peristaltic Pumps and OEM Pumps Customer Solutions for more than 16 years!
3.Million sets of peristaltic pumps been sold.
Lilian He(Europe ,
North and South America) :
WhatsApp:+8618983834629
Skype：+8618983834629
Email：alan@jihpump.com
Skype：+8618983834629
Email：alan@jihpump.com
April Huang(Asia and Africa) :
WhatsApp:+8615703016080
Skype：jihpump
Email：april@jihpump.com
Products Description:
BZ1203 Peristaltic Pump Features | ||||||
Increase the diameter of the pump tube | Thick Wall Pump Tube Design | High flow and high efficiency | High pressure and strong suction | |||
2 types of motors are available | 2 hose diameters | Single head and double head optional | Double head flow | |||
Hot Sale Products ：
Product Parameters | ||||
Product name:JIHPUMP 19.4L/min High Flow Large Flow Volume dc Small Mini Micro Dual Head Peristaltic Pump Water Liquid Dosing Industrial | ||||
Product number | BZ1203/ZL（Single pump head） | BZ1203×2/ZL（Double pump head） | ||
Motor type | DC gear motor | |||
Use electric | DC 24V，8A（with governor） DC 24V，20A（without governor） | DC 24V，10A（with governor） DC 24V，＞20A（without governor） | ||
Use power((W) | ≤120W | ≤168W | ||
Weight | 4.3kg | 5.7kg | ||
Outlet pressure | ≤0.27MPa（73#hose）、≤0.14MPa（82#hose） | |||
Main material | Pump Cover: Polycarbonate; Wheels: Polyamide; Installation board: Q235A | |||
Work environment | Temperature 0～60℃, relative humidity＜85%RH | |||
Motor life | 800~1500h | 800~1500h | ||
Reference flow (unit: ml/min) | ||||
Product number | BZ1203/ZL（Single pump head） | BZ1203×2/ZL（Double pump head） | ||
Motor speed Tube number | 330rpm | 330rpm | ||
73# | 6.6 | 12.4 | ||
82# | 10.1 | 19.4 | ||
Flow rate description | The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, and when conveying clean water. | |||

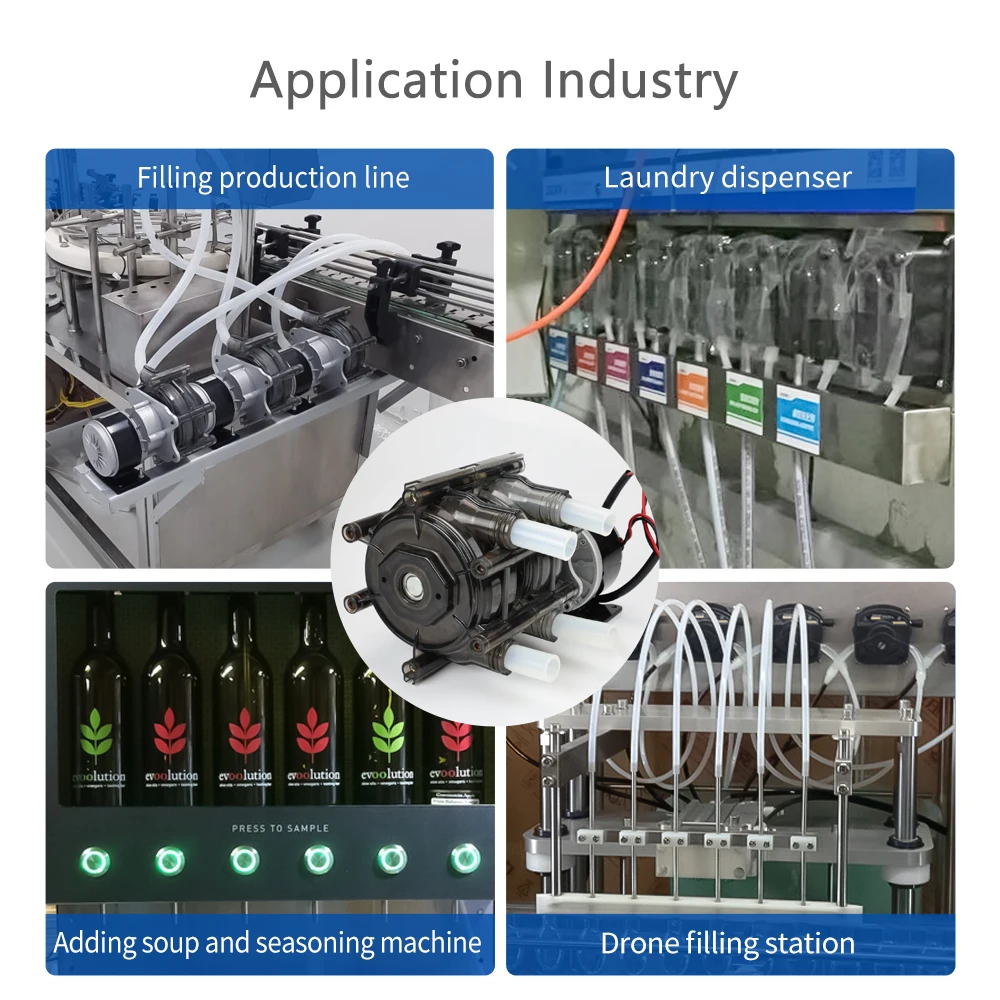

Common Applications: Filling production line ，Laundry dispenser , Adding soup and seasoning machine , Drone filling station, washing cleaning , food and drink ect .
Applications Industry: medical diagnosis ，Environmental protection instrument , Analytical Instruments , inkjet ink , washing cleaning , food and drink ，Experimental research，Pharmaceutical machinery，Smart Appliances ，industrial machinery etc JIHPUMP peristaltic pump , peristaltic pump 24v.

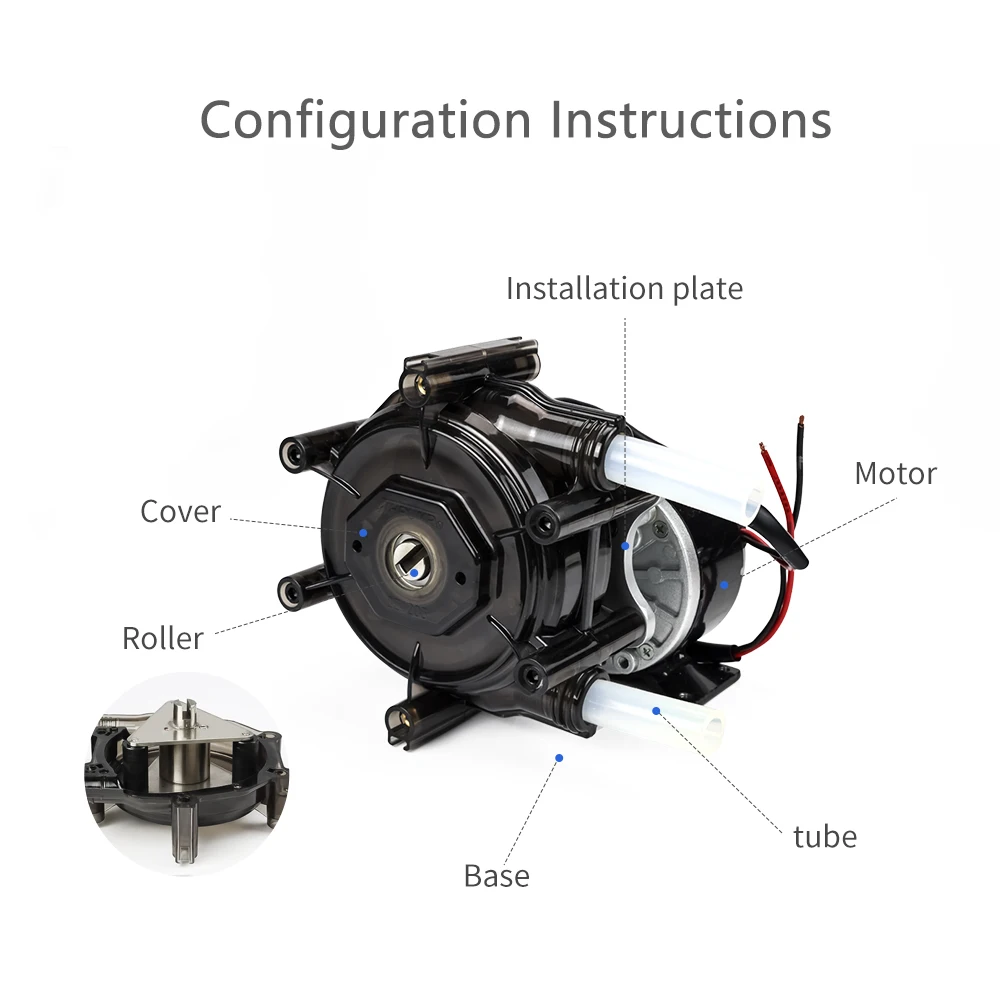

①Pump cover ： Translucent pump cover facilitate visual management | ②Pump tube : Two diameter hoses are available | |
③Roller : Imported wear-resistant bar Precision lathe processing | ④Installation board : fixed the pump head and the motor | |
⑤Motor : DC Motor | ||

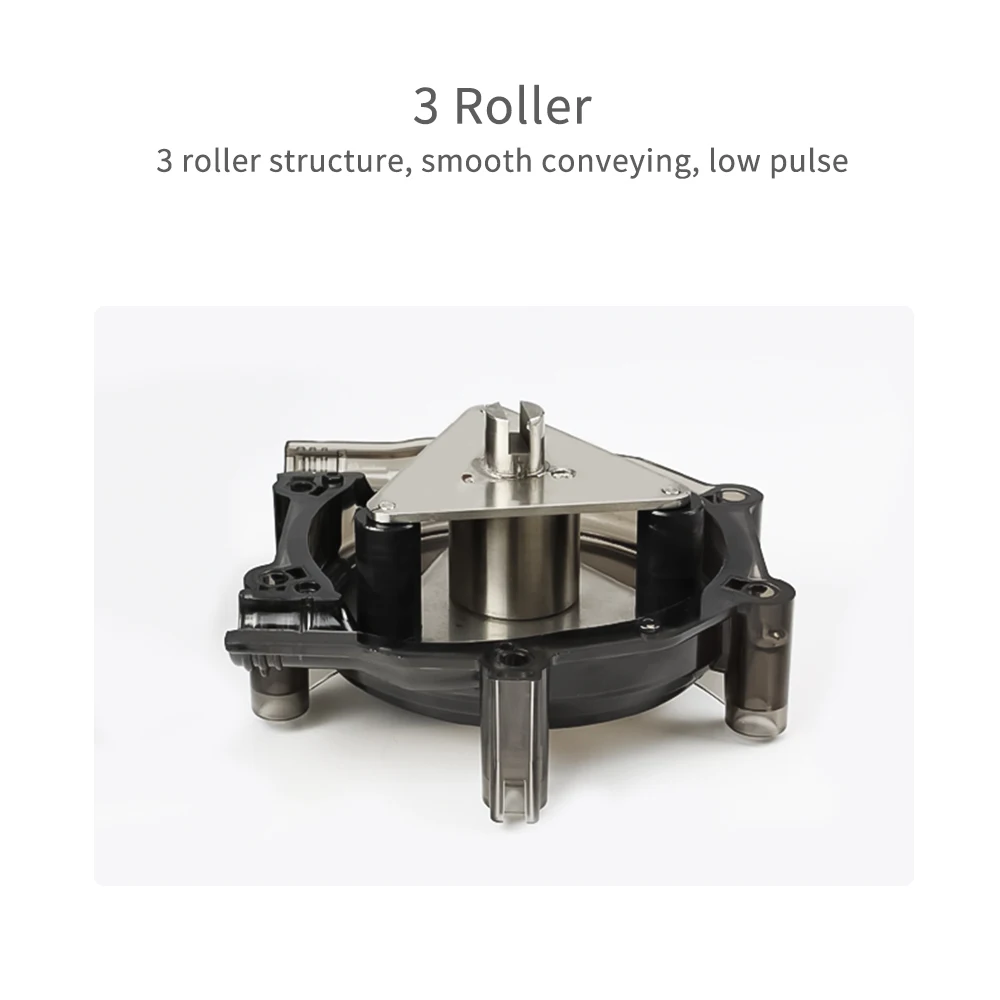

Work roller
3 roller structure, smooth conveying, low pulse , JIHPUMP peristaltic pump , large flow

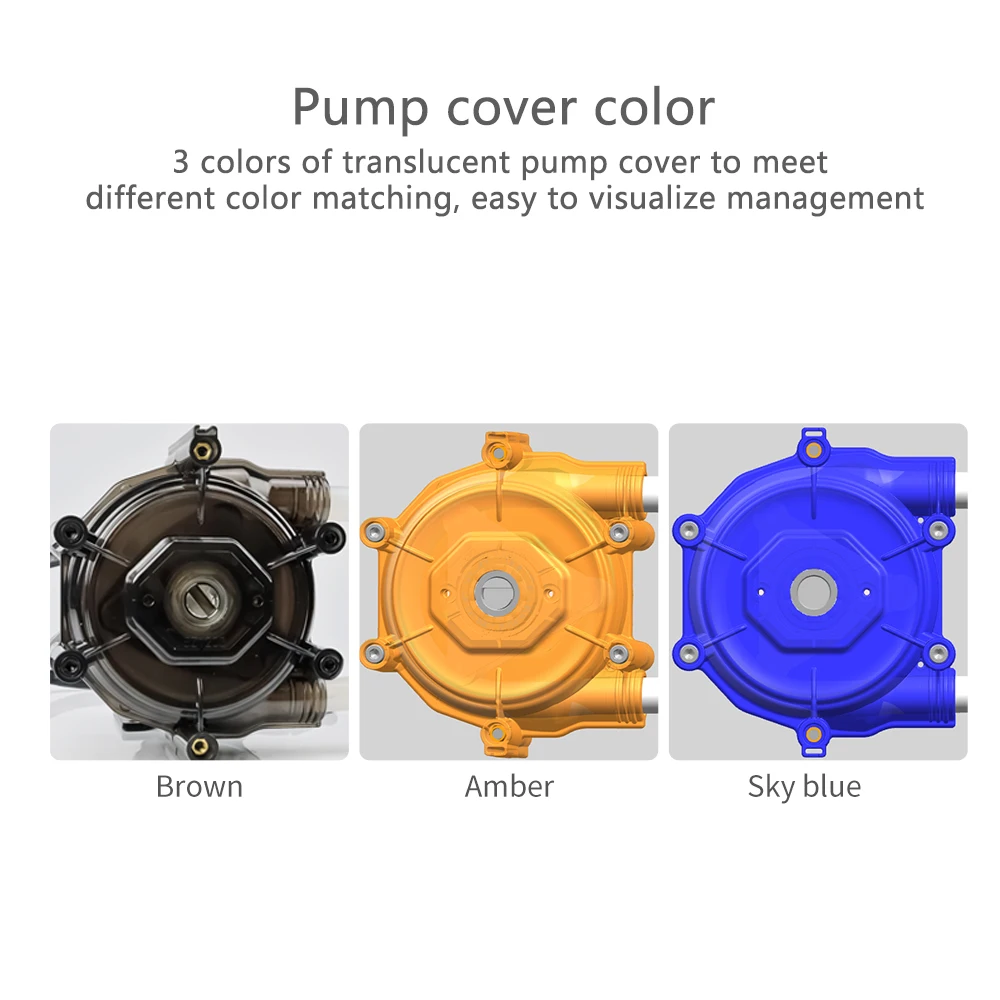

Pump cover color
Translucent pump cover for easy observation of pump operation 3 colors of pump cover to meet different color matching, easy to
visualize management.
.
Connection Mode
The hose leads directly to the pump head, and the pipeline connection configures the required joints according to the needs of the system.
.
Installation method
The base comes with mounting holes.

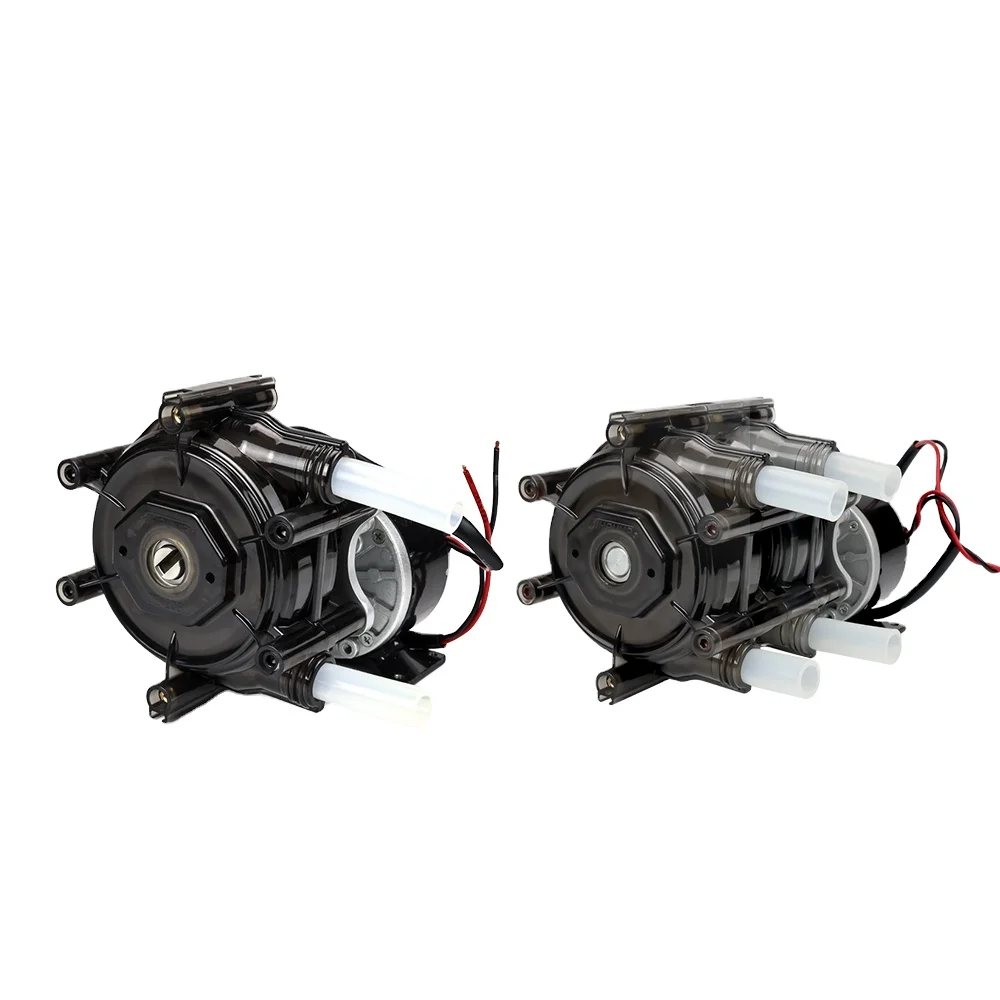

Single or double pump heads optional
Satisfy the large flow of the soup maker and the conveying of high-viscosity and concentrated paste, Fully enclosed structure, increase and thicken the pump tube The fully enclosed structure effectively protects the pump tube and prolongs the life of the pump tube; Large diameter pump body adopts pump tube with wall thickness of 3.3mm to deliver larger flow and pressure.
Three steps diagram of pump casing disassembly
Unscrew the screw - take off the pump cover - install the pump tube.Certifications
CE,ISO,SGS Other various patterns and certifications
Certificate Details View, Click On "Company profile "in the company profile of shop home page or let me know, we'll send details to you.
Company Profile:
JIHPUMP Chongqing Jieheng Peristaltic Pumps Co., Ltd. is founded in 2006. We are a high-tech enterprise providing professional product application solutions, manufacturer and service provider of peristaltic and constant flow pumps. The company produces more than 50 series and over 200 models of peristaltic pump products. We have shipped more than one million cost-effective,high-reliability peristaltic pumps to users around the world in the food, beverage, chemical reagents, printing inks, detergents,laboratories, analytical instruments, fine chemicals, smart homes, medical care, biopharmaceuticals, environmental and industrial fields.
Contact Us :
FAQ:
1.What's your required liquid flow rate(ml/min) for the peristaltic pump?
After we know your liquid flow rate , we recommend the right peristaltic pump according to the flow rate.
-------------------------------------------------------------------------------------------------------------------------------------------
2.What liquid may be moved by the peristaltic pump?
Different liquids have different viscosities. Some pumps can deliver low viscosity and some pumps can deliver high viscosity . Especially viscous liquids cannot be delivered by peristaltic pumps.
-------------------------------------------------------------------------------------------------------------------------------------------
3.Do you prefer to adjust the flow rate ? or fixed flow rate?
Peristaltic pump flow is adjustable or fixed according to your actual situation to choose, please tell our sales manager.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
4.Can you please let us know the 3V, 6V, 12V, 24V or 220V peristaltic pump that you need?
Peristaltic pumps run on electricity, so tell us what voltage you need to run on and we can help you choose the right pump.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
5.Do you mount the peristaltic pump on any equipment or not?
We need to know whether the peristaltic pump you use is installed on the equipment or can be used directly by plugging in the
power supply. The types of pumps used in the two cases are different.
power supply. The types of pumps used in the two cases are different.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
