Filtering status(see figure 1)
Liquid flows inside from the inlet.The liquid flows outwards from the inner surface of the filter screen, and the impurities are intercepted on the inner surface. Then, the liquid flows out from the outlet; with the passage of time, the impurities gradually increase, and differential pressure rises. We can begin to clean the filter screen according to the preset differential pressure or the timing.

Cleaning status(see figure 2)

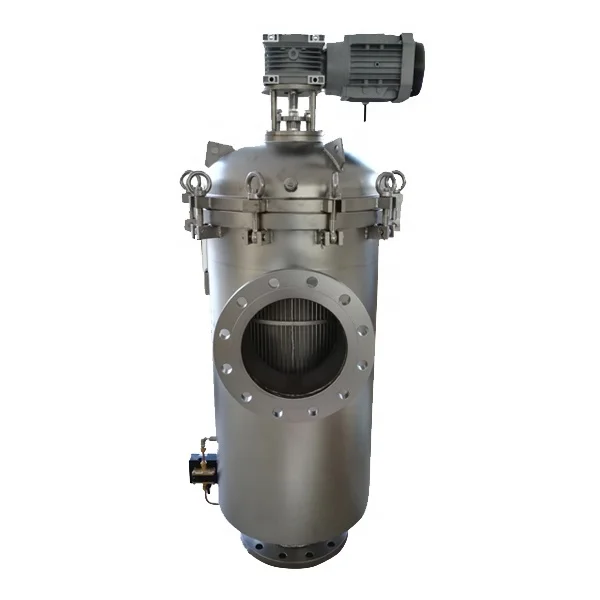

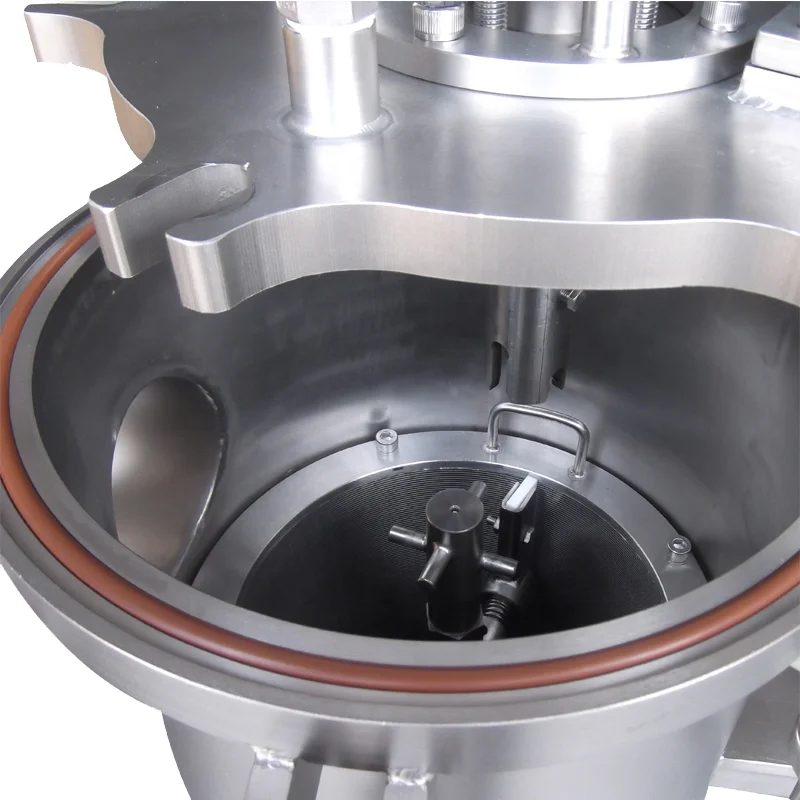

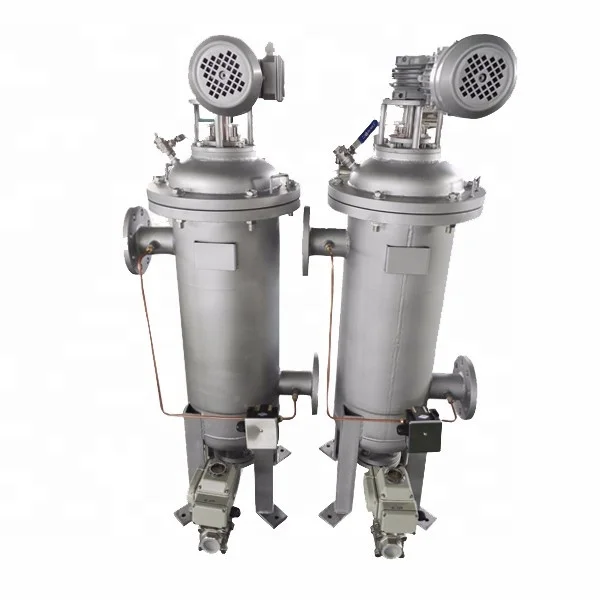

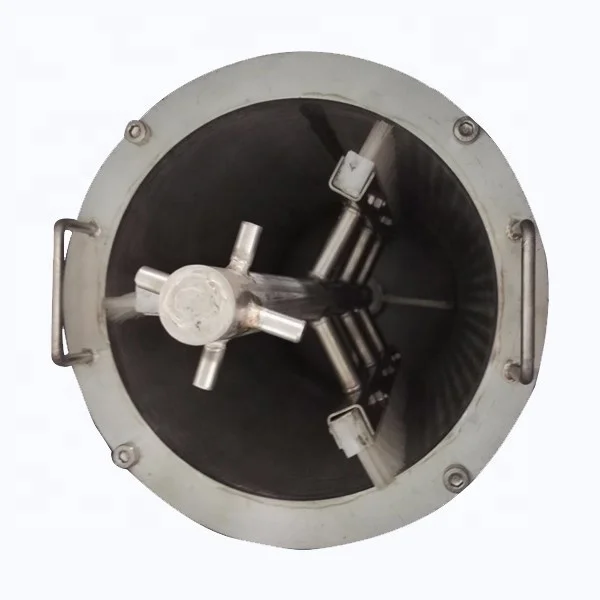

The motor drives the scraping brushes to rotate horizontally to clean the filter screen. When the brushes rotates, impurities are scraped off and filtered along the filter net to the bottom of the filter, and the impurities with large specific gravity are deposited into the dirty collector. Each cleaning is made up of a number of strokes. After the filter screen is cleaned, the filtering ability is restored. No filtration interruption while self-cleaning.

Discharging status(see figure 3)
After a number of cleaning cycles, impurities accumulate to a certain amount. Regular opening of drain valve, and the waste liquid containing high concentration of impurities is discharged. which can also be recycled, if necessary.

Technical Parameters & Specifications

Model No.	AFB Series
Applicable liquid	Water and viscous liquids(˂800,000cps); impurity level˂1,000ppm
Filter precision	10-5,000μm
Design pressure	1.0MPa(Higher pressure can be customized.)
Design temperature	0-200°C(It depends on seals.)
Single filtering area	0.14m2-1.45m2
Cleaning Pressure Drop	0.05MPa
DP controller	Differential pressure transmitter or differential pressure switch
Gear motor	Three-phase power, 380V, protection grade IP55; Turbine worm reducer
Connection Standard	Flange, HG20592-2009(Standard), HG20615-2009( ANSI B16.5 Compatible)

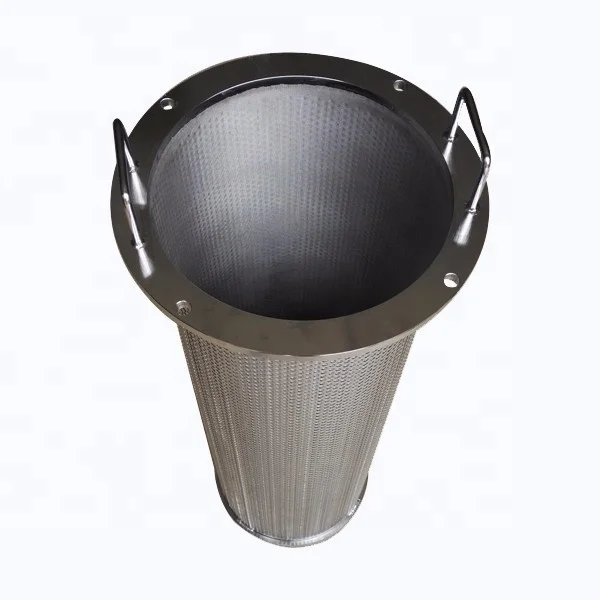

Filter elements	V-shaped wadge net/ sintered mesh
Filter element material	304/316L/2205/Titanium
Housing material	SS304/SS316L/Carbon Steel/Duplex 2205
Brush material	Nylon/stainless steel wire
Housing seal material	NBR Nitrile Rubber(Standard)/viton (FKM) fluoro rubber
Discharging valve	Pneumatic ball valve, protective grade IP65
Facility supply	380V AC, 0.4-0.6MPa Clean and dry compressed air

Technical features and advantages

1. Horizontal rotary scraping, scraping off the impurities directly, is good at filtering viscous liquids and removal of viscous, soft and suspended impurities;
2. Simple structure, easy dismounting; after removing the scraper, easy to take out the filter screen, and easy to clean the inside;
3. Automatic operation, continuous online filtration, to end up the heavy filter screen replacement and cleaning work;
4. Do not produce disposable filter material, saving consumables costs and environmental costs;
5. Small filtration pressure loss, stable flow rate, energy saving is beneficial to the continuous stability of the whole process;
6. Sealed filtration, preventing dangerous material leakage, is advantageous to the safe production and the staff health;
7. Discharge waste liquid with high impurities concentration can be recycled, to reduce the loss of high-value materials;
8. A variety of advanced control systems are optional, powerful, efficient and reliable;
9. Selection of world-renowned brands of components, high reliability, low costs.

Automatic Cleaning Control System

AFB filter is equipped with automated cleaning

control system, integrated differential pressure

cleaning and timing cleaning parallel control

function, which controls its efficient working,

according to the operating conditions. If

necessary, the system is able to realize real-

time and remote monitoring of DCS by custom.

Differential pressure cleaning is the most

efficient cleaning mode, which reflects the

accumulation of of filter cakes and the blocking of the filter element. When the preset pressure differential is reached, it starts the self-cleaning action. It is suggested that the cleaning pressure differential is 0.1MPa, which can be adjusted within the scope of 0.01-0.1MPa, by the working conditions. Periodically cleaning can be set 0-24 hours, and if the differential mode is inefficient, time pattern still works. It can be considered as the ultimate protection. The cleaning period setting should be close to the average period of the filter pressure differential cleaning mode.

The automated differential pressure controller has two kinds of forms, differential pressure switch and differential pressure transmitter. The transmitter can output the real time pressure differential value with higher sensitivity and reliability, to facilitate long-distance and real-time monitoring of the DCS.

Product Application

Part of Applicable Industries

Applicable fluid types: Groundwater, seawater, lake water, reservoir water, circulating cooling water, frozen water, spray water, heat exchanging water, sealing water, bearing cooling water, oil well water injection, craft circulating water, machining coolant, cleaning water, etc.

Filtration effect: Constant-value screening, removing large particles, purifying fluid, and protecting key equipment.

Filtration type: Mechanical online scraping filtration.

Part of Our Cooperated Customers

Customer On-site Photos

Related Products

Our Company

Company Profile

Shanghai JCI Technology Co., Ltd. is a leading company in design and manufacturing around the world filtration industry. The company specializes in automatic and intelligent filtration, especially holds an important status in the field of self-cleaning filtration.

We have a large group of excellent technical personnel concentrating on filtration R&D. The company has strict control on all processes ranging from design to production, inspection and after-sales service as conducted by its well-experienced engineers. The awareness of quality and service as well as the spirit of detail-focused manufacturing has been penetrated into every detail of the company. Through carrying out scientific and normative management and establishing follow-up service archive for every product, we can ensure that every product and every detail of it is excellent, safe and reliable.

We are a global professional company. Over the years, we have possessed many R&D, management and manufacturing centers, marketing and service networks throughout the world. Headquartered in Shanghai, the company has two production bases in Kunshan, Jiangsu and Taiwan, China, and has agents in Singapore, Malaysia and Myanmar, etc. In the future, JCI will become a leader in the field of automatic filtration system and industrial purification technology, to enable efficient and safe filtering products to serve the whole world.

Customer Visiting

Why Choose Us

Professional marketing personnel

1. At least 2 months of technical product training before work.
2. Reply your inquiries in 5 minutes; submit the competitive price in 2 hours.
3. Business English major and Communicate smoothly.

Professional design team

1. Custom-built filters to meet your project requirements.
2. Design in 2 hours for free.
3. After sales service engineers available to service machinery overseas or making phone calls. Solving problems in 1 hour.

We are factory

1. Self-marketing.
2. We have strict control on all processes ranging from R&D design, production, inspection and after-sales service.
3. Warmly welcome to our factory for a visit.

Product Processing

                Sawing Process

                  Lathe Machining

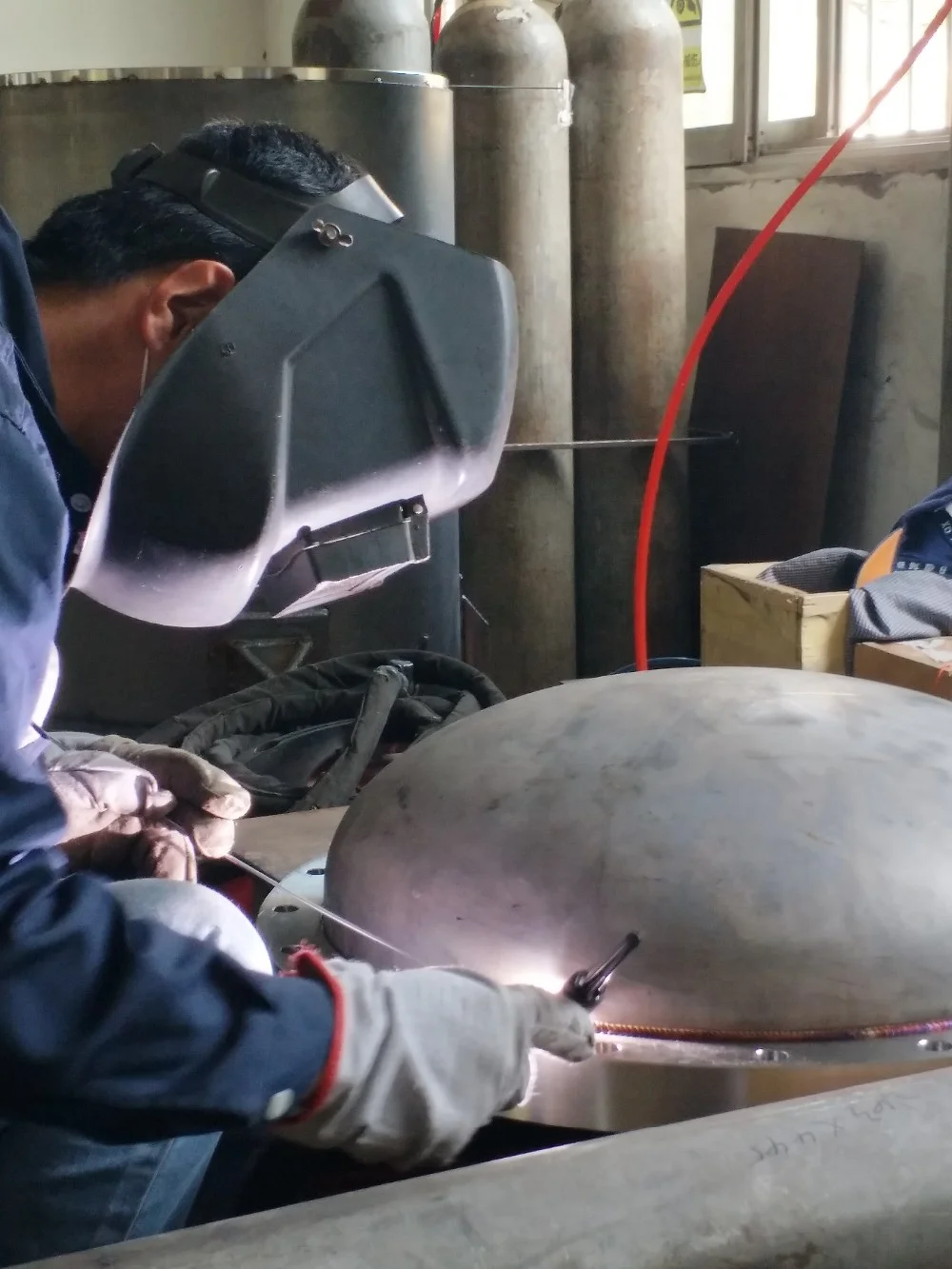

               Welding Process
