Автономным питанием длительное время работы от аккумулятора отслеживания информации на открытом воздухе активами 3g с функцией слежения gps
- Категория: Navigation & GPS >>>
- Поставщик: Shenzhen,ANB,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 140.60 $* | 147.39 $* |
| Aug-18-2025 | 139.30 $* | 146.25 $* |
| Jul-18-2025 | 117.63 $* | 123.10 $* |
| Jun-18-2025 | 137.43 $* | 144.69 $* |
| May-18-2025 | 119.48 $* | 125.64 $* |
| Apr-18-2025 | 135.16 $* | 142.63 $* |
| Mar-18-2025 | 133.71 $* | 140.4 $* |
| Feb-18-2025 | 132.38 $* | 139.30 $* |
| Jan-18-2025 | 131.20 $* | 138.28 $* |
Характеристики
Self powered long battery life field tracking outdoor asset 3g gps tracking tracker device
1. CT2000 is a self-powered GPS tracker with 3G WCDMA module, GPS function and 4 years battery service life, it can transfer the coordinates via SMS or by 3G network at the preset time. The device is perfectly suitable for the application of positioning remote objects.
It adopts dual tracking technology with both traditional satellite track and CellID track, which can bring the user tracking experience even in NO GPS signal area.
2. Specifications
| Item | Description |
| WCDMA Module | QUECTEL UC15-E/A |
| 3G Frequency | UC15-E UMTS/HSDPA:900/2100MHz GSM/GPRS:900/1800MHz UC15-A UMTS/HSDPA:850/1900MHz GSM/GPRS:850/900/1900MHz |
| MCU Processor | ARM7 STM103FRET6 |
| Internal Memory | 4MB(10000 Waypoints + Events) |
| Backup Battery | 1.3AH/3.6V |
| LED Indicator | Red: GSM; Green: GPS ;Yellow:GSM |
| Consumption | Sleep: <50uAh; Standby:100-150mAh |
| Working Temp. | -25℃~+60℃ |
| Size and dimension | 238*83*36mm |
| Data Transmit | SMS/GPRS Communication |
3. Examples of application:
- Container Tracking
- Car Loans Tracking
- Rail-carriage Tracking
- Transit goods tracking
4. Battery working Life Time:
Total Tracking waypoints report times: 1560
| Tracking Frequency | Battery Service Time |
| Report once Per Day | 1560 Days=52 Months=4.28 Years |
| Report Twice Per Day | 780 Days=26 Months=2.14 year |
| Report every 6 Hours (4 Times Per Day) | 390 Days=13 Months=1.1 Year |
| Report every 4 Hours | 260 Days=8.67 Months |
| Report every 2 Hours | 130 Days=4.3 Months |
| Report every 1 Hour | 65 Days |
| Report every 30 Minutes | 32.5 Days |
| Report every 5 Minutes | 5.4 Days |
Through the preset parameter configuration, the tracker can switch its working mode automatically by the following factors:
- Static/Moving
- Remaining battery level
- GEO fencing Area status
For example, if the default setting is every 4 hours a data but every 10 hours a data when the tracker is not moving, once it detects the object is in static, the tracker will automatically switch to report every 10 hours. By this way, you can prolong battery service life of the tracker.

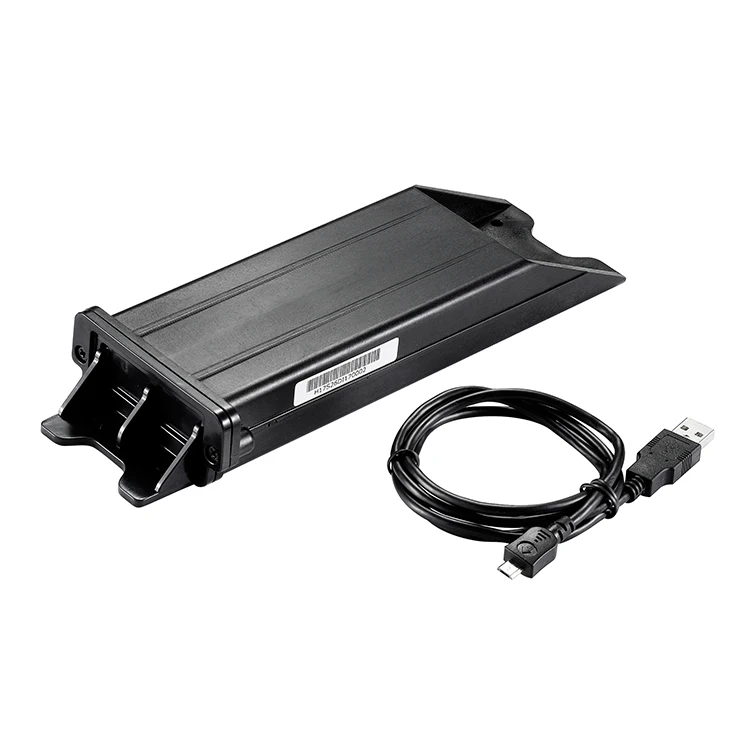

5. Standard Package Contents:
- CT2000 Tracker x 1PC
- 6.5Ah ER26500M battery x 4PCS (One time usage, non-rechargeable)
- USB Configuration Cable
