Портативная керамическая лампа с инфракрасным нагревом/лампы/нагреватель для согревающего

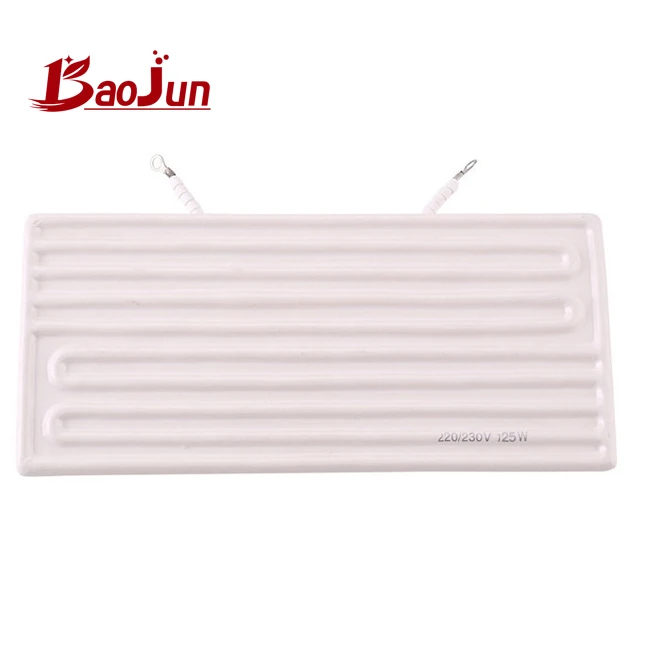

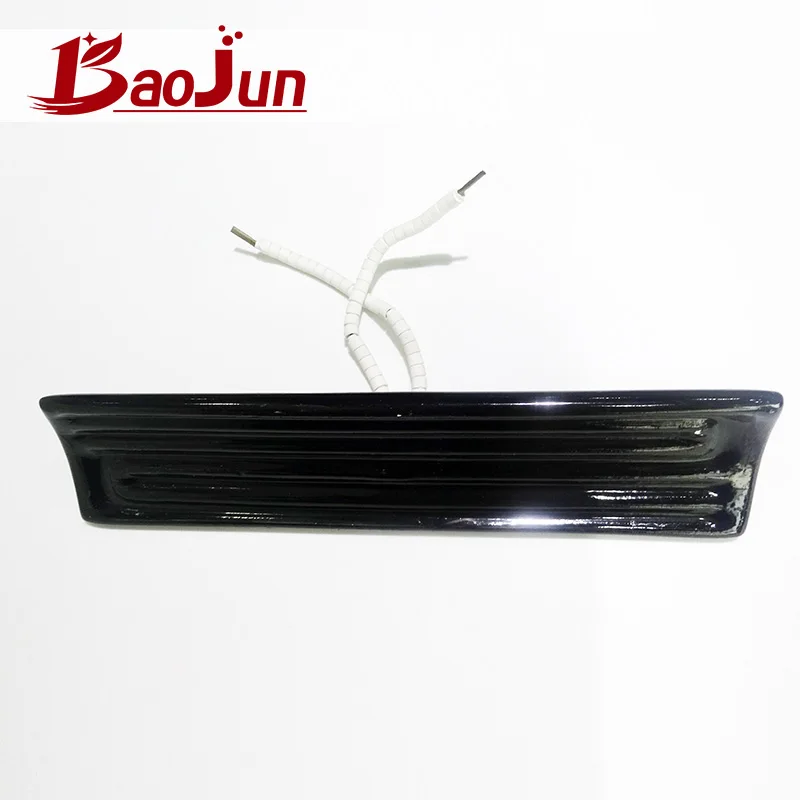

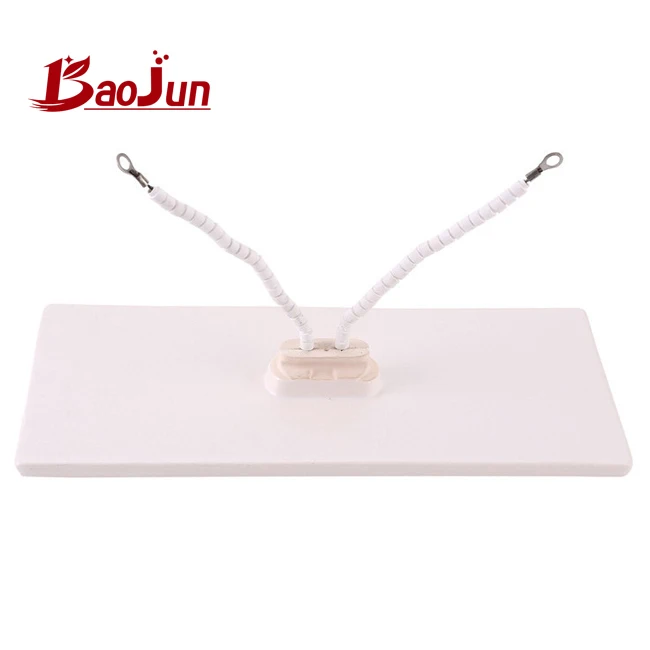

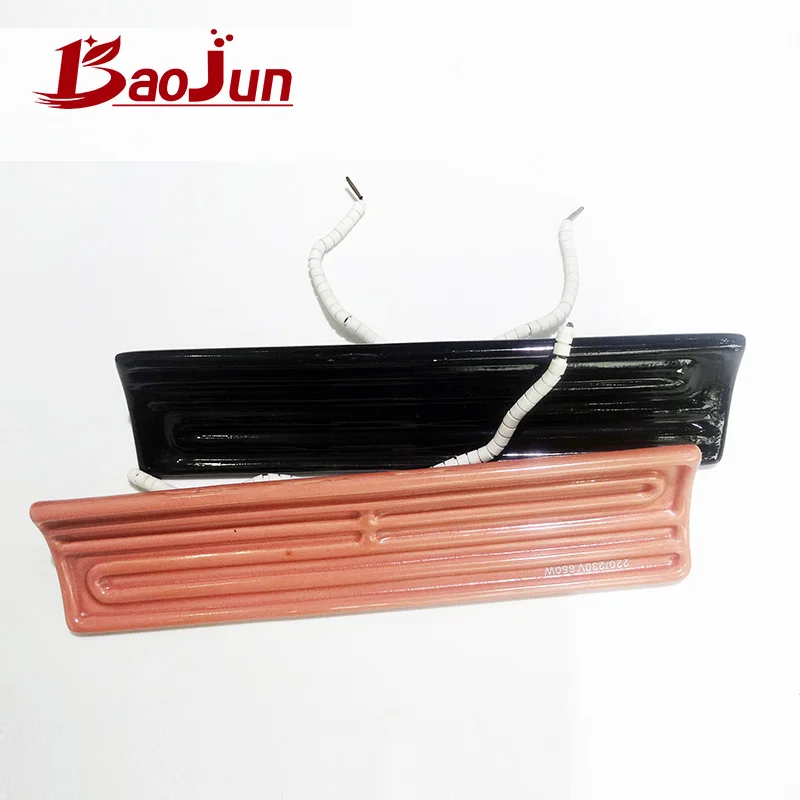

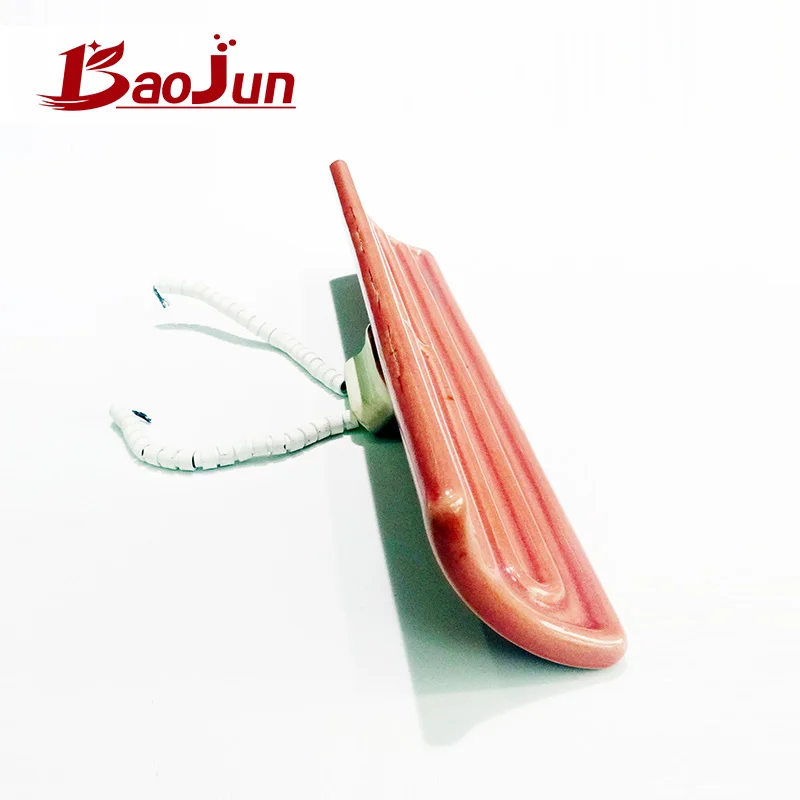

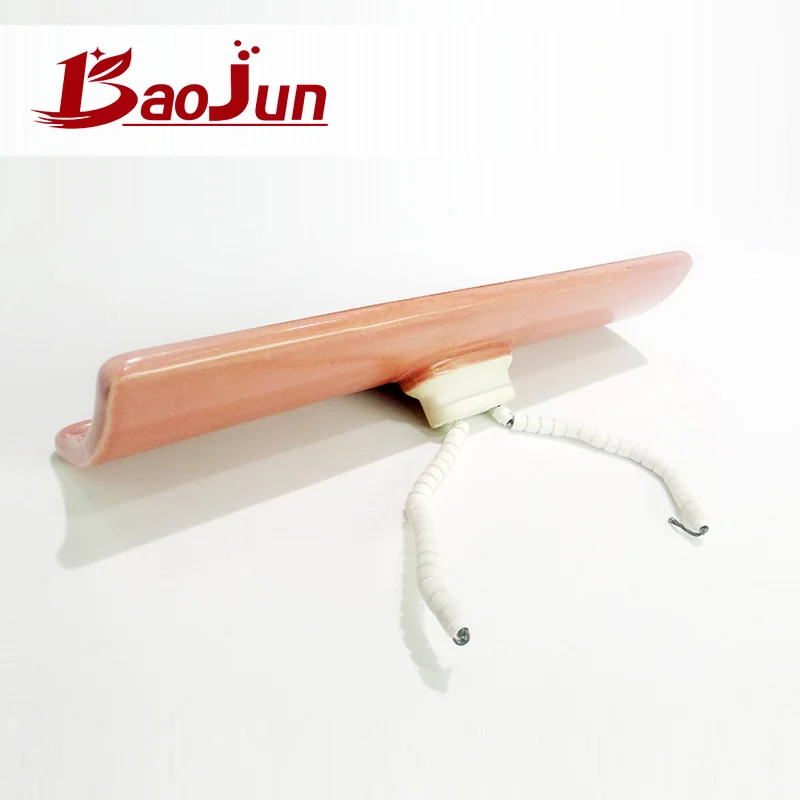

Ceramic Heat Emitter Lamp Infrared Heater Grow Plant Lamp

Application of Infrared(IR) Ceramic Heater:

1.Heating in PH environment (for example: Footwear processing, tape, plywood heating).

2.Stove machine with major vibration or impact (for example: Vacuum forming machine , Compression Molding Machine).

3.Short distance heating (for example: Printing ink dryer, PCB repair station, Electric heating tables).

4.Heating in vertical or half round array (for example: Angle iron,Aluminum windows paint stove) .

Regular Size for heater lamp:

1. Nickel chrome resistance wire(NiCr20/80)

2. Color: White/Black/Yellow

3. Type K thermocouple mounted internally in center heater. Optional type J thermocouple is also available.

4. Heater Voltage: 120V 220V 230V 240V 480V standard (other voltages available on request)

5. Useful wavelength range: 2-10 microns

6,Operating temperature is 300°C to 700°C (572°F - 1292°F)

7. Average Operating Life-Up to 20,000 hrs depending on conditions.

8. Recommended radiation distance from heater is 100 mm to 250 mm.

9. Supplied with 100mm ceramic beaded power leads
