MAIN FEATURES:

• Differential pressure decay leak measurement. Use in pressure and vacuum.

• Large range of leak measurement (P) F.S. : 50 Pa, 500 Pa or 5000 Pa

• 128 programs

• 2 languages (English + other one)

• Manual calibration on front panel with calibrated leak

• Environment: ROHS  standard

• Test modes:
  •P (Pa, 1/10 Pa)
  • P / t (Pa/s, 1/10 Pa/s)
  • Flow units (mm3/s, cm3/s, cm3/min, cm3/h…)
  • Blockage test
  • and others, depending on your applications

• Flexible communication format:
  •RS232: printer
  •Slave USB: supervision
  •Master USB: USB key to transfert (parameters, results, statistics…)
  •Option Fieldbus: profibus, devicenet, profinet, Ethernet/IP
  •Additional Master USB (option) on back panel (Bar code reader – remote control)
  •Memory card for archiving results (1 Millions)

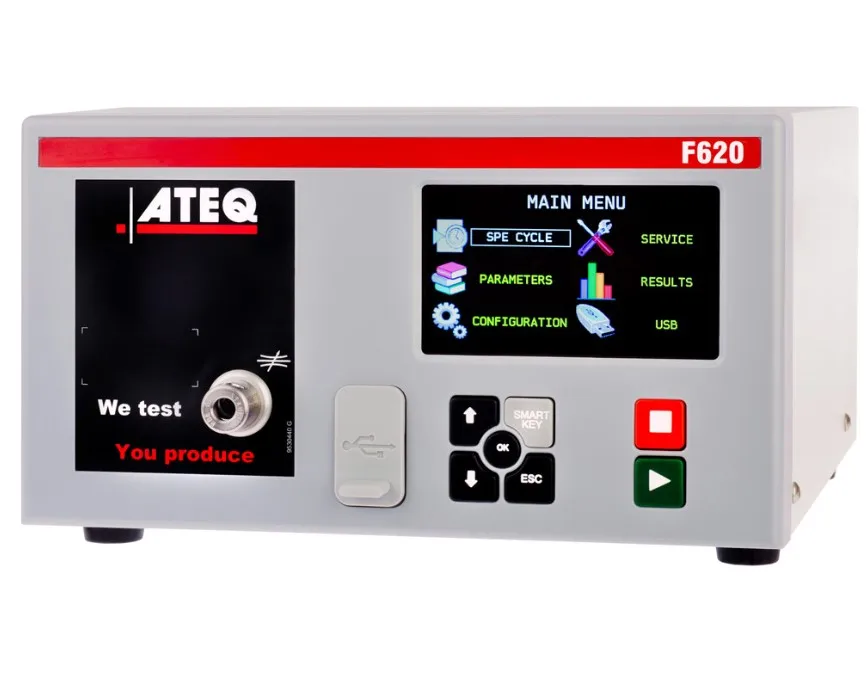

PLUG & PLAY INTERFACE:

“What You See Is What You Get” WYSIWYG .

ATEQ F6 new interface would almost make the leak testing set up “fun”.

The ATEQ F6 interface is friendly for everyone involved in leak testing:

– A production engineer will find it very easy to set up and remember.
– A user will find it clear to read.
– A quality control engineer will get the datas he’s expecting in no time
– Any training around an F6 will show how easy it is to teach leak detection to new comers … and that’s all thanks to the interface.

FULLY BACKWARDS COMPATIBLE

15 000 ATEQ customers will not throw there older leak tester and replace it with a new one just because it looks good.

One of the most important feature is the ability of the leak tester to plug into existing PLCs and test benchs without having to reprogram everything.

ATEQ’s F6 keeps all its I/O from ATEQ’s previous generations Leak testers.

In addition, the F6 also features more modern interfacing like Ethernet and USB, so customers can be sure that it is also fully “Forwards compatible”.

ATEQ has also released a 3U 19″” version of the F620 called the F670. The leak tester in an industrial standard format which can be mounted in all machines.



Furthermore, we have also designed the F610 particularly suitable for polluted workplaces (dust, oil
etc.) The IP54 waterproof leak tester.

LAB TESTING IN MIND TOO

Again, part of ATEQ’s leak testers’ production goes into quality labs or simply instruments are being set up in labs prior to being installed on production line.

These test conditions require a small unit with a fast and clear interface and gigantic memory to store all the trial parameters and tests.

ATEQ’s F6 has all it taked to feel up those needs.
