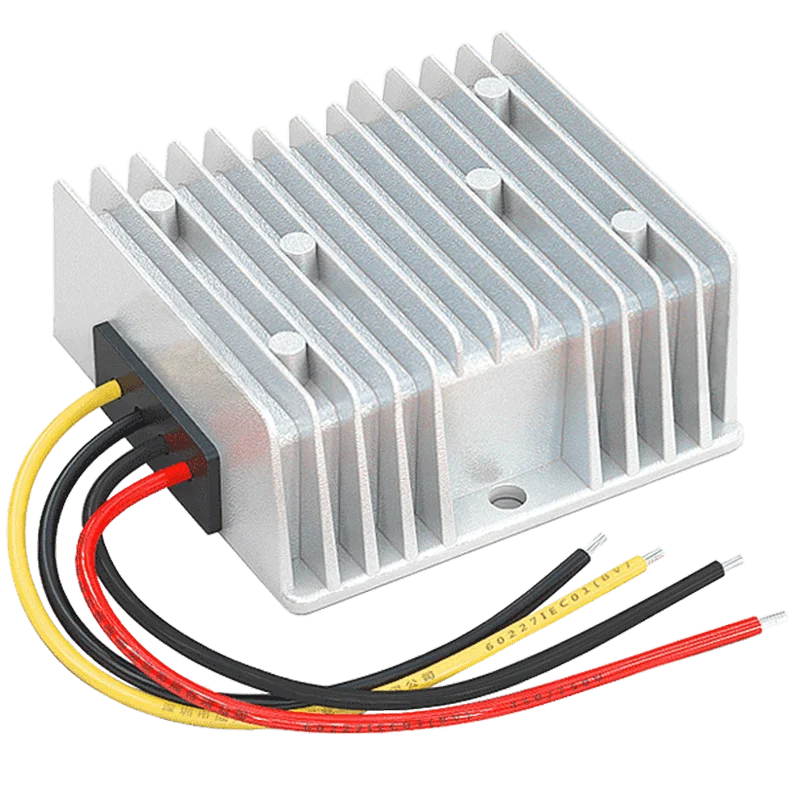

Водонепроницаемость класса IP 68 Вт конвертер постоянного/переменного тока цена по прейскуранту завода-изготовителя 120W BUCK 48V to12V

Описание и отзывы

Трекер стоимости

Характеристики

Features:

1. 100% full power & stablecurrent output

     2. 100% Imported components

     3. Wide input voltagefrom 35-60Vdc

     4. 100% waterproof & anti-shock protection, Ultra compactsize, light weight

     5. Industry grade DC48V to DC12V step-downconverter, efficiency up to 94%

     6. Waterproof level: IP68

    7. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,

8. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, Auto-recovery whendevice is backto normal operating

9. Non-Isolated Module

10. 1 year warranty,lifetime up to 100,000 hours.



Specifications:



Model	WS-48T1210
Input rated voltage	48V DC
Input voltage range	35-60V DC
Efficiency	96% (half load) ; 94% (full load)
Output voltage	12V DC
Output current	10 Amps
Output rated power	120 Watts
Output peak power	125%
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 50mV
No-load current	< 25mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP 68
Protections	Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage
Machine size	74*74*32mm
Package size	98*82*34mm
N. Weight	290g
W. Weight	300g
Cooling way	Free air convection
Other	White box packing

COMPANY INFORMATION

FAQ:

1. Are you a manufacturer?

100% yes, if you have a chance, you can visit our factory anytime.

2. Do you have any MOQ limit?

One piece is possible, you can buy one sample for testing first.

3. What about the lead-time?

Normally 1-2 working days after receive the payment.

4. How to pay for the sample fee?

Please send the payment to our PayPal account or from alibaba directly.

5. How do you ship the goods?

We often ship by DHL, UPS, FedEx or TNT, it usually takes 3-5 days to arrive.

6. Do you offer guarantee for the products?

Yes, we offer 1-year warranty for all DC DC converters.

7. I cannot find the suitable model, can I ask for a special model I need?

Sure. We are professional DC DC converter designer and manufacturer in China, please advising the detail specification you need, we will make it according to your request.
