NS103 desktop 1 Color 1 station Micro-Adjustable Screen Printing Machine manual new condition



Parameters

Shipping weight:70LB(32KG)

Package size:30"x20"x14"(76x51x36cm)

Printing Head Weight: 22Lb (9.7kg)

Pallet Sizes:

23.6”x17.7” (60x45cm)

17.3"X12.6"(44x32cm)

11.8”x9.4” (30x24cm)

Installation and Operation

Attention: You should loose the lock devices before installing and then tighten them after your installations.



1. Install the Machine Head.Remove the bolts, put the machine head on to the base support, adjust the proper position and then screw the bolts tightly.

2. Install the Gravity Hammers.

3. Install the Stretched Screen Frame to check whether you have well installed it or not.

4. Adjust the screen plate with its micro adjusting functions, then apply it into printing process.

Product name:1 Color 1 station Micro-Adjustable Screen Printing Machine

Item:Micro-A

Details:

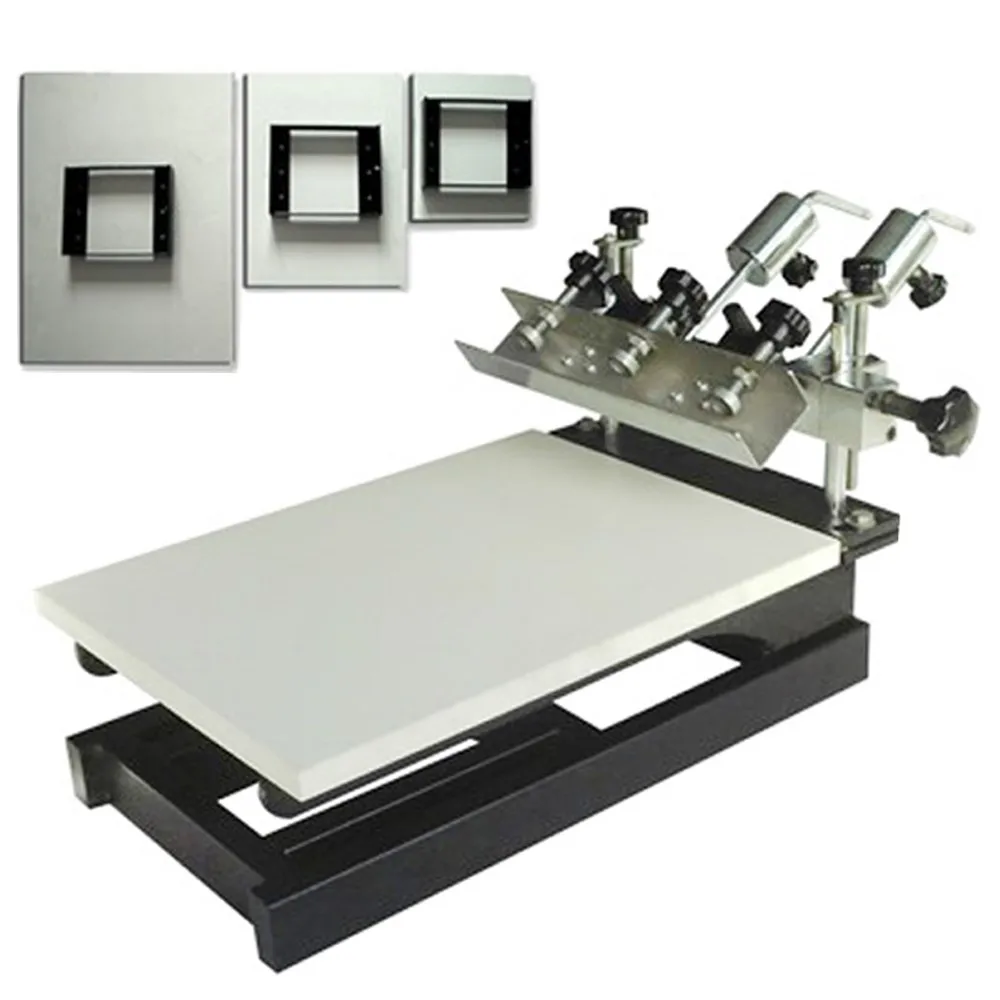

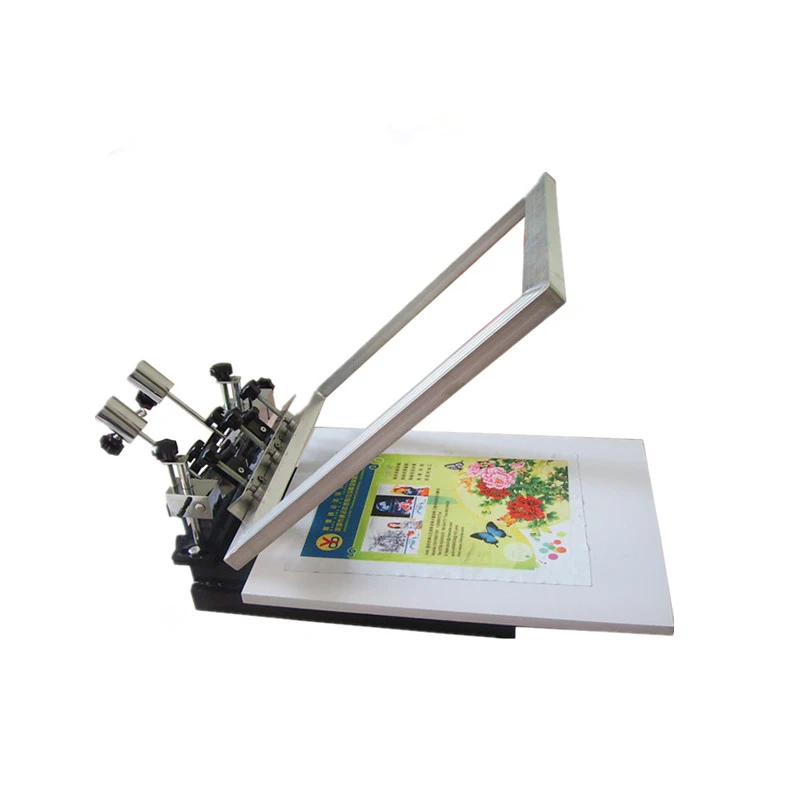

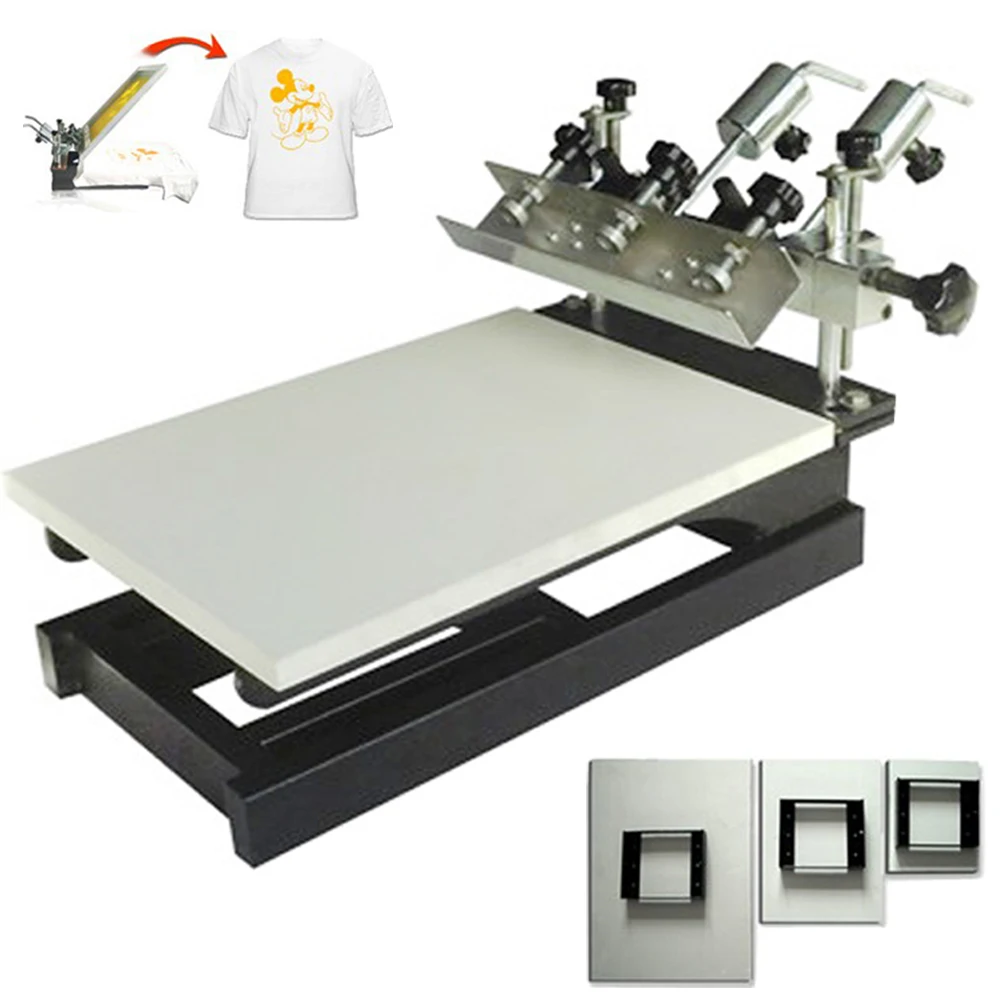

1 Color 1 station Micro-Adjustable Screen Printing Machine

Based on the need of customers and market, our company R&D the 1-1 screen printer, which overcomes shortages of traditional press, such as without micro-devices, only one fixed platen and can not put on the T-shirt, pillow, bag and so on. It is especially suitable for printing non-woven environment-friendly shopping bags.

This equipment includes the main printing device and three platens with different sizes.



Utilizing electrostatic spraying and electroplating, durable, easy clear, no rust.
