Приемник для светодиодного дисплея Nova
- Категория: Digital Signage and Displays >>>
- Поставщик: Shenzhen,Muenled,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 2275.48 $* | 2389.69 $* |
| Aug-17-2025 | 2256.2 $* | 2369.10 $* |
| Jul-17-2025 | 1893.5 $* | 1988.1 $* |
| Jun-17-2025 | 2218.2 $* | 2329.6 $* |
| May-17-2025 | 1931.9 $* | 2028.27 $* |
| Apr-17-2025 | 2180.6 $* | 2289.78 $* |
| Mar-17-2025 | 2161.71 $* | 2269.60 $* |
| Feb-17-2025 | 2141.50 $* | 2248.94 $* |
| Jan-17-2025 | 2122.79 $* | 2228.62 $* |
Характеристики

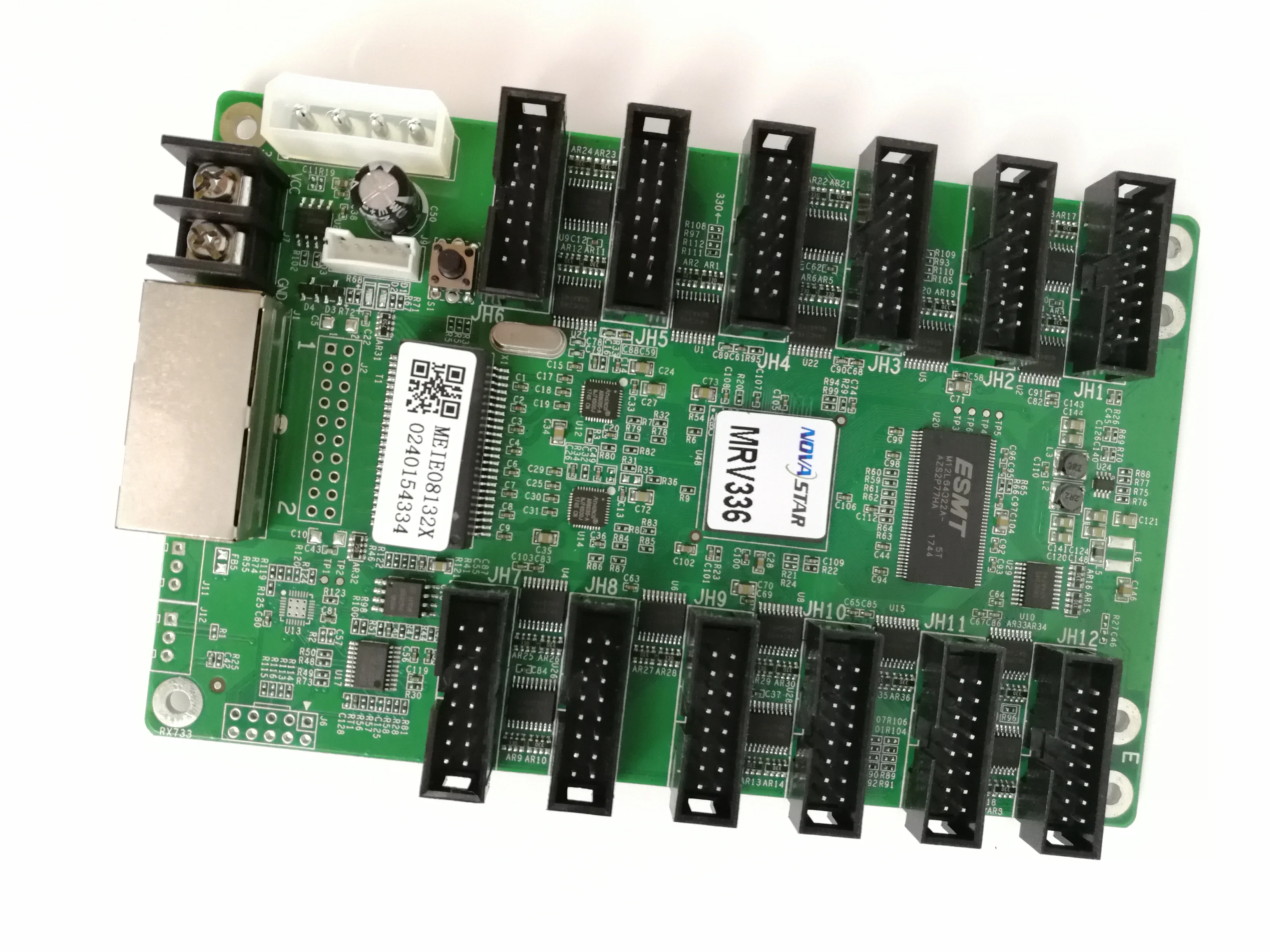

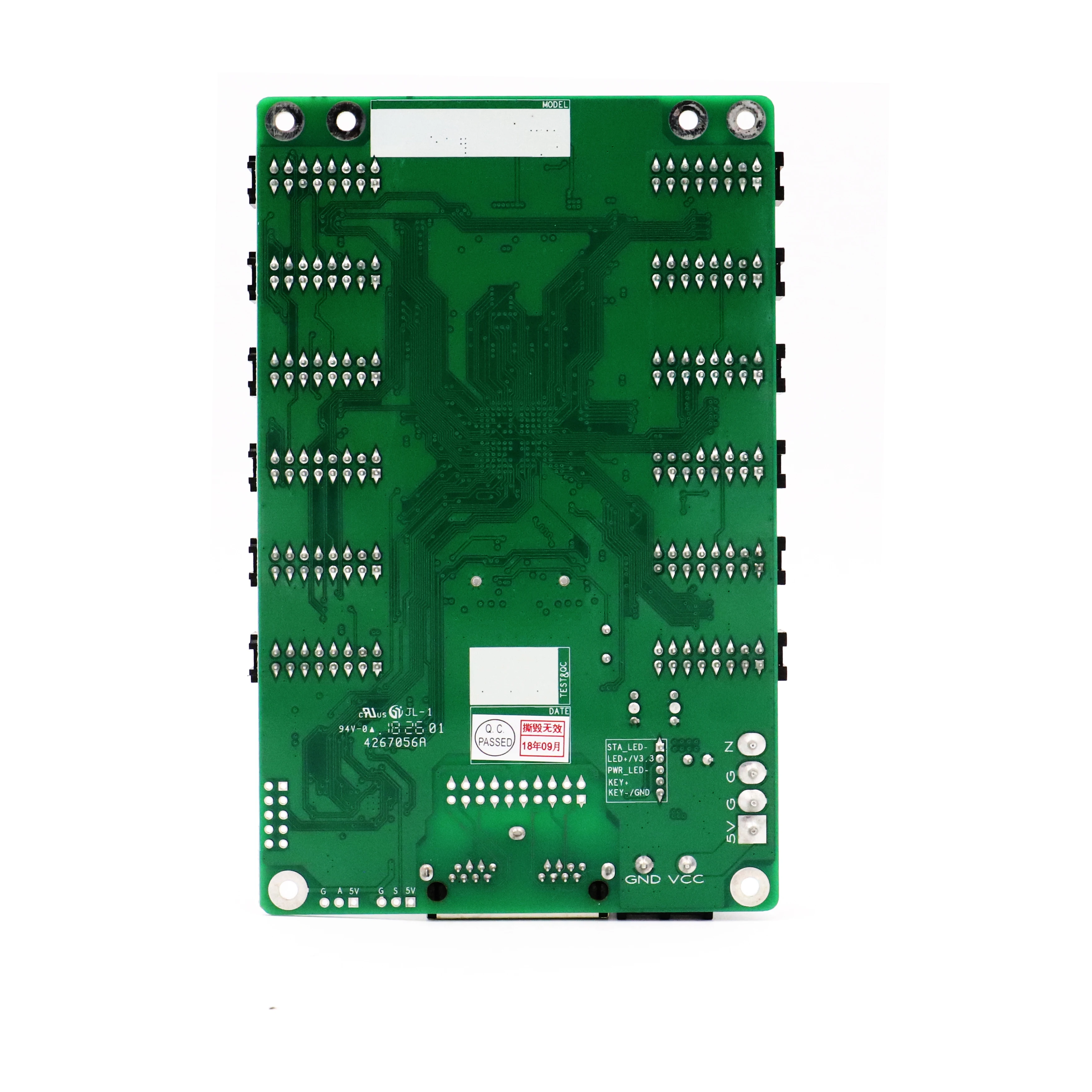

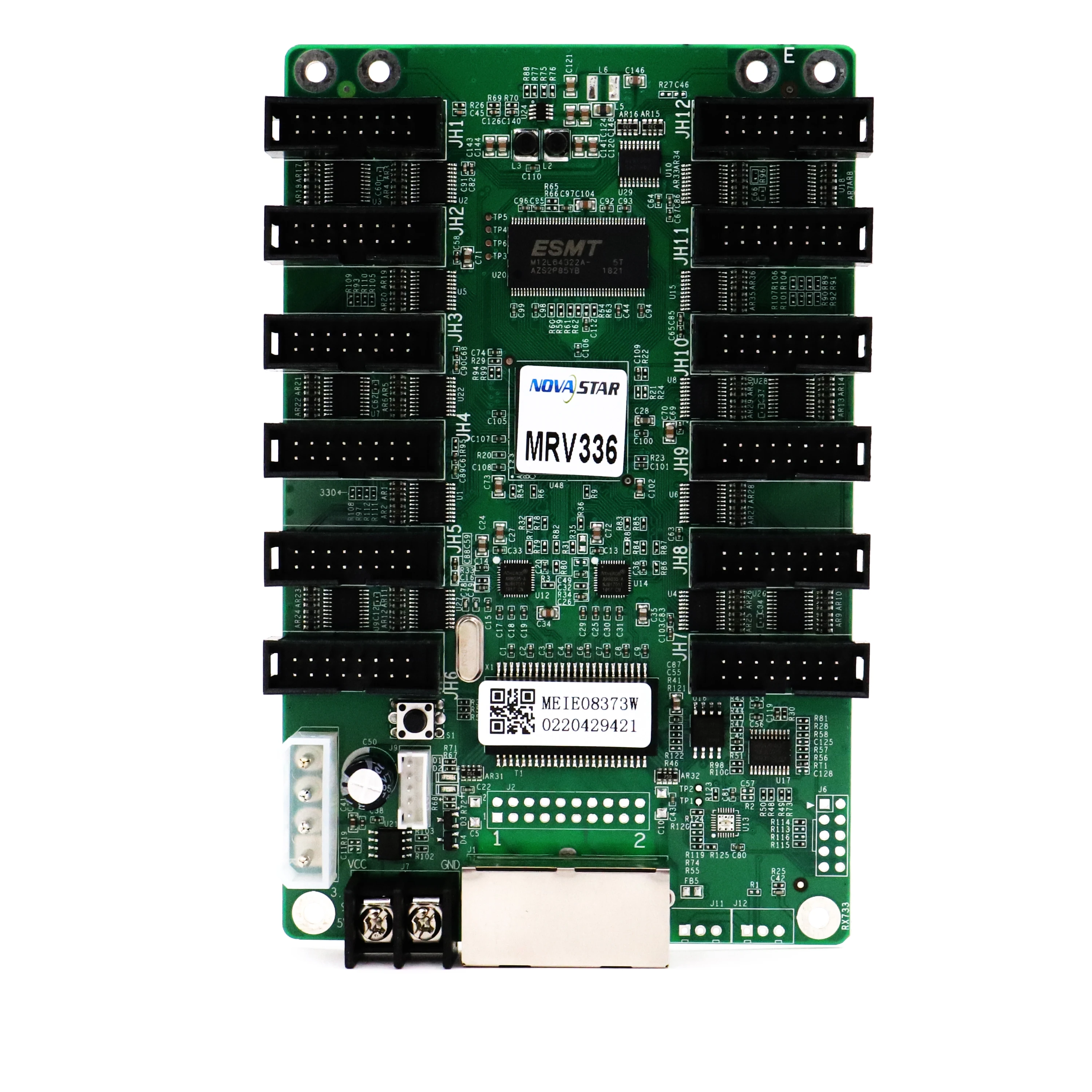

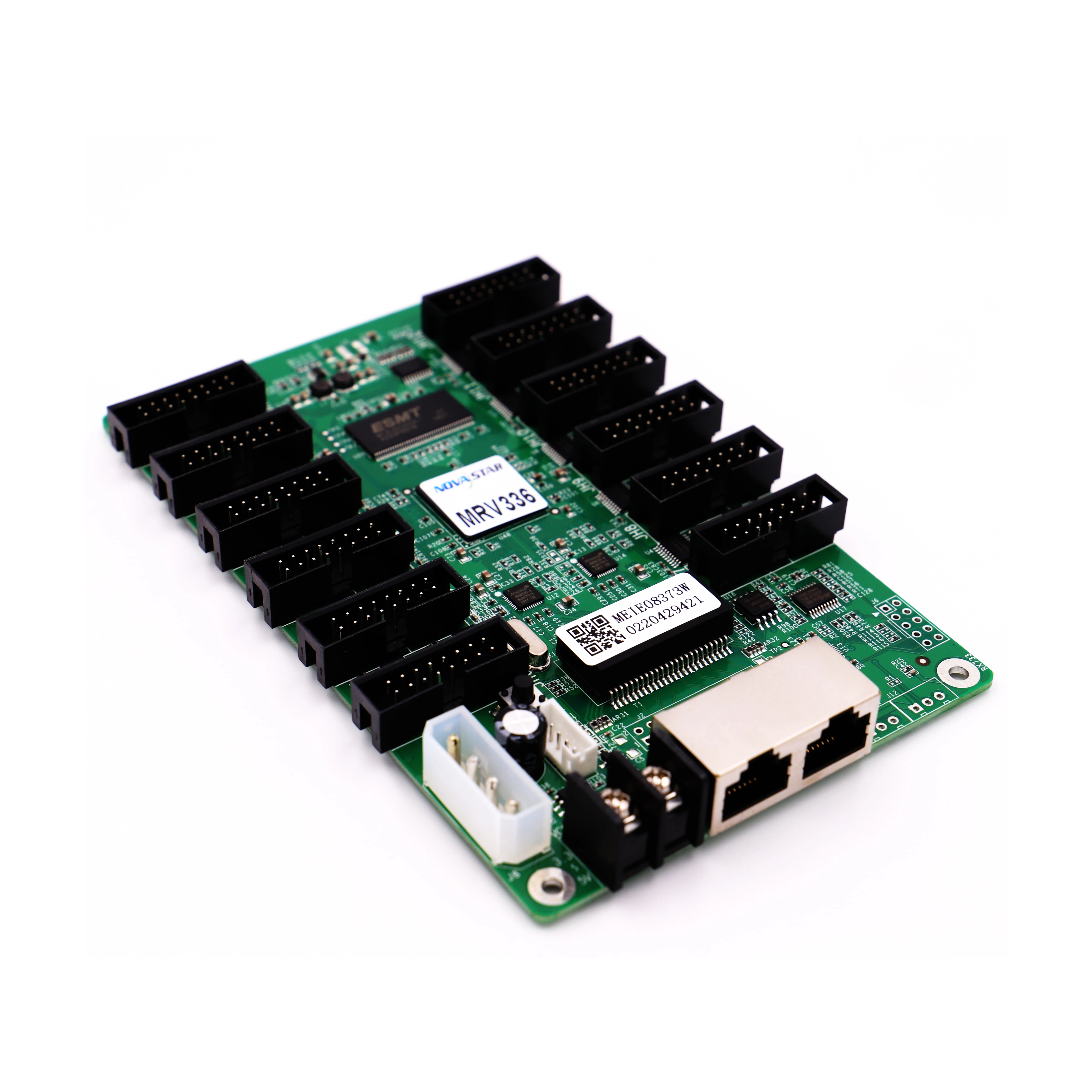

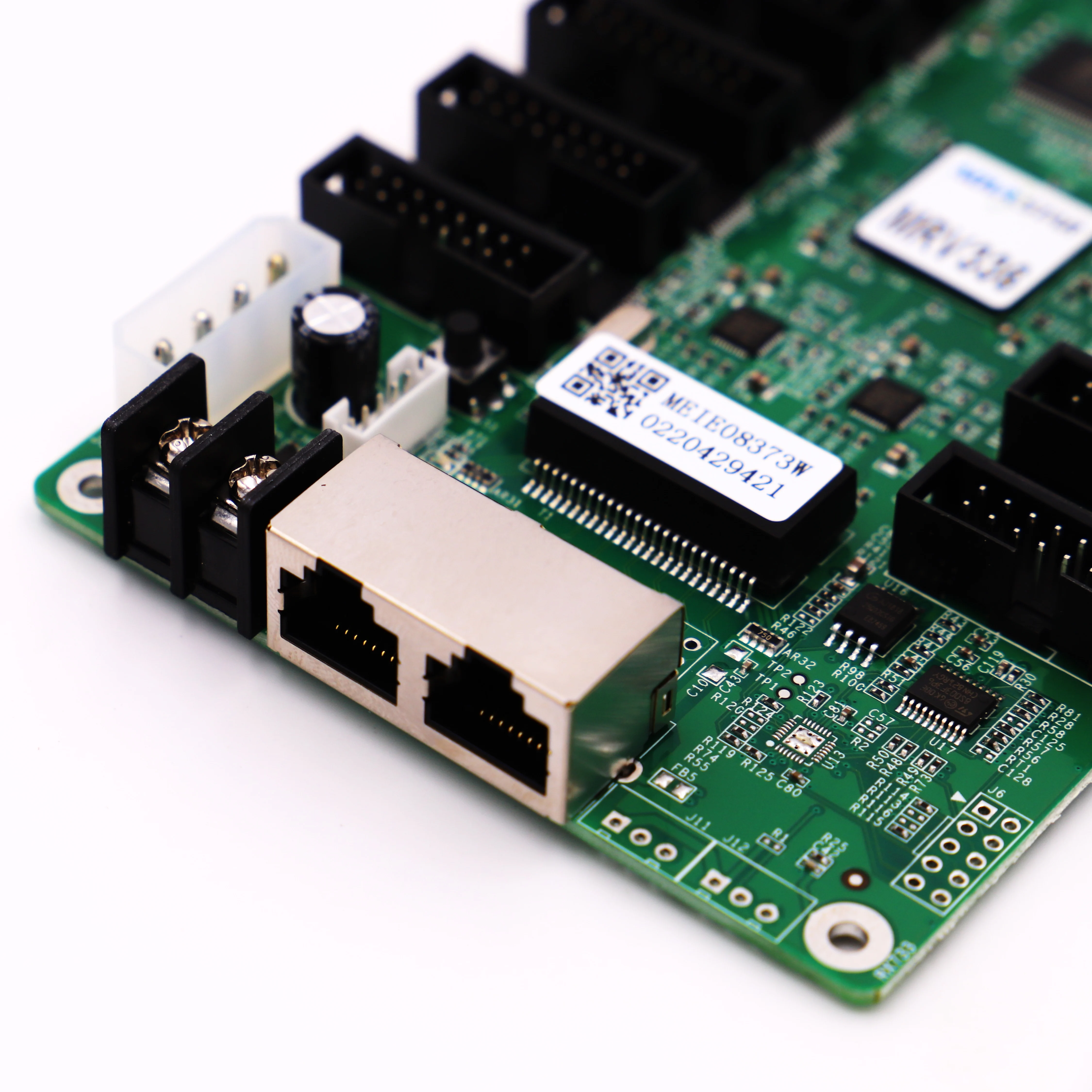

Nova MRV336 LED Screen Receiver Card
1)Single card can output 16 groups RGBR' data;
2)Single card can output 20 groups RGB data;
3)Single card can output 31 groups serial data;
4)Single card maximum supports 1024X256 pixels(Please note
that there are recommendation values for different design of
led screen);
Product Details
5) Support pixel-by-pixel brightness calibration; single-card
color space conversion;
6) Support network cable BER test;
7) High refresh rate and high grey level with most of the driver
ICs;
8) In line with EU standards RoHS;
Product Details
1) Normal mode (default mode)
Support full-color screen, virtual full-color screen and
double-color screen, each 50-pin interface has 8 groups of
full-color / virtual screen data or 16 groups of two-color
screen data.
In normal mode, 50pin is defined as follow.

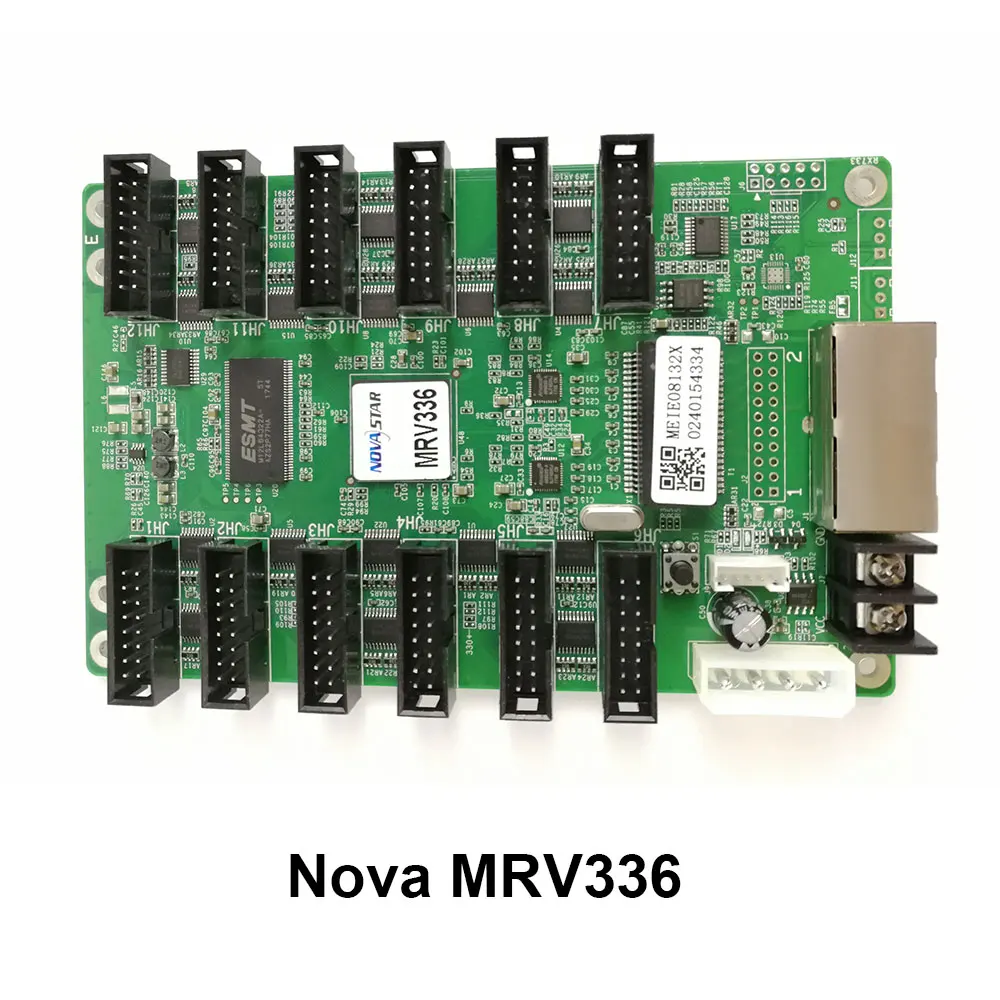

Nova MRV336 LED receiving card
Onboard 12 HUB75 of 16P interface ,no longer need extra hub75
Model Number | MRV336 | ||||
Brand | Nova | ||||
Maximum load Resolution | 1024x256 | ||||
Communication Interface | RJ45 | ||||
Grey Scale Levels(Adjustable) | ≤16bit | ||||
Working Voltage | DC4.5~5.5V | ||||
Power Consumption | 4W | ||||
Weight | 0.1kg | ||||
Working Temperature | -20℃~70℃ | ||||
Humidity | 15%~85% | ||||
Transmission medium | HSYV-5E≤140M,HSYV-6≤170M | ||||
Certificate | CE, ROHS, FCC, ISO9001 | ||||
Have you found out the suitable led card for your project? More advises of purchasing led sending card please contact our online service! Enjoy your shopping moment!
MUENLED Co.,Ltd in Shenzhen China is a real factory who making LED sign /display /billboard
with high quality and competitive price.
Products:
From P1.9- P31.25 / Taxi Roof Advertising / Rental Cabinets / LED truck/ Strip screen,etc.
Service:
We are supplier of LED screens with excellent quality, and 3-year warranty for the products.
Use Epistar chips for our products, sold to 20+ countries all over the world.Average lead time is less than 15 days.
A 12 years experience technical team to solve problems for you anytime!
If you do not hesitate to send us any of your inquiries,it`s will get prompt attention.
Looking forward to hearing from you.
Q1. Can I have a sample order for led Screen?
A: Yes, we welcome sample order to test and check quality. Both for LED moduel or a whole screen
Q2. What about the lead time?
A:Order less than 100 square meter led time take 15 working days
Q3. Do you have any MOQ limit for led Screen order?
A: Low MOQ, 1 square meter or a moudle checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent. It usually take 20 30 day on sea. a few days for customer clearance
Q5. How to proceed an order for led Screen?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led Display product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products
