welding fume collection/grinding dust collection an so on
Air Flow
1500m3/H
Input Power
110/220/380/415V, 50/60Hz or your need
Running Sound
≤75dba
Average Filtration Rate
>=99.9%
Machine Weight
160kg (N.W.) 150kg(G.W)
MOQ
1PCS
Color
White
Trademark
LOOBO
Transport Package
Plywood Box
Specification
650*550*1250mm
Origin
China
HS Code
8421399990

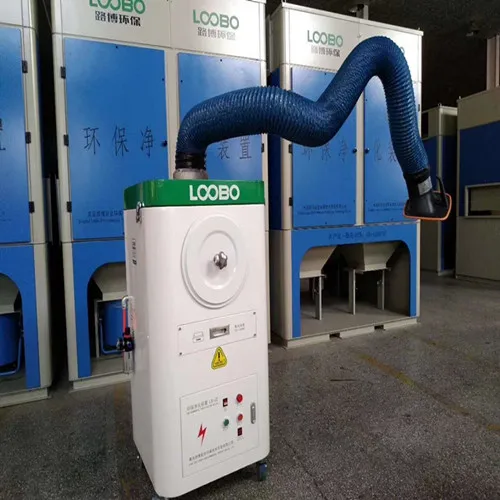

Working principles:
Under the effect of fan, welding smoke are captured into portable welding fume extractor via extraction arm.First, it will go through the first fire proof mesh in the air inlet of the smoke purifier, which will separate and intercept big particles and spark produced by grinding. Then the smoke will go through filtering fender who will intercept the particles and the left spark further, smoke and dusts after filtering will go into the filter cartridge(It uses imported coated polyester material, the separation rate can be up to 99.9%). Last the clean air will be fed back to the workshop .
Technical Parameters:
Model
Airflow(m3/h)
Power(kw)
Body size(mm)
Noise(dB(A))
LB-XZ1500
1500
1.5
650*600*1250
≤65
LB-XZ2400
2400
2.2
650*600*1250
≤68
LB-XZ1500D
1500
1.5
650*670*1250
≤65
LB-XZ2400D
2400
2.2
650*670*1250
≤68
LB-XZ3600S
3600
3.0
710*710*1320
≤70
LB-XZ3600SD
3600
3.0
710*795*1320
≤70
The “D” in models represent Pulsing back-flushing automatic dust -removal system;The fume extractor can be equipped with 1 or 2 fume extraction arms, “S”represents the welding fume extractor has the double arms for two working stations. The back-flushing pressure is 0.5-0.6Mpa.
Arm size: 160mmdia*3.0m PTFE Cartridge Filter:325mmdia*465mm,1pc filter
Advantages:
1. Choose specialized turbine and imported brand motor, apply anti-overloaded circuit to protect the motor from burning out, high security and stable working performance.
2. The change of internal structure adds the airflow than before.
3. Pulsing back-flushing automatic dust -removal system and manual cleaning type for your choice.
4. The structure of extraction arm is steel hood, aluminum alloy frame and resistance high temperature PP pipe. The arm can be used in a 360-degree radius,convenient and flexible.
5. There are 3 protection measures in purifier for fire risk and large slag to make the purifier live longer and more secure.
6. Clean air will be evenly guided and dispersed from blow grids, lowering the noise most.
7. Equipped with specialized new Korean versatile castors with brake apparatus to make the purifier move and locate freely.
