M20 Анальная пробка Женский на обоих концах для подключения внешних устройств к Разъем 3-контактный с круговым питанием водонепроницаемый разъем соединитель переменного


Поделиться:


Цена:4,10 $ - 4,50 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 5.28 $* 5.36 $*
Aug-19-2025 5.69 $* 5.71 $*
Jul-19-2025 4.50 $* 4.97 $*
Jun-19-2025 5.47 $* 5.38 $*
May-19-2025 4.89 $* 4.53 $*
Apr-19-2025 5.51 $* 5.47 $*
Mar-19-2025 5.80 $* 5.14 $*
Feb-19-2025 4.52 $* 4.17 $*
Jan-19-2025 4.85 $* 4.55 $*

Характеристики


Products Show

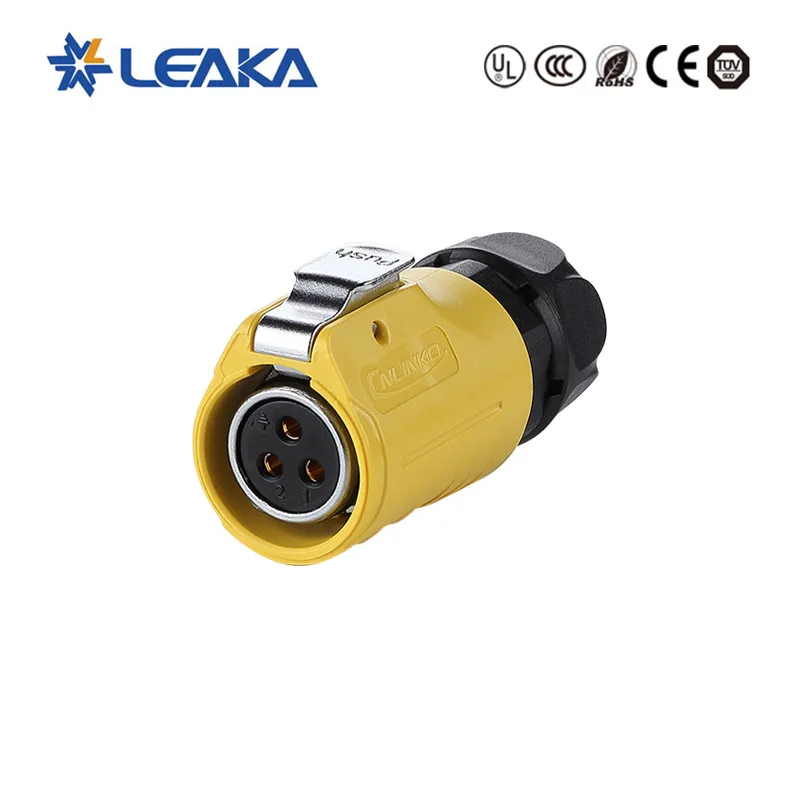

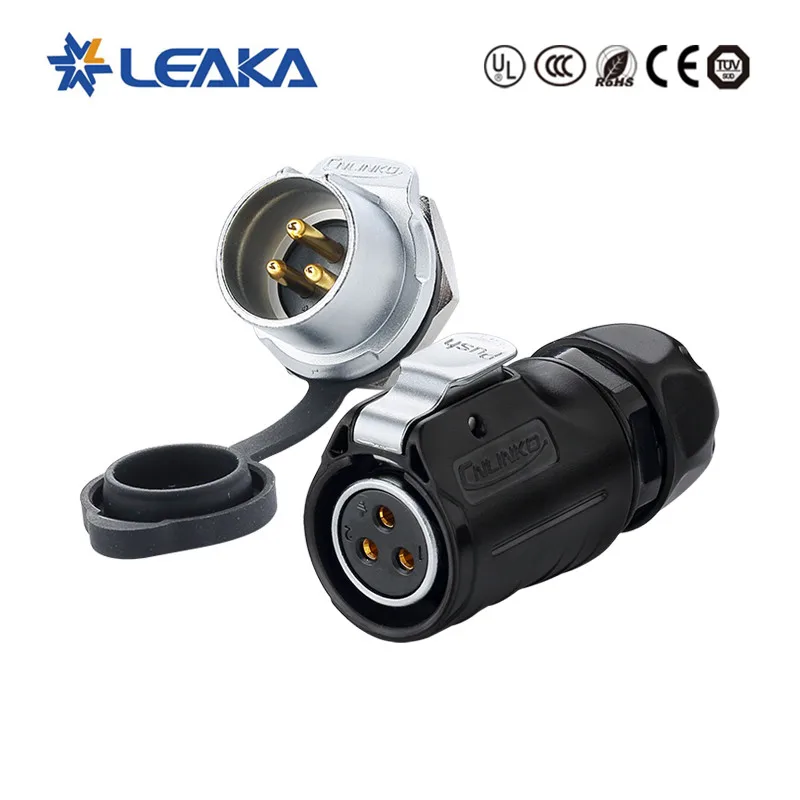

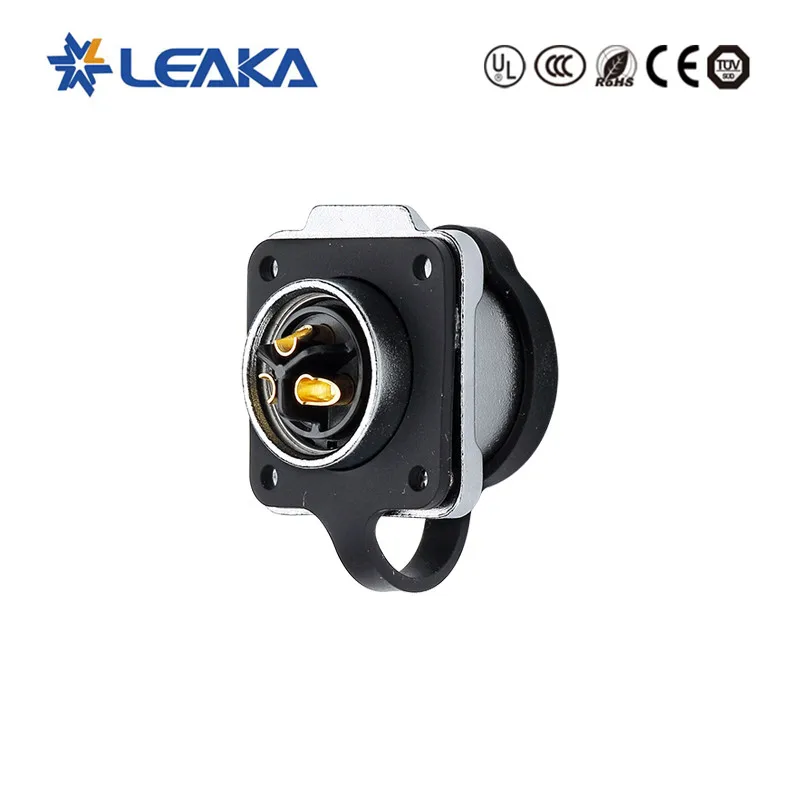

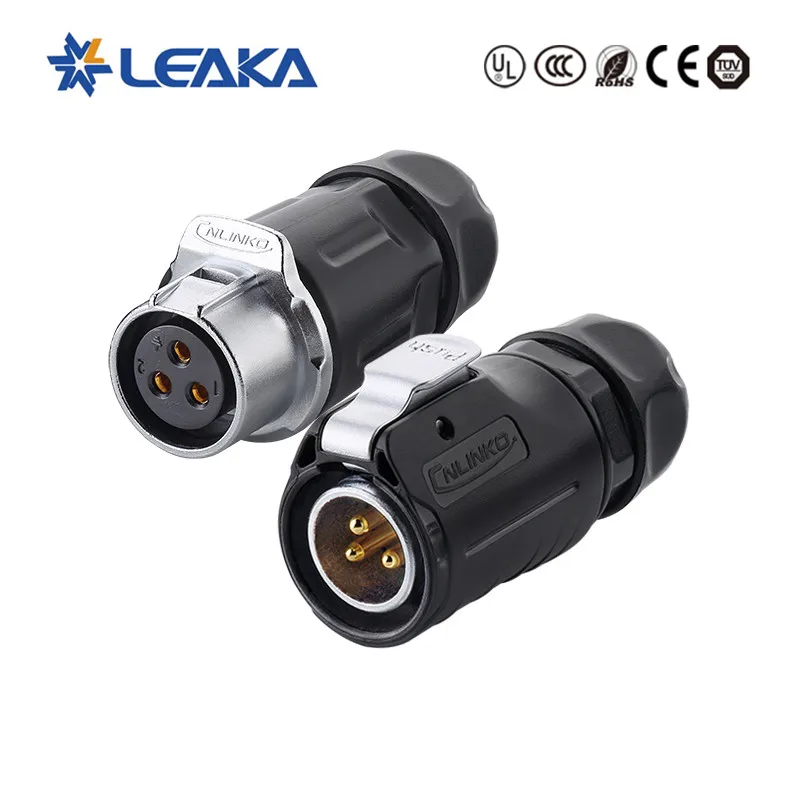

M20 butt Female to Male Plug 3 Pin Circular Power Waterproof Connector

1.With multi-core design to fit with different industrial needs;

2.Alloy metal socket is with fully electromagnetic and radio frequency interference protection;

3.With gold-palted contact,stronger corrosion resistance and conductivity;

4.PBT materials shell,stable electrical performance,pressure-resisting,high temperature; resistance,anti-explosion,anti-corrosive;

5.2/3/4/5/7pin for power connector,9/12 for signal connector,power and signal can be compatible match;

6.IP67/IP68 when mated;

7.Current rating:5A/12A/20A rms;

8.Please indicate if you need the protection level more high.


\t
Specifications
\t
Connecting mode
\t
Latching Lock connect
\t
Protection level
\t
IP67
\t
Cable specification
\t
2.5mm2 ~ 4mm2 /14~12AWG
\t
Diameter range
\t
Φ8mm ~Φ12mm
\t
Contact diameter×Qty
\t
Φ2.7×2
\t
Current rating(A)
\t
20A
\t
Operating voltage(AC.V.rms)
\t
500V
\t
Withstand voltage(AC.V)1min
\t
2500V
\t
Contact resistance
\t
<1mΩ
\t
Insulation resistance
\t
>500MΩ
\t
Durability
\t
≥500 mating&unmating cycles
\t
Temperature rating
\t
-40°C~80°C
\t
Method of connecting cable
\t
Solder
\t
Prevent the combustion level
\t
UL94-V0
\t
Material
\t
Shell&insulated parts
\t
High performance engineering plastics
\t
Hardware metal
\t
Zinc alloy(pearl hard chromium)
\t
Contact pin
\t
Copper alloy(gold-plated)
\t
Spring
\t
Stainless steel
\t
Sealing
\t
Silica gel
\t
Main characteristics
\t
Sealed against dust and fluid (IP65/IP67)
\t
Vibration resistance,impact resistance,stretching resistance
\t
1/4 bayonet connect; socket with cover
\t
Application industries
\t
Stage equipment - The smart grid
\t
Medical equipment - Server
\t
Solar energy equipment - Ship equipment
\t
Electric power equipment - Vehicle equipment
\t
Communications equipment - Heavy machinery
LP-20 Series connector is widely used in variety of challenging environments due to its high-precision,high-quality automatic insertion ,self-locking devices and waterproof, such as :LED screen industry, audio-visual equipment,medical equipment,industrial control ,test and measurement equipment,AV systems,broadcast television and communications industry and other fields.
Detailed Image
Our Company
Xiamen LEAKA Electrical Equipment Co.,Ltd. founded in 2015,is a professional manufacturer of circular,waterproof,heavy duty,military connectors(plug and socket),wire harness,metal joints,cable glands,cable protection flexible hose,owns advanced production equipment,exquisite technology and advanced testing techniques.Our some series product are widely used in the aerospace,military,automotive,electric power, mechanical,automation,as well as the electrical service industry.

Covers are area of 3500sqm,have 100 staff includes 10R&D staff.We have passed CE,UL,SGS,CCC,Rohs product certification.We adopt flexible manufacturing and scientific management to improve quality.Leaka has become one of the leaders in domestic connector manufacturing industry.Taking green and environmental protection as our design concept,we try to build a new generation of environmentally friendly production line.We design and produce according to international and the U.S. military standard,our products can substitute European,US and Taiwan connectors,own the same quality.

Our connectors are sold to Japan,The Unites States,Western Europe,Taiwan and other countries and regions.We are ready to supply all our new customers exquisite technical support and after-sale service.
Our Certifications
Sample Room
Packing & Delivery
FAQ
Q1. Are you a manufacturer or trading company?
We are a professional manufacture of waterproof connectors with our own factory and trading company.

Q2. What is the lead time?
Normally speaking, it asks for 5-30 days for mass production except during observed holidays.

Q3:How about 4. OEM/ ODM Service?
Our professional R&D dept develop different products for different target prices and different requirements.

Q4. What certification do you have?
The electrical connector have got CE Rohs UL certification for our products.

Q5. What's your term of payment?
We prefer to T/T,escrow,MasterCard credit card,e-Checking,Paypal.

Q6: Where is the Distribution of product's industrial base?
Xiamen,Fujian province,China
