Ультразвуковые расходомеры OEM по низкой
- Категория: Flow Meters >>>
- Поставщик: Shanghai,Boqu,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 226.84 $* | 237.18 $* |
| Aug-17-2025 | 224.72 $* | 235.45 $* |
| Jul-17-2025 | 188.47 $* | 197.90 $* |
| Jun-17-2025 | 220.96 $* | 231.94 $* |
| May-17-2025 | 192.44 $* | 202.43 $* |
| Apr-17-2025 | 217.96 $* | 228.18 $* |
| Mar-17-2025 | 215.13 $* | 226.48 $* |
| Feb-17-2025 | 213.83 $* | 224.64 $* |
| Jan-17-2025 | 211.87 $* | 222.28 $* |
Характеристики
Low Cost OEM Ultrasonic Flow Meters

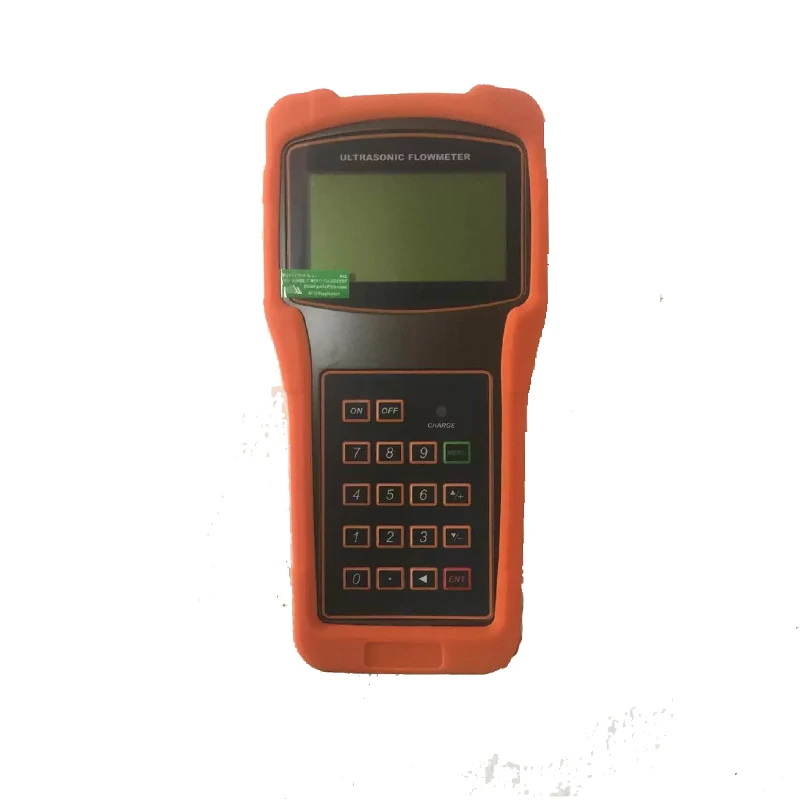

BQ-ULF-100H Handheld ultrasonic flow meter is designed to measure the fluid velocity of liquid in a full/closed pipe. It is a portable measurement system which is both easy to install and use, which is ideal for flow surveys. Built-in SD card and printer can timely or regularly print pre-set measuring results. Temperature and heat can also be measured by connecting clamp on temperature sensor.The BQ-ULF-100H operates according to the difference in the transit time of flight measured, and determines the flow velocity by measuring the travel time of a pulse from one transducer to the next. Flow in the same direction takes less time to travel to the second transducer than does flow in the opposite direction. Electroacoustic transducers receive and emit brief ultrasonic pulses through the liquid of the pipe. Transducers are vertically placed at both sides of the measured pipe. Sensors are placed on the pipe and fastened by means of a clamp. The display will quickly show the flow velocity.The BQ-ULF-100Hcan be used for metallic, plastic and rubber tubes etc.
Product Description
what's the main features of portable ultrasonic flow meter ?
1.Accuracy:±1%,0.5%
2.Repeatability:±0.2%
3.Easy to install outside the pipe
4.Two line display: Instantaneous flow rate,Accumulate flow,status
5.Built-in printer,to print in time and regularly;
6.Standard interface RS485 for data output and on-line operation
7.Self-diagnose to show the current status
8.Built-in Nickel-hydrogen cell supports 20 hours of operation
9.It also can measure heat by heat module
what's the main features of handheld water flow meter?
1.It is widely used to measure liquid flow in various indus such as high accuracy, good repea tability tries thanks to its advantages
2.long-running cell,easy operation,built-in printer etc. The flowmeter is very industry like petrochemi cal, water, power, energy monitoring ect.

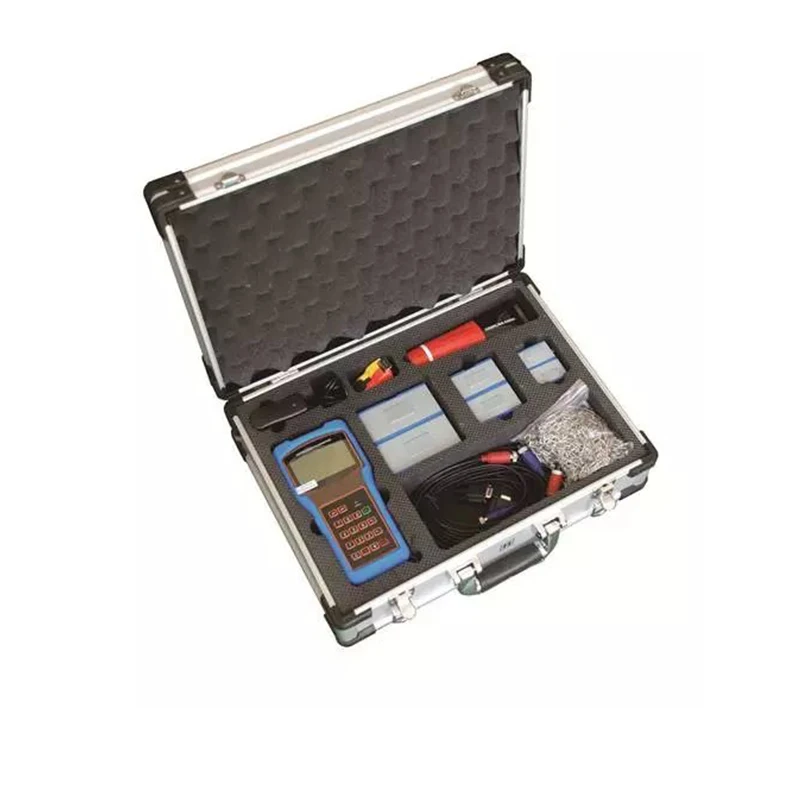

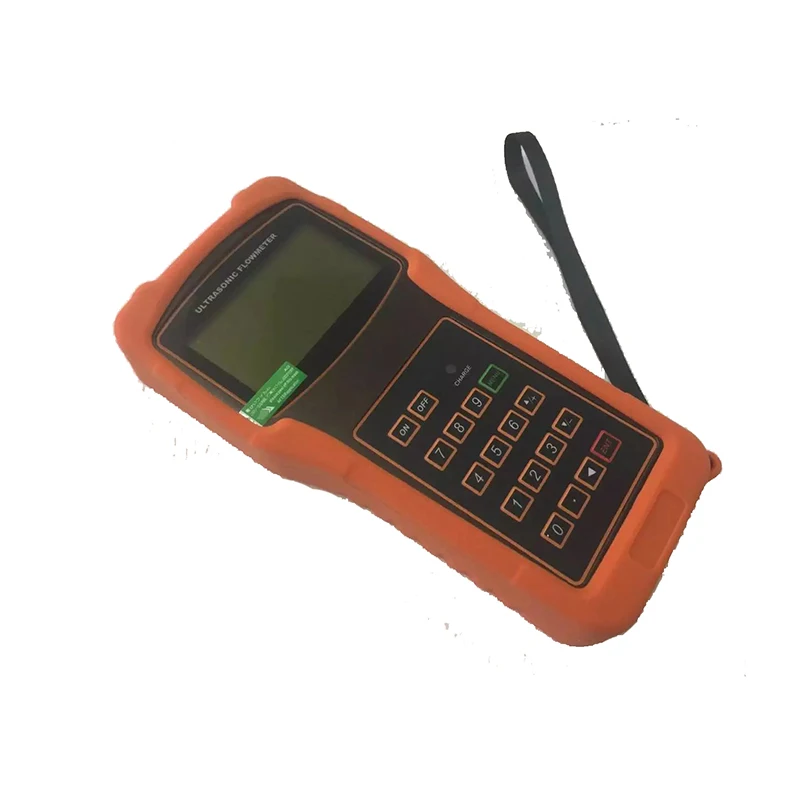

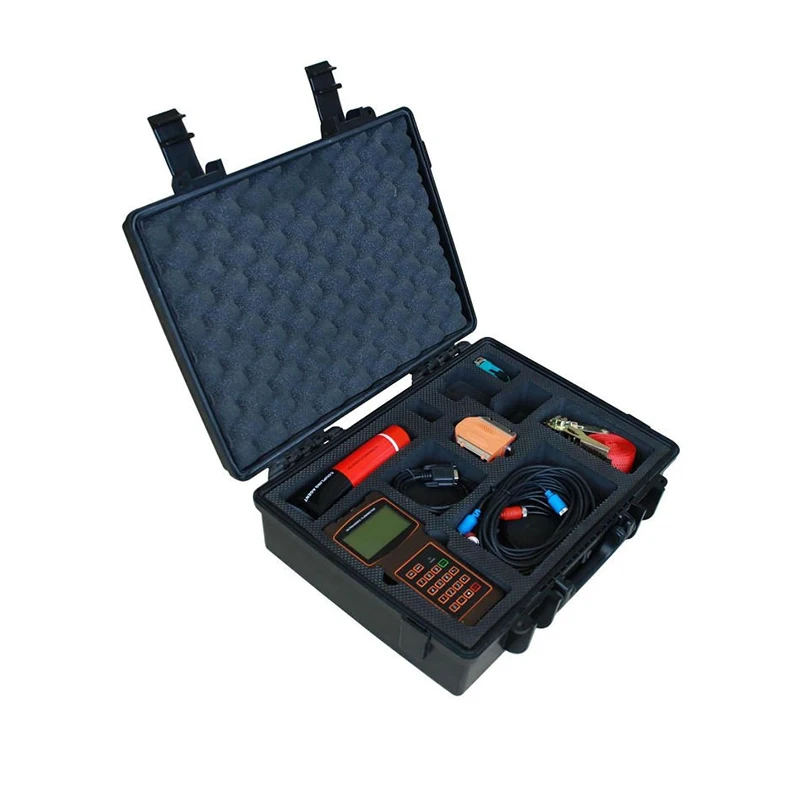

Product Details
Our Handheld Ultrasonic Flow Meter has no any complaints in 3 consecutive years, sincerely it's over 80% of peers just based on this point.you will know it from below detail photos.
What's the mainly parameters of Handheld Ultrasonic Flow Meter
Product name | Handhedl Ultrasonic Flowmeter |
Linearity | 0.5% |
Repeatability | 0.2% |
Accuracy | ±1% of reading at rates>0.2 mps |
Response Time | 0-999 seconds, user-configurable |
Velocity | ±32 m/s |
Pipe Size | 20mm-6000mm |
Totalizer | 7-digit totals for net, positive and negative flow respectively |
Liquid Types | Virtually all liquids |
Security | Setup values Modification Lockout. Access code needs unlocking |
Display | 4x8 Chinese characters or 4x16 English letters |
Communication Interface | RS-232, baud-rate: from 75 to 57600. Protocol made by the manufacturer and compatible with that of the FUJI ultrasonic flow meter. User protocols can be made on enquiry. |
Transducer Cord Length | Standard 5m x 2, optional 10m x 2 |
Power Supply | 3 AAA built-in Ni-H batteries. When fully recharged it will last over 12 hours of operation. 100V-240VAC for the charger |
Data Logger | Built-in data logger can store over 2000 lines of data |
Manual Totalizer | 7-digit press-key-to-go totalizer for calibration |
Housing Material | ABS |
Case Size | 100 x 66 x 20mm |
Handset Weight | 500g with batteries |
Factory Show
BOQU Instrument was found since 2007, now BOQU has more 70 staff and engineers and has core technology of electrodes and develope more 50+ software for various controllers by self.

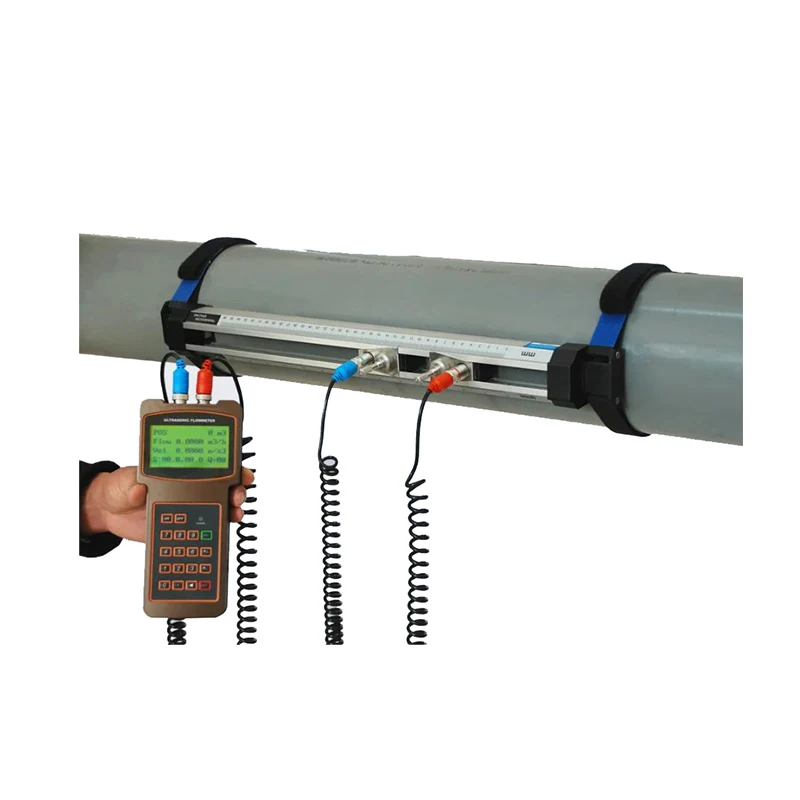

Installation
What's the mainly application of Handheld Ultrasonic flow meter ?
Water and waste water industry (hot water, cooling water, potable water, sea water etc.),Petrochemical industry,Chemical industry(chlorine, alcohol, acids, .thermal oils.etc),Refrigeration and air conditioning systems,Food , beverage and pharmaceutical industry,Power supply(nuclear power plants, thermal & hydropower plants), heat energy boiler feed water.etc),Metallurgy and mining applications,Mechanical engineering and plant engineering(pipeline leak detection, inspection, tracking and collection)
Certifications
BOQU was found since 2007, now has more 70 staff and engineers, instruments has be exported to over 80 countires.,Now BOQU has been named as High-Tech Enterprice by goverment,ISO,CE, SGS is our common certicates. the core technology of electrode ,controller and 50+ software property is our based. all instruments has been recognized by National Metrology Bureau.there is many small factories in China, you should be carefully if they provide you very low price. this is tips for you in free.
Exhibitions
BOQU has a strong Develop Department and can develope many new instruments or technology, so we will hold 5~8 exhibitions in China or Foreign to show our results.
Why to choose BOQU?
Why to choose BOQU Handheld Ultrasonic Flowmeter?
1.National High-tech Enterprises Certificates,only 1% company can get it.
2.Instruments has been exported to over 80 countries.
3.BOQU has more 50+ Softwares property
4.100% QC inspection Before Shippment.
5. ISO,CE,SGS standard and factory price.
6.All instruments has been 100% recognized by Bureau of National Metrology
Contact
Shanghai BOQU INSTRUMENT CO.,lTD
Conact:Michael Luo
Email:Michael@shboqu.com
Whatsapp/Mob/Skype:86-15000087545
Factory address:No.118 xiuyan road,pudong district ,shanghai china, zip code:201315
