Хит продаж, высокопрочный насос для бетонных насосов
US $4800-$5300
Хорошая цена ходовой механизм HOWO технология Putzmeister или Schwing 37 м бетононасос для грузовика
- Категория: Concrete Pumps >>>
- Поставщик: Jinan,Sino,Truck,Sales,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 178500.20 $* | 187425.10 $* |
| Aug-19-2025 | 177000.85 $* | 185850.39 $* |
| Jul-19-2025 | 148500.27 $* | 155925.29 $* |
| Jun-19-2025 | 174000.45 $* | 182700.94 $* |
| May-19-2025 | 151500.0 $* | 159075.65 $* |
| Apr-19-2025 | 171000.48 $* | 179550.4 $* |
| Mar-19-2025 | 169500.19 $* | 177975.74 $* |
| Feb-19-2025 | 168000.59 $* | 176400.83 $* |
| Jan-19-2025 | 166500.90 $* | 174825.31 $* |
Характеристики
Product Description
What is a concrete pump truck?

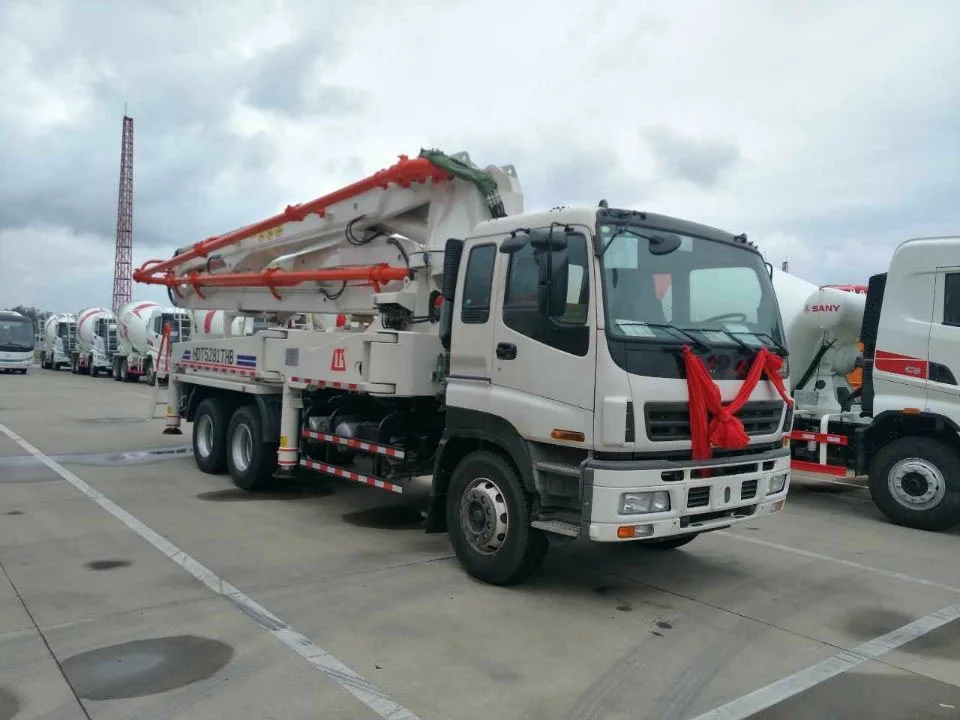

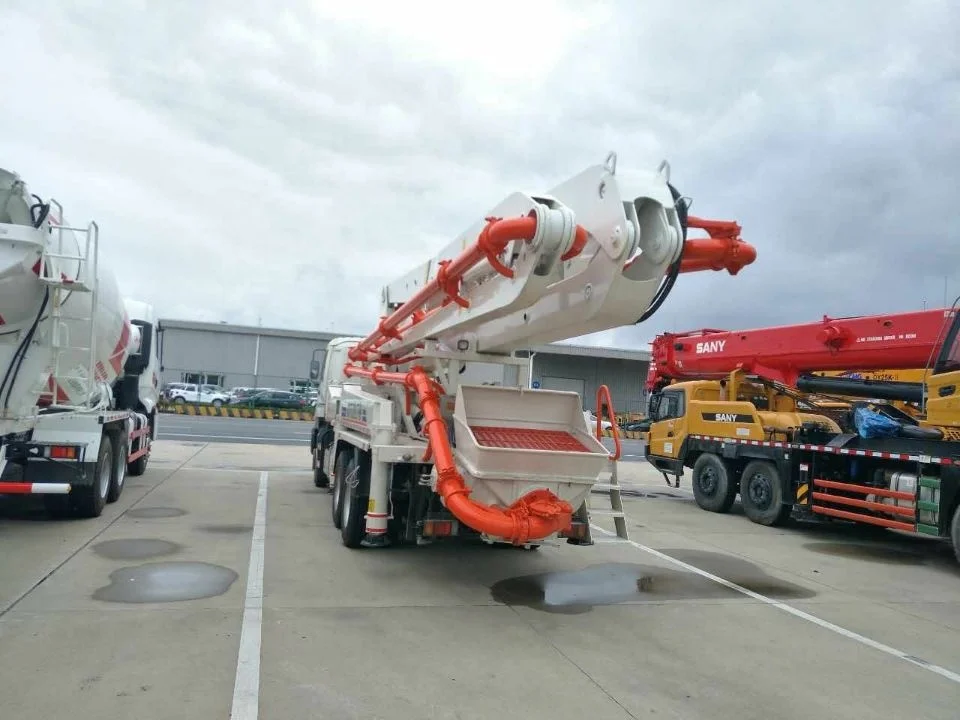

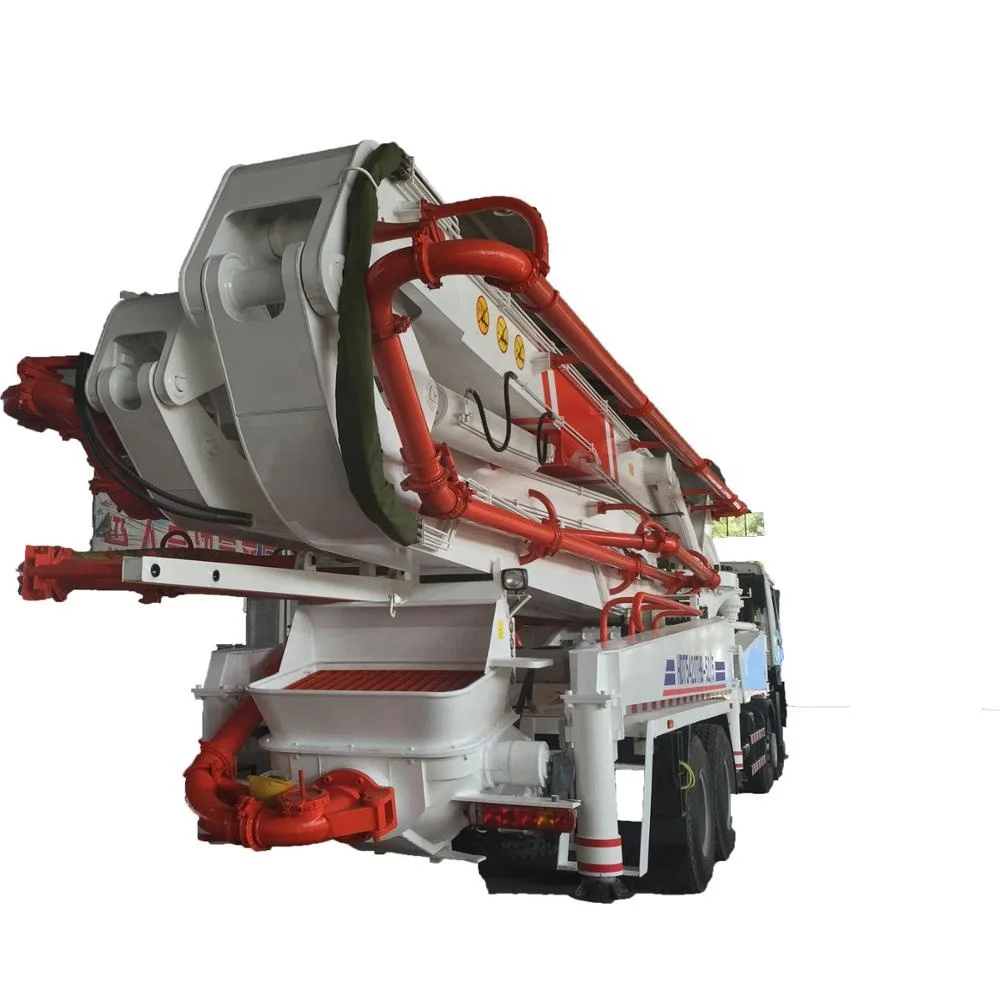

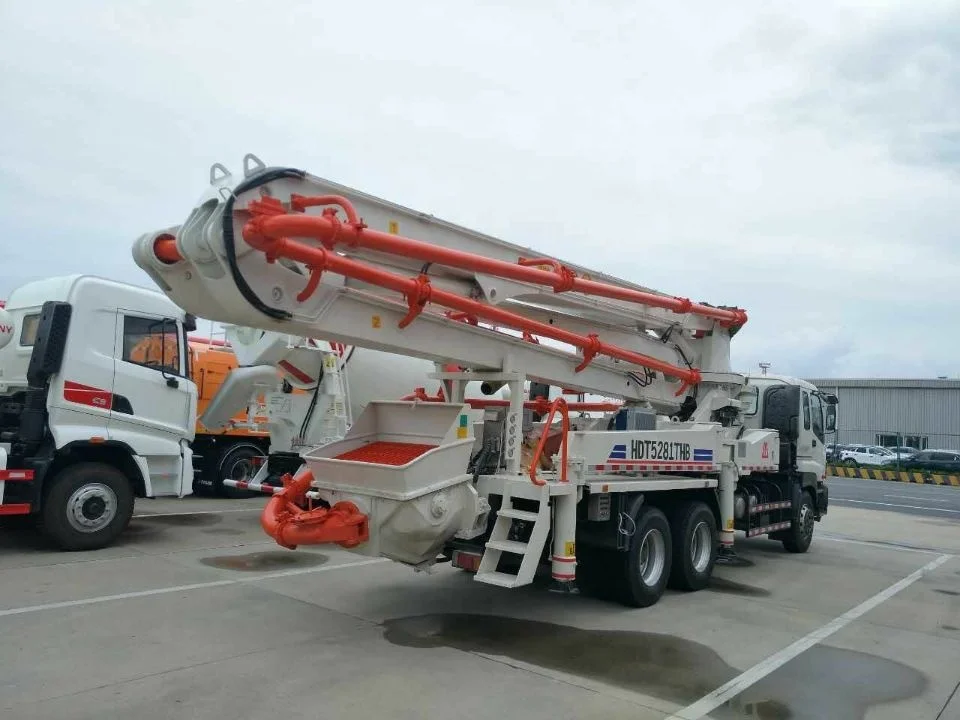

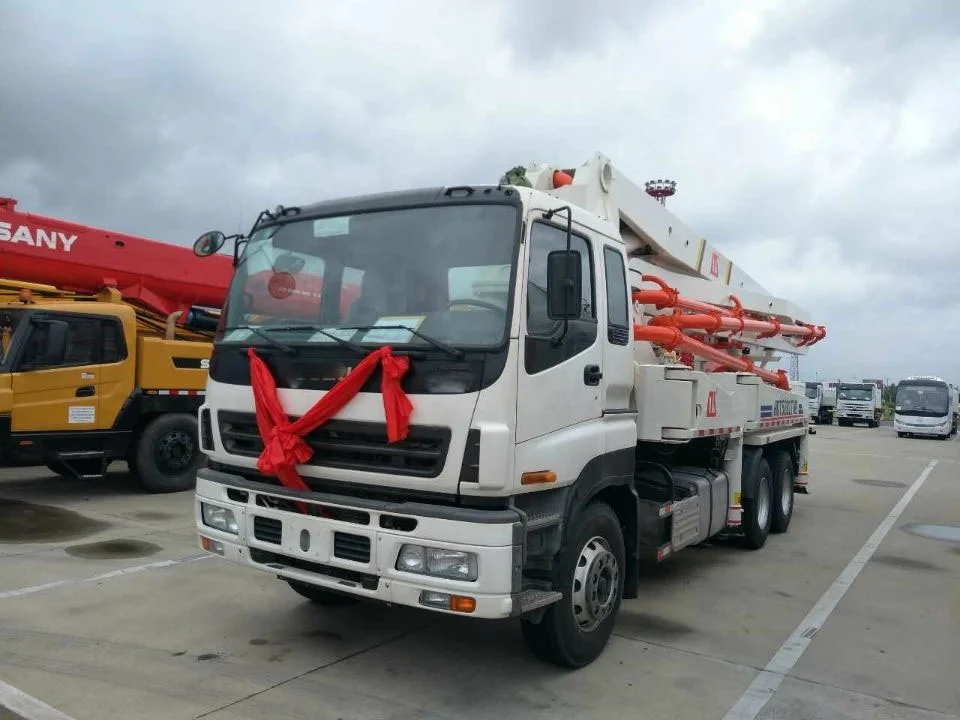

Concrete pump truck is a machine that uses pressure to continuously transport concrete along the pipe. It is composed of a pump body and a conveying pipe. According to the structure is divided into piston type, extrusion type, water pressure diaphragm type. The pump body is mounted on the chassis of the car, and then equipped with a telescopic or flexed cloth rod, the pump car is composed. Concrete pump truck is modified on the chassis of truck, it is installed on the chassis with motion and power transmission device, pumping and mixing device, distributing device and some other auxiliary devices. The power of the concrete pump truck transmits the power of the engine to the hydraulic pump group or the rear axle through the power transfer box. The hydraulic pump pushes the piston to drive the concrete pump to work. Then use the pump on the material rod and pipe, the concrete transport to a certain height and distance.
* Assembly on standard 2 axles chassis
* 5 sections placing boom, “RZ” folding system, FEM designed
* Fully hydraulic outrigger controls on both sides of the truck
* Front X-type outriggers and swing-out rear outriggers
* Pumping unit with open hydraulic circuit
* Fully-hydraulic switch over system
* MPS (Micro Pressure Shock) reversing buffering technology
* S-tube
* Large diameter slide valve with casting oil passage
* Intelligent electrical control system
* Remote / Manual control method for boom and pumping unit
* Centralized lubrication system for pumping unit
* Piston automatic return technology, easy to replace piston
* Main hydraulic pump overload protection technology
* Engine overload protection technology
* Engine low-speed protection technology
* Anti-tipping safety protection technology
* Lights system
* 5 sections placing boom, “RZ” folding system, FEM designed
* Fully hydraulic outrigger controls on both sides of the truck
* Front X-type outriggers and swing-out rear outriggers
* Pumping unit with open hydraulic circuit
* Fully-hydraulic switch over system
* MPS (Micro Pressure Shock) reversing buffering technology
* S-tube
* Large diameter slide valve with casting oil passage
* Intelligent electrical control system
* Remote / Manual control method for boom and pumping unit
* Centralized lubrication system for pumping unit
* Piston automatic return technology, easy to replace piston
* Main hydraulic pump overload protection technology
* Engine overload protection technology
* Engine low-speed protection technology
* Anti-tipping safety protection technology
* Lights system
Specification
Model of chassis | HOWO ZZ5347S4647 | ||||||||||||||
Weight | 29×103kg | Drive mode of chassis | 6×4 | ||||||||||||
Max. travel speed | 80km/h | Cab with air-condition and sleeper | |||||||||||||
Wheelbase | 1-2 / 2-3 / 3-4 Wheelbase(mm) | 4600/1350 | |||||||||||||
Overall height | Overall length | 12560mm | |||||||||||||
Overall width | 2500mm | Tread | front wheel | 2022mm | |||||||||||
Overall height | 4000mm | rear wheel | 1830mm | ||||||||||||
Engine | Engine | In-line; six-cylinder water-cooled after-cooling EFI diesel engine | Tire size | 12.00R20 | |||||||||||
Min. turning radius | 9.85m | ||||||||||||||
Model of engine | WD615.47 | Braking distance | 10m/30km/h | ||||||||||||
Output power | 273KW 2200rpm | Form | Four section, folded, full hydraulic | ||||||||||||
Max. torque | 1500Nm/1100-1600rpm | Boom | Max. ground clearance | 36.6m | |||||||||||
Emission standard | EURO II | Diameter of conveying pipe | DN125 | ||||||||||||
Gearbox model | HW19710 | Length of end hose | 4m | ||||||||||||
Displacement | 9726ml | Section 1 boom | Length | 9150 | |||||||||||
Pumping system | Drive mode | Hydraulic type | rotation | 1000 | |||||||||||
Cylinder diameter ×stroke | φ140mm×2000mm | Section 2 boom | Length | 8260mm | |||||||||||
Delivery cylinder diameter × stroke | φ230mm×2000mm | rotation | 1800 | ||||||||||||
Valve type | S type | Section 3 boom | Length | 8260mm | |||||||||||
Displacement in theory | 125m3/h | rotation | 1800 | ||||||||||||
Section 4 boom | Length | 8060mm | |||||||||||||
Pumping pressure in theory | 8.5 Mpa | rotation | 2400 | ||||||||||||
Rotating range of placing boom | 3700 | ||||||||||||||
Pumping times in theory | 26 times/min. | Max. placing radius | 33.6m | ||||||||||||
Max. placing height | 37.6m | ||||||||||||||
Hydraulic system pressure | 32MPa | ||||||||||||||
Lubricating method | Automatic grease lubrication | ||||||||||||||
Hopper capacity | 0.6M3 | Oil tank capacity | 600L | ||||||||||||
Feeding height | 1.40m | Control | Manual/ remote control | ||||||||||||
System oil pressure | 32Mpa | Max. water pressure of water pump | 6MPa | ||||||||||||
Slump constant | 14cm~23cm | Water tank volume | 650L | ||||||||||||
Max. aggregate size | 40mm | Cooling method of hydraulic oil | Air cooling | ||||||||||||
High and low pressure pumping switch | Manual | Cleaning way of concrete pipe | |||||||||||||
Washing/ dry-cleaning | |||||||||||||||
Packing & Delivery
Packaging Details: All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are three way can be choose, RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER
Port: Tianjin,Qingdao Lead time: Shipped in 30 days after payment
Company Profile
Jinan Sino Truck Sales Co.,Ltd located in Jinan, Production base of heavy duty truck in China.
So competitive price, awesome quality , quantity can be guaranteed.
10 years or so experineced in exporting trucks. So professional advices related products and satisfying service can be provided.
The main product is CNHTC(HOWO, STR, Golden Prince,etc.), and spare parts.
One stop shop
Products: You name it, we have it
Quality : 100% 6months/30 000kms warranty
Price: as best as we can go
Delivery: as fast as we can
Provide spare parts (No less than 10 years)
Win-win situation is our target
Include tipper trucks, tractor trucks, concrete mixer trucks, water tank trucks, fuel tank trucks, cargo trucks, dry cement transport trucks, fire fighting trucks ,all-wheel driving wheel , ,mining dump trucks, special trucks, different type semi trailer and spare parts etc.
10 years or so experineced in exporting trucks. So professional advices related products and satisfying service can be provided.
The main product is CNHTC(HOWO, STR, Golden Prince,etc.), and spare parts.
One stop shop
Products: You name it, we have it
Quality : 100% 6months/30 000kms warranty
Price: as best as we can go
Delivery: as fast as we can
Provide spare parts (No less than 10 years)
Win-win situation is our target
Include tipper trucks, tractor trucks, concrete mixer trucks, water tank trucks, fuel tank trucks, cargo trucks, dry cement transport trucks, fire fighting trucks ,all-wheel driving wheel , ,mining dump trucks, special trucks, different type semi trailer and spare parts etc.
Our Service
* Inquiry & consulting support
* Training How to operate trucks
* Factory visiting
* Factory visiting
* Engineer available to service overseas
* Technical support
* Technical support
* Spare parts
Customers Feedback
FAQ
1. who are we?
We are based in Shandong, China, start from 2011,sell to Africa(00.00%),Southeast Asia(00.00%),South America(00.00%),Mid East(00.00%),Central America(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Truck
4. why should you buy from us not from other suppliers?
1.Authorized dealer of SINOTRUCK for 12 years
2.Exporting trucks, semi trailers and spare parts for 6 years and 40counties
3.Excellent produce, sales and after- sales service team
4.On-line assembly and customer's personal design
5.Golden supplier
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Portuguese
We are based in Shandong, China, start from 2011,sell to Africa(00.00%),Southeast Asia(00.00%),South America(00.00%),Mid East(00.00%),Central America(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Truck
4. why should you buy from us not from other suppliers?
1.Authorized dealer of SINOTRUCK for 12 years
2.Exporting trucks, semi trailers and spare parts for 6 years and 40counties
3.Excellent produce, sales and after- sales service team
4.On-line assembly and customer's personal design
5.Golden supplier
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF；
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Portuguese
Recommend Products
Contact Us
Похожие товары
Бетононасос XCMG HBT9018K, бетононасос для продажи
US $10000-$80000
Мини-бетононасос, грузовик, бетононасос для строительства
US $1900-$1999
