Комплексное испытательное оборудование для общей топливной системы
- Категория: Двигатель автомобиля >>>
- Поставщик: Taian,Beacon,Machine,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.16 $* | 0.59 $* |
| Aug-18-2025 | 0.2 $* | 0.43 $* |
| Jul-18-2025 | 0.97 $* | 0.51 $* |
| Jun-18-2025 | 0.21 $* | 0.2 $* |
| May-18-2025 | 0.0 $* | 0.32 $* |
| Apr-18-2025 | 0.46 $* | 0.75 $* |
| Mar-18-2025 | 0.43 $* | 0.79 $* |
| Feb-18-2025 | 0.32 $* | 0.15 $* |
| Jan-18-2025 | 0.64 $* | 0.1 $* |
Характеристики
Patented products, anti-counterfeiting must be investigated! Patent original genuine, welcome to taste!

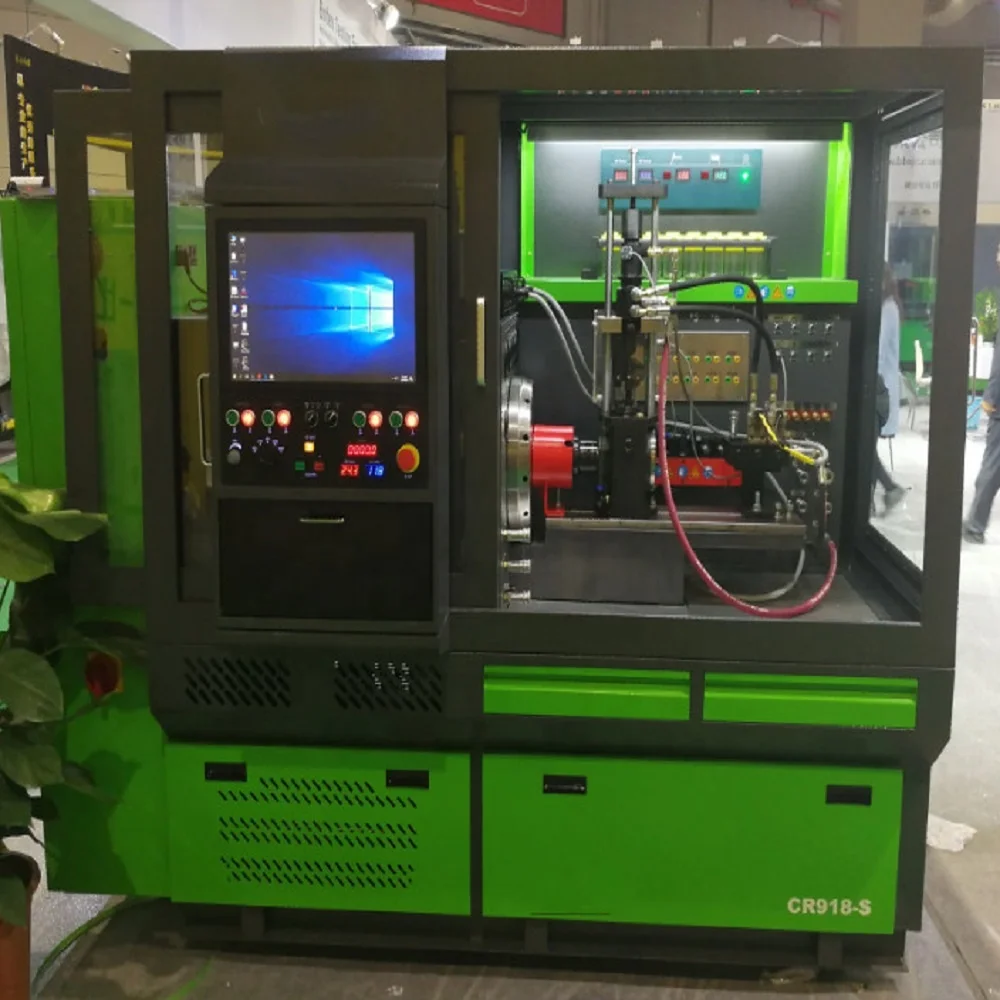

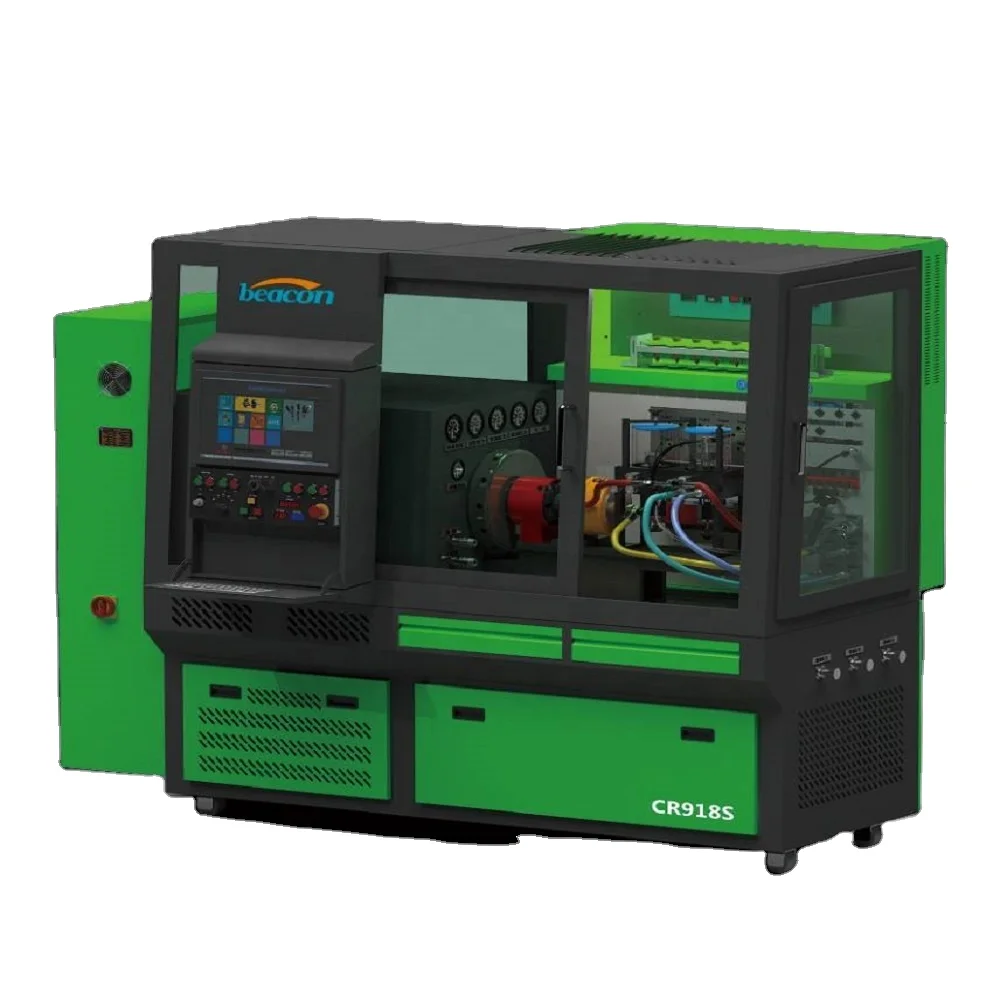

CR918S COMPREHENSIVE TEST BENCH
1.Test All kinds of common rail injectors
2.Test All kinds of Piezo injectors
3.Test All kinds of common rail pumps
4.Test All kinds of EUI/EUP with BIP functions
5.Test All kinds of HEUI injectors
6.Test All kinds of HEUI actuation pumps
7.Test CAT 320D pump
8.Test Denso HP0 pump
9.The highest rail pressure is 2600 bar
10. Drive motor 22KW
11. Injection drive and system voltage monitor
12. Common rail with filter function
13. Dual DRV configuration
14. High pressure filter plugging reminder function
15.Waste tank overflow warning
16. Oil tank and diesel tank strong integrated air conditioning system
New optional functions :
+ 6 injectors can be triggered at the same time , and 6 injectors correction codes can be generated simultaneously!
+ Accurate response time
+ Generate oil volume correction code
+ Test PT pump
+ Test PT injector
+ Test HPI Q60 X15
+Test Cummins HPI Actuator
+ SPECIAL FEATURES:
Bosch 6,7,8,9,10-digit IMA encoding generation
Bosch piezo injector IMA,ISA encoding generation
DENSO QR oil volume correction code generation
Delphi C2i,C3i encoding generation
Siemens (VDO) ICC code generation
TECHNICAL PARAMETERS | |
Main power | 380V AC 220V(Optional) |
Phase | Three,single(Optional) |
Frequency | 50HZ/60HZ |
Current | 45A(MAX) |
Main Motor | 22kw |
Main motor rotation | 0-4000 RPM/MIN |
Oil motor HP/FLOW | 0.19KW/13L/MIN |
Diesel motor HP/FLOW | 0.19KW/13L/MIN |
Control circuit voltage | DC12V/24V 350W |
ECU internal voltage | 0-200V DC(MAX) |
Oil tank volume | 30L |
Diesel Tank volume | 52L |
Tempreature control | Heating/Forced cooling |
Max rail pressure | 180Mpa 240Mpa(Optional) |
Flowmeter(injection) | 4-550ml/min |
Flowmeter(pump supply) | 1-400L/H |
Flowmeter(pump flowback) | 1-400L/H |
Flowmeter(oil) | 5-600L/H |
Center distance between motor and working bench | 125mm |
Weight | 1100KG |
Outlook size net | (LxWxH)2400x1350x1880 |
Wooden cage | (LxWxH)2500x1480x2050 |
