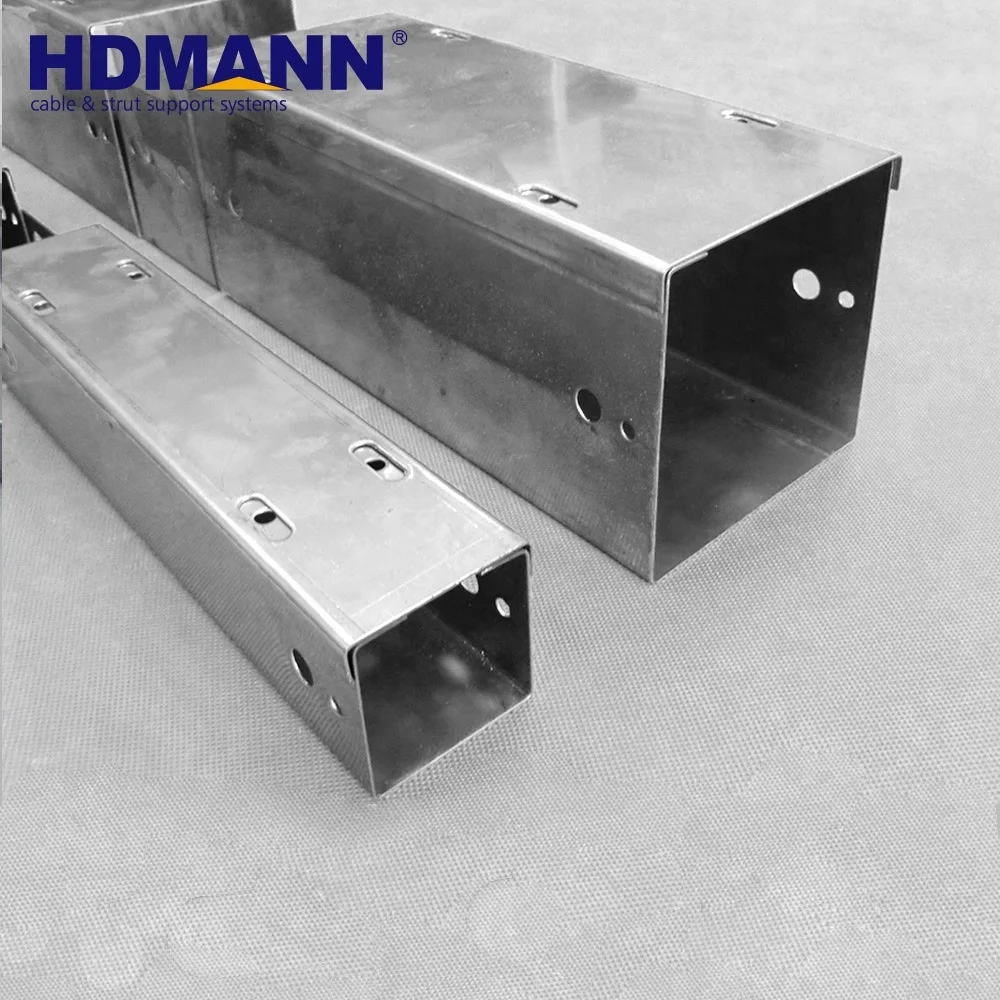

Electrical Cable Tray Trunking

 HDMANN cable trunking is constructed of precision engineered, high quality, welded steel wire and is the result of decades of research gained from the installation of hundreds projects across the globe. cable trunking

 Our cable ladder is subjected to testing at every stage of the manufacturing process. In actual use, it has performed in a wide variety of office buildings and is widely used for from heavy power cable pathways on oil drilling platforms to data installation above the ceiling.

 Standard Cable ladders are alailable in depths of 25-150mm, and in a variaty of widths, ranging from 30-1000mm and thickness are 1.5-3mm. The standard finish is electroplared zinc after fabrication. A variaty of other finishes available are including hot dipped galvanized after fabrication, pre-galvanized as well as multitude of colors in powder coating. The cable trunking is also available in type 304 and 306 stainless steels for extremely corrosive enviroments. cable trunking

 As for the cable ladder installation, a complement of accessories and brackets used for cable trunking installation are provided. See our catalogue unpon request. cable trunking

CABLE TRUNKING STANDARD SPECIFICATION

Table of cable trunking standard dimension&weight(kg/meter)
W*H/Thick(mm)		0.8	1	1.2	1.5	2	2.5
50*50	Lid	0.53	0.66	0.79	0.99	1.32	1.65
	Trunking	1.17	1.48	1.78	2.23	2.97	3.71
75*50	Lid	0.69	0.87	1.04	1.3	1.73	2.16
	Trunking	1.35	1.69	2.03	2.54	3.38	4.23
100*50	Lid	0.86	1.07	1.29	1.61	2.14	2.68
	Trunking	1.52	1.9	2.28	2.84	3.79	4.74
150*50	Lid	1.19	1.48	1.78	2.23	2.97	3.71
	Trunking	1.85	2.31	2.77	3.46	4.62	5.77
200*50	Lid	1.52	1.9	2.27	2.84	3.79	4.74
	Trunking	2.18	2.72	3.26	4.08	5.44	6.8
250*50	Lid	1.85	2.31	2.77	3.46	4.62	5.77
	Trunking	2.5	3.13	3.76	4.7	6.26	7.83
300*50	Lid	2.18	2.72	3.26	4.08	5.44	6.8
	Trunking	2.84	3.54	4.25	5.32	7.09	8.86
350*50	Lid	2.51	3.13	3.76	4.7	6.26	7.83
	Trunking	1.98	3.96	4.75	5.93	7.91	9.89
400*50	Lid		3.54	4.25	5.32	7.09	8.86
	Trunking		4.37	5.24	6.55	8.74	10.92
450*50	lid		3.96	4.75	5.93	7.91	9.89
	Trunking		4.78	5.74	7.17	9.56	11.95
500*50	Lid		4.37	5.24	6.55	8.73	10.92
	Trunking		5.19	6.23	7.79	10.39	12.98
550*50	Lid		4.78	5.73	7.17	9.56	11.95
	Trunking		5.61	6.73	8.41	11.21	14.01
600*50	Lid		5.19	6.23	7.79	10.39	12.98
	Trunking		6.02	7.22	9.03	12.03	15.04
650*50	Lid		5.6	6.73	8.41	11.21	14.01
	Trunking		6.43	7.71	9.64	12.86	16.07
700*50	Lid		6.02	7.22	9.03	12.03	15.04
	Trunking		6.84	8.21	10.26	13.68	17.1
750*50	Lid		6.43	7.71	9.64	12.86	16.07
	Trunking		7.25	8.7	10.88	14.51	18.13
800*50	Lid		6.84	8.21	10.26	13.68	17.1
	Trunking		7.67	9.2	11.5	15.33	19.17
850*50	Lid		7.25	8.7	10.88	14.51	18.13
	Trunking		8.08	9.69	12.12	16.16	20.2
900*50	Lid		7.67	9.2	11.5	15.33	19.16
	Trunking		8.5	10.19	12.74	16.98	21.23

Finishes&materials: HDG, Pre-galvanized, Electronic-galvabized, Powder-coating, stainless steel 304/316, GI, Aluminium,FRP

Lenghth: Maximum 6000mm

Non-sandard sizes are available upon request. cable trunking

CABLE TRUNKING FITTINGS

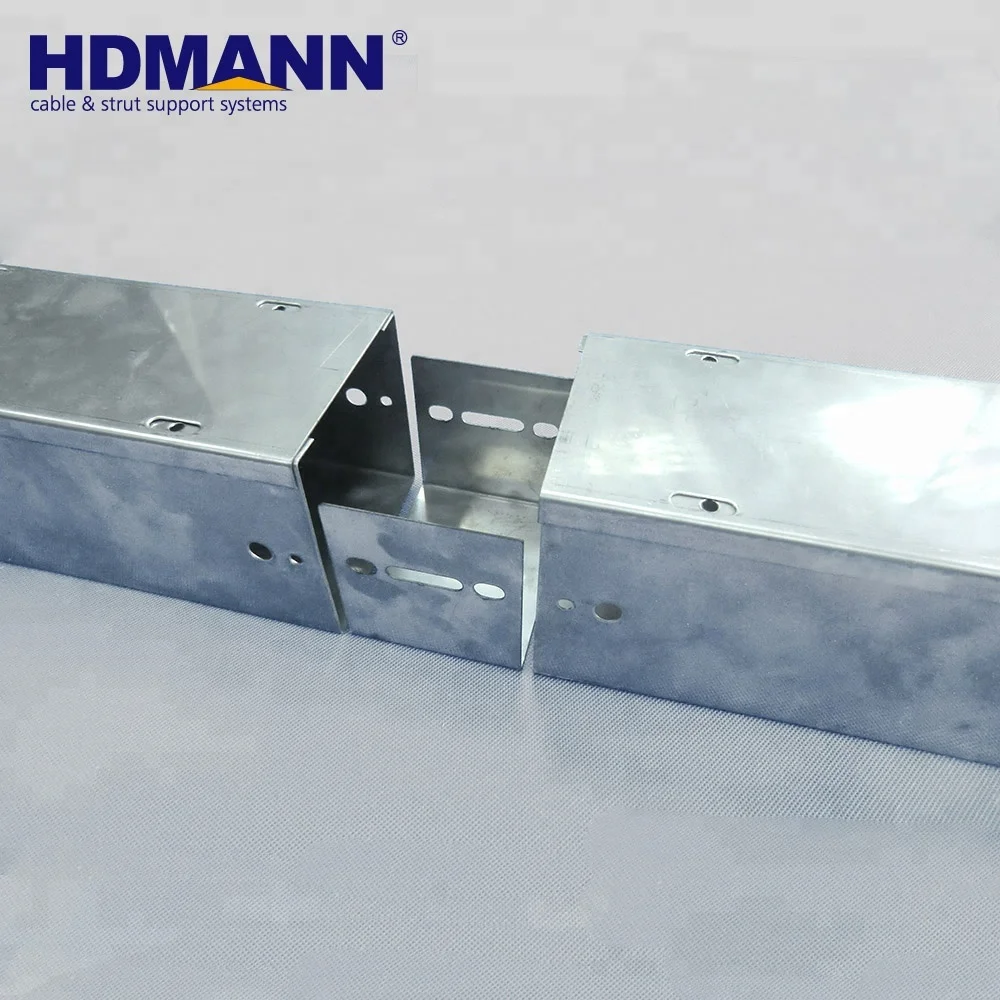

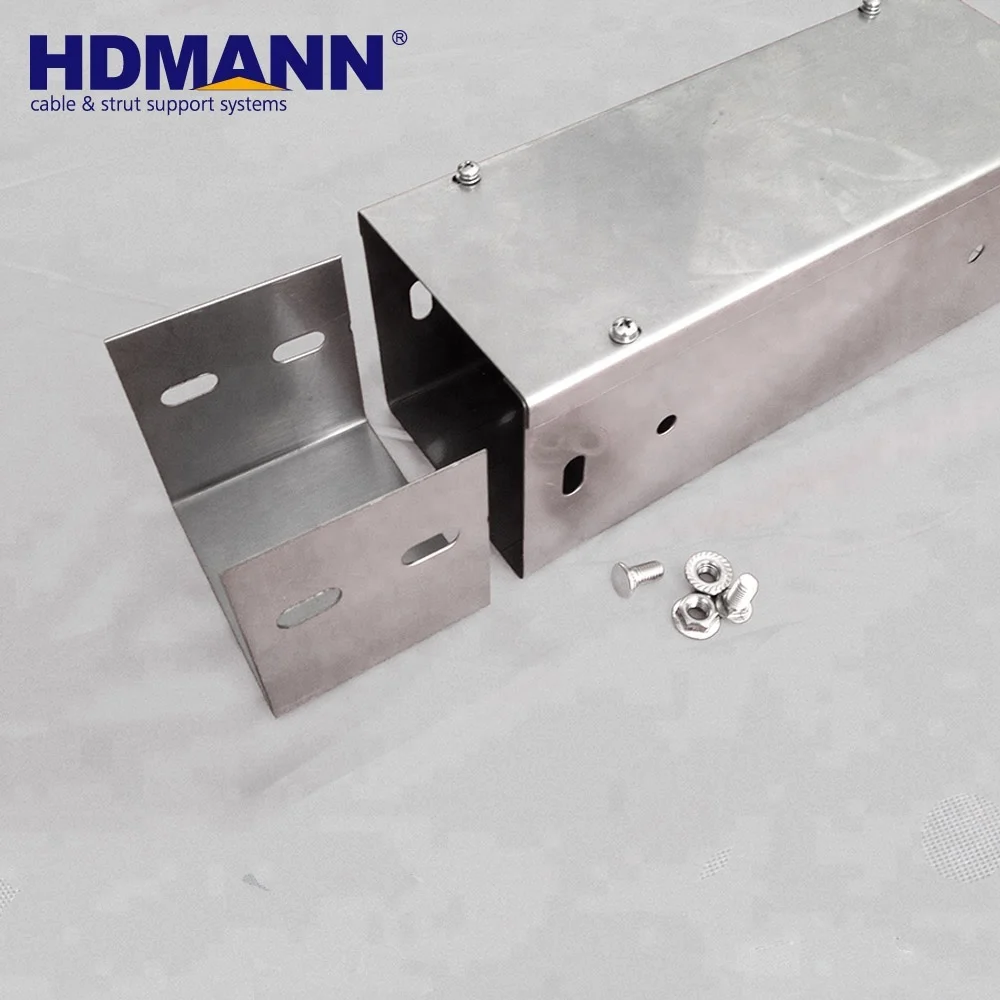

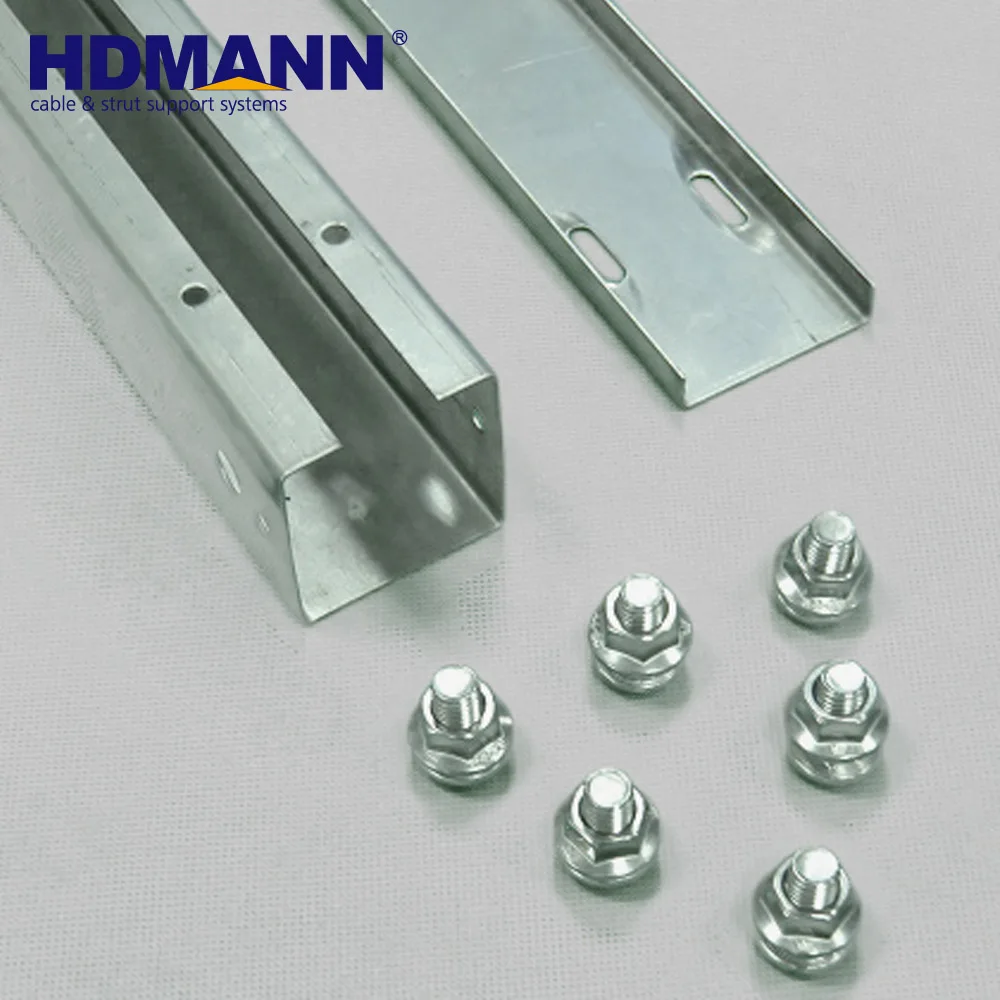

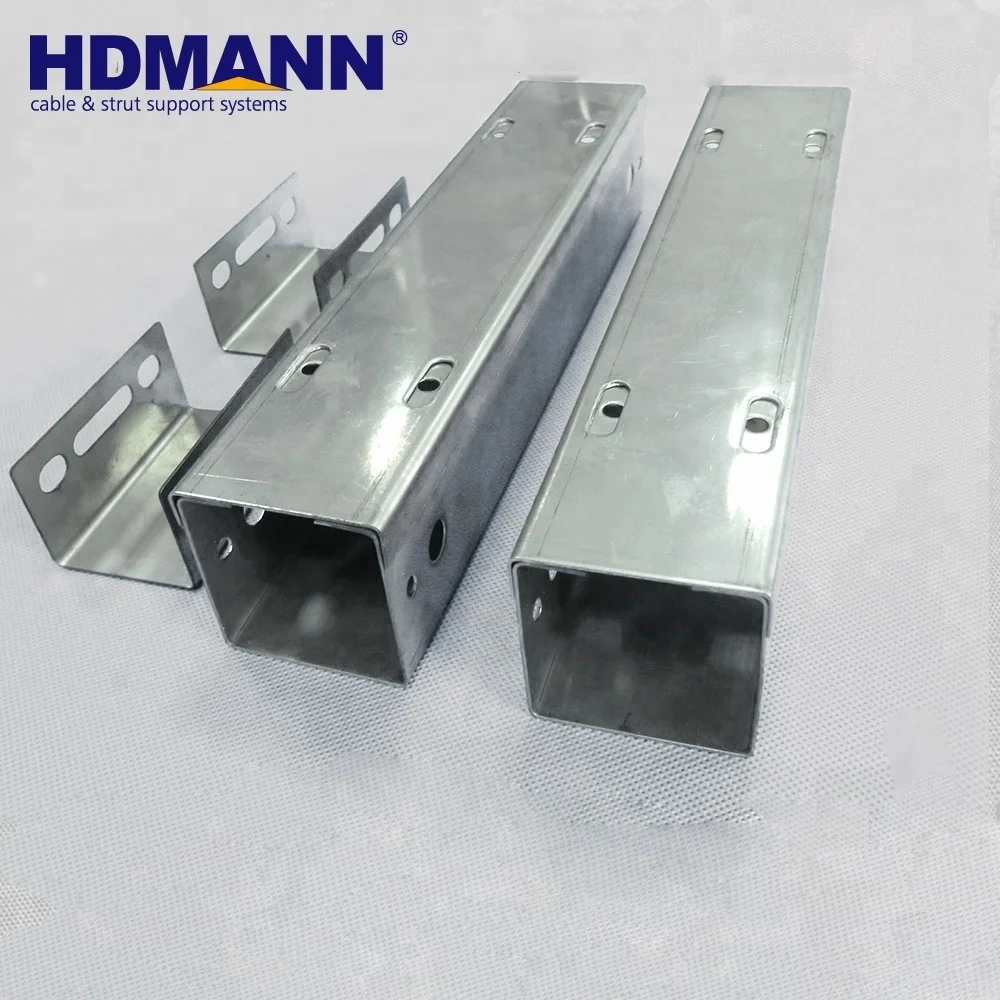

CABLE TRUNKING CLAMP/COUPLER&ACCESSORY

CABLE TRUNKING SHOW

CABLE TRUNKING PRODUCTION LINE

LOADING SITE



HDMANN INDUSTRY CO., LTD.---CABLE SUPPORT AND FRAMING SYSTEM

CHINA LEADING OEM SUPPLIER

HDMANN CERTIFICATION



What is the type of our bussines?

We are a exporter and manufacturer, and have factories in China. cable trunking

What are the trading terms we practice?

Generally, we practice FOB/CIF/C&F and DAP. cable trunking

What are the payment terms we accept?

T/T, L/C, 30% down payment and 70% against B/L, NEGOTIABLE  cable trunking

What is the delivery time?

Generally, it would take 10-20 days to finish the production for normal order quantity.

Can we provide the samples?

Yes, sample is free. cable trunking
