20L Stainless Steel Portable Autoclave Pressure Steam Sterilizer



Model:MCS-20LB



This series of portable pressure steam autoclave adopts the way of gravity exhaust to release the remaining cold air inside. Moreover, the creative drying function employing the residual hot water in the tank as the heat source has contained. It is designed for the sterilization of small thermal instrument, fabric, glasses, culture medium and liquid. It is widely applicable for the clinic especially for dental and eye clincs.

What are features of our medical autoclave sterilizer?

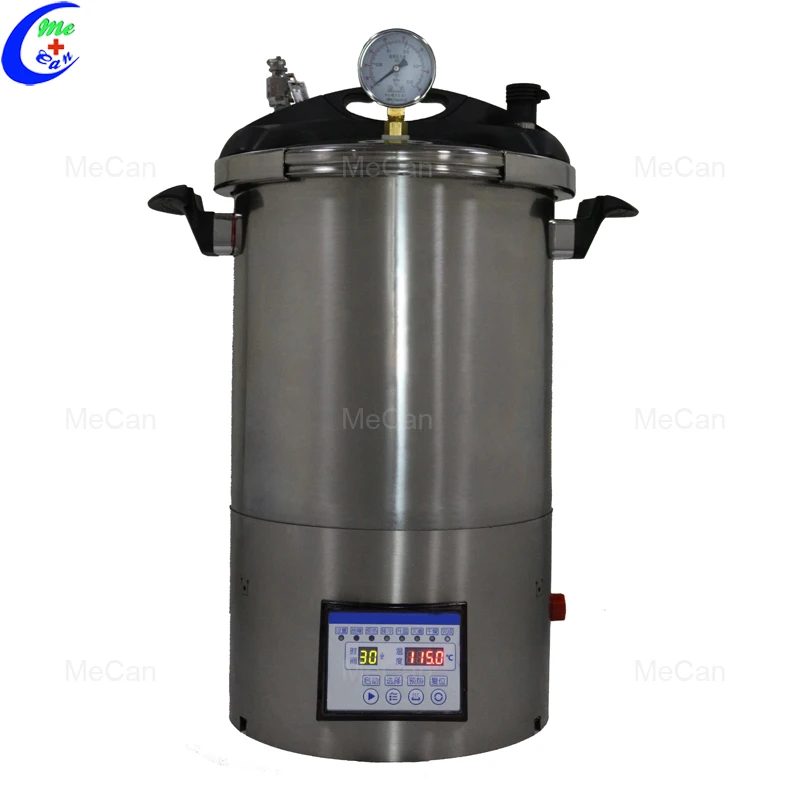

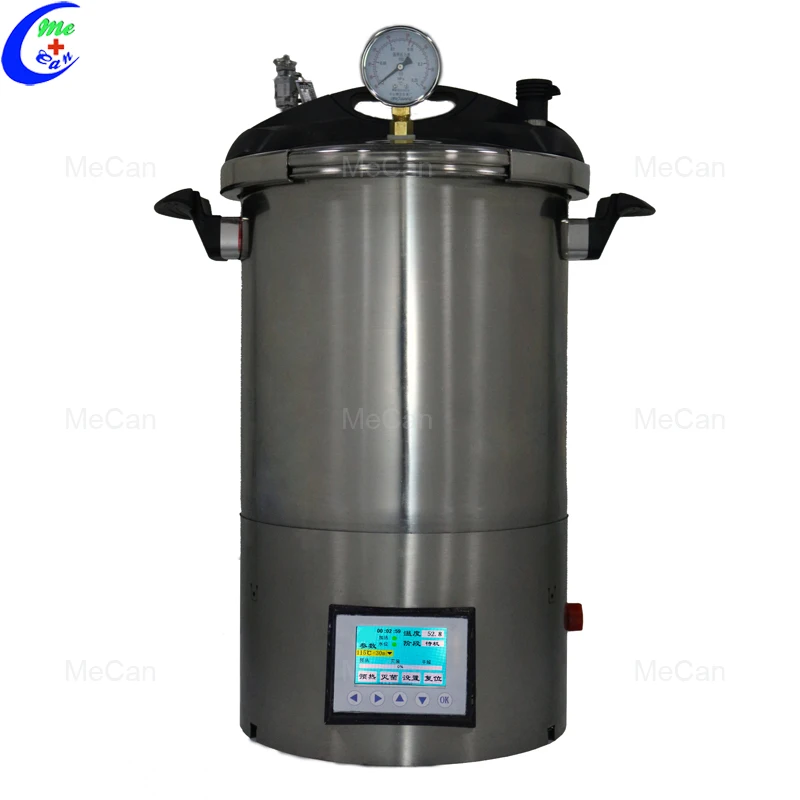

1.Control panel: There are two kinds of panel for portable sterilizer: MCS-20LA adopts the digital-display screen and MCS-20LB adopts LCD monitor. Both kinds are simply controlled via the buttons on the panel.
2.Sterilization parameter: Three kinds of sterilization parameters has been preset, which can be easily set as required.
3.Preheating function: With this function, users can save time by preheating the sterilized water while preparing to process the articles to be sterilized.
4.Top cover: The top cover adopts a design with a rotary lock and a pressure interlock, for easy and safe operation. It could be opened only when the inner vapour pressure returned to atmosphere.
5.Gravity exhaust: The outstanding sealing performance ensures no air leakage in the sterilization barrel. With the design of gravity exhaust, the sterilizing effect has been improved obviously.
6.Drying function: This portable sterilizer also contains an innovative drying function. Using residual hot water in the tank as the heat source, the sterile articles could be fully dry in 10 minutes.

What is specification of our steam autoclave?

Material	The main structure of product (including the tank, inner barrel, pipes and heater) is constructed in quality stainless steel (SS304)
Volume of sterilizing tank	20 L, with the inner diameter of 280 mm and height of 280 mm
Capacity of inner barrel	12 L, with the inner diameter of 250 mm and height of 250 mm
External dimensions	Length 445 mm; Width 315 mm; Height 580 mm
Working temperature	115℃~126℃, with the resolution of 0.1℃ and the precision within ±1℃
Working pressure	0 MPa~0.15 MPa (relative pressure)
Sterilization timing range	1~30 minutes
Working power	1.5 kW, at the voltage of a.c. 220 V (50 Hz)
Net weight	10 kg



What is Safety protection of our portable autoclave?

Alarm: When low water level, over temperature or other error occurs, the sterilizer would send a buzzer alarm and display the corresponding error code to guide the user to relevant processing.

Relief safety valve: As the inner pressure is too high, the relief valve would open to exhaust the excess vapour in mandatory.

What is standard configuration of our stainless steel autoclave?

Chamber Capacity: 20L

External Dimensions: Length 44.5 cm, Width 31.5 cm, Height 58 cm

LCD monitor

Electrical: a.c. 220 V, 50Hz, 1.5 kW
