Factory Supply Hydraulic System Diesel Running Mobile Concrete Pump for sale concrete trailer mounted concrete pump

WhatsApp/WeChat: 008615066732025





achine sales sm



all concrete pump for sale

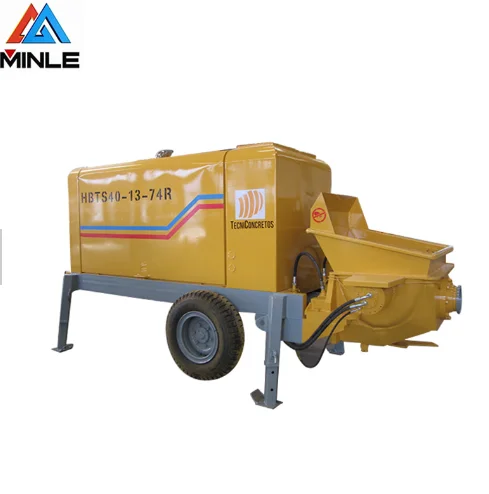

Item	HBTS40-74R
Max Theoretical Concrete Output(m³/h)	40
Max Concrete outlet Pressure(Mpa)	10
Concrete slump (mm)	120—230
Aggregate Size (mm)	gravel≤30
Powder (KW)	Diesel motor 74
Speed (r/min)	2400
Conveying Cylinder Diameter (mm)	Ø 110/1000
Concrete Cylinder Diameter (mm)	Ø 160/1000
Oil Tank Capacity (L)	200
Hopper Capacity (m³)	0.3
Filling Height (mm)	1100
Maximum Theoretical Conveying Distance  (vertical/Horizontal) (m)	150/500
Pipe Cleaning Mode	Washing
Overall Dimension (mm)	5300×1500×1750
Total Weight (kg)	3300

good condition trailer concrete pumping machine for sale





small portable concrete pump trailer pump for sale

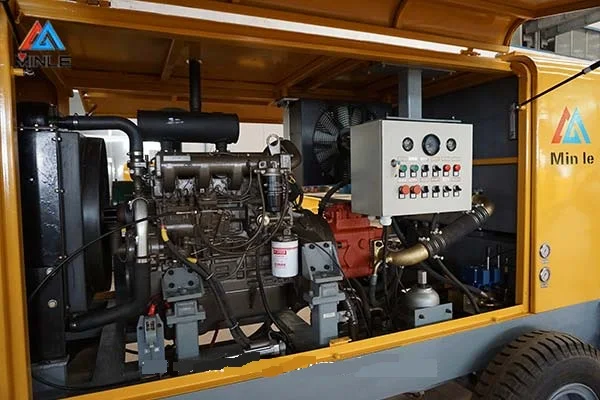

1.Power system Mobile Concrete Trailer Pump

Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.

Diesel power: Germany Deutz, Weichai, Cummins;

2.Electronic control Mobile Concrete Trailer Pump

Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system. Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.

3.Hydraulic system Mobile Concrete Trailer Pump

The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.

4.Pumping system Mobile Concrete Stationary Pump

Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition. Reducing design of the hopper could release the reducing pressure of the concrete into the delivery pipe maximally, and prolong the service life of the S pipe outlet.

5.Lubrication System Mobile Concrete Diesel Pump

The patented central automatic lubrication system comes with a piston grease pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.

6.Cooling System Mobile Concrete Pump Price

Compulsory air cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.







Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump

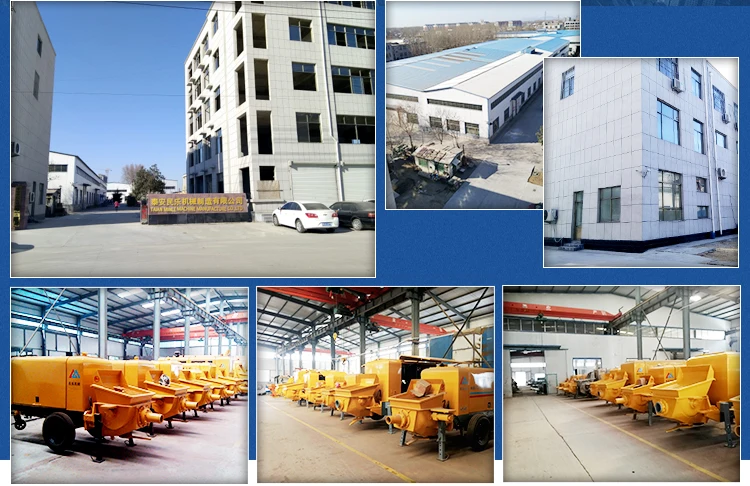

Tai' an Minle Concrete Machine Manufacture Co., Ltd is a professional mobile trailer concrete pumpmanufacture, which is integrating scientific research, production, sales and after-sales service. Our main products is mobile concrete pump, metal mine special concrete pumps, fine aggregate concrete pumps,Truck-mounted Concrete Pumps, Electric Concrete Pumps, Diesel Concrete Pumps,Special cement emulsified asphalt mortar pump,wet shotcrete machines, continuous feeding concrete mixers and so on.concrete pumps is widely used in many construction areas such as water conservancy, Electricity,Railway, Highway, Tunnel, Mine, National Defense, etc. They have also been exported to many countries and got an excellent reputation.











concrete pump

good quality factory supply  trailer pumping machine / small concrete pump for sale





 Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump



good quality factory supply  trailer pumping machine / small concrete pump for sale









good quality factory supply  trailer pumping machine / small concrete pump for sale

 Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump;Portable Concrete Diesel Pump











1.  Help you to choose the most suitable concrete pump

2.  Customize the best concrete pump according to your request.

3.  We offer full set of easy-spoiled spare parts and tools for back up.

4.  We can arrange our engineer abroad to training customers;

5.  We can resolve the problem online with customers.

6.  we promised you to delivery the goods in time.



Warrantee yard small concrete pump

The warranty will be one year from the date of shipment. Any detected parts during this period caused by the quality of products will be replaced by seller free of cost (exclude wear and tear parts), improper operation and other man-made reasons are excluded.





Q: do you have diesel concrete pump?

A: yes, electric, diesel fuel both of them is our mainly products;

Q: how can we choose the concrete type?

A: please advise me the vetcial heigh, our techniques will recommend you the suitable one

Q: How can we use the concrete pump?

A: we will send you the manual operation, we can arrange the technique to your side for teaching
