Гидравлический режущий пресс для материала в
- Категория: Other Shoemaking Machines >>>
- Поставщик: Jiangsu,Kuntai,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.44 $* | 0.78 $* |
| Aug-19-2025 | 0.64 $* | 0.85 $* |
| Jul-19-2025 | 0.58 $* | 0.14 $* |
| Jun-19-2025 | 0.40 $* | 0.83 $* |
| May-19-2025 | 0.6 $* | 0.78 $* |
| Apr-19-2025 | 0.9 $* | 0.42 $* |
| Mar-19-2025 | 0.27 $* | 0.57 $* |
| Feb-19-2025 | 0.8 $* | 0.13 $* |
| Jan-19-2025 | 0.92 $* | 0.89 $* |
Характеристики

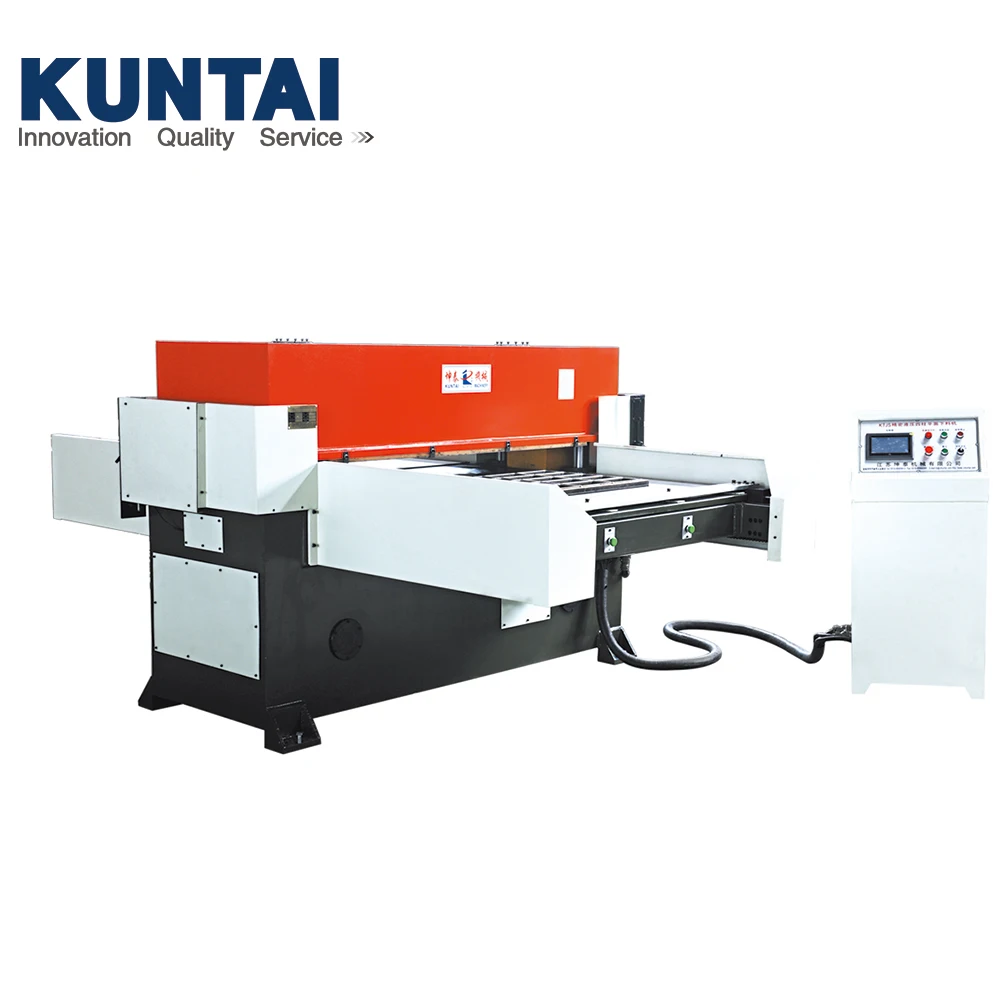

Hydraulic cutting press for material in sheets
Product Description
Usage and Characteristics
1.The double-side automatic feeding die cutting machine is mainly suitable for cutting various nonmetal materials and widely used in such industries as plastics packing, pearl cotton packaging, rubber and prining industries, etc.
2. With human-computer control systerm, it is highly automatic and easy to operate.
3. Double side auto feed structure saves time and plant space. The products at the two sides can be of different height.
4. Oil tank hydraulic system, small motor,small oil pump, low oil temperature, electric and oil saving prolongs machine service life.
5. Low noise and safe operation.
6. The feeding table is made of stainless steel. It is strong and makes the cutting edges in order.
7. Repeated feeding and preceise operation.
8. Die cutting machines of special specifications are available on request.
Main Technical Data(Customizable)
| Model | XCLP3-C | ||||
| Cutting Force | 40T | 50T | 60T | 80T | 100T |
| Tension Distance(mm) | 50-200 | 50-200 | 50-200 | 50-200 | 50-200 |
| Cutting Area(mm) | 1400*610 | 1400*800 | 1400*900 | 1400*900 | 1400*900 |
| Main Motor Power(kw) | 3 | 4 | 5.5 | 7.5 | 7.5 |
| G.W(kg) | 2500 | 4000 | 6000 | 7300 | 9000 |

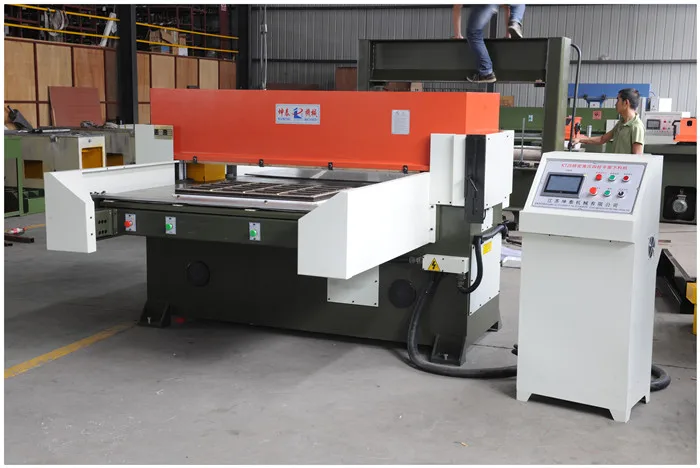

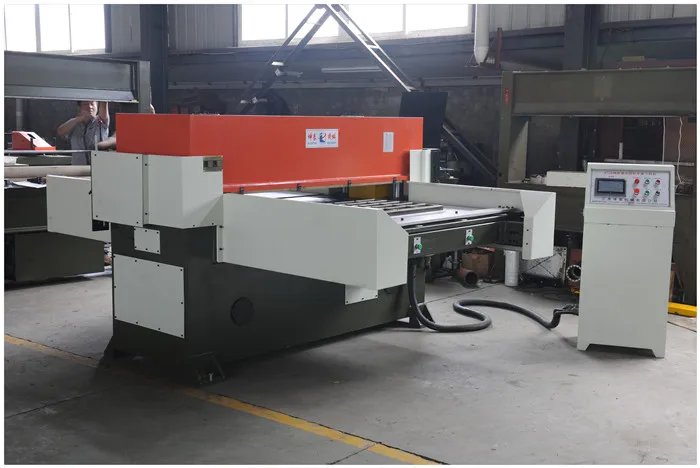

Machine Details
certificate
about us
Packaging & Shipping
Double Side Hydraulic Felt automatic die cutting press
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool kit
