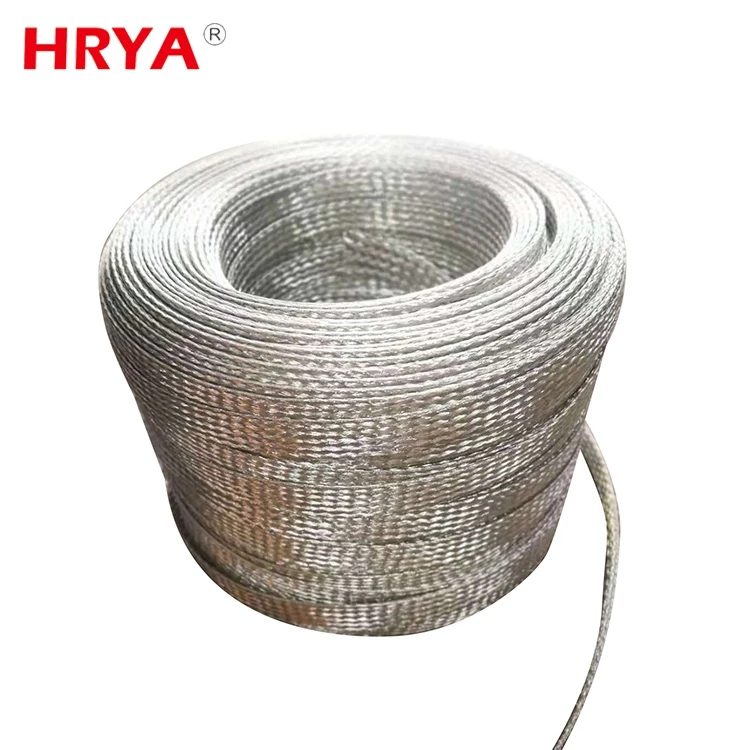

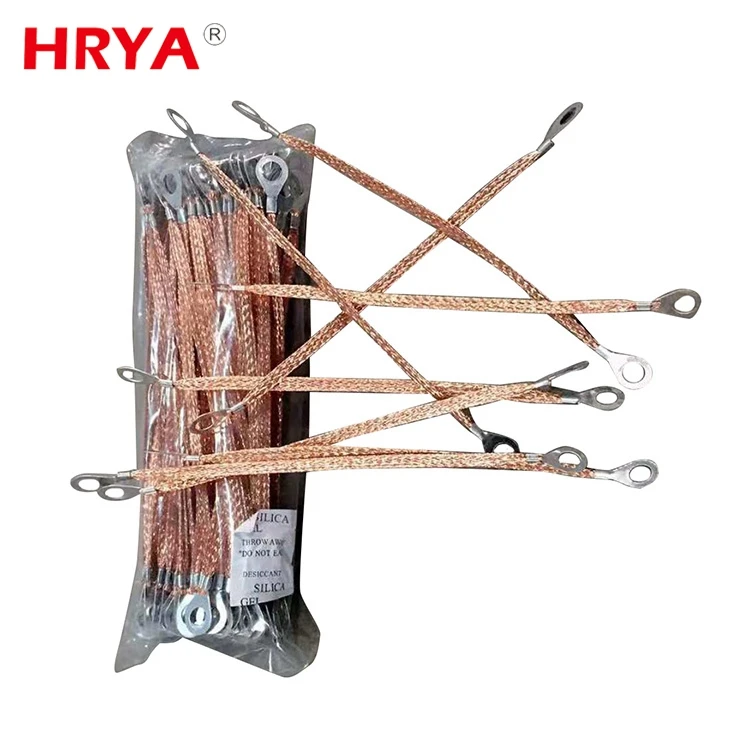

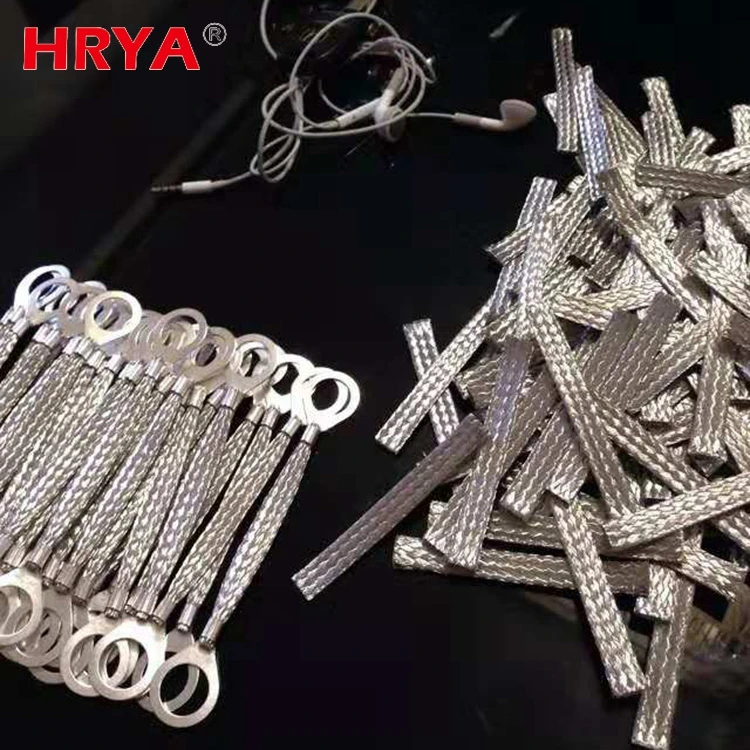

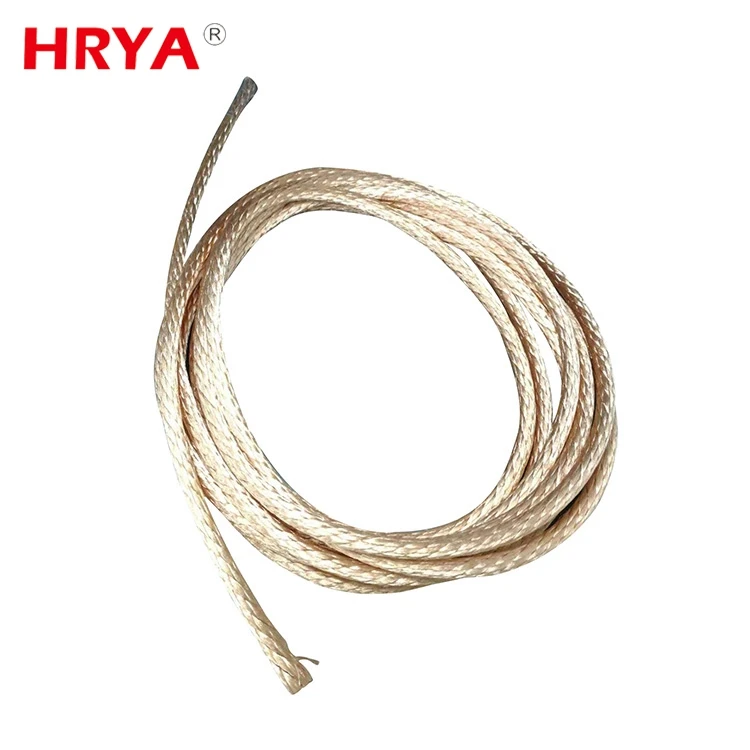

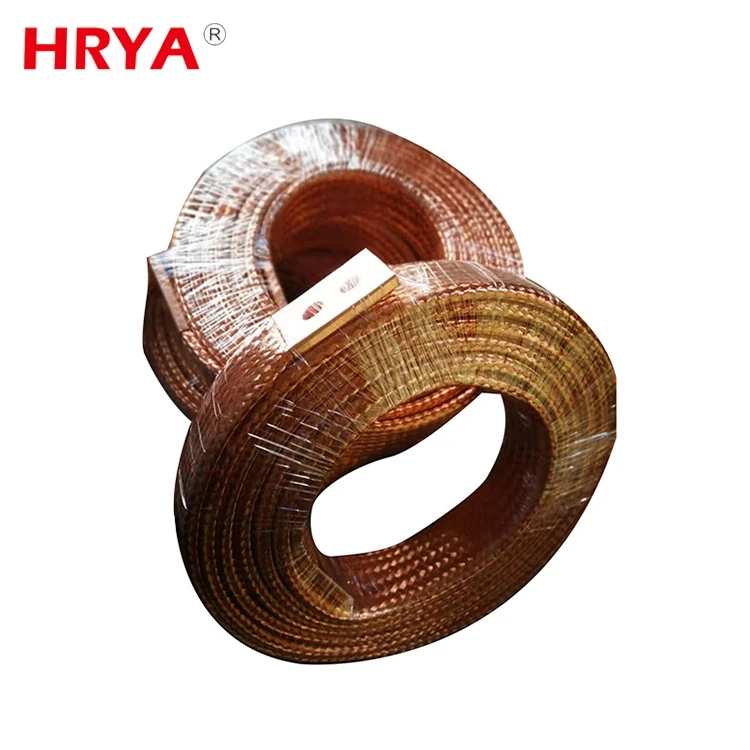

Manufacturers electrical flexible bare copper braid wire
Banner
Product Description
Sample Is Free, We Are Manufacturers.
matetrial | copper | Conductivity | > 100 IACS |
busbar thickness | 1mm,2mm,3mm or other | length | up to 3m |
other dimension | as to confirmed drawing | plating | tin/nickle/silver/others |
Delivery | 5-7days | MOQ | 100m |
OEM | custom all types of bus bars | Application | electric vehicle battery,power distribution equipment |
Product specifications |
Area (mm²) | Size (mm) | Max wide (mm) | Max thickness (mm) | Weight (kg/km) |
| TZ(X)-15/10 | 10.60 | 40×15×1/0.15 | 15.0 | 2.0 | 106 |
| TZ(X)-15/10 | 10.18 | 48×12×1/0.15 | 16.0 | 1.5 | 102 |
| TZ(X)-15/12 | 12.72 | 48×15×1/0.15 | 18.0 | 1.8 | 128 |
| TZ(X)-15/16 | 16.96 | 48×20×1/0.15 | 22.0 | 2.0 | 170 |
| TZ(X)-15/20 | 21.20 | 48×25×1/0.15 | 25.0 | 2.0 | 212.5 |
| TZ(X)-15/25 | 25.45 | 48×30×1/0.15 | 28.0 | 3.0 | 254 |
| TZ(X)-15/25 | 25.45 | 48×15×2/0.15 | 20.0 | 3.5 | 254 |
| TZ(X)-15/35 | 33.93 | 64×30×1/0.15 | 40.0 | 2.2 | 340 |
| TZ(X)-15/35 | 33.93 | 48×20×2/0.15 | 26.0 | 3.2 | 340 |
| TZ(X)-15/50 | 50.87 | 64×45×1/0.15 | 50.0 | 3.0 | 510 |
| TZ(X)-15/50 | 50.87 | 48×30×2/0.15 | 30.0 | 3.2 | 510 |
| TZ(X)-15/50 | 50.89 | 48×20×3/0.15 | 28.0 | 4.8 | 510 |
| TZ(X)-15/75 | 76.34 | 80×54×1/0.15 | 32.0 | 3.5 | 765 |
| TZ(X)-15/75 | 76.34 | 48×30×3/0.15 | 36.0 | 5.0 | 765 |
| TZ(X)-15/95 | 95.00 | 48×28×4/0.15 | 35.0 | 6.0 | 950 |
| TZ(X)-15/100 | 100.09 | 96×59×1/0.15 | 80.0 | 4.0 | 1000 |
| TZ(X)-15/120 | 127.23 | 48×30×5/0.15 | 42.0 | 7.0 | 1271.80 |
1. Excellent electrical conductivity.
2. High bonding strength.
3. Pure T2 copper.
4.Copper foil busbar to be used in transformer has a profile to allow for transformer thermal expansion and contraction
5.Made of copper foil provides maximum flexibility and reduces vibration . It is typically used for copper busbar systems, transformer connections and High Voltage Switchgear.![2.jpg]()
![13.jpg]()
2. High bonding strength.
3. Pure T2 copper.
4.Copper foil busbar to be used in transformer has a profile to allow for transformer thermal expansion and contraction
5.Made of copper foil provides maximum flexibility and reduces vibration . It is typically used for copper busbar systems, transformer connections and High Voltage Switchgear.
Company Information
Packaging & Shipping
FAQ
Q1: Are you a factory or trading company? A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive. Q2: How does your factory do regarding quality control? A2: All the products will be 100% checked before the shipment. Q3: When can I get the price? A3:Usually we quote within 24 hours after we get your inquiry. Q4: How could I get a sample? A4: if you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples. Q5: What is the price of shipping? A5: Depending upon the port of delivery, prices varies.
