Цифровой мультиметр DC 6 5-100 в 50A Вольтметр Амперметр Напряжение Мощность счетчик энергии вольт ампер постоянного тока

Product features

This module is suitable for indoor, please do not use outdoor

Store energy data when power off, button available for controlling

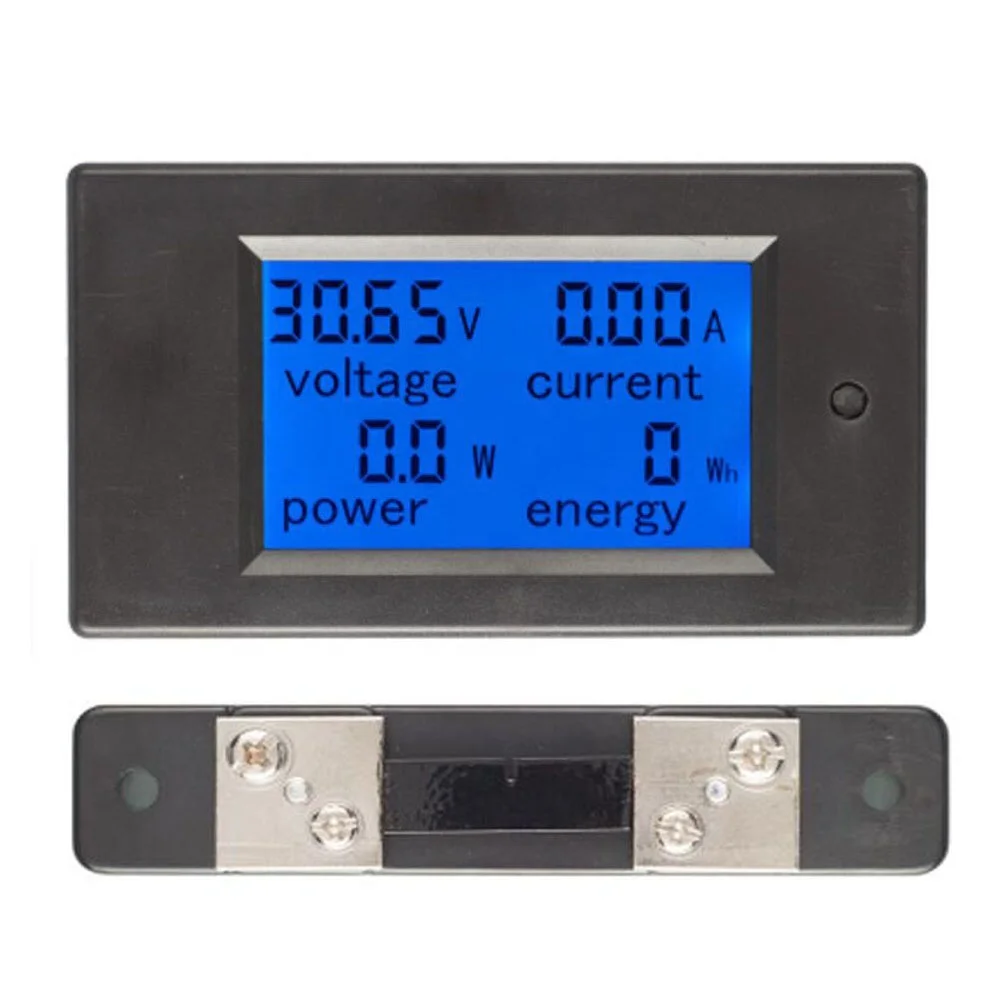

One blue LCD display can show the voltage, current, power and the energy

Voltage test range: DC 6.5-100V; Display: 6.50-99.99V ;Maximum current reaches to 100A; With 50A shunt

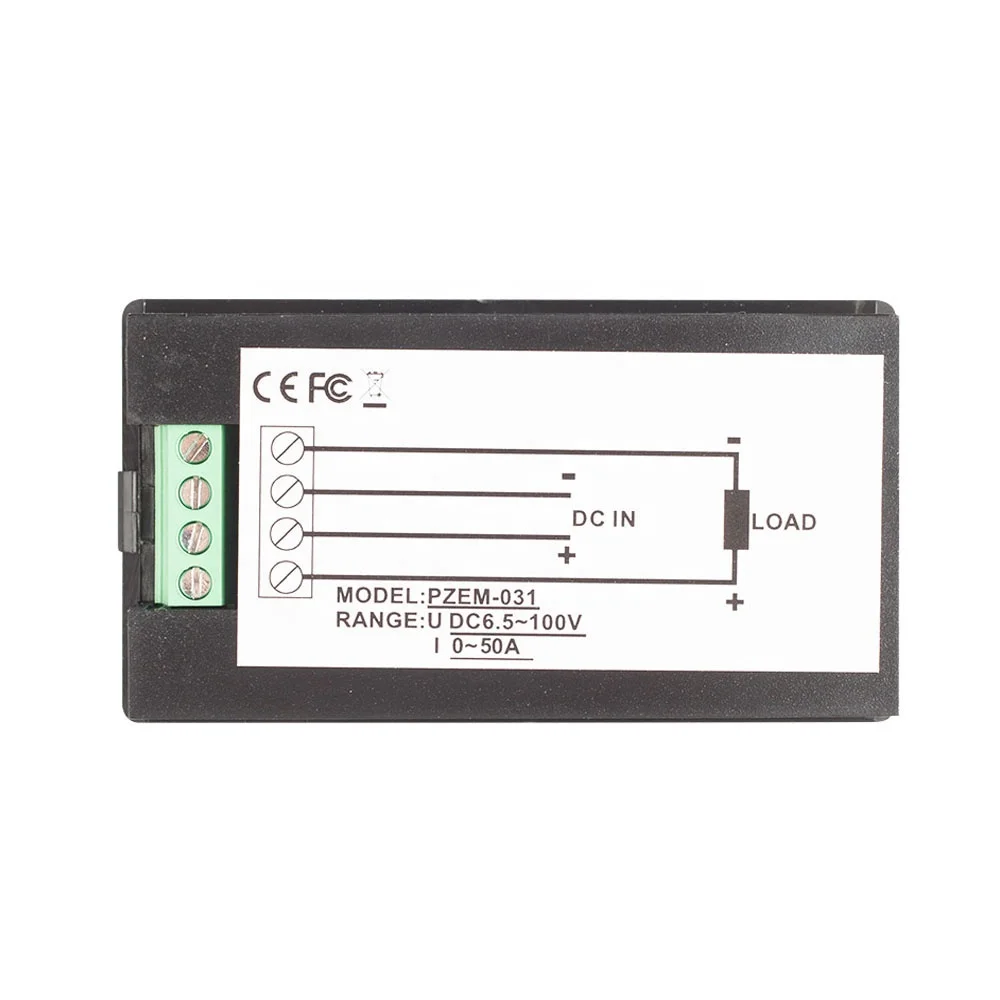

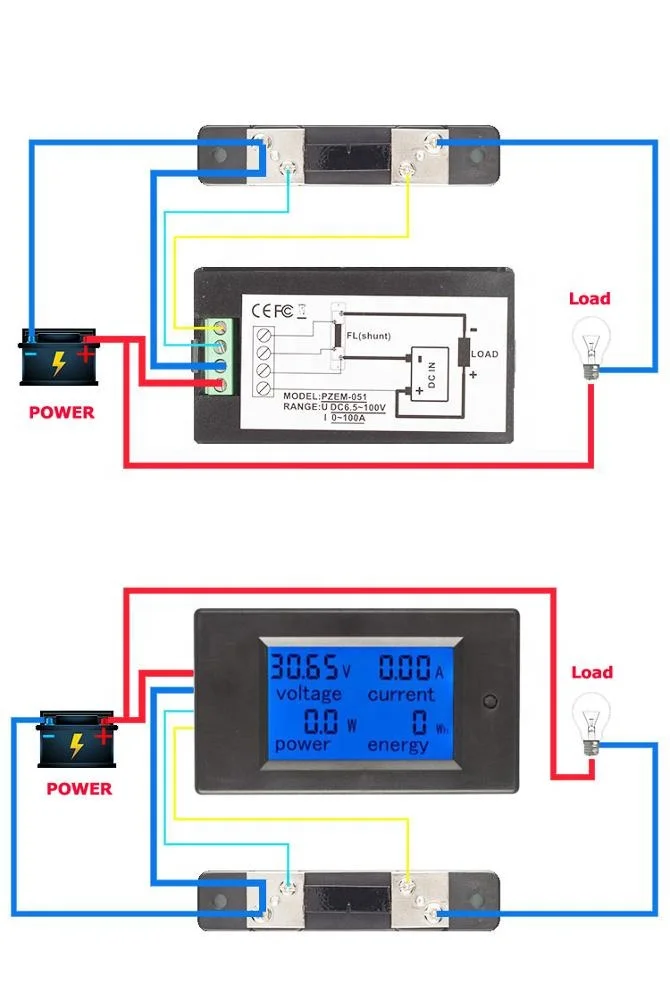

Applied load should not exceed the rated voltage and current. Wiring order can not be wrong

Product description

Size:50A Multi Tester

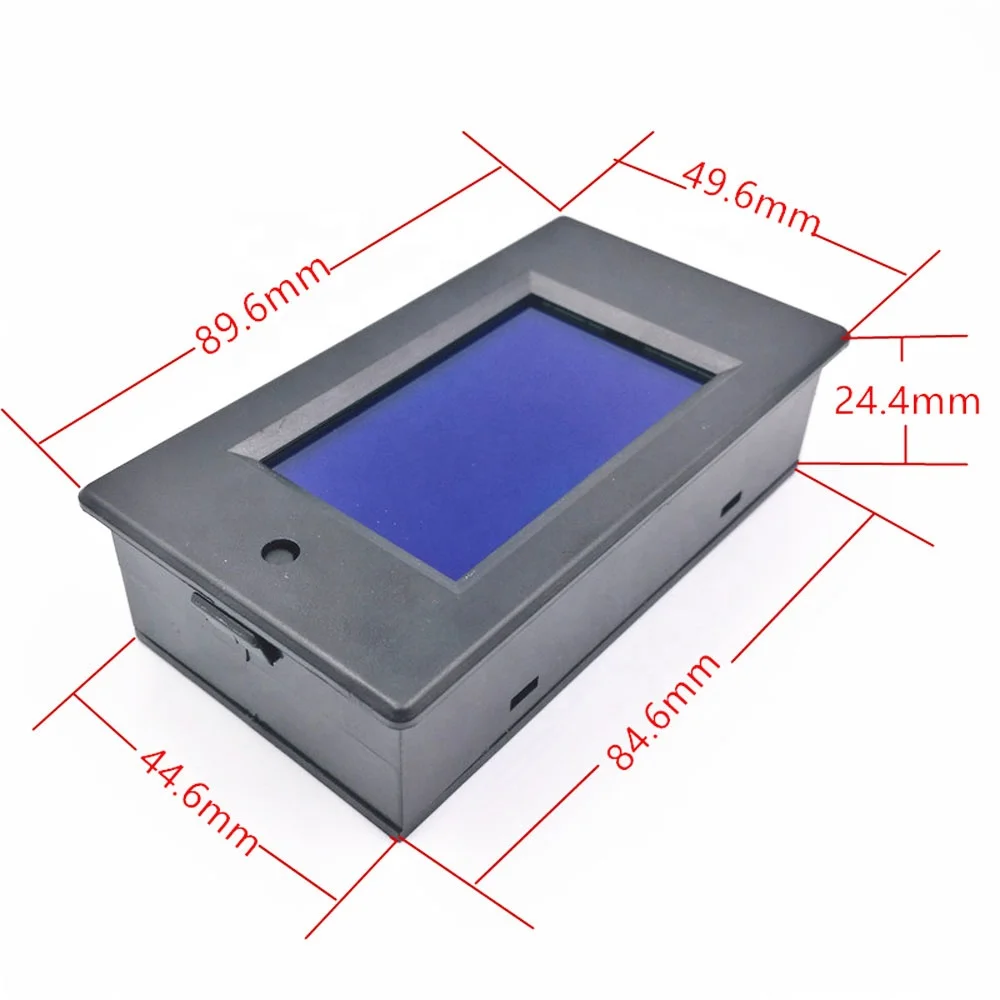

Dimension: 89.6*49.6*24.4mm

Installation size: 84.6 x 44.6mm

A. Function:

1.voltage alarm function(If active voltage is larger than threshold, backlight and power will flash)

2.Store energy data when power off(can be reset to 0)

3.Energy clean function

B. Test Range and Display format:

1.Power: test range: 0-2kW

Less than 1kW, display: 1000-2000W

1kW-2kW, display: 1000-4500W

2.Energy: test range: 0-9999kWh

Less than 10KWh, display: 0-9999Wh

More than 10kWh, display: 10-9999kWh

3.Current: test range: 0-50A

Display: 0.00-50.00A

C. Specifications:

1. Rated power: 50A/5000W

2. Operating frequency: 45-65Hz

3. Measurement accuracy: 1.0

D. Button control:

-Testing range setting

Long press button till the display shows a "Curr"(on lower left corner) and a current rate "50A/100A"; loosing the button and short press to choose 50A/100A.

-Energy cleared

1.Long press till the "CLr" shown on Power area and flashes, then stop pressing.

2.At this time, energy data flashes and reminds that it is in energy clean mode; then short press again,energy data will ne cleaned, stopping flash and logging out;

3.Energy data will not be cleaned and log out after 5s without any operation.

-Voltage alarm settings

1.Do not stop long pressing until "SET" appears in the Power area.

2.Voltage area shows the high-pressure alarm while the current area shows the low-pressure alarm, the backlight flash. In this time, short press to add one digit(+1), the digit will adjust automatically after 3 seconds.

3.From high-pressure alarm to low-pressure alarm, 6-digit in total and voltage alarm range is between 6.5-99.9V

4.Long press till the screen appears "PASS", then the setting is done and automatically log out the mode setting.

Package including:

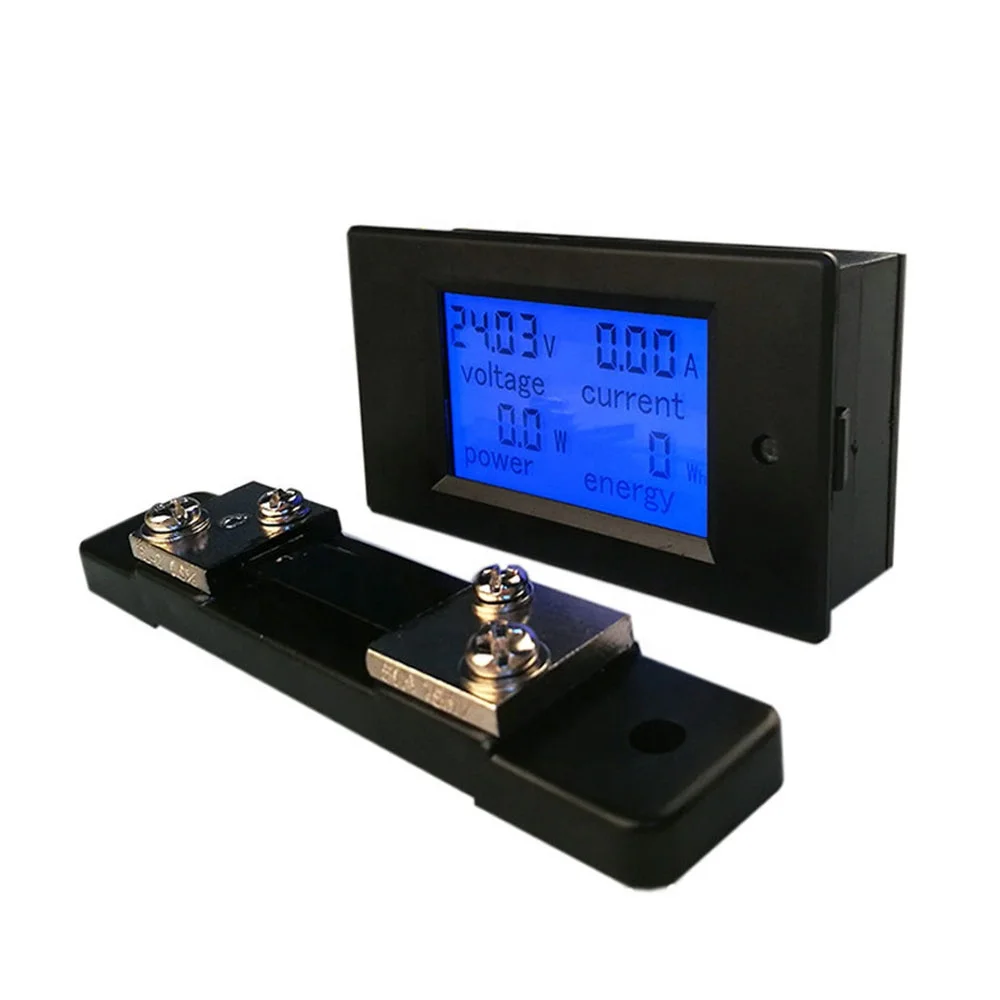

1x DC Power Multimeter

1x 50A Shunt
