Металлизированный пленочный конденсатор с алюминиевой крышкой производитель CL21 полиэстеровый 106k
- Категория: Capacitors >>>
- Поставщик: Guangzhou,Zhongzheng,Electronic,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.69 $* | 0.22 $* |
| Aug-20-2025 | 0.81 $* | 0.26 $* |
| Jul-20-2025 | 0.39 $* | 0.44 $* |
| Jun-20-2025 | 0.85 $* | 0.32 $* |
| May-20-2025 | 0.3 $* | 0.69 $* |
| Apr-20-2025 | 0.60 $* | 0.78 $* |
| Mar-20-2025 | 0.6 $* | 0.60 $* |
| Feb-20-2025 | 0.46 $* | 0.58 $* |
| Jan-20-2025 | 0.54 $* | 0.87 $* |
Характеристики
CL21 polyester film capacitor 106k 100v
* Product Details:
polyester film capacitor 106k 100v
Type: CL21
Model: 106k 100v
Material: metallized polyester film
Capacity: 10uF
Rated voltage: 100V
Pitch: 10mm
Capacitance tolerance: ±10% ( K )
Color: red
Printing: oil printing / laser printing
Packing: in bulk

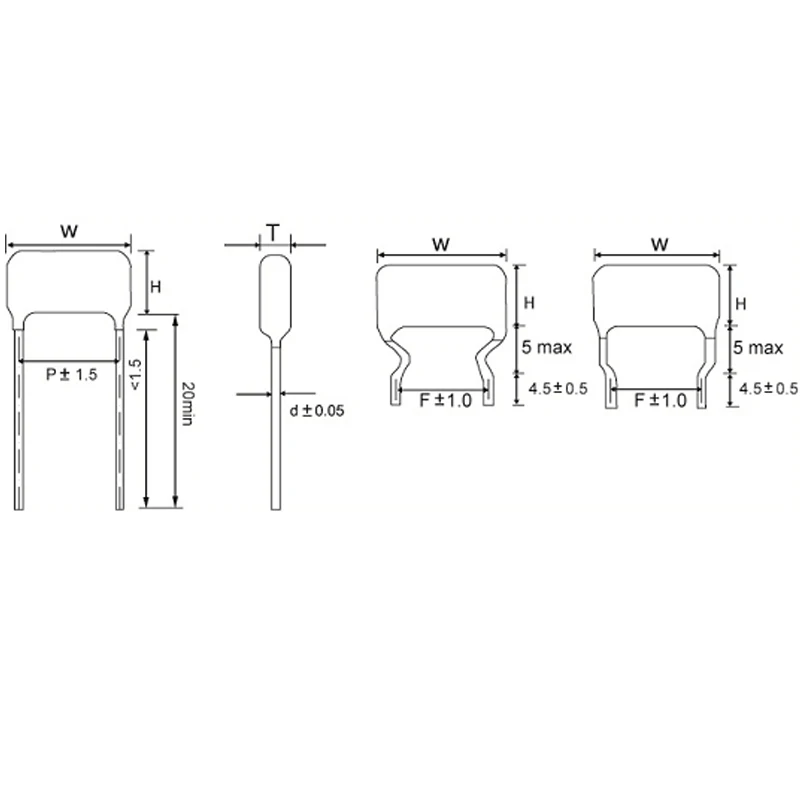

* Outline Drawing:
* Product Fetures:
This product is ultra-small, self-healing, high temperature, the small capacity available in series production of metallized film, high pressure, high temperature wax seal, flame retardant epoxy powder coating, moisture stable performance, low noise, appearance consistency.
* Usage:
Suitable for DC and lowpulse occasions, forthe amplifier, TV, communications, power supply, LED drivers and other requirements of the small size of the circuit.
* Specification:
Climatic Category | 40/085/21 |
Rated Voltage | 63V , 100V , 250V,400V,630V |
Capacitance Range | 0.0010μF~1.0μF |
Voltage Proof | 1.6 UR |
Insulation Resistance | ≥3 000MΩ, CR≤0.33μF |
≥1 000S, CR>0.33μF | |
(20℃, 1min) | |
Disspation Factor | ≤0.008(20℃, 1kHz) |
* More products for your reference:
all of our products can be customized,we are especially professional in subminiature capacitor.
Any sizes,shapes,logos meet your requirepment, before quote you the price, we will be
appreciated if you can provide the information below:
1: type:normal/axial/box
2: material:CBB/CL/(X2 only for oem)
3: Capacity:
4: Rated voltage:
5: Capacitance tolerance:
6: Pitch:
with above information we can quote exact price immediately
Why to choose us?
High quality commitment
Competitive prices, professional factory
Fast lead time and best after service
Strong sales & technical support
Quick response from sales representative
Promotions by exhibitions
click here to get quotation
* More information about ZZEC capacitors:
* About ZZEC
Guangzhou Zhongzheng Electronic Development Co., LTD is a dedicated metallized film capacitor manufacturer, established in 2007. We have established an industry zone which area is nearly more than 10000 square meters and annual production of about 1 billion film capacitors production and supply capacity. We have passed the “ROHS” test of ISO9001 quality management system certification. Our main products include the metallized polyester film capacitor (CL21), metallized polypropylene film capacitor (CBB21), box-type metallized polypropylene film capacitor (CBB21B), box-type subminiature metallized polyester film capacitor (CL23B), axial metallized polyester film capacitor (CL20), axial metallized polypropylene film capacitor (CBB20) and RC components, miniaturization of safety and other series products. Above product series, we can do the 5mm pitch products, which is advantage products in China.
Business philosophy: Quality first, customer first
Service tenet: Honesty, efficiency, innovation
Strategic objectives: professional manufacture subminiature, high precision, high quality capacitor experts
