XN-M51A Introduction and detail Description:

XN-M51A backpressure steam turbine is a single-stage back pressure steam turbine. The rotor adopts a complex speed stage impeller with a nozzle pitch diameter of 624mm. The turbine adopts a fully hydraulic control system with multi-valve regulation and forced lubrication. The spindle speed is 6500 revolutions. The generator generates electricity by changing the reducer to 1500 revolutions. It can also be designed according to user requirements.

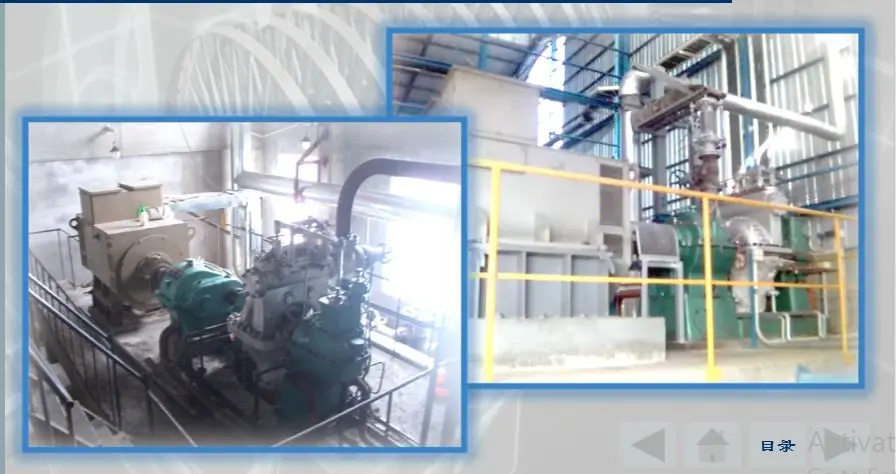

Product Picture Description:

Technical specification of Different XN-M51A Series Models:

Product Model	Rated Power (KW)	Rated Speed (rpm)	Inlet steam pressure (MPa)	Inlet steam Temperature (℃)	Exhaust Steam Pressure (MPa)	Exhaust Temperature	Steam Consumption (t/h)
B1-2.35/0.294	1000	6500/1500	2.35	390	0.294	222	12
B1-2.35/0.49	1000	6500/1500	2.35	390	0.49	237	15
B1-3.43/0.294	1000	6500/1500	3.43	435	0.294	225	9.6
B1-3.43-0.49	1000	6500/1500	3.43	435	0.49	240	12
B1-3.43/0.98	1000	6500/1500	3.43	435	0.98	305	18
B1.5-2.35/0.294	1500	6500/1500	2.35	390	0.294	222	17
B1.5-2.35/0.49	1500	6500/1500	2.35	390	0.49	237	24
B1.5-2.35/0.98	1500	6500/1500	2.35	390	0.98	299	30
B1.5-3.43/0.294	1500	6500/1500	3.43	435	0.294	225	14
B1.5-3.43/0.98	1500	6500/1500	3.43	435	0.98	305	27.6
B0.75-2.35/0.294	750	3000	2.35	390	0.294	222	12
B0.75-2.35/0.49	750	3000	2.35	390	0.49	237	12.89
B1-2.35/0.294	1000	3000	2.35	390	0.294	222	13.5

XN-M51A Longitudinal profile:

XN-M51A thermodynamic system diagram:

The general layout drawing of XN-M51A Series:

About the Company:

Anhui Xinning Energy Technology Co., Ltd. located in Ningguo National Economic and Technological Development Zone. It is an "equipment supplier and power operator" that provides the overall solution of industrial waste heat and residual pressure power generation and new energy power generation. The company's main products are special turbines for energy recovery and new energy thermal power generation, with strong R&D strength. At present, the company has independent intellectual property rights such as "radial steam turbine series", "special working medium steam turbine", “Organic Rankine Cycle (ORC) Low-Temperature Power Plant". Radial steam turbine working fluids include steam, Freon, carbon dioxide, compressed air, nitrogen, methane, and pentane, and so on. They are mainly used in iron and steel, metallurgy, petrochemical, chemical industry (coking, coal chemical, phosphorus chemical, alkali chemical, lithium salt, rubber, calcium carbide, ferroalloy, carbon), thermoelectricity, papermaking, kiln, furnace, etc. Waste heat and residual pressure recovery and high-speed dragging in printing and dyeing, cement, ceramics, coal gangue, oil field waste heat liquid, medicine, tobacco, food, and many other industries can also be applied to distributed energy systems, geothermal, biomass energy, solar thermal power generation. The radial turbine manufactured by our company is a kind of mechanical equipment which uses the temperature and pressure of steam (steam, compressed air, nitrogen, carbon dioxide, Freon and other different gases).  The company upholds the "integrity, cooperation and win-win" business philosophy to create maximum customer value for the development of purpose, timely grasp of industrial energy-saving high-end technology fields and the pulse of the industry, to provide users with energy-saving overall solutions. Hardworking and sincere we are willing to go hand in hand with you, create brilliant!

Awards and Certification:

 Our Services:

1. All turbines, generators, and control systems like DEH, ETS, TSI, etc. have to pass strict inspection and tested before shipping.


2. After receiving the goods, we accept your feedback the first time.


3. We could provide an installation guide, if you have a need, we could give you a global service


4. provide the customized solution.


5. Our Sales are 24-hours online for our request.


6. We value every inquiry sent to us, ensure a quick competitive offer.


7. We cooperate with the customer to bid tenders. Provide necessary documents.


8. We are a sales team, with all technical support from the engineering team.

FAQs:



1. How to get the quote?

There are different types of steam turbines and generators set, to choose the appropriate steam turbine and generator according to your requirements please provide us the following parameters

1.Intake steam parameters.

2. Steam turbine Capacity in KW or MW.

3. Generator terminal voltage and frequency

4. Outlet steam pressure of the turbine in case of backpressure steam turbine.

5. Extraction pressure and the flow in case of extraction and condensing steam turbine.

It is very important that buyers provide the information as much as they can to get the best quotation.

2. Are you a manufacturer?

Yes, we are a manufacturer as well as a supplier of various types of steam turbines.

3.What about the product quality?

We have a testing and quality control department to ensure the quality of the products to meet national and international standards in the steam turbine industry.

4.What about the price?

We only offer a reasonable price instead of the high price.



5. What about after-sales services?

We provide after-sales services based on customer demand. we provide installation and maintenance assistance abroad as we have customers around the globe. for more detail see above "Our Services".

6. What about Custom manufacturing?

Yes, we do custom manufacturing as well based on customer requirements.

7. How about packaging?

Standard export wooden case, iron frame, and another seaworthy packaging.
