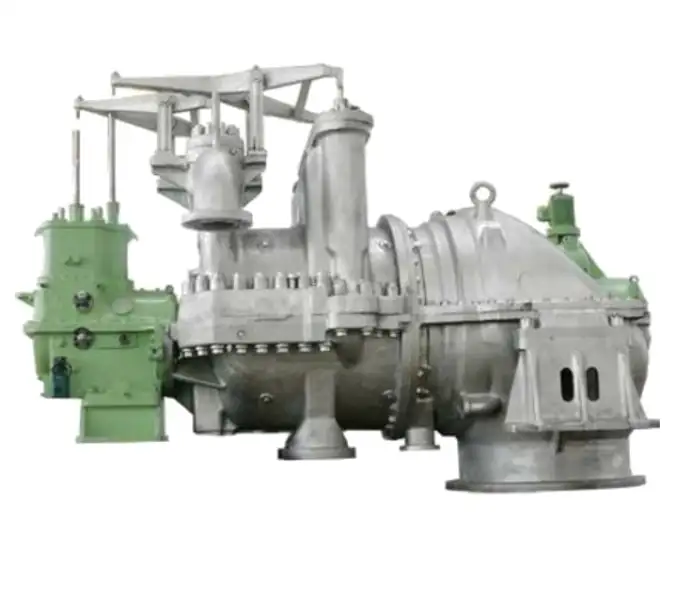

XN-T50 Introduction and detail Description:

XN-T50 steam turbine is a multi-stage condensing and extracting steam turbine. Two double-row complex speed stages and seven pressure stages are used as the flow passage part of the modular steam turbine. The actual number of stages used depends on the output power, rated speed, inlet steam pressure, and temperature of the turbine. The optimized design ensures the high-efficiency output rated the power of the steam turbine.
The turbine speed is 3000r/min, and the output power range is 3000-6000KW. The regulating system adopts electro-hydraulic regulating mode (WOODWARD 505E controller + CPCii electro-hydraulic converter or domestic DEH electro-hydraulic regulating system), multi-valve nozzle adjusting, double layers arrangement. T50 series steam turbines are multi-stage condensing and extracting steam turbines. The industrial extracting steam volume and the electric load of the users can be adjusted separately according to the needs of the users in order to improve the economy of the system. The steam turbogenerator units can also be operated under pure condensing conditions (zero industrial extracting steam volume).

Main Techincal Parameters of XN-T50:



Technical specification of Different XN-T50 Series Models:

Product Model	Factory Code	Rated Power (KW)	Rated Speed (rpm)	Inlet steam pressure (MP))	Inlet steam Temperature (℃)	Exhaust steam pressure (MPa)	Steam Extraction Pressure (MPa)	Extraction Volume (T/h)	Intak Steam Volume (T/h)
C3-3.43/0.98	XN-T50	3000	3000	3.43	435	0.008	0.98	15	27.4
C3-3.43/0.49	XN-T50	3000	3000	3.43	435	0.008	0.49	20	28
C6-3.43/0.49	XN-T50	6000	3000	3.43	435	0.008	0.49	45	57.5
C6-3.43/0.98	XN-T50	6000	3000	3.43	435	0.008	0.98	45	66.4

Note: The intake and exhaust steam pressure is absolute pressure.

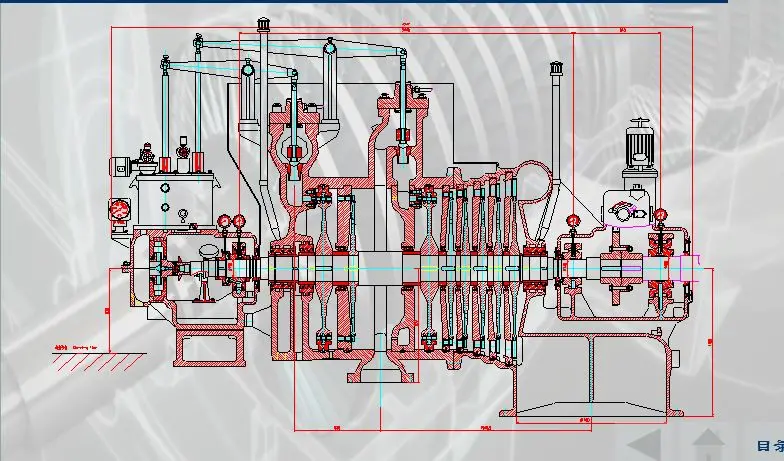

XN-T50 Longitudinal profile:

XN-T50 Thermodynamic system diagram:

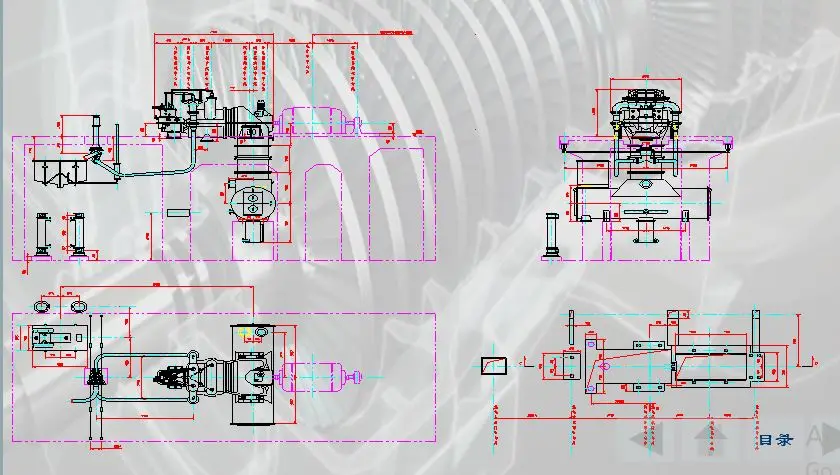

The general layout drawing of XN-T50 Series:

About the Company:

Anhui Xinning Equipment Co., Ltd. (the controlled subsidiary of Anhui Xinning Energy Technology Co., Ltd.), covering about  150,000 square meters, construction area of about 50,000 square meters. Is a professional research and development, manufacturing complete sets of casting equipment of science and technology enterprises. In October 2014, the Company successfully listed on the  National Equities Exchange and Quotations System (Stock Code: Xinning Stock; Stock Code: 831220). The Controlling subsidiary of Anhui Xinning Energy Technology Co., Ltd. to provide customers with industrial waste heat pressure recycling and new energy power generation overall solution. Main products for energy recovery of the low-temperature waste heat recovery system, new energy thermal power of special turbine machinery. R & D strength of the company now has a "radial turbine series", "special working fluid turbine", "Organic Rankine cycle low-temperature power generation complete sets of equipment" and other proprietary intellectual property products. The "radial turbine series" technology to fill the gap and reached the international advanced level. The company upholds the "integrity, cooperation and win-win" business philosophy to create maximum customer value for the development of purpose, timely grasp of industrial energy-saving high-end technology fields and the pulse of the industry, to provide users with energy-saving overall solutions. Hardworking and sincere we are willing to go hand in hand with you, create brilliant!

Awards and Certification:

Our Services:

1. All turbines, generators, and control systems like DEH, ETS, TSI, etc. have to pass the strict inspection and tested before shipping.


2. After receiving the goods, we accept your feedback the first time.


3. We could provide an installation guide, if you have a need, we could give you a global service


4. provide the customized solution.


5. Our Sales are 24-hours online for our request.


6. Professional sales


7. We value every inquiry sent to us, ensure a quick competitive offer.


8. We cooperate with the customer to bid tenders. Provide necessary documents.


9. We are a sales team, with all technical support from the engineer team.

FAQs:

1. Why Choose us?

We are R&D based manufacturer Compared with the same industry, our products are small size, lightweight, low steam consumption, high thermal efficiency, and simple in operation. (Our company's radial steam turbine won the first prize of scientific and technological innovation in Anhui Province in 2015, the science and technology award of 10 million yuan by Anhui Science and Technology Bureau, and the Fourth Prize in the national entrepreneurship competition in 2018.)

2. How to get the quote?

There are different types of steam turbines and generators set, to choose the appropriate steam turbine and generator according to your requirements please provide us the following parameters

1. steam turbine inlet pressure, flow, and temperature of the steam.

2. Steam turbine Capacity in KW or MW.

3. Generator speed in r/min.

4. Generator terminal voltage and frequency

5. Generator cooling method, ON/OFF grid.

6. Outlet steam pressure of the turbine in case of backpressure steam turbine.

7. Extraction pressure and the flow in case of extraction and condensing steam turbine.

It is very important that buyers provide the information as much as they can to get the best quotation.

3. Are you a manufacturer?

Yes, we are a manufacturer as well as a supplier of various types of steam turbines.

4.What about the product quality?

We have a testing and quality control department to ensure the quality of the products to meet national and international standards in the steam turbine industry.

5.What about the price?

We only offer a reasonable price instead of the high price.

6.How about the shipment?

Shipment by sea and by air is accepted, it depends on the volume of the order.

7. What about after-sales services?

We provide after-sales services based on customer demand. we provide installation and maintenance assistance abroad as we have customers around the globe. for more detail see above "Our Services".

8. What about Custom manufacturing?

Yes, we do custom manufacturing as well based on customer requirements.

9. How about packaging?

Standard export wooden case, iron frame, and another seaworthy packaging.

10. How long is the delivery time?

We ship our goods to China's Seaport. We can't decide the time needed for other transportation, but the manufacturing time can be discussed as per requirements, and it directly depends on the order volume and necessity like urgent or normal.
