YEZON PY201 RS485 Level Transmitter 4-20mA 0-5VDC Water Sensor

Product Description:

PY210-RS485 output digital pressure/level transmitter uses high precision and high stability diffused silicon pressure sensor as the sensor chip of the transmitter. Advanced chip technology, with zero point, full range compensation, temperature compensation, high precision and high stability amplification integrated circuit, will be measured medium pressure into RS485 standard. Communication signal. The structure of the product is made of stainless steel, which greatly improves the impact resistance, overload resistance and sealing performance of the product. The maximum pressure of the product can reach 30 MPa. Product process connection and electrical connection have many ways to maximize the needs of users.

Applied to hydraulic and pneumatic control systems; petrochemical, environmental protection, air compression; power station operation patrol inspection, locomotive braking monitoring system; thermoelectric units; light industry, mechanical metallurgy; pressure monitoring and testing system; industrial process detection and control.

Product Features:

A. adopts imported diffused silicon pressure sensitive chip.
B. advanced SMT technology has zero point, full scale compensation and temperature compensation.
C. high precision and high stability amplifier IC;
D. stainless steel structure, impact resistance, fatigue resistance, high reliability.
E. communication adopts RS485 communication protocol, half duplex operation mode, and the highest communication rate is 57600BPS.

F. structure is small and the outer diameter is 26mm.
G. uses a simple ASCII code format for easy use. The maximum sampling speed is 10 times / sec.

Product Application:

A. hydraulic and pneumatic pressure monitoring system;
B. petrochemical, environmental protection, air compression;

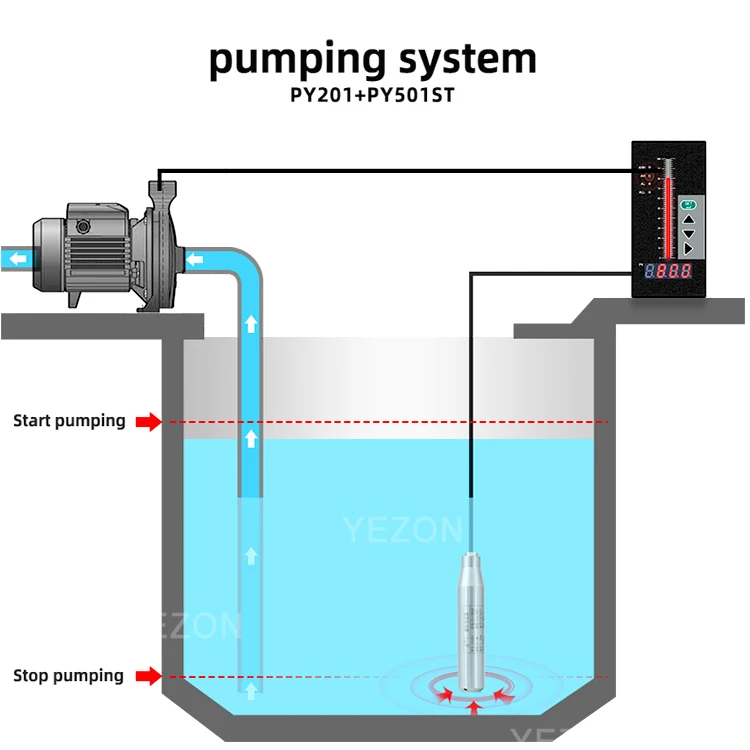

C. building automation and constant pressure water supply system monitoring;
D. wide area monitoring of water pipe network pressure;
E. power station operation inspection and locomotive braking system;
F. pressure network of urban pipe network, oil field pipeline and large and small hydropower station. The twisted pair network is composed of RS485 bus, which is especially suitable for computer control system.
