Характеристики

About Us

Company Introduction

Xinxiang DongZhen  Machinery  Manufacturing Co.,Ltd.  is an innovative enterprise integrated with technology researching, manufacturing and trading. The enterprise is professional in vibration machines which are widely used  in  screening  and  conveying,  also  specialized in the design,  manufacture and the installation of other related supporting products.


The devices produced by DongZhen covers vibrating screen,vibrating conveyor, and other types of machinery and equipment,  having five categories,  more than 60 series,  more than 800 model specification, customers located in the major  north-south  of China and products exported to many countrys and region of 5 continents, gaining a high reputation from new and old customers.
Product Description

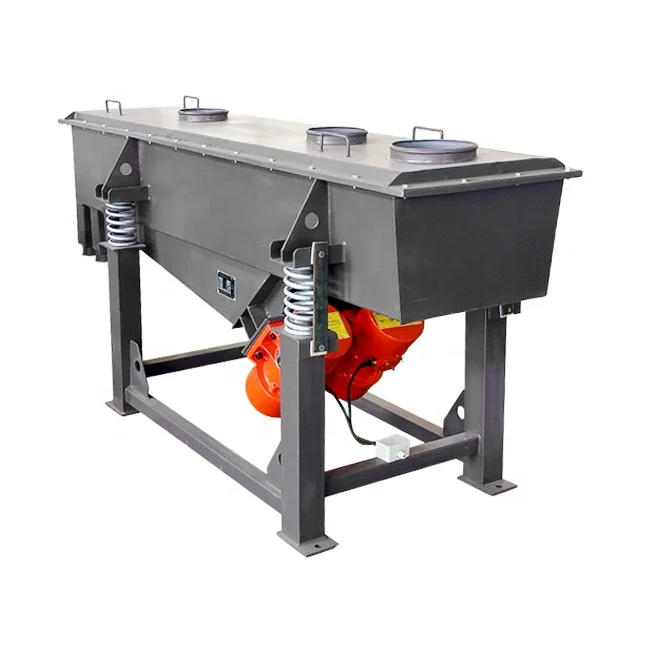

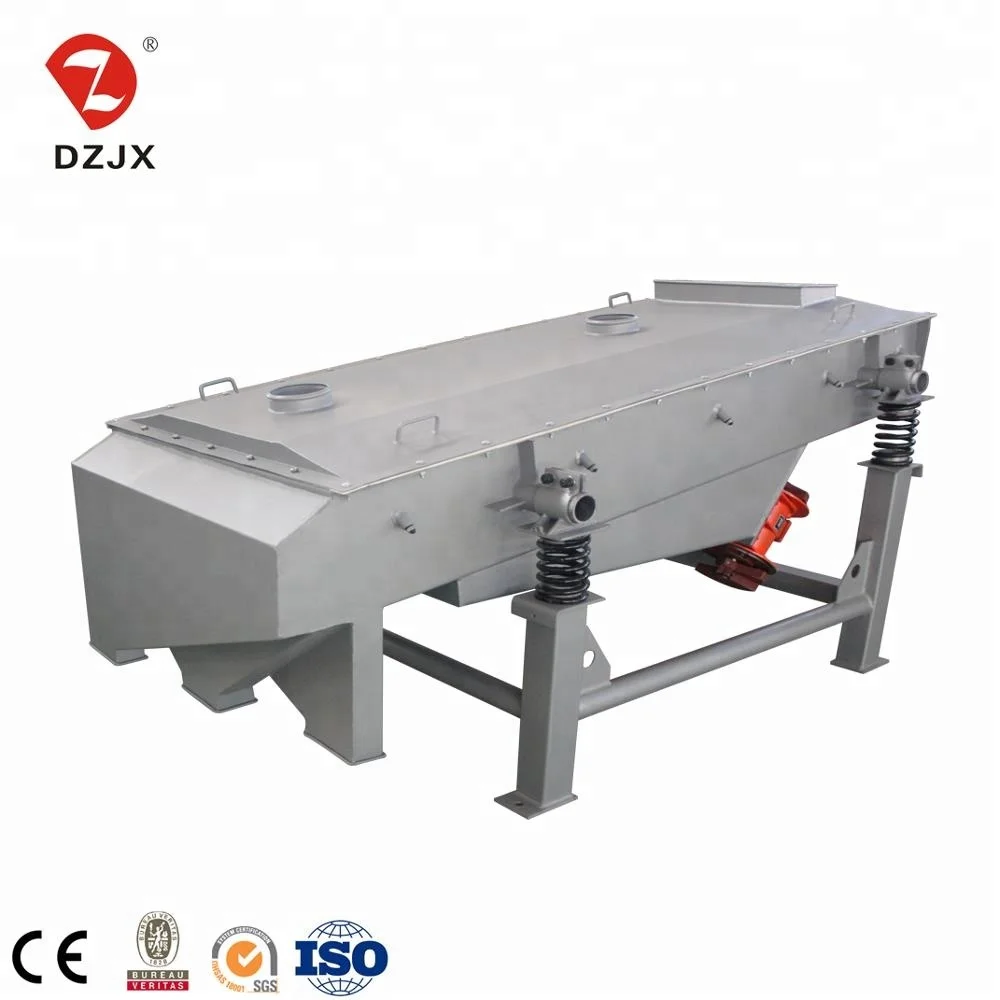

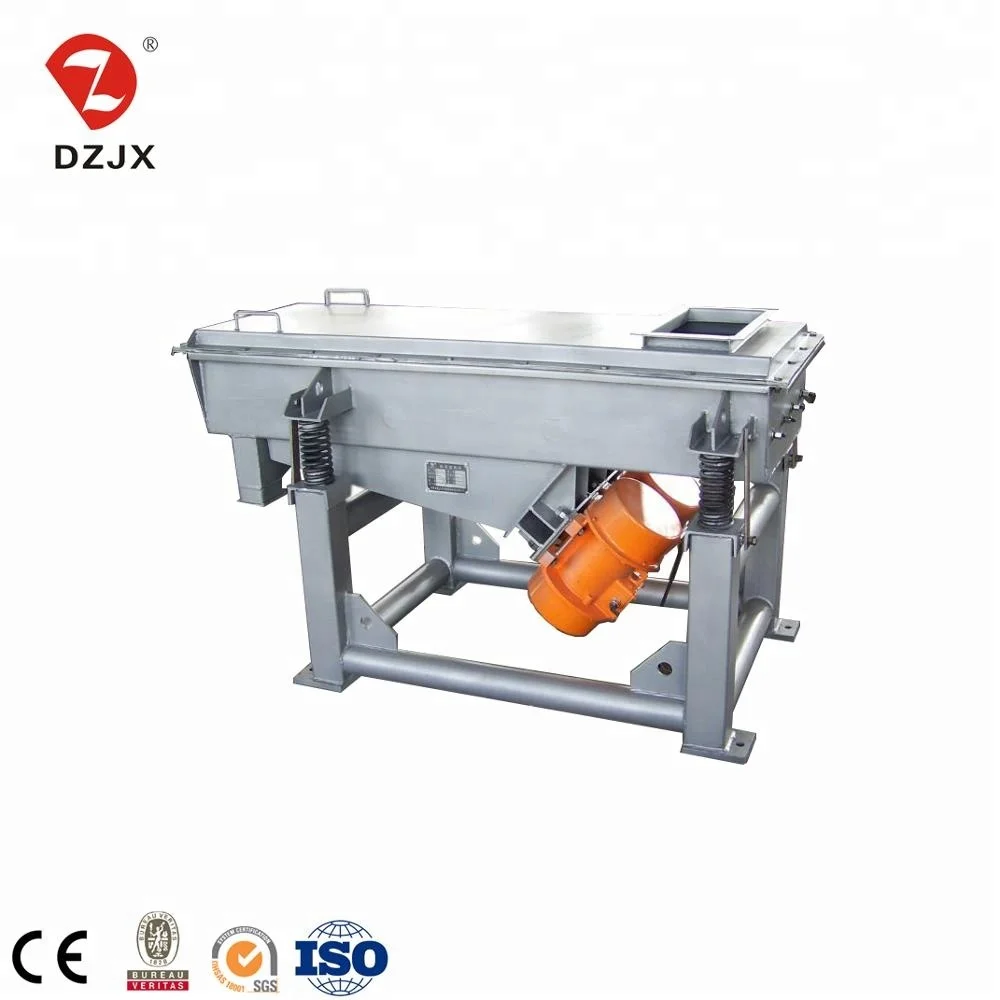

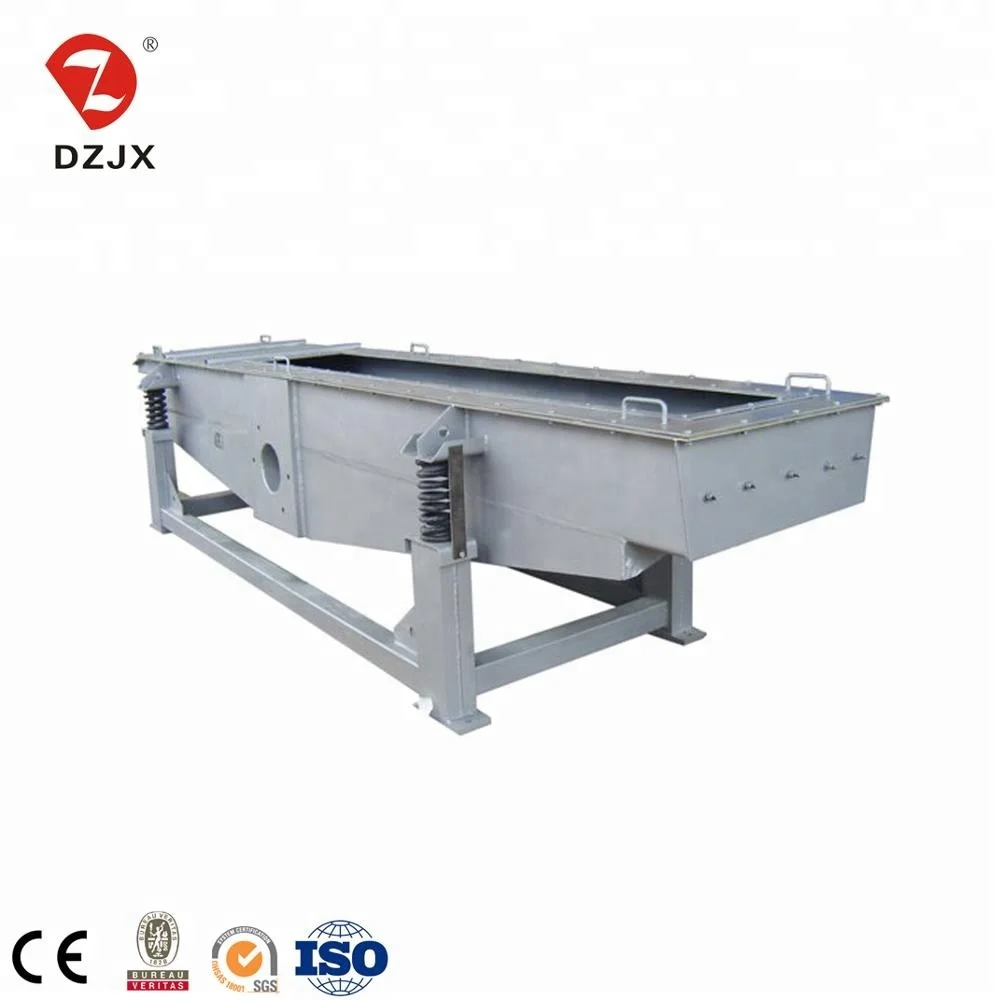

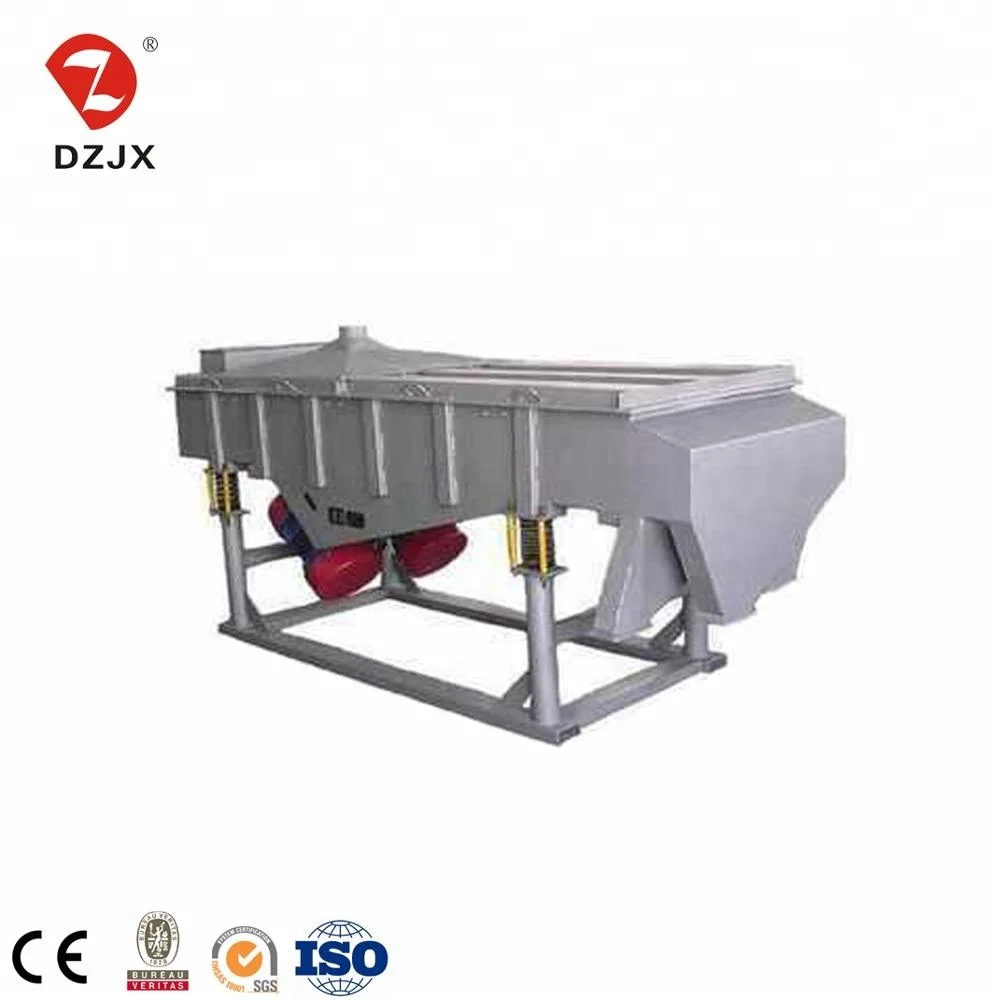

 Introduction of linear vibrating screen:


----DZ ZSQ Series Linear Vibrating Screen is a kindly of stadard and universal screening machine. It consists of screen ----------frame(screen box), supporting or hanging device, driving device, vibration isloation and other parts.

----With two vibrating motors mounted on both sides of the machine body, or mounted on the bottom base of the machine body, this make the materials running a straight trace on the sieve to finish the screening work.

----Special custom-made service are available, you just need to tell us your detailed requirements, such as type of material, required processing capacity, mesh size, your local power voltage, Hz, Phase ec.

----Spare parts for free within 12 months warranty period. Our engineers and sales also provide online realtime supports through Skype, MSN etc.



        Model
     ZSQ-520
     ZSQ-840
      ZSQ-1030
      ZSQ-1255
      ZSQ-1650
Dimension(mm)
     500×2000
     800×4000
     1000×3000
     1200×5500
     1600×5000
  Speed(r/min)
        960
          960
         960
         960
        960
Granularity(mm)
     0.074-60
      0.074-60
      0.074-60
      0.074-60
      0.074-60
      Amplitude
        4-8
         4-8
        4-8
         4-8
         4-8
        Deck
        1-4
         1-4
         1-4
          1-4
          1-4
     Power(kw)
        2×0.75
        2×1.5
        2×1.9
        2×2.2
        2×3.0
Operating principle

ZSQ series linear vibrating screen using the excitation force   of   vibration   motor   as  vibration   source,   its
working  principle  is  that  two  of  the  same  type and specification  do  synchronous vibration motor reverse rotation,  the line  form,  a periodic  alternating exciting force  to  drive the sieve box,  led screen surface,  and then   make   materials   was   put   up  on  screen,  do jumping  movement forward at the same time, several kinds   of  specifications  of  the  screen  by  multilayer sieve   on    content   and   undersize   content,    finally respectively  from  their  respective discharging mouth eduction, complete screening operation.



1. Precision design: Compact design and simple structure, it is easy to assembly, operate and maintain, ideally suited for automatical operation in production line.

2. High screening efficiency: With high precision, large processing capacity, low noise and energy consumption, fully sealed design and no dust polution.

3. Unique screen design: Unique screen structure, cleaned and its screen mesh is easy change (3-5 minutes), suitable for variety of screens(nylon, pp)

4. Durable structure: The coarse screen mesh fully supports the fine mesh, which can extend the life of the fine mesh, and reduce the cost of screen mesh.

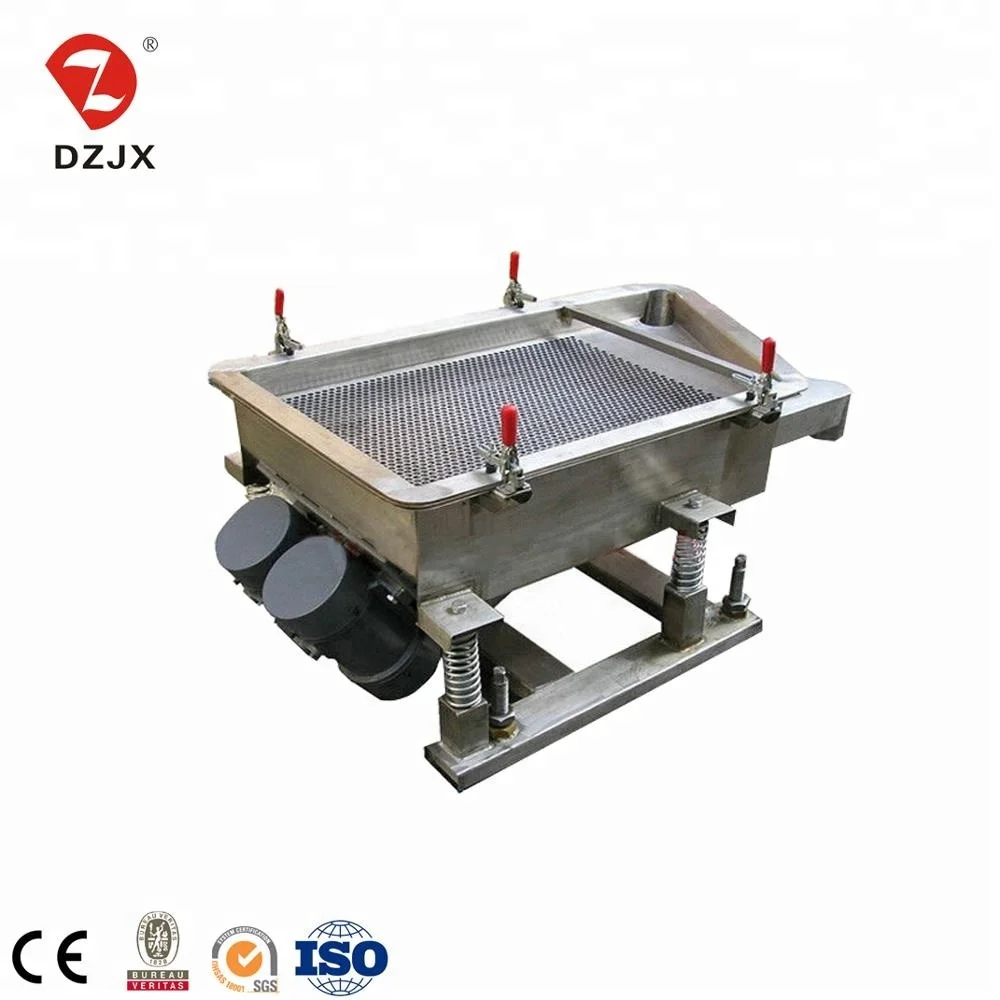

Detailed Images


Name:   Horizontal machine


Brand:  DZJX

Original: China


Name:  Screen frame


Brand:  DZJX

Original:  China


Certifications
Packing & Delivery
Packaging
Size
 As per order
Weight
 As per order



Packaging Details



Wooden case covering a list of Vibrating screener machine , intruction manual and necessary spare.
Related Products

GZV Tiny Electromagnetic Feeder


 high efficiency widely used rotary  vibrating screen


 DZYS Tumbler Screen


FAQ

Quotation of factors

Material  bulk  density,  mesh  size ( length  &  angle  for  conveying  series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.

Delivery  time
7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.

Quality of products
Generally,  our  equipments  are  the  most durable type in the industry. With our experienced quality control team, we are trying to offer most of our customers the product with bset quality. However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.

After-sale service
In  the  gurantee  time  12  months,  our  general  after-sale  service  is  changing  the  damaged parts for the
