Product Description
FTA TUNERS INPUT | IP STREAMING OUTPUT | ||||
DVB-T/T2 Tuner | Frequency Range\t30MHz-1000Mhz Bandwidth\t6Mhz, 7Mhz, 8Mhz Level\t-87 ~ -20dBm Constellation\tQPSK, 16QAM, 64QAM, 256QAM (Only DVB-T2) FEC Demodulation\tDVB-T: 1/2, 2/3, 3/4, 5/6, 7/8 \tDVB-T2:1/2, 3/5, 2/3, 3/4, 4/5, 5/6 Guard Interval\tDVB-T: 1/4, 1/8, 1/16, 1/32 \tDVB-T2:1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64,1/128 | DVB-ASI Input | Connector\tBNC female, 75Ω Signal Level\t200-800mVp-p Packet Length\t188 bytes Maximum bit-rate\tper port ≤100Mbps Number of Input Ports\tDual separate ASI ports | ||
ISDB-T/Tb Tuner | Input frequency range\t30 ~ 900MHz Bandwidth\t6MHz Constellation\tDQPSK, QPSK, 16QAM, 64QAM Interleave\t0, 4, 8, 16 Guard Interval\t1/32, 1/16, 1/8, 1/4 Transmission Mode\t2K, 4K, 8K (FFT) FEC (Code Rate)\t1/2, 2/3, 3/4, 5/6, 7/8 | Multiplexing | Maximum PID Remapping 180 input per channel PID remapping by automatically or manually PSI/SI: SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert Accurate PCR adjusting Max Numbers: 4 mux for RF and 1 Mux for 4*MPTS(4*MPTS channels can Separate MUX) IP out in Modulation 4 MPTS IP out in Tuners gateway | ||
DVB-C Tuner DVB-C (J83.A, J83.B, J83.C) | Carrier\tAnnex A\tAnnex B\tAnnex C Constellation (QAM)\t16,32,64,128, 256\t64\t256\t64/256 Bandwidth (Mhz)\t8\t6\t6\t6 Symbol Rate ( Mbaud)\t5-7\t5.057\t5.361\t4.2-5.3 Numbers of Boards\t4 Tuners ports per module, Up to 6 Modules in Back panel Numbers of tuner\t8, 12, 16, 20, 24 tuners for option Tuner type\tDVB-C,DVB-S/S2,DVB-T2/T, ISDB-T/Tb, ATSC, DTMB for option Tuner interface\tConnecter F-female type | Stream Output | DVB-ASI: 2 Separate ASI, 75Ω, BNC, 188Bytes MPEG-2 TS over DVB-ASI (EN 50083-9) Selectable Mirror of One MPTS RJ45 Port: 100/1000M GbE Port Simultaneous output with 256* SPTS and 4*MPTS MPEG-2 TS over UDP, unicast, and multicast streaming MPEG-2 TS over RTP/RTSP Configurable Packet size (2-7)x188Bytes Filter Null Packet SPTS limit selectable: 2.3M, 2.5M, 2.9, 3.3M, 3.8M, 4.6M, 5.7M, 7.6M, 11.5M, 23M | ||
DVB-S/S2 Tuner | Input Frequency :950-2150Mhz Symbol rate\t2~45Mbauds (DVB-S QPSK) 1~45Mbauds (DVB-S2 QPSK) 2~30Mbauds (DVB-S2 8PSK) Signal Strength: -65 ~ -25dBm FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8(DVB-S QPSK) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (DVB-2 QPSK/8PSK) Roll Off\t0.20; 0.25; 0.35(Only DVB-S) Demodulation Mode\tQPSK, 8PSK (Only DVB-S2) LNB Polarity Selection\tVol 0, 13V, 18V Selectable LNB Band Selection Tone\t0/22Khz Selectable Input Impedance\t75 Ω FEC (Code Rate)\t1/2, 2/3, 3/4, 5/6, 7/8 | System | Local interface\tLCD + control buttons Configuration Interface\tWeb-based, NMS Remote Upgrade\tvia network Connector\tRJ45, 100M/1000M Ethernet interface | ||
ATSC Tuner | Frequency range\t50–860 MHz Key reference specification\tATSC A/53 Input level\t-34 to +40 dBmV Constellation\t8-VSB | Physical and Power | Voltage\t100 to 120/200 to 240V AC ±10%; 50/60Hz Consumption\t60W Operating temperature\t0~50°C Storage Temperature\t-20 ~ 80℃ Dimensions\t483mm(W)*380mm(D)*44.5mm(H) Weight\t6kg/pc | ||
HIGHLIGHTS:
Multi-channel Tuners input: The Tuners support DVB-S/S2,DVB-T/T2,DVB-C,ISDB-T/Tb,ATSC-T,DTMB input
for option, IP stream output by 256*SPTS or 4*MPTS
Operation via LCD Screen and Web Management: Easy to read LCD color front panel that makes it easy to setup and monitor your channels, check firmware, and identify IP addresses without a computer.
OVERVIEW

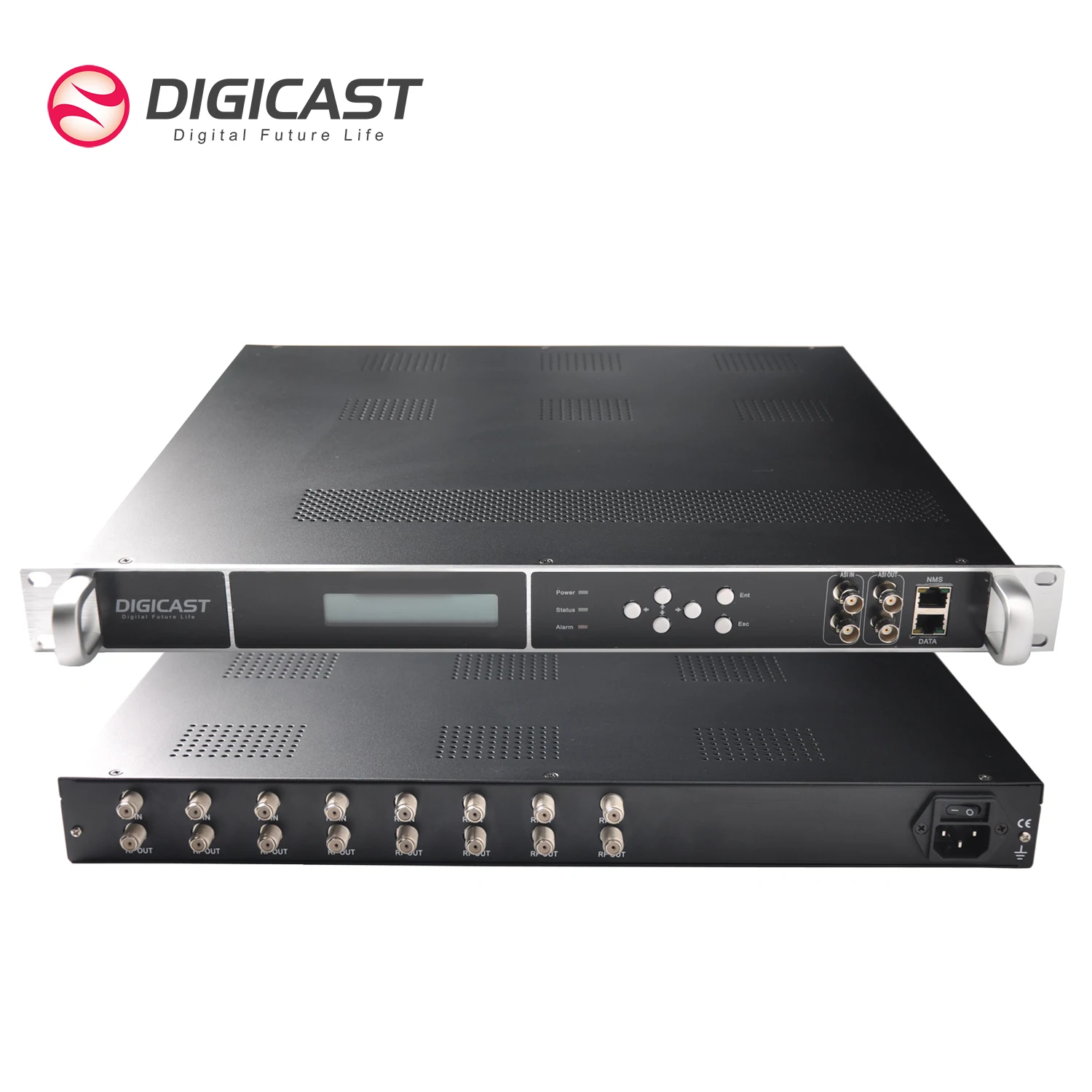

DMB-90E Series 8/12/16/20/24 Channels professional Receiver, 4 Tuners ports per module, Up to 6 Modules in Back panel. It is integrated with tuner demodulation, which can demodulate from 8/12/16/20/24 tuners, then output the IP package through different IP address and ports. The Tuners support DVB-S/S2/T/T2/C/ISDB-T/ ATSC-T optional input, demodulate to TS and encapsulated output IP packet, IP Output Port by 256*SPTS and 4*MPTS channels. Meanwhile, it support 2*ASI independent input & output.

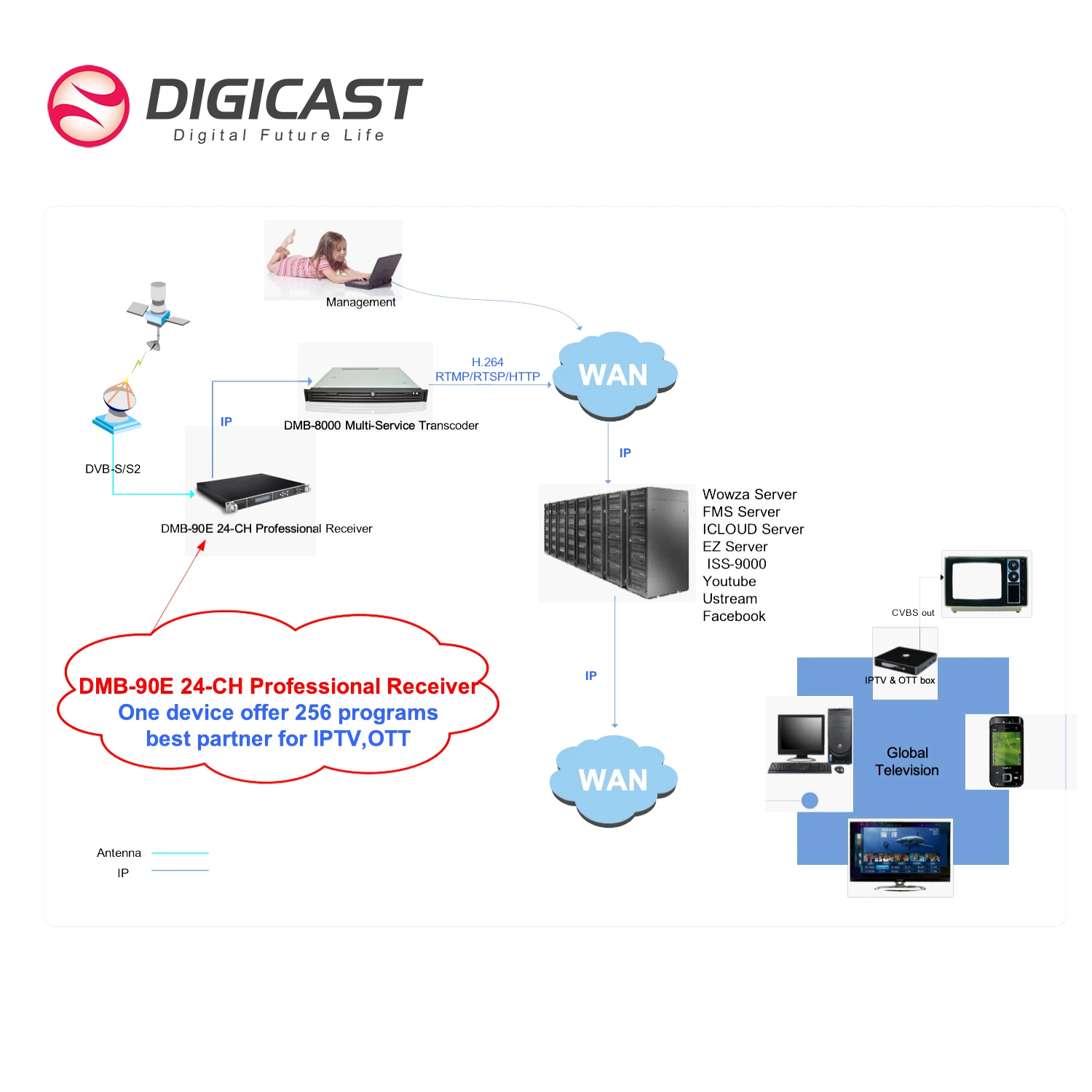

This is an ideal solution for environments where you have a large number of air Channel, and widely used in IPTV System, Hotel, entertainment facilities, education broadcasting systems at schools and government buildings or any kinds of Source signals convert to Cable TV broadcast System, largely cost down the source gathering of Digital TV Broadcasting system and IPTV/OTT system which based on IP construction. Being the ideal multi-channel professional receiver used for FTA (free to air) IP signal source capture from digital tuner.
FEATURES
* Tuner input: Up to 24 FTA Tuners input
*Tuner standard option:DVB-S/S2,DVB-T/T2, DVB-C, DTMB, ISDB-T/Tb,
ATSC, 4 Tuners per module, Up to 6 Modules.
* Two separate ASI input for External TS Multiplexing
* Two separate ASI output
* IP stream output: 4*MPTS and 256*SPTS
* Output IP protocol: UDP/RTP
* the Value of PCR PID can set same as Video PID
* support LCN (Logical Channel Number)
PID Remapping & Filtering
* Low cost headend receiver for IPTV OTT System
* Superior Shoulders and Excellent modulation
quality MER
* Easy-to-Use System Management via Web
* PSI/SI editing & inserting
* Low power consumption and high reliability with
MTBF(Mean Time Between Failure) ≦87600 Hours
* Highly compact , High-Integrate
* Support PCR correct and PCR interval adjusting
* 24*7 hours working stable, broadcasting quality
Diagram
